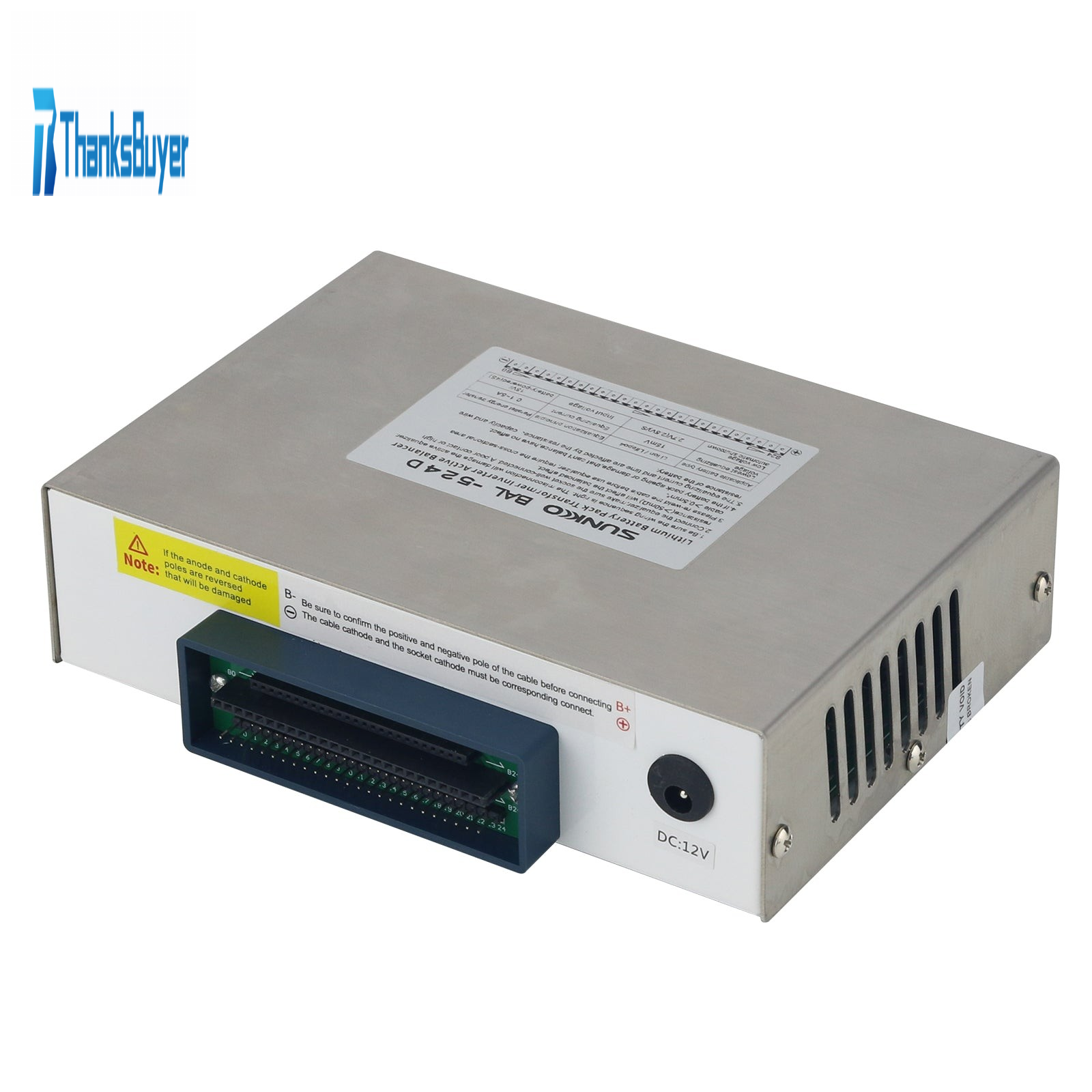

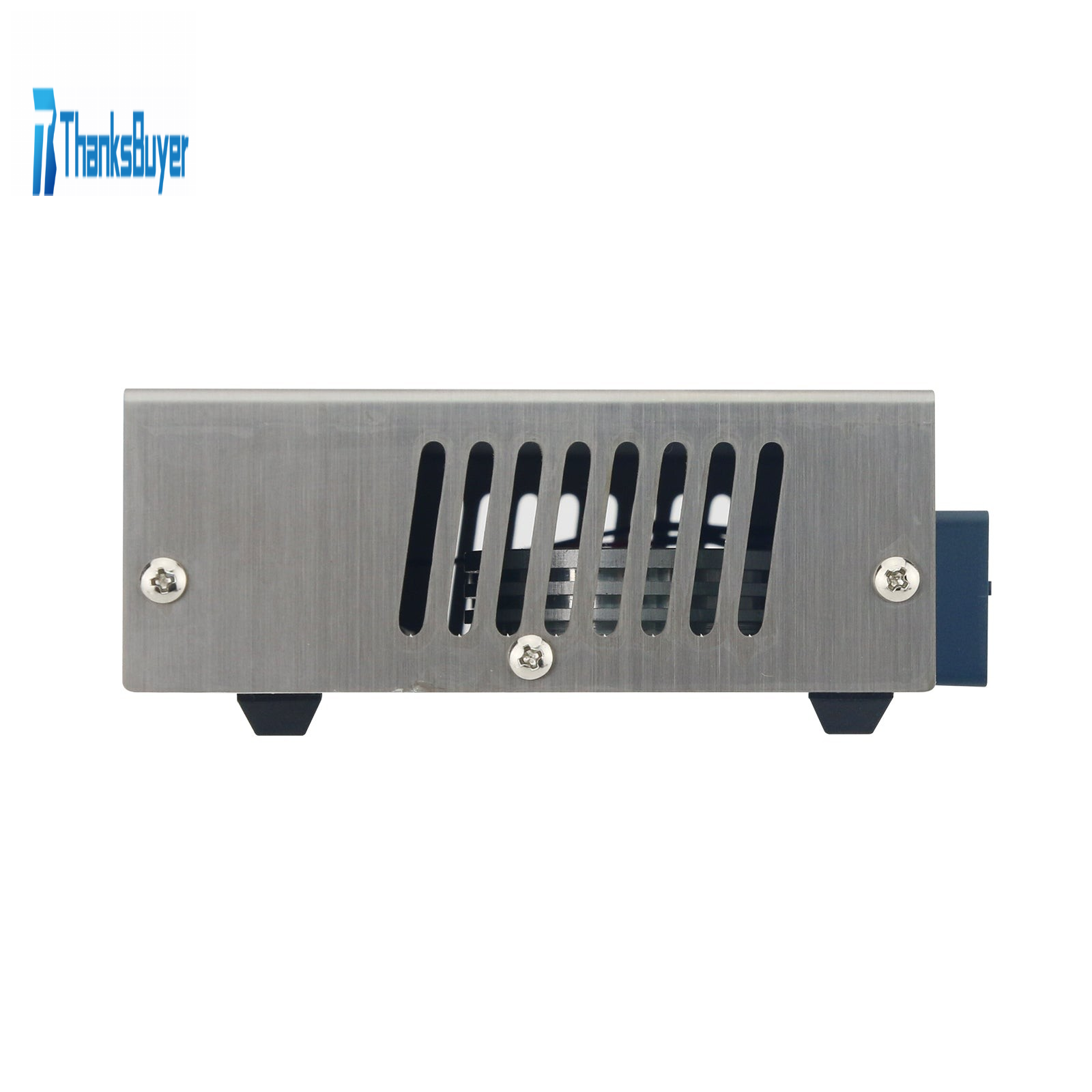

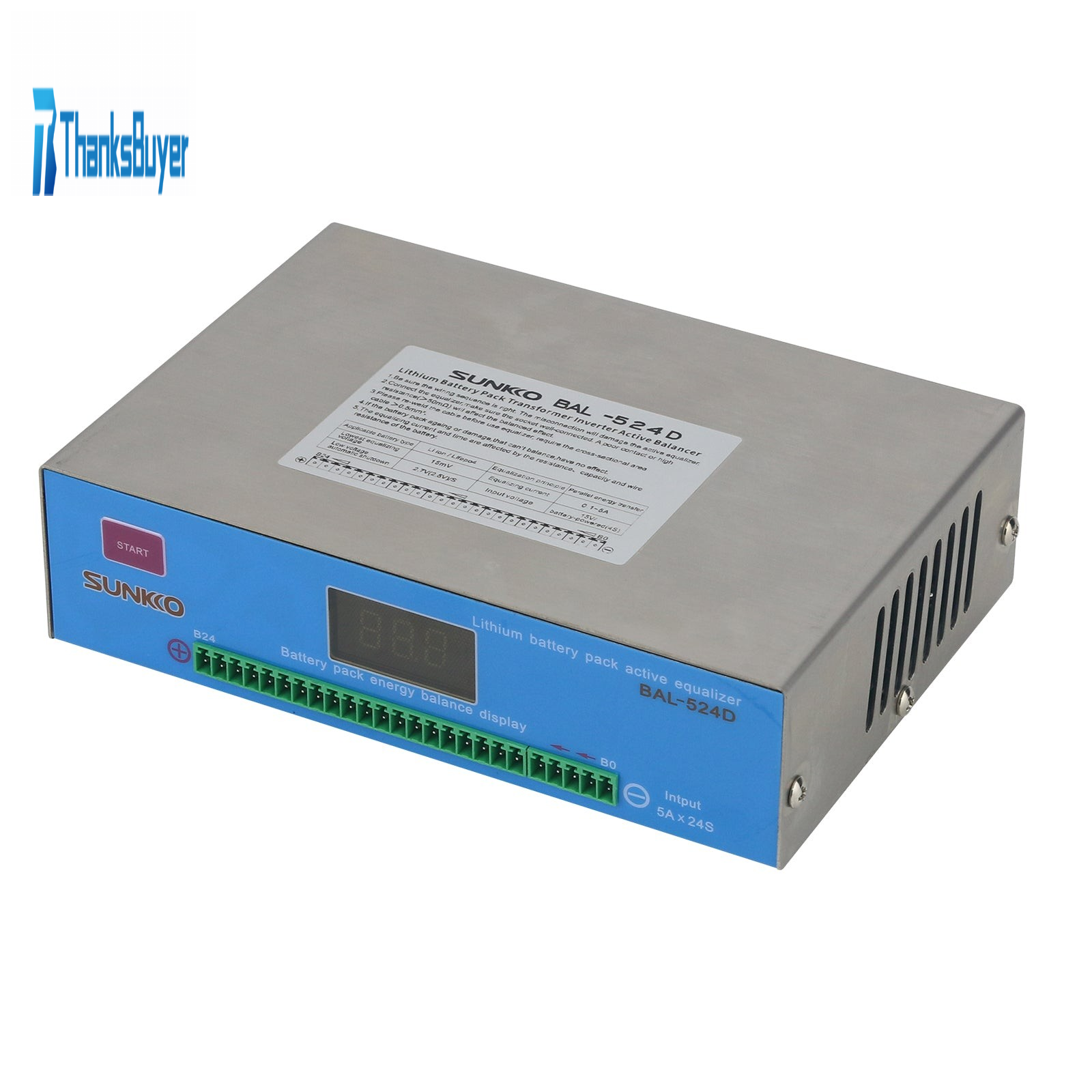

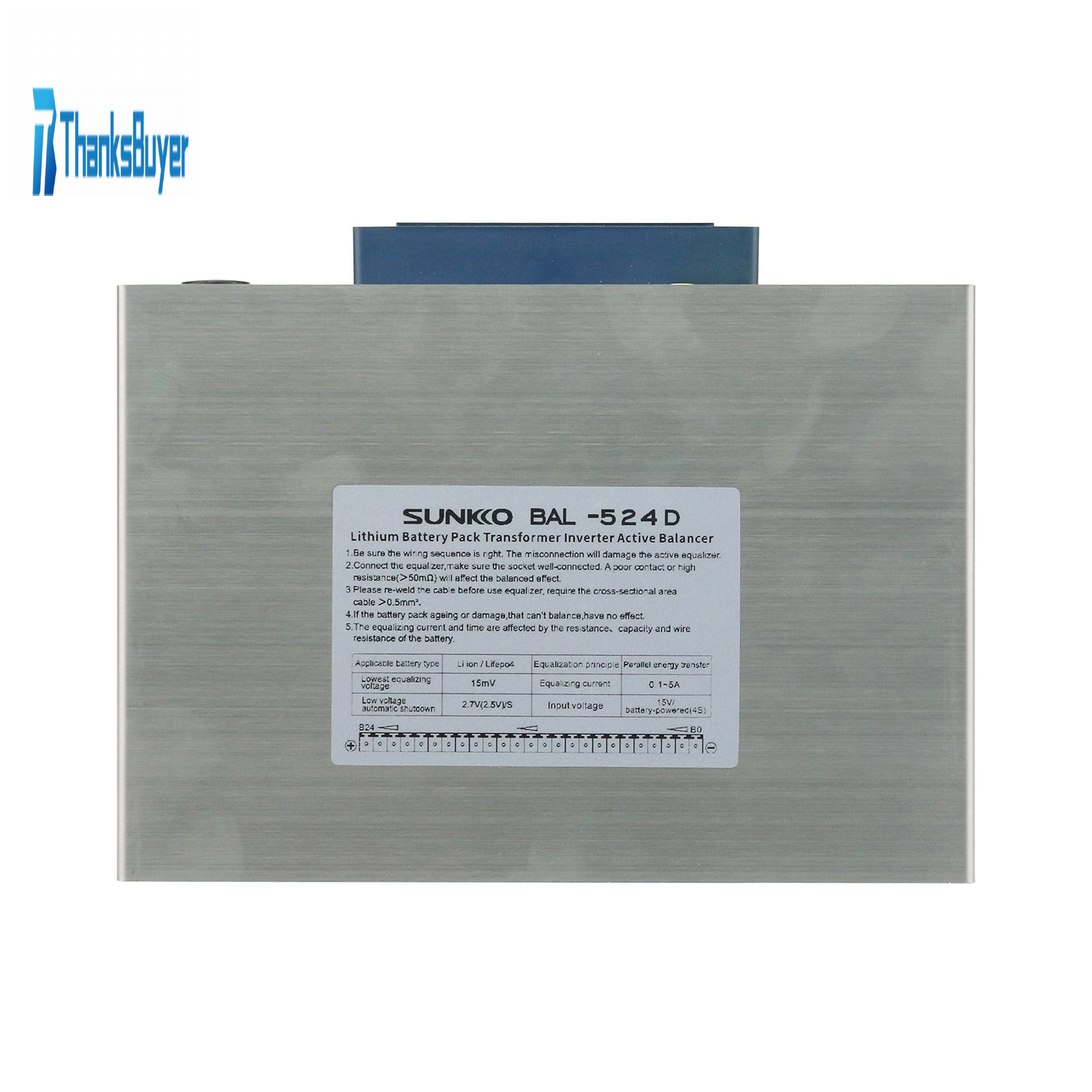

SUNKKO 524D Lithium Battery Pack Transformer Inverter Active Equalizer Balancer LED High Definition Display

Function:
- Balance and repair the voltage difference of high-capacity battery pack, restore the capacity and refresh your battery pack.

Working principle:
- Balance mode: Energy transfer active balance technology

Application:
- Lithium iron phosphate battery packs or ternary lithium battery packs used in electric vehicles, unmanned aircraft, power tools, electric appliances, robots and other equipment.

Features:
- Equalizing current: 0.1 - 5A
- Compared with common 1A equalization board, the equalization speed is increased by 5 times.
- Higher current and faster equalization.
- LED high definition digital display, test the health of your battery pack.
- The equalizing pressure difference can reach 0.01V.
- When the equalizer is actually used to equalize battery pack, the magnitude and effect of the equalization current are affected by the following factors:
Internal resistance of battery pack: The smaller the internal resistance, the greater the equilibrium current.
Contact resistance of connecting cable and connector: the smaller resistance, the greater equilibrium current.
Voltage difference between battery cells (unbalanced): the greater voltage difference, the greater equalization current.

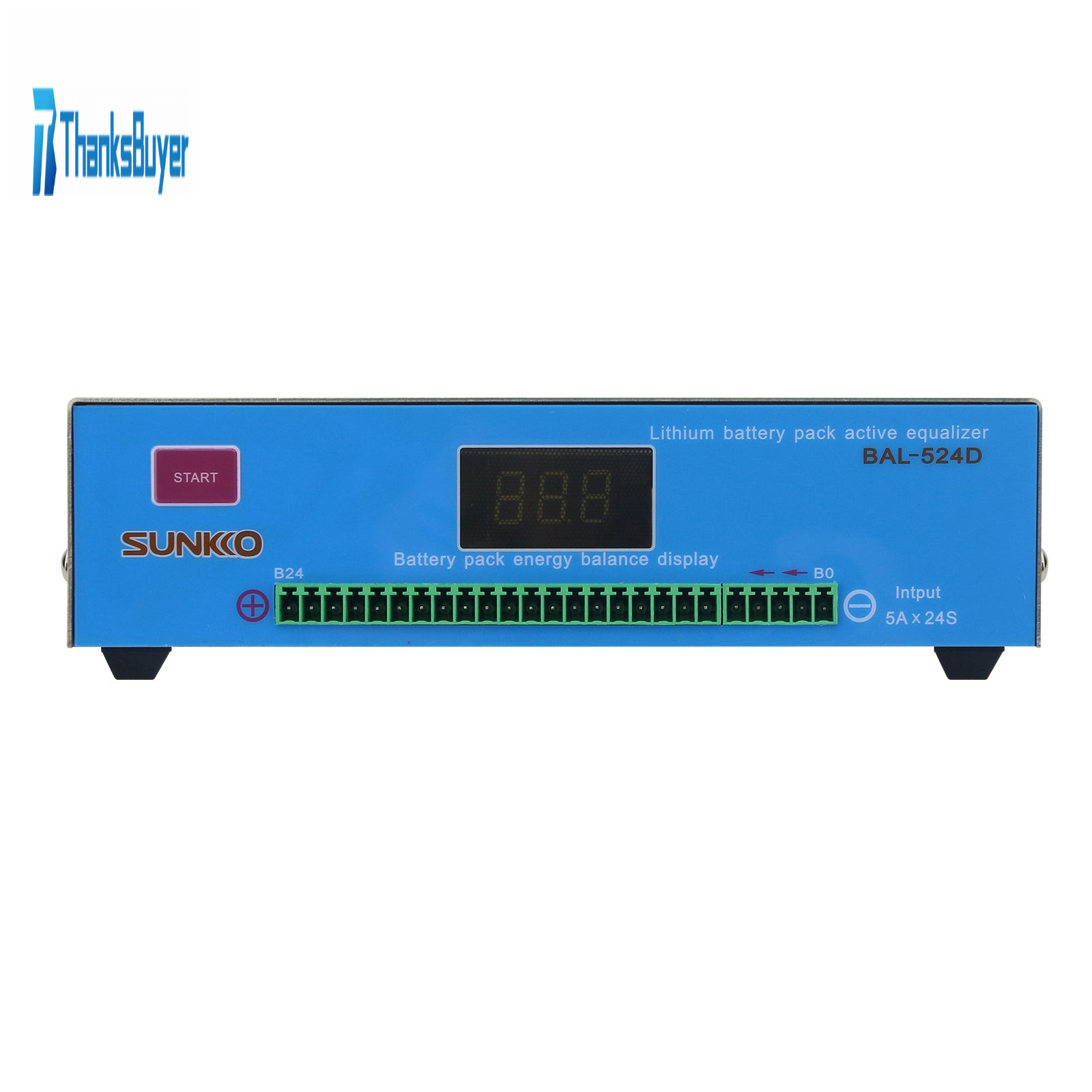

LED Indication:
- LED work indicator, standby mode: The blue LED always on,display the total voltage of battery pack.
- Continuous equilibrium state: The green LED always on,the red LED flashes,display the average voltage.

Specification:
- Equalizing Current: 0 ~ 5A
- Equalization Principle: Energy Transfer Active Balance Technology

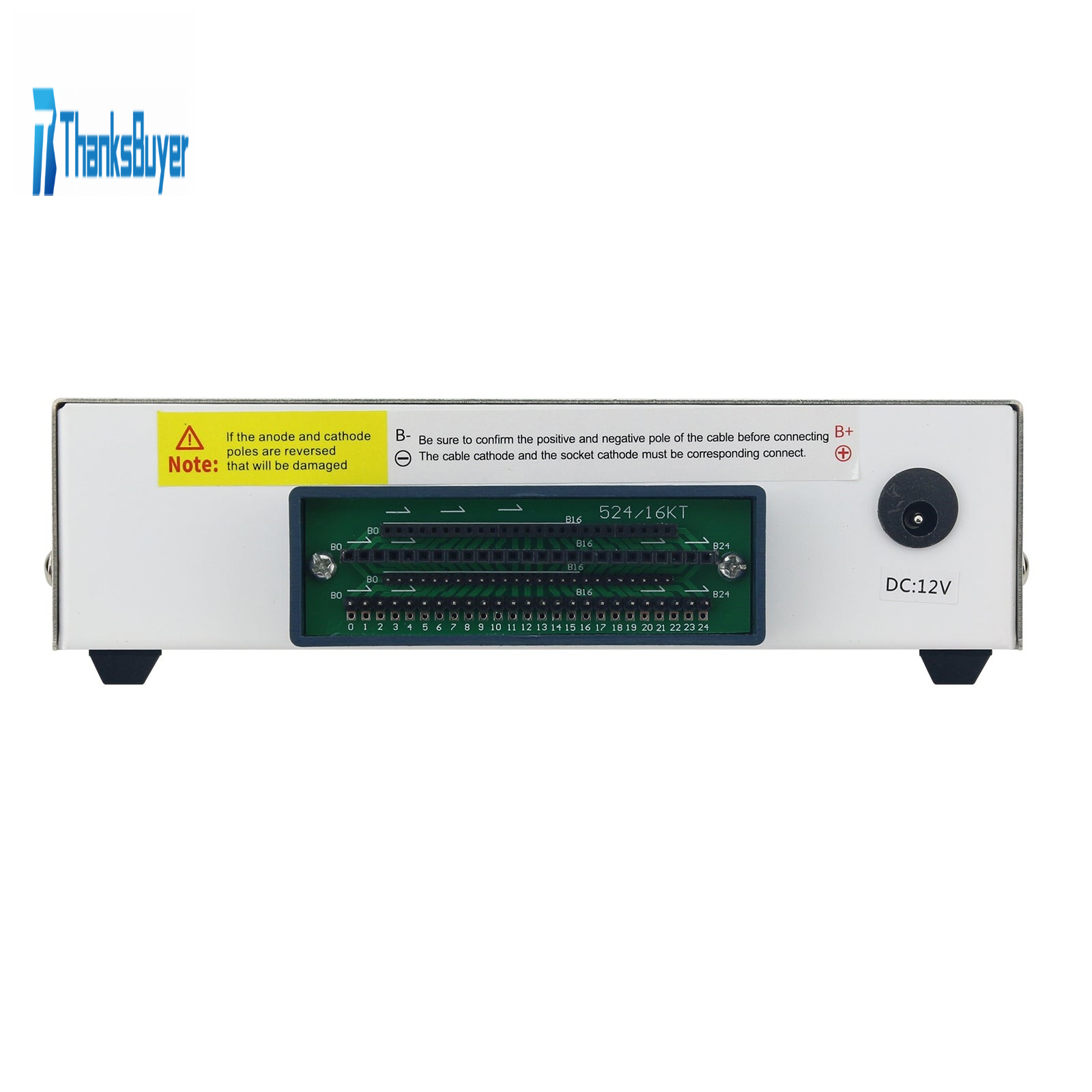

- Plug-in Interface：3.81/2.54/2.0

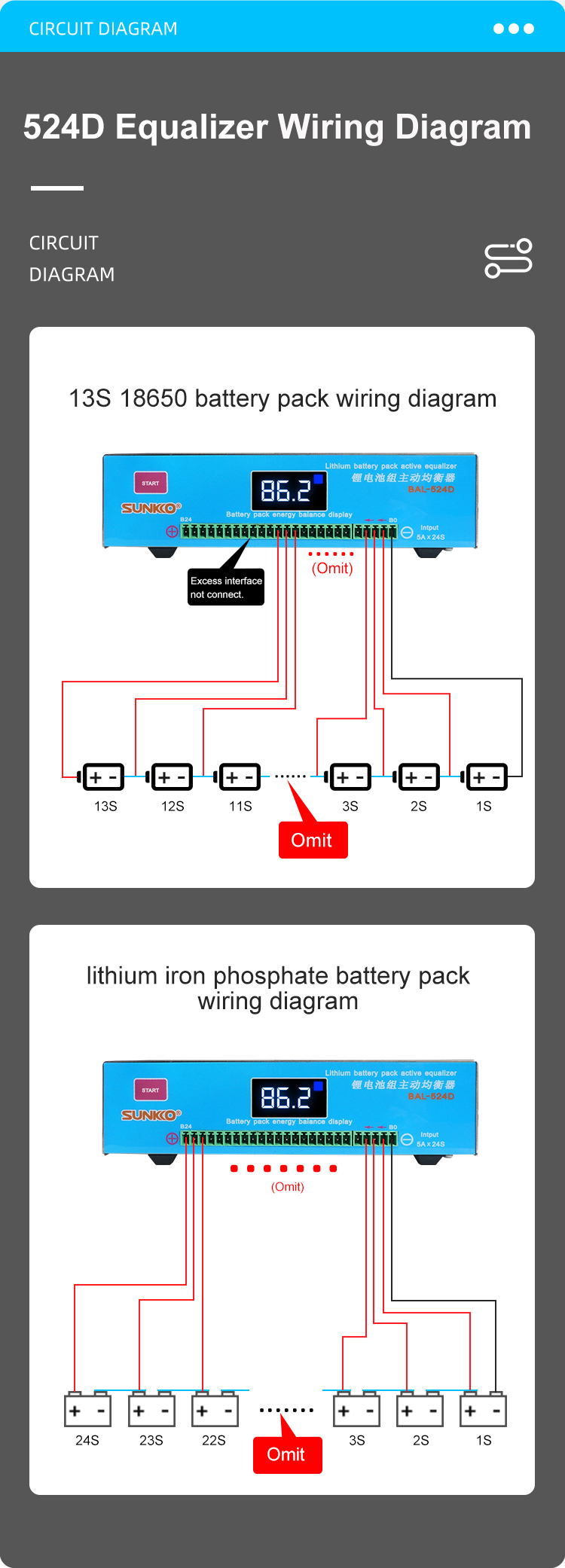

- Applicable Battery Strings: 4 ~ 24S
- Applicable Battery Type: Ternary lithium battery / Lithium iron phosphate battery
- Size: 170 x 119 x 50mm

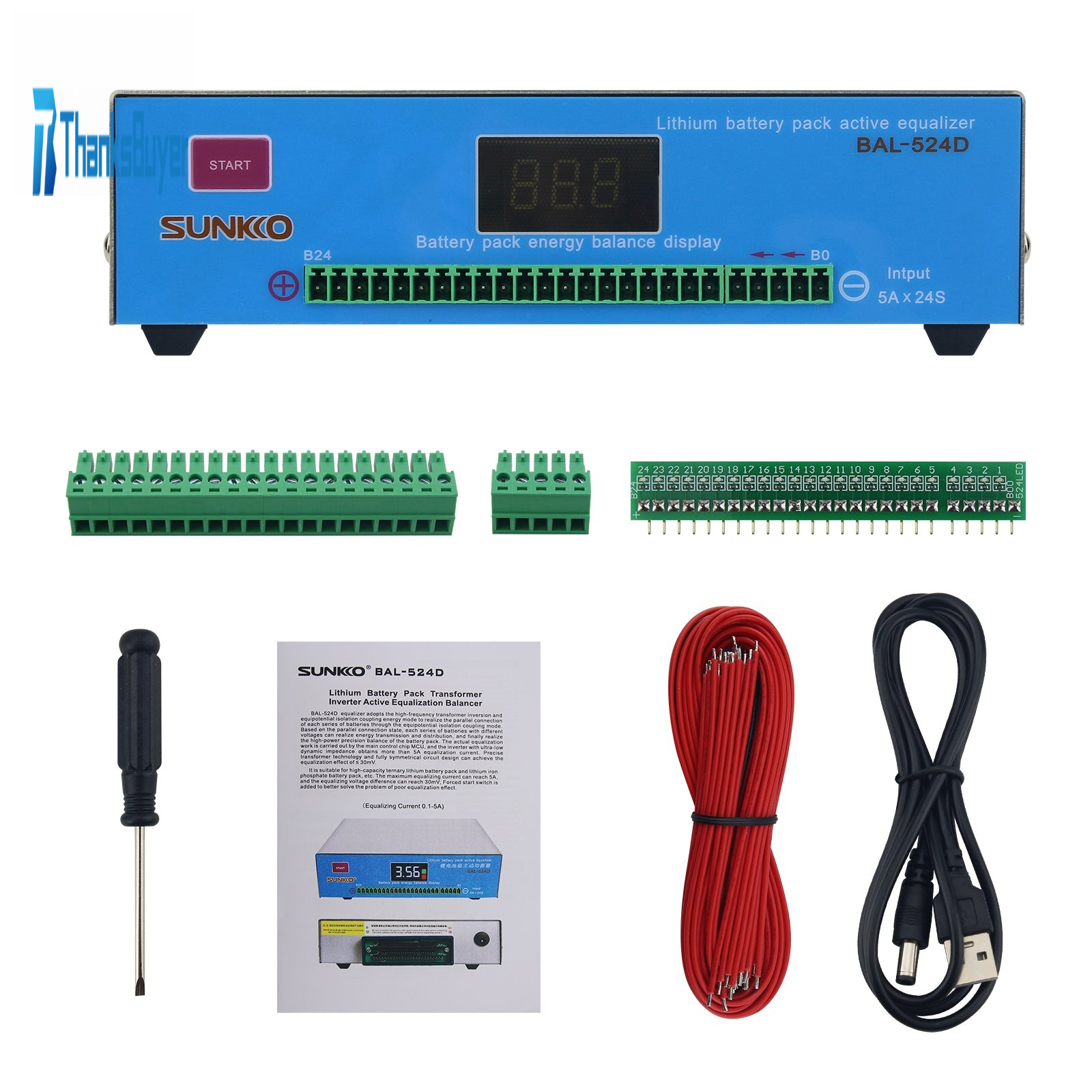

Package Included:
- 1 x 524D Active Equalizer
- 1 x USB Power Cord
- 1 x Sequence Test Board
- 1 x 3.81mm Socket
- 1 x A Slotted Screwdriver
- 1 x High-quality Silicone Wire

Note:
- Battery is not included.
