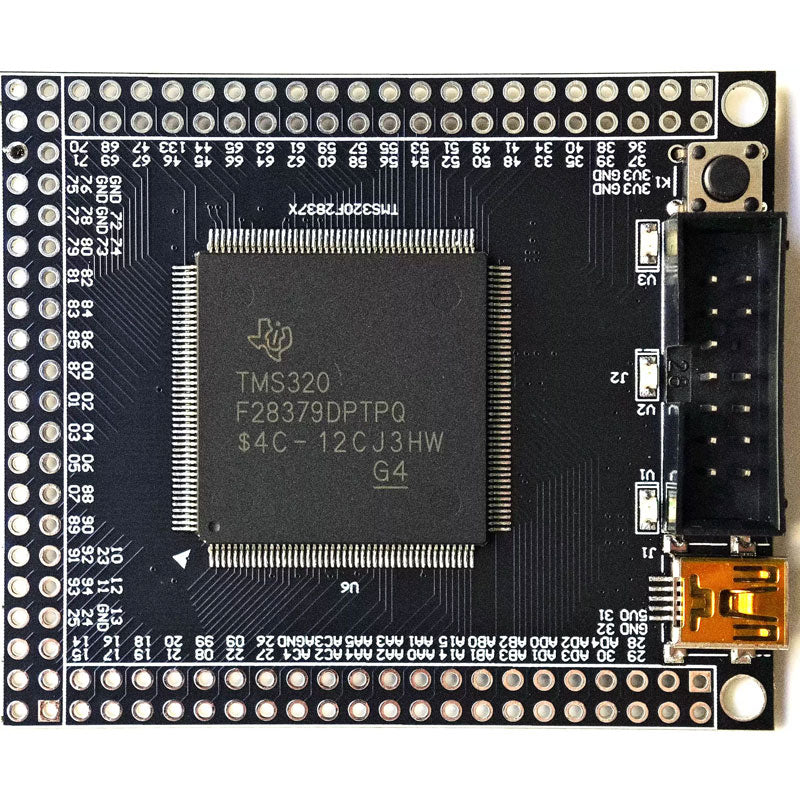

TMS320F28379D Dual Core DSP Development Board C2000 Control Board Core Board Superior to TMS320F28335

* Complete power system, requires only an external 5V power input to work

* 5070 package 20MHz active crystal oscillator, master clock can be set independently via PLL

* Dedicated reset chip circuit to ensure stable and reliable operation of the circuit board

* One power indicator LED to indicate the power-on status of the board

* Two test LEDs, which can be controlled by the user through a program

* One reset button for user manual reset

* Dedicated ADC reference power supply to ensure stable and reliable ADC operation

* Mini USB socket (5V/500mA)

* Anti-reverse insertion 14P/2.54mm standard JTAG socket

* Three rows of standard 2.54mm-pitch DIP21x2 pin headers break out all chip I/O ports, providing a total of 115 I/O channels, including 95 GPIOs and 20 ADC channels.

* On-board Chip Model: TMS320F28377DPTPT/TMS320F28379DPTPT

* Development Board Size: 64mm x 63.5mm

* Power Supply: 5V/500mA (powered via pin header or mini USB)

* PCB Layers: 4 layers

* Download Method: JTAG

* Development Environment: CCS

* 1 x Development board

* Package weight: 0.22kg
