Ultra Port STM32H750 Core Board STM32 Minimum System Board STM32H7 Development Board w/ 3.5" Screen

Ultra Port STM32H750 Core Board STM32 Minimum System Board STM32H7 Development Board w/ 3.5" Screen

Specifications:
- Main control chip: STM32H750VBT6

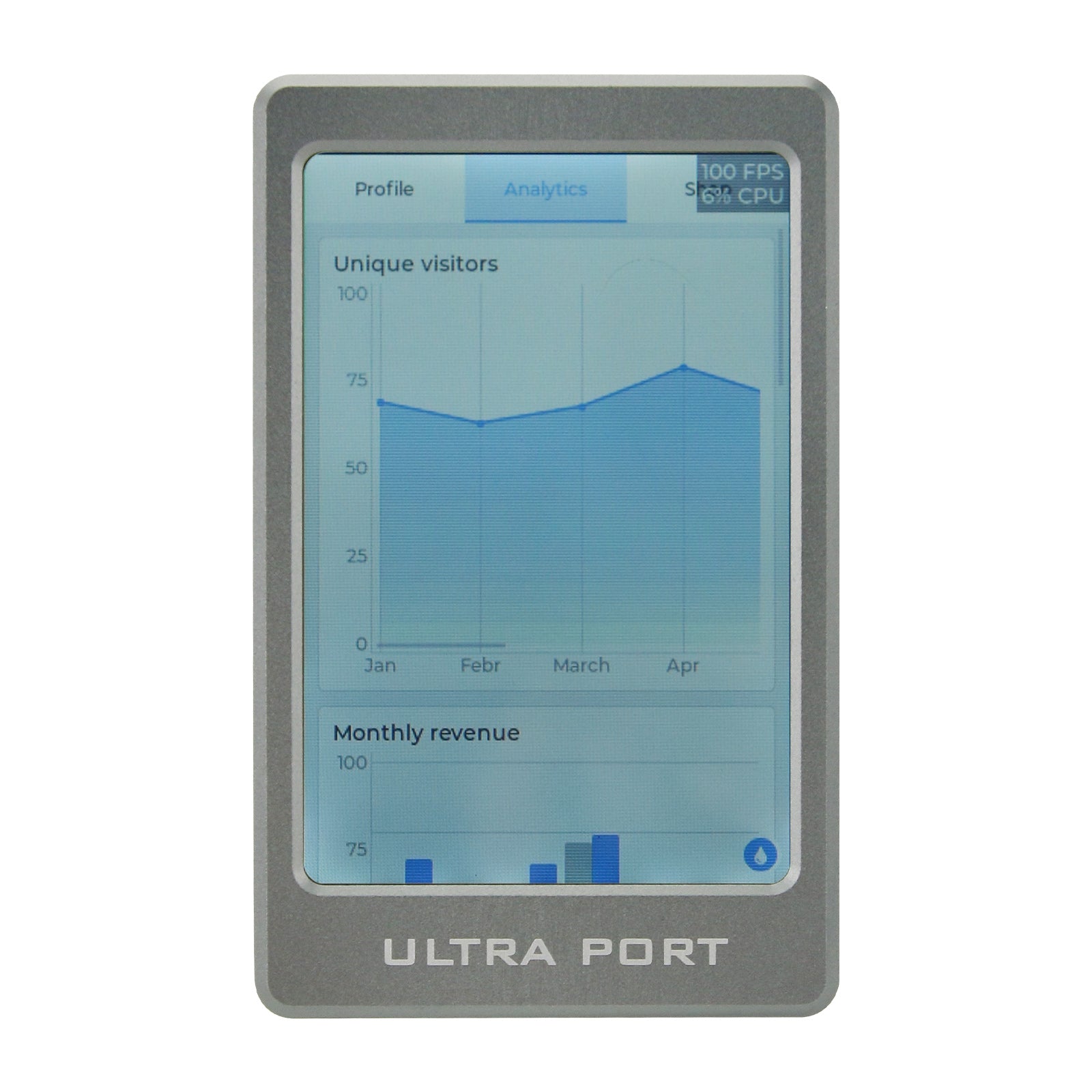

- Screen size: 3.5" IPS screen with a resolution of 320x480
- Product size: 5.9cm x 9.5cm x 1.65cm/2.3" x 3.7" x 0.7"
- Power supply: USB-C powered and Li-ion battery powered
- Battery capacity: 1000mAh
- Battery life: 3 hours and 40 minutes

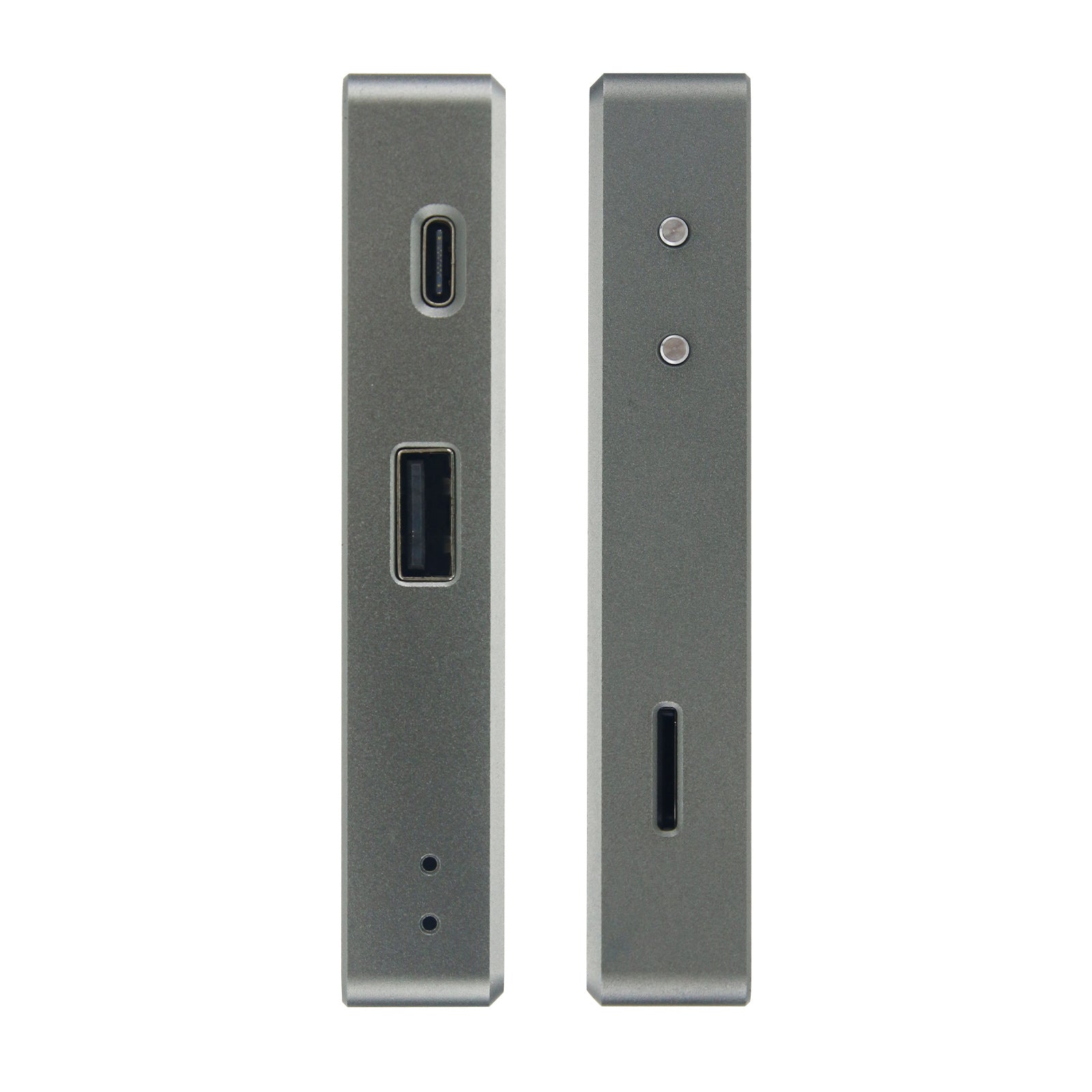

- Interfaces: TF card holder, USB-C, USB-A, RS485, RS232, TTL, CAN, I2C, SPI, Encoder and PWM
- Charging indicator light: Red light for charging status and the light will be off when it is fully charged
- Running indicator light: Red light is flashing
- Buttons: alpha button (to power on, power off and confirm); beta button (back)
- Interaction mode: Touch
- Case material: CNC aviation aluminum alloy

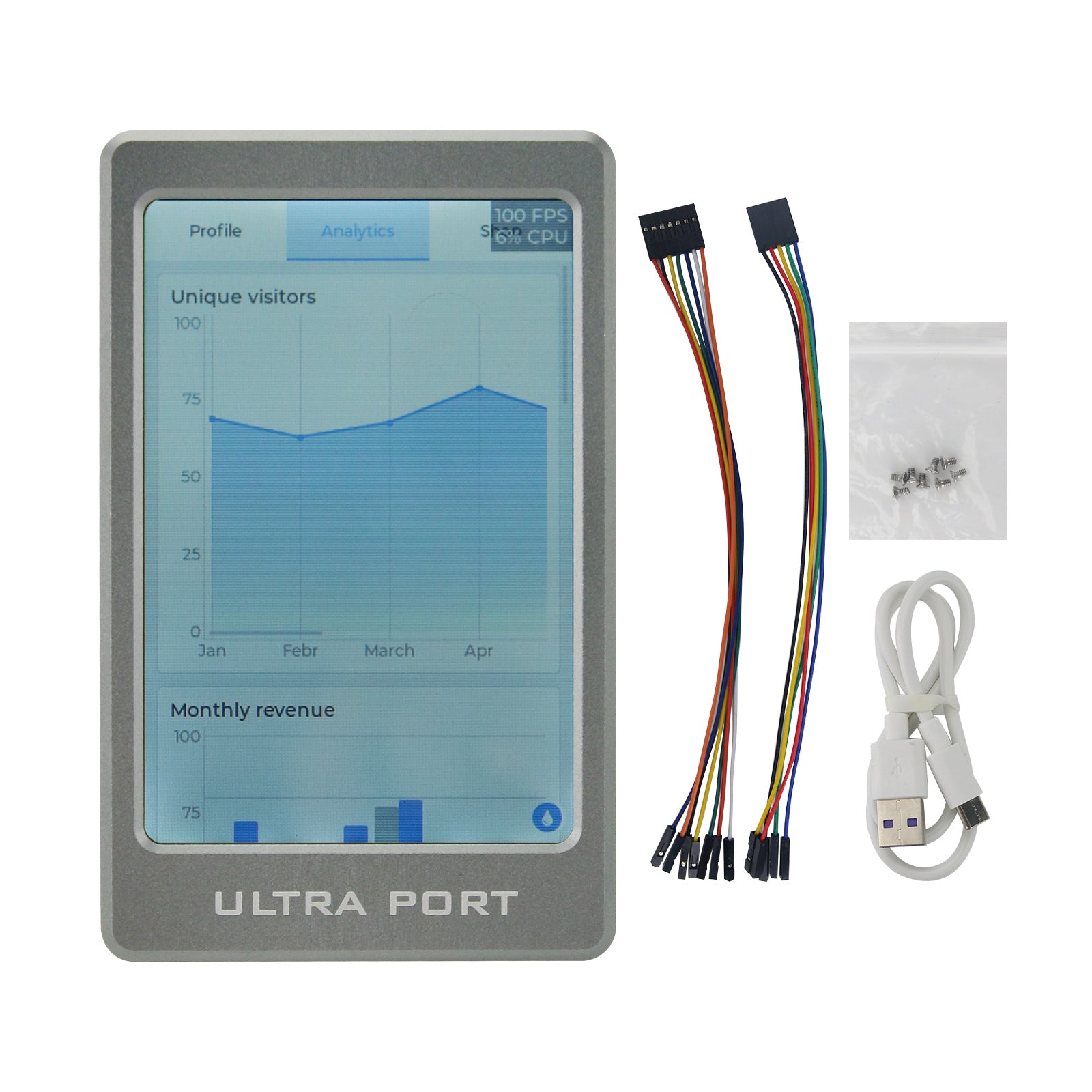

Package Included:
- 1 x Core Board

Packaging Details:
- Weight: 0.3kg
