V4i-S Single Op Amp Operational Amplifier to Upgrade AD797ANZ HDAM99999SQ/883B LME49710HA OPA604AP

V4i-S Single Op Amp Operational Amplifier to Upgrade AD797ANZ HDAM99999SQ/883B LME49710HA OPA604AP

Description:
V4i-S is an audio-only op amp. It is an advanced single op amp, which is very suitable for enthusiasts to upgrade standard AD797ANZ, OPA604AP, NE5534P, 5534D, LME49710HA, etc. of original equipment. The sound of V4i-S is clean, with good three-dimensional effect, excellent detail separation, accurate analysis and positioning. The overall sound is clear and transparent.

Specifications:
- Amplifier type: Audio dedicated J-FET type
- Number of amplifier channels: single op amp
- Conversion rate: 15V/μs
- Bandwidth: 5MHz
- Current - Input bias: 26pA
- Voltage - input offset: 2.5mV
- Current - power: 2mA
- Rated voltage: ±3.5 to ±18V
- Working temperature: -40℃ to 85℃
- Installation type: in-line

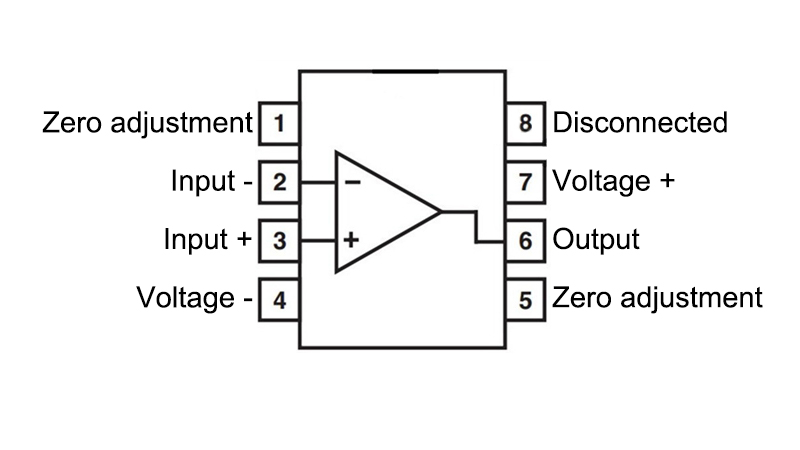

- Package: Dual in-line module (for replaceable standard in-line DIP8 package)

Package Included:
- 1 x Op Amp
