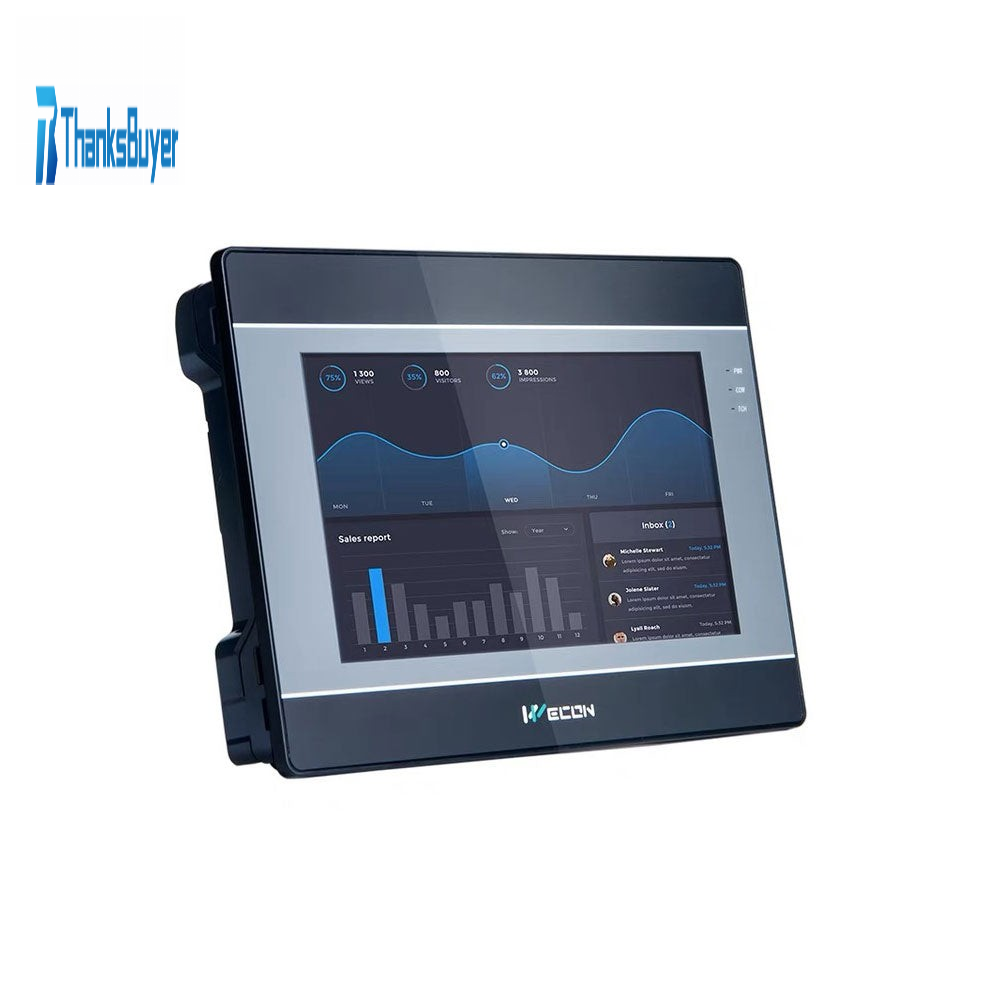

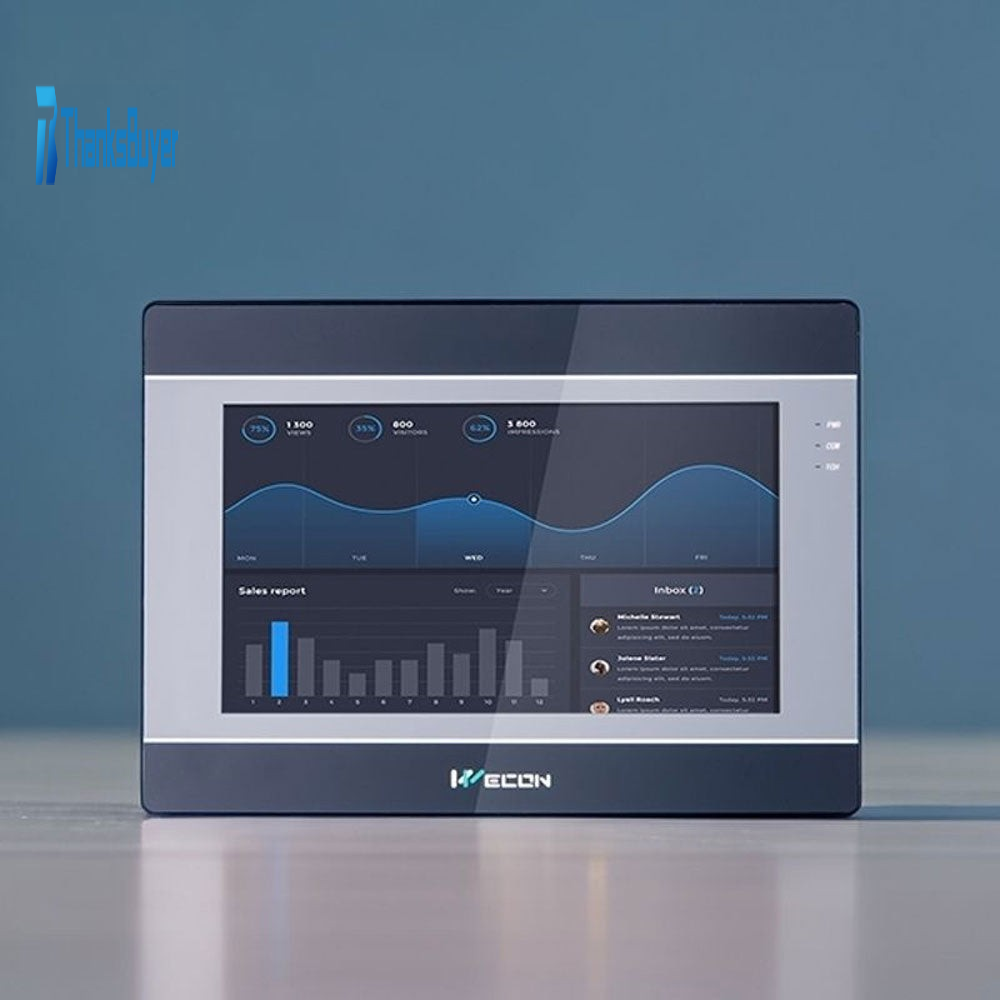

Wecon PI3102iG 10.1-Inch Touch Screen HMI Display with 4-Core Processor 128MB+128MB and Ethernet Port

Features:
* Mainboard Specifications: Quad-core high-performance processor with 128MB Flash and 128MB RAM
* Display: 10.1-inch screen; Resolution: 1024×600
* Interfaces: COM1: RS232, RS422/RS485, RS485, and Ethernet port
* Download Methods: Data cable download, USB flash drive download, LAN download, and remote download

Specifications:
CPU:
* Quad-core high-performance processor

Touch Screen:
* Resistive type

Display:
* Monitor size: 10.1 inches
* Resolution: 1024×600
* LCD Brightness: 350cd/m²
* Backlight Type: LED
* Backlight Lifespan (Half-life): Over 20,000 hours

Storage:
* Flash: 128MB
* RAM: 128MB
* SD Card Slot: Available

I/O Interfaces:
* USB: USB Host: 2.0 × 1; USB Client: 2.0 × 1 (The two USB ports cannot be used simultaneously)
* Serial Interface: 1 port. RS232, RS422/RS485 (2-in-1), RS485
* Ethernet: Available
* 4G/WiFi Module: Optional

Perpetual Calendar:
* Built-in

Power Specifications:
* Input Power: 24V DC (12~28V DC)
* Power Consumption: Less than 10W
* Power Isolation: None

Structural Specifications:
* Housing Material: Engineering plastic PC+ABS (Flame retardant grade)
* Dimensions: 272mm × 191mm × 41.5mm
* Cutout Dimensions: 260.0mm × 179.0mm
* Weight: 1.02kg

Operating Environment:
* Protection Rating: Front panel complies with IP65
* Storage Temperature: -20℃ to 70℃
* Operating Temperature: -10℃ to 55℃
* Operating Humidity: 10~90% RH (non-condensing)
* Vibration Resistance: 10~25Hz (2G/30 minutes in X, Y, Z directions)

Certification:
* CE Certified

Software:
* Configuration Software: PI Studio

Software Features:
* Optional IoT Services:
** Real-Time Monitoring Points: 100 points
** Alarm Monitoring Points: 20 points
** Historical Data Monitoring Points: 50 points
** Historical Data Retention: 60 days/1 million records
* Standard Transparent Transmission: Supported
* VPN Transparent Transmission: Supported

Packing List:
* 1 × IoT Screen

Packaging Details:
* Weight: 0.6kg
