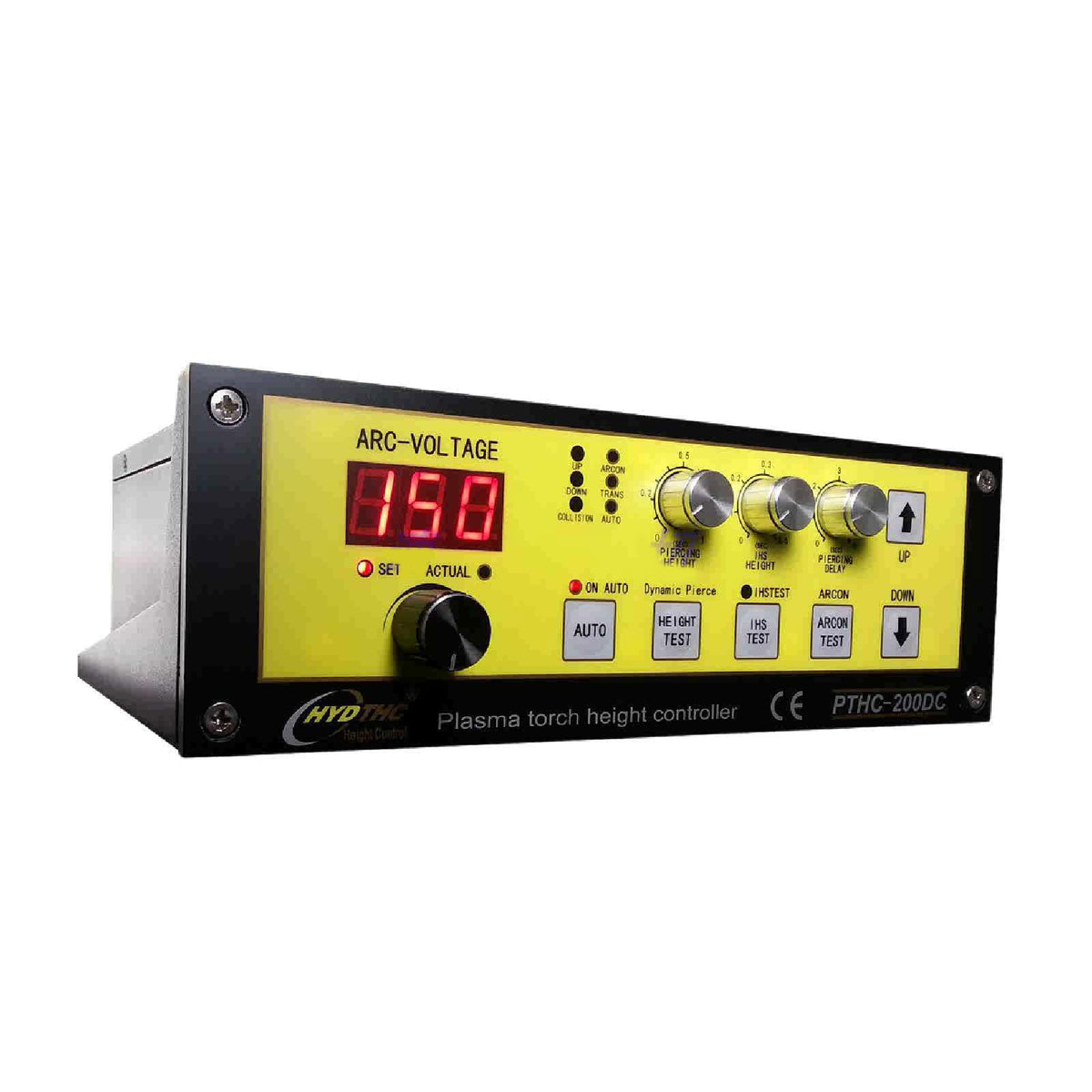

HYD XPTHC-200DC Plasma Torch Height Controller 100W Output PWM Arc-Voltage Automatic Height Adjuster

Introduction:
- The principle of PTHC-200DC plasma arc-voltage regulator is to use the basic constant current characteristics of plasma power supply to detect the changes in plasma arc-voltage to detect the height changes of the cutting torch during plasma cutting process, and achieve automatic height control of the cutting torch.
- Suitable for torch height control of plasma cutting machines with constant current characteristics or constant current characteristics within a certain voltage range, suitable for most imported or domestic models.

Basic Parameters:
- Working voltage: AC 24V + 10%, 50Hz/60Hz or DC24V±20%
- Applicable motor: DC24V DC motor
- Driving method: PWM (pulse width modulation)
- Output current: 1A - 4A
- Output power: 100W
- Working temperature: -10℃ to 60℃
- Initial positioning method: switch type initial positioning & protective cap contact type initial positioning
- Operation transmission mode: detect arc-voltage enable, complete perforation output
- Voltage dividing ratio: 50:1
- Accuracy: ±1V to ±2V, depending on the user's motor and lifting structure
- Applicable torch lifting speed: 1 meter/minute to 4 meters/minute
- Set arc voltage range: 35V to 250V, can be modified according to different application scenarios
- Overload protection method: PWM speed regulation, current feedback
- Maximum cutting tracking test speed: 12000mm/min (depending on the starting voltage, speed, and sensitivity settings of the user's lifting device motor)

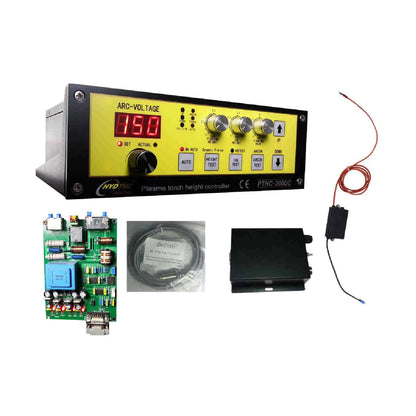

Package Included:
- 1 x Plasma Torch Height Controller
- 1 x PTHC-DIV50 Arc Ignition Isolation Divider Board
- 1 x PTHC-IHS Isolation Positioning Box
