Frequency Meter Module 18G Option For HP Agilent Frequency Meter Counter 53131 53132 53181

Availability: In stock, usually dispatched in 1 business day

  • Price:$211.96
  • Price in reward points: 2120 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $207.72 $203.48 $197.12 $188.64 Contact US
Quantity:

Frequency Meter Module 18G Option For HP Agilent Frequency Meter Counter 53131 53132 53181

Technical Parameters:

- Input frequency: 0.6-18GHz
- Sensitivity: -20dBm
- Maximum input power: +10dBm
- Output port: SMA connector

Attention:

(1) To use this option, you need to make sure that your frequency meter is installed with a 3G option and can measure 2.0GHz signals normally;
(2) To install and use this option, you need to set SCALE=4.000000, otherwise input frequency cannot be displayed correctly;
⑶ When testing input frequency greater than 10GHz, rf cable needs to be replaced with a rf high frequency semi-steel cable, otherwise high frequency signal attenuation is large and the measurement is incorrect.

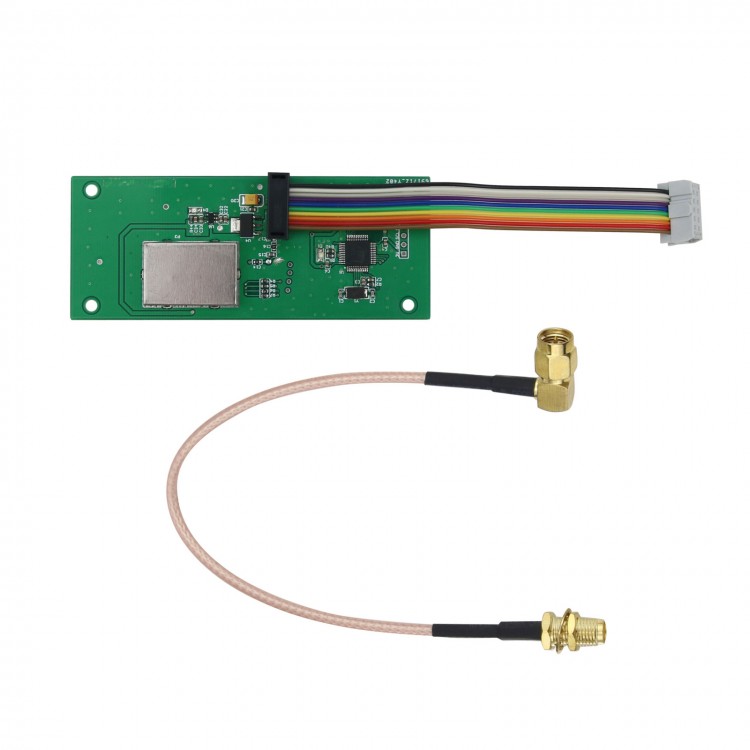

Package Included:

- 1 x Frequency Meter Module
- 1 x SMA Cable
