Frsky 900MHz Long Range Transmitter and Receiver RC R9M Module + R9MM w/ Antennas

Frsky 900MHz Long Range Transmitter and Receiver RC R9M Module + R9MM w/ Antennas

1. R9M Transmitter Module
Description:
FrSky R9 and R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs to so you can choose the appropriate power for different flight situations.

Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.

Features:
- 900MHz/868MHz working mode
- Long range, low latency and high precision RC system
- 4 Optional RF power (Non-EU Version)
- Telemetry（25mW） and non-telemetry （500mW） modes selectable （EU Version）
- Smart Port enabled and support telemetry data transmission

Specifications:
- Compatibility: R9 series
- Vin Voltage Range:4V-12.6V
- External Power Supply: 4V~12V (2s Li-Battery is recommended. Battery is not included. )
(*3s Li-Battery is not recommended as external power supply, or it will damage. Battery is not included. )
- Telemetry Interface: Smart Port
- Upgrade Interface: Smart Port
- Modulations: PWM or CPPM (auto-detected)

2.R9MM Receiver
Description:
The FrSky R9 MM is the latest 900MHz mini receiver in the long-range series. It carries on most of the features from the previous R9 Mini receiver, like it’s super low latency, high precision performance in an extremely compact design. A new feature incorporating an inverted S.Port output makes it compatible with more devices.

Features:
- 915MHZ (Non-EU Version)/ 868MHZ(EU Version)
- Mini size and superlight weight
- S.Port enabled and support telemetry data transmission(Support F.Port, download firmware to support the function)
- Supports redundancy function
- Low latency and high precision
- With RSSI output in SBUS
- Detachable Ipex connector antenna

Specifications:
- Dimension: 16*10mm (L*W)
- Weight: 1.1g (including antenna)
- Numbers of channel:
   EU Version: 4/8CH (Telemetry)
   Non-EU Version: 4/16CH (No Telemetry) or 4/16CH (Telemetry)
- Operating Voltage Range: DC 3.5V-10V
- Operating Range: Up to 10km or above

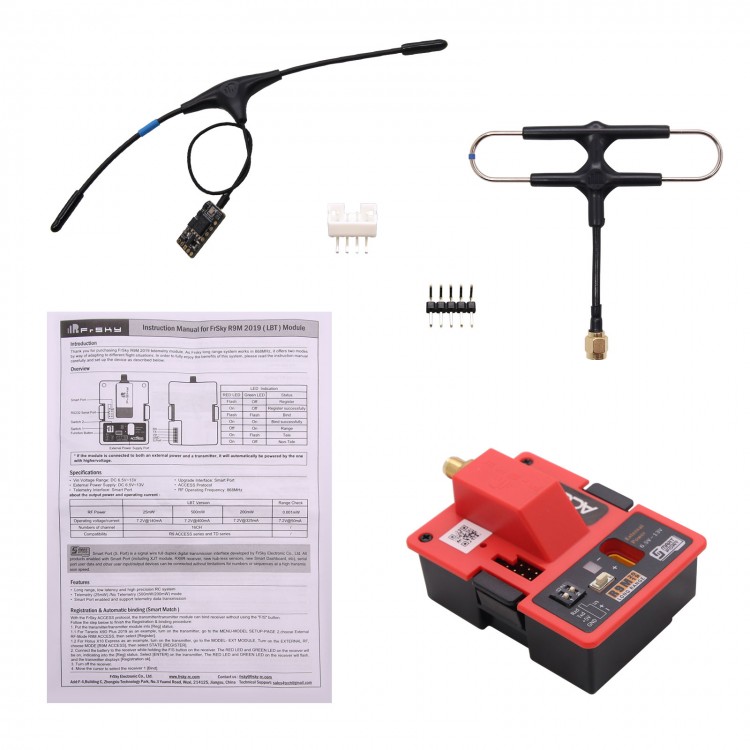

Package Included:
- 1 x R9M Module
- 1 x Super 8 Antenna
- 1 x R9MM Receiver
- 1 x Dipole T Antenna

Note: Please note that batteries are not included in this package. Thank you!
