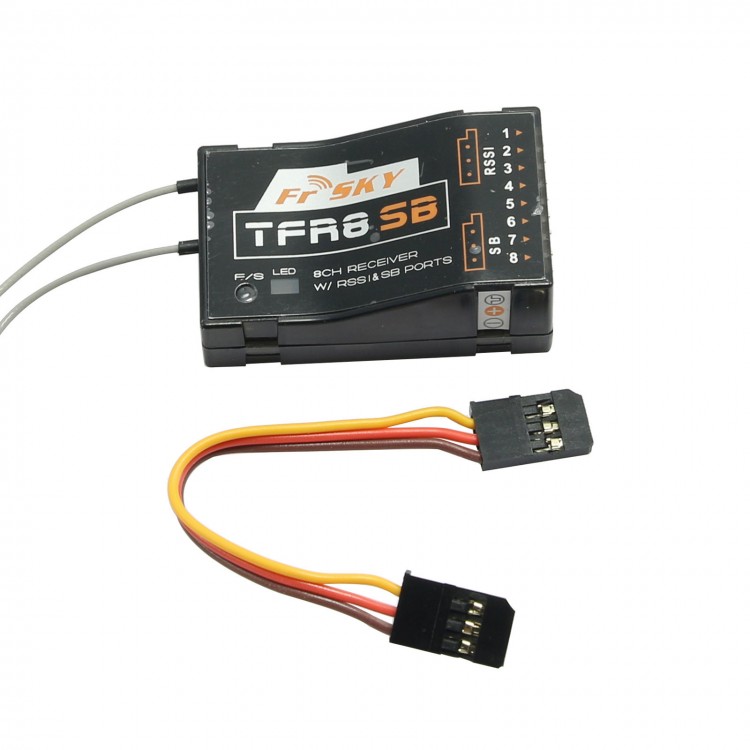

FrSky Futaba FASST Compatible TFR8SB Rx Frsky 8CH Receiver with RSSI and SB Ports
The FrSky TFR8SB is an excellent 8/16 channel receiver that is compatible with the Futaba FASST series radios and features S.Bus and RSSI outputs.
Features:
- SB port is compatible with Futaba S.BUS servos and FrSky SBUS&CPPM compatible servos - No receiver channel limitations except what your transmitter is capable to sending. Also prevents mismatched servo channel connections.
- With RSSI output
- Two selectable failsafe setting options (use native failsafe on radio side or set failsafe on TFR8SB side)
- Channel setting for Futaba S.BUS servos and FrSky SBUS&CPPM compatible servos on TFR8SB
- Improved sensitivity and stability
- Wider and higher operating temperature range, suitable for all kinds of models
- Firmware upgradeable
Compatibility:
- FASST 2.4G Air Systems (7CH Mode/Multi Mode): 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, etc.
- FASST 2.4G Surface Systems (C1 Mode): 3PK, 4PK, etc
- Compatible with Futaba and FrSky S.Bus servos.
Specifications:
- Number of channels: 8 with RSSI and SB ports (16 channels when using S.Bus)
- Operating Voltage Range: 3.5V~10V
- Operating Temperature Range: -10℃~80℃
- Dimension: 44.5mm*27.5mm*17mm
- Weight: 11.5g
- Latency: 14ms (FS - normal speed mode)
7ms (HS - high speed mode)
- Note: Be sure that when using battery or regulated output from ESC, the capacity must meet the usage conditions of servos.
