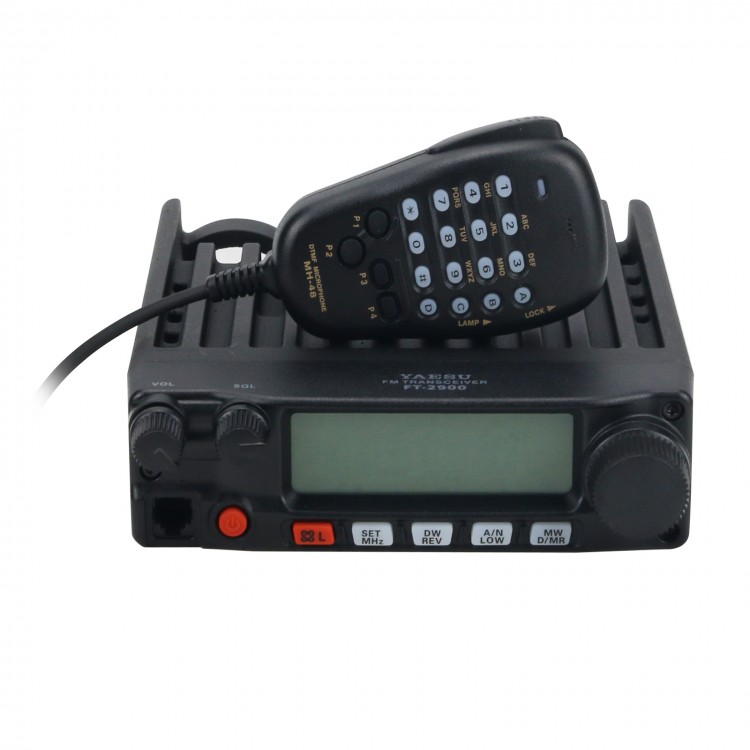

FT-2900R 75W FM Transceiver VHF Marine Radio Car Radio Station 200 Channels Range More than 50KM

FT-2900R 75W FM Transceiver VHF Marine Radio Car Radio Station 200 Channels Range More than 50KM

Features:
- Large LCD Display: The large 6-digit backlit LCD on the car radio ensure excellent visibility
- Loud Audio with Internal Speaker: The marine radio packs 3W BIG watts of Loud Audio with its own internal speaker for those noisy environments
- Excellent Receiver Performance: The marine radio's receiver front end features advanced track tuning RF input filtering, which affords outstanding protection from Intermodulation distortion
- CTCSS and DCS Encode/Decode Built In: For easy repeater access, or silent monitoring of busy channels, both CTCSS and DCS (Digital Code Squelch) Encoder/Decoder circuits are built in. CTCSS and DCS configuration data may be stored independently in each memory channel. A "Split Tone" mode also allows operation on systems where CTCSS and DCS are used separately on the repeater uplink/downlink
- WIRES Internet Linking Access Feature: The marine radio includes a conveniently-located "Internet" key, for quick access to Internet-linked repeater systems. Internet repeater linking allows you to use your FT-2900R to talk to other amateurs throughout the world, with outstanding voice signal quality
- WX Channels with: A special 10-channel Weather Band memory bank is provided in the U.S. version, allowing quick access to NOAA weather broadcasts. When the 1050-Hz "Severe Weather" alert tone is transmitted, the marine radio may be configured to emit an alarm tone to get your attention quickly. With the "Weather Alert" feature enabled, the FT-2900R will scan the ten Weather memories, stopping only if the 1050-Hz tone is received
- MH-48A6J DTMF Direct Access Microphone: The backlit MH-48A6J microphone allows direct keypad frequency entry, or keypad memory channel recall. On transmit, the MH-48A6J allows manual entry of DTMF tones for autopatch use, and the marine radio also includes a nine-memory, 16-digit DTMF Autodialer. Four user-programmable "soft" keys on the microphone may be programmed for easy control of a number of different features, and the [A]/[B]/[C]/[D] keys replicate the functions of the keys on the front panel of the transceiver, for maximum convenience while driving

Specifications:
General:
- RF output power: 75W/30W/10W/5W
- Frequency range: VHF 136-174 MHz
- Number of channels: 200
- Working current: receive: 0.3A (Squelched); transmit: 15A (75W)/9A (30W)/5A (10W)/4A (5W)
- Mode of Emission: F2D, F3E
- Channel steps: 5/10/12.5/15/20/25/50/100KHz
- Working voltage: DC 13.8V±15%
- Noise suppression mode: carrier/CTCSS/DCS/5Tone/2Tone/DTMF
- Frequency stability: ±2.5ppm
- Audio rated power: 3W, 4Ω
- Operating temperature: -20°C to 60°C
- Antenna interface: M type
- Antenna impedance: 50Ω
- Dimensions: 160 x 50 x 185mm/6.3 x 2 x 7.3"
- Net weight: Approx. 1900g/4.2 lb

Transmitter:
1. Broadband
- Output power: VHF 75W
- Modulation method: 16KΦF3E
- Adjacent channel power: ≥70dB
- SNR: ≥40dB
- Spurious and harmonics: ≥60dB
- Audio Response: +1 to -3dB
- Audio Distortion: ≤5%

2. Narrowband
- Output power: VHF 25W
- Modulation method: 11KΦF3E
- Adjacent channel power: ≥60dB
- SNR: ≥36dB
- Spurious and harmonics: ≥60dB
- Audio Response: +1 to -3dB (0.3-2.55KHz)
- Audio Distortion: ≤5%

Receiver:
1. Broadband
- Sensitivity: ≤ 0.25μV
- Adjacent channel selectivity: ≤ 70dB
- Intermodulation: ≤ 65dB
- False signal response: ≤ 70dB
- Audio Response: +1 to -3dB
- SNR: ≥ 45dB
- Audio Distortion: ≤ 5%
- Audio output power: ≥ 2W at 10%

2. Narrowband
- Sensitivity: ≤ 0.35μV
- Adjacent channel selectivity: ≥ 60dB
- Intermodulation: ≥ 60dB
- False signal response: ≥ 70dB
- Audio Response: +1 to -3dB (0.3~2.55KHz)
- SNR: ≥ 40dB
- Audio Distortion: ≤ 5%
- Audio output power: ≥ 2W at 10%

Package Included:
- 1 x Set of FM Transceiver
