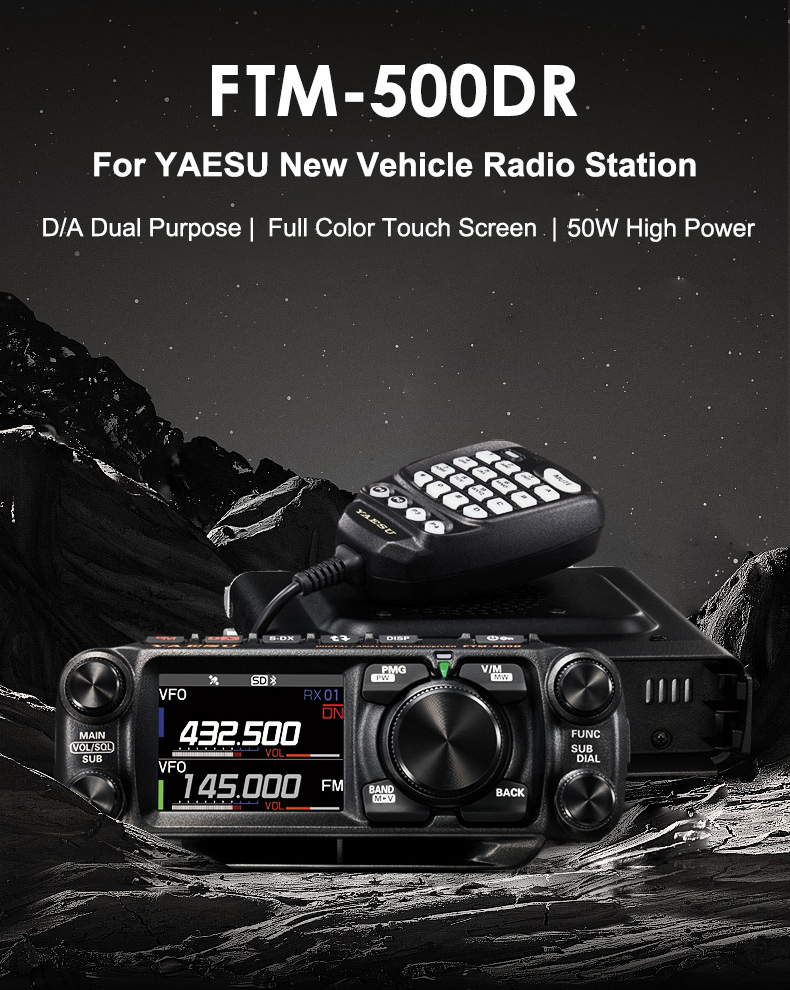

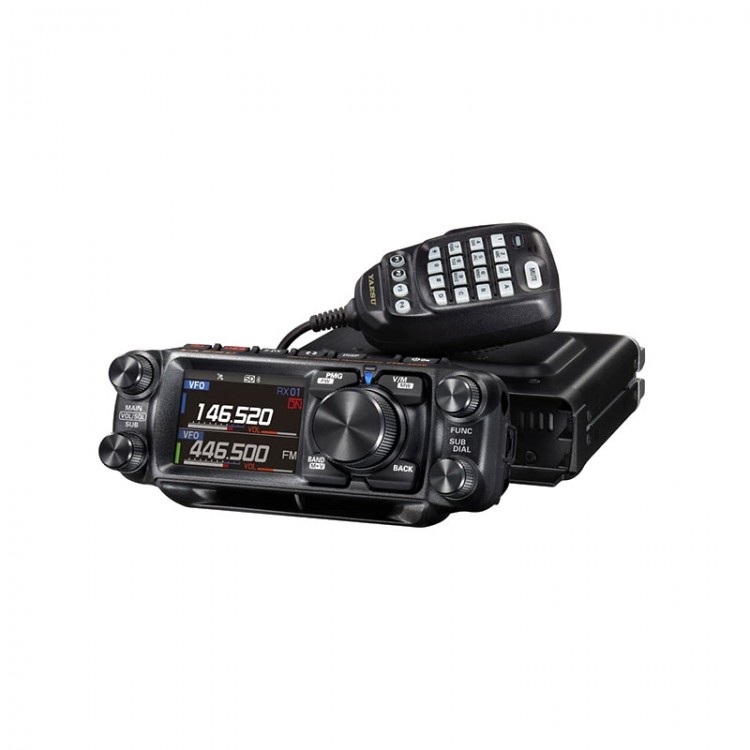

FTM-500DR Vehicle Radio Full Color Screen 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceiver for YAESU

FTM-500DR Vehicle Radio Full Color Screen 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceiver for YAESU

Description:
- The FTM-500DR shares the YAESU advanced core features, and utilizes the latest C4FM Digital technology. A few remarkable functions are listed below:
- Front speaker with AESS dual speaker system (AESS: Acoustic Enhanced Speaker System): Total 9W clear & powerful high-fidelity audio, delivered by the front panel 6W and the main unit internal 3W speakers
- E2O(Easy to Operate)-IV: innovative, smart operating system with TOUCH&GO / SEARCH&GO / PMG Functions(PMG: Primary Memory Group Monitor).

Features:
- 144MHz, 430MHz C4FM Digital / FM / AM (Air Band Receive)
- True dual band operation, C4FM/C4FM digital D-D dual receive

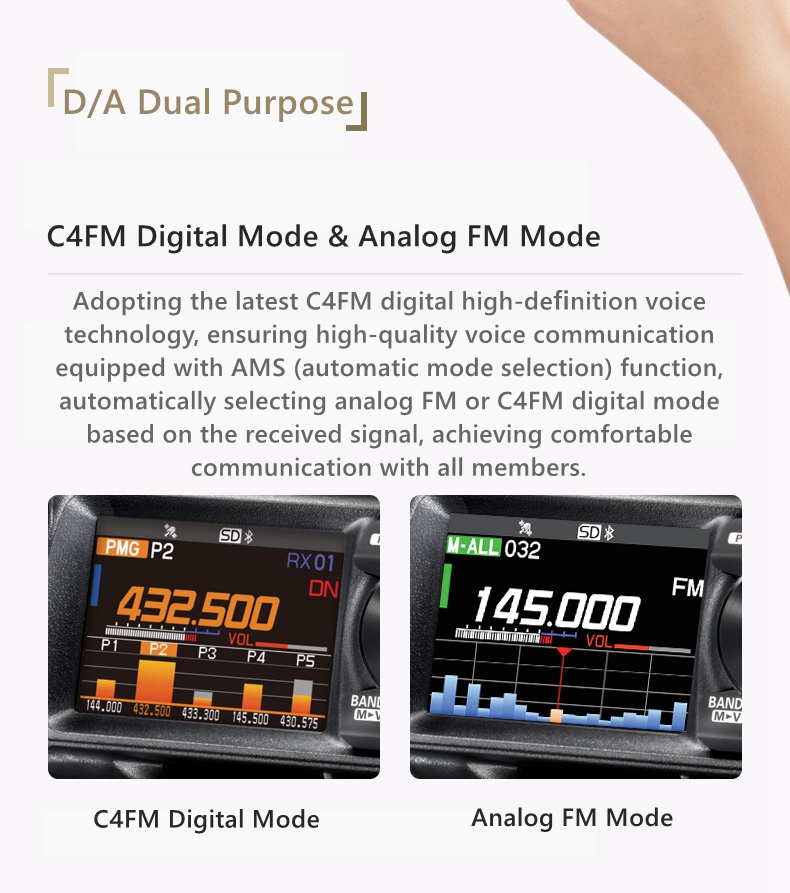

- Advanced C4FM digital mode with AMS (Automatic Mode Select), DG-ID feature and smart navigation

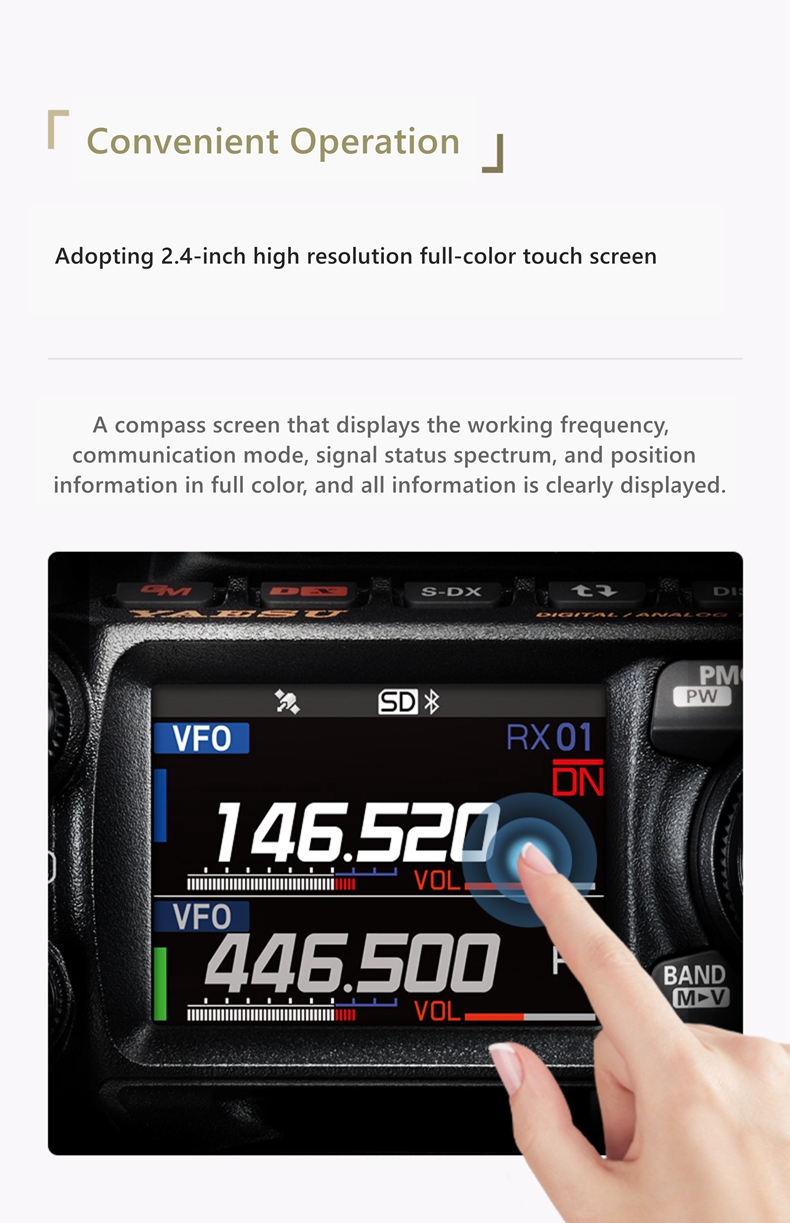

- 2.4-inch high-resolution full-color touch-panel display and demountable front panel controller
- Swing-head adaptable front panel improves display visibility
- Single-touch spectrum scope function
- High speed band scope function

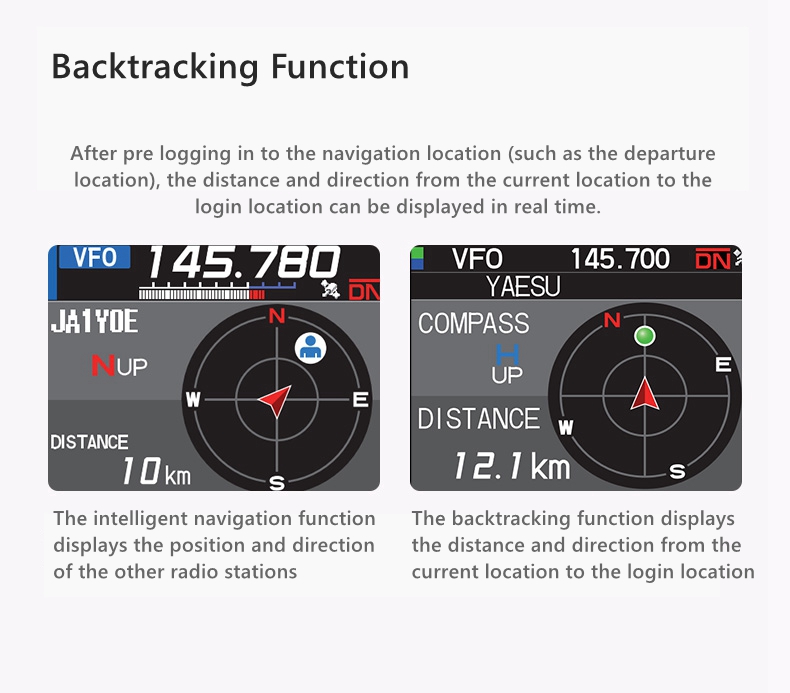

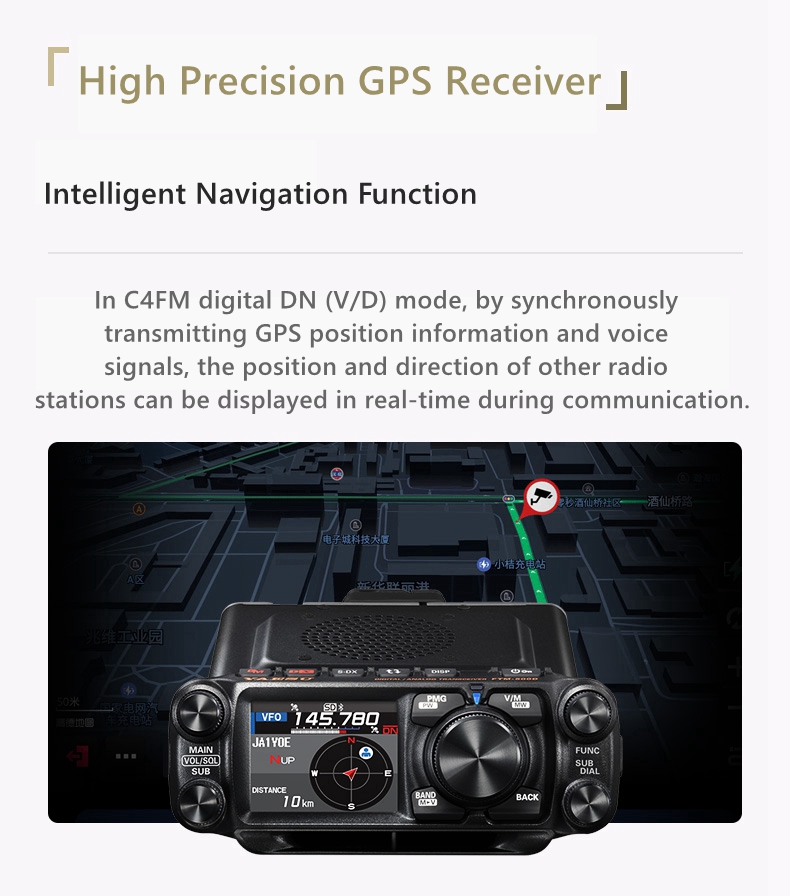

- Built-in 66ch high precision GPS receiver and external GPS device connectivity. In C4FM digital DN (V/D) mode, by synchronously transmitting GPS position information and voice signals, the position and direction of other radio stations can be displayed in real-time during communication.
- Wireless operation capability with the Bluetooth headset - optional swing-head kit (SJMK-500) allows the flexible angle adjustment of the front control panel
- Customized function list (CFL) display allows checking and immediately executing priority functions. (Up to 8 functions or settings from the set-up menu can be registered.)
- MAG (Memory Auto Grouping) function allows memory channels to be automatically categorized in ALL, AIR band, VHF band, UHF band and OTHER.
- VFO band skip function
- Memory channel data transfer to the VFO register
- Single-touch spectrum scope function: Instantly switches the operating screen between "scope display operation" and "dual receive operation" while in MAIN channel operation
- high speed band scope function: up to 61 channels centered on the current frequency displayed in VFO mode and up to 21 channels of signal information in memory channel mode
- 1104 Memory channels including 5 "Home" channels, 50 sets of memories for programmable memory scan and 999 "Basic" memories.
- Built-in 66ch high precision GPS receiver and external GPS device connectivity,
- 1200/9600bps for APRS data communication
- Wireless operation capability with a Bluetooth headset
- WiRES-X portable digital node or HRI-200 fixed node capability
- Voice recording of the received and transmitted audio

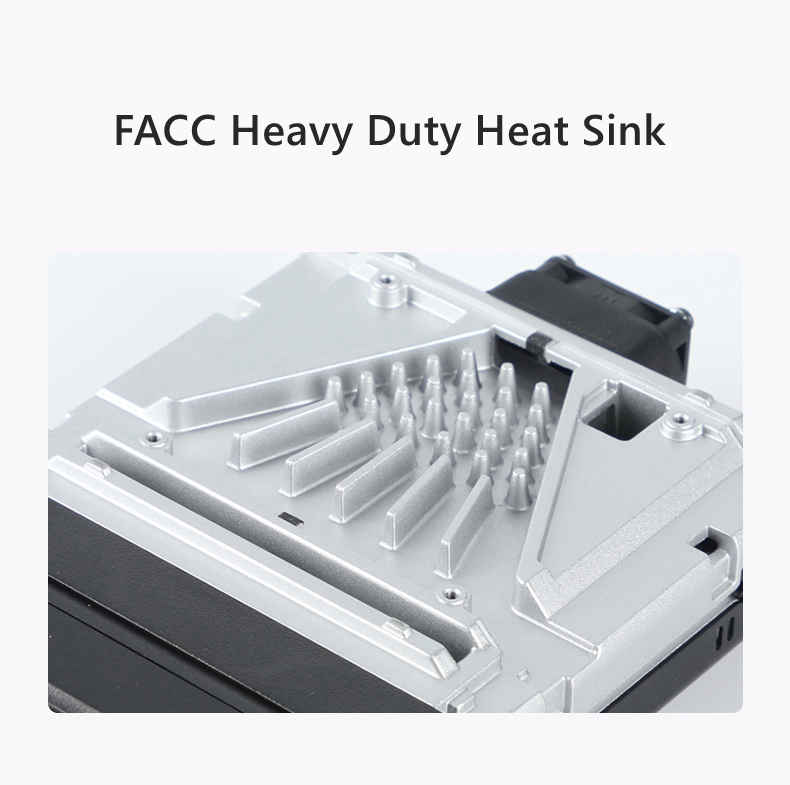

- 50W stable high-power with heavy duty heat sink and FACC (Funnel Air-Convection Conductor); Selectable 50W / 25W / 5W
- Micro SD card slot (up to 32GB)

Specification:
- Model: FTM-500DR
- Frequency range:
  Transmitting: 137 - 174MHz; 400 - 480MHz
  Receiving: 108 - 9990995MHz
- Transmitting power: 50W / 25W / 5W
- Audio output: 6W panel speaker, 3W host speaker, 3W external speaker
- Current consumption: 0.5A (receiving); 10A (50W transmitting, 144MHz), 10A (50W transmitting, 430MHz)
- Working temperature: -20℃~60℃
- Antenna interface: SO-239 (M female)
- Antenna impedance: 50ohm
- Bluetooth version: 5.0
- Host size: 139 x 42 x 132mm (not include the fan)
- Panel size: 156 x 64 x 58.6mm (not include the knob)
- Weight: 1.4kg

Package Included:
- 1 x FTM-500DR
- 1 x Microphone SSM-85D
- 1 x Host Bracket
- 1 x Panel Bracket
- 1 x DC Power Cable (3m)
- 1 x Screw Pack
- 1 x Microphone Peg
- 1 x User Manual

Note:
- The accessories are not included, such as antenna, feeder, sucker, external speaker and so on.
- The Bluetooth hands-free call function requires the an additional SSM-BT10 Bluetooth headset (not included).
- Power the radio from a 12V battery, and it is not recommended to power it from a cigarette lighter or ACC. If it is a truck 24V battery, please be sure to use it in conjunction with a dedicated communication transformer. If used as a fixed base station, you can purchase a 13.8V communication power supply (not included).
