FX-4C SDR HF Transceiver (Black) 10W 465KHz-50MHz Shortwave Radio Built-In Sound Card w/ Carry Box

Availability: Out Of Stock

  • Price:$569.90
  • Price in reward points: 5699 Reward Points: 57
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $558.50 $547.10 $530.01 $507.21 Contact US
Quantity:

FX-4C SDR HF Transceiver (Black) 10W 465KHz-50MHz Shortwave Radio Built-In Sound Card w/ Carry Box

Features:

- 2.0" TFT display
- Spectrum display and waterfall chart
- Adjustable digital noise reduction MIC gain
- Built-in USB sound card and serial communication
- Use FT8 with just one USB cable
- Modes AM/FM/SSB/CW/FT8
- Power 0.1-10W continuously adjustable
- Transmit: 3.5-29.9mhz amateur band
- Receive 465KHz-50MHz

Specifications:

- Transmission frequency range: 3.5-29.9mhz (amateur radio frequency range)
- Receiving frequency range: 465KHz-50MHz
- Mode: SSB/CW/AM/FM
- Step frequency range: 10HZ/100HZ/1KHZ/5KHZ/10K/100K/1M
- Antenna impedance: 50ohm
- Working temperature: -20℃ to 40℃
- Voltage: DC9V-18V (for long-term operation, please keep the maximum +16V or less; suggest about 14V)
- Current consumption (transmitting) maximum current is about 2A, (receiving) current is about 220MA
- Transceiver size: 107 x 65 x 43mm/4.2 x 2.6 x 1.7" (LxWxH)
- Weight: (host) 0.46KG/1LB
- Bandwidth: SSB 1.5K/1.8K/2.1K/2.4K/2.7K/3K. CW 50HZ/100HZ/200HZ/300HZ/500HZ/800HZ. FM 5K/10K. AM 6K/9K
- Power range: 0.1-10W continuously adjustable
- Stray radiation suppression: -43DB
- Carrier suppression: -50DB
- Microphone impedance: 2.2K
- Audio output power: 1W
- Receiving sensitivity: -120DBM
- Communication distance: over 10km

Attention:
The parameters of this machine might be changed with the version update, without further notice. Thank you for your understanding!

Package Included:

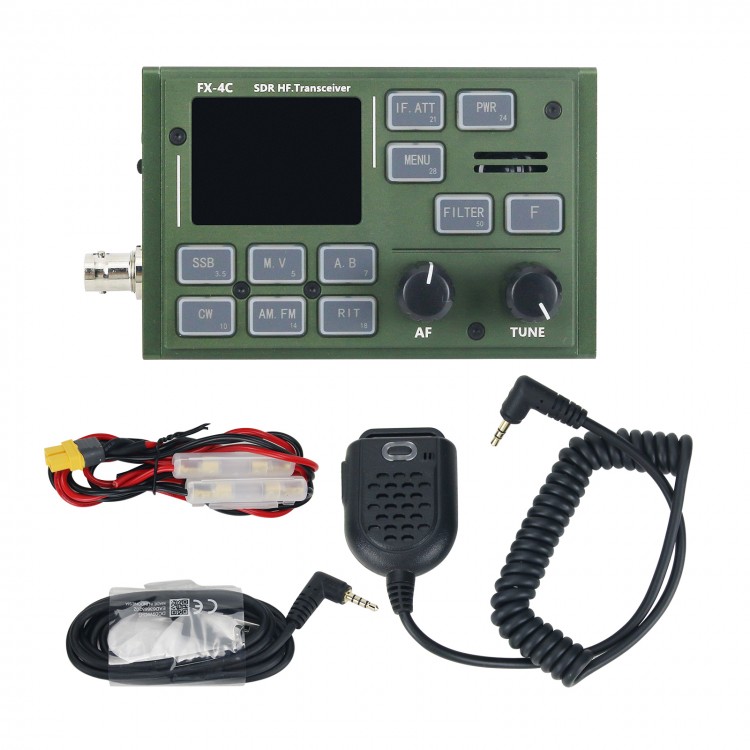

- 1 x Set of FX-4C Transceiver
