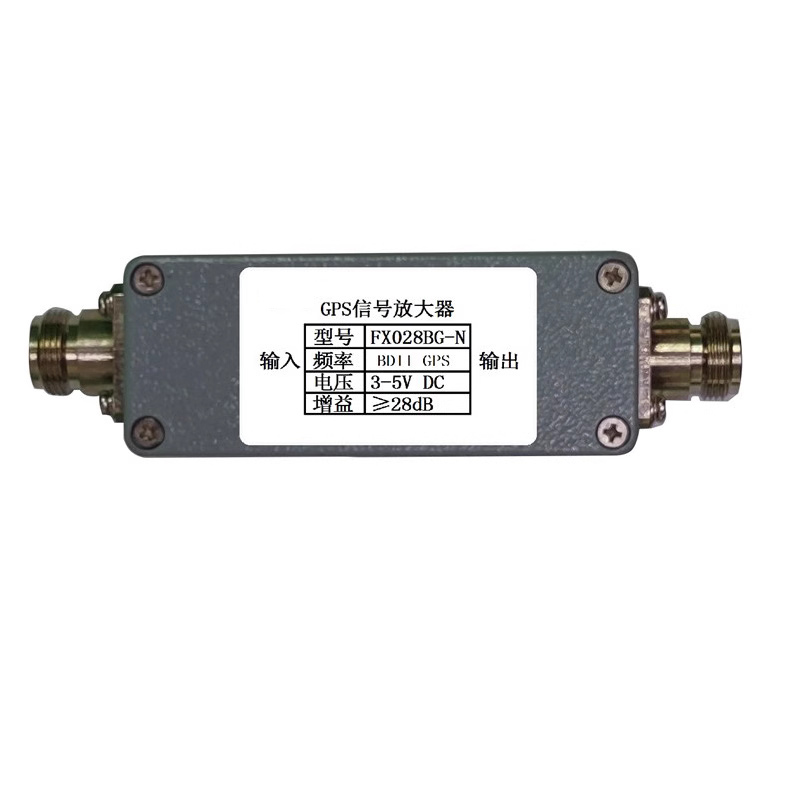

FX028BG-N 1568±10MHz GPS Low Noise Amplifier LNA Amplifier Designed with Gain ≥28dB & N-K Connector
Specifications:
- Model number: FX028BG-N
- Frequency: 1568±10MHz
- Satellite: GPS-L1, BD (II)-B1 and BD (III)-B1I
- Gain: ≥28dB
- Voltage: 3-5V
- External feed: None (can be added)
- SWR: ≤2.0
- Out of band suppression: ≥20dB
- Noise: ≤2.0dB
- Dimensions: 110 x 36 x 31mm/4.3 x 1.4 x 1.2"
- Connector: N-K
- Weight: 130g/0.3lb
Package Included:
- 1 x Low Noise Amplifier
Packaging Details:
- G.W.: 0.25kg/0.6lb
Length of Commonly Used Coaxial Cables:
* RG58/SYV50-3: 30-40m/98.4-131.2ft
* SYV50-5: 50-60m/164-196.9ft
* SYV50-7: 80-90m/262.5-295.3ft
* LMR400: 100-150m/328.1-492.1ft
* 1/2 feeder: 200-240m/656.2-787.4ft
* Attention: Please contact us for more specifications of cables
