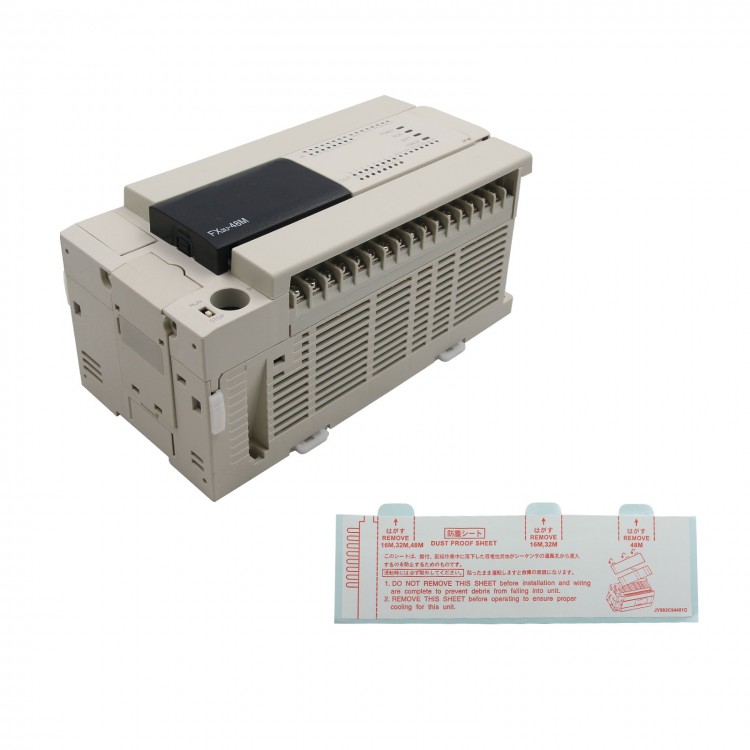

FX3U-48MR/ES-A PLC Programmable Controller for Mitsubishi Programming Your Projects

FX3U-48MR/ES-A PLC Programmable Controller for Mitsubishi Programming Your Projects

Introduction of FX3U PLC:
- Third generation micro programmable controller for Mitsubishi
- Built-in RAM memory up to 64K large capacity
- Built-in industry's highest level of high-speed processing 0.065μS / basic instructions
- Control scale: 16~384 (including CC-LINK I/O) points
- Built-in independent 3-axis 100kHz positioning function (transistor output type)
- A powerful and easy-to-use adapter can be connected to the left side of the base unit

Main Features of FX3U PLC:
1. [Maximum 384 points of input and output points]
The total number of points for direct wiring (up to 256 points) and remote I/O (up to 256 points) on the network (CC-Link) can be extended to 384 points.
2. [Extension unit/module that can be connected]
The input and output expansion devices can be connected to the FX2N series of I/O expansion units/modules. In addition, up to 8 FX0N/FX2N/FX3U series special function units/modules can be connected. (FX0N series can only be connected to FX0N-3A)
3. [Program Memory]
Built-in 64K steps of RAM memory. In addition, the program memory can be changed to flash memory by using a memory cartridge.
4. [Computation instructions]
In addition to floating-point numbers and string processing instructions, it also has a wealth of instructions such as fixed-coordinate instructions.
5. [Built-in RUN/STOP switch]
The RUN/STOP operation can be performed by the built-in switch. In addition, RUN/STOP commands can be issued from a common input terminal or peripheral device.
6. [Support RUN writing]
With the programming software for the computer, the program can be changed while the programmable controller is RUN.
7. [Built-in clock function]
Built-in clock function, you can perform time control.
8. [Support remote debugging]
If you use the programming software (GX Developer), you can perform long-distance program transfer and operation monitoring of the programmable controller by connecting the RS-232C function expansion board and the modem on the RS-232C communication special adapter.

FX3U Series PLC Dimensions:
FX3U-16MR/ES-A, FX3U-16MT/ES-A: Input 8 points, output 8 points; 130*90*86
FX3U-32MR/ES-A, FX3U-32MT/ES-A: Input 16 points, output 16 points; 150*90*86
FX3U-48MR/ES-A, FX3U-48MT/ES-A: Input 24 points, output 24 points; 182*90*86
FX3U-64MR/ES-A, FX3U-64MT/ES-A: Input 32 points, output 32 points; 220*90*86
FX3U-80MR/ES-A, FX3U-80MT/ES-A: Input 40 points, output 40 points; 285*90*86
FX3U-128MR/ES-A, FX3U-128MT/ES-A: Input 64 points, output 64 points; 350*90*86

Package Included:
- 1 x PLC Programmable Controller
