FY201 PWM Signal Generator + For Modbus 4-20mA 2-10V DDS Function Signal Generator 1.44" Color LCD

FY201 PWM Signal Generator + For Modbus 4-20mA 2-10V DDS Function Signal Generator 1.44" Color LCD

Description:
FY201 series waveform generator is a high-performance, cost-effective and multi-functional signal generator that integrates PWM signal generator, pulse waveform generator, function signal generator, 4-20mA, 2-10V adjustable output and other functions. Device. The instrument uses a high-speed microprocessor for Arm Cortex-M3. The surface mount technology greatly improves the anti-interference and service life of the instrument. The instrument has a function signal generator output, which can generate 3 preset waveform signals, that is, sine wave, triangle wave and sawtooth wave. This instrument achieves a perfect combination of ease of use, excellent technical indicators and many functional characteristics in signal generation, voltage and current output, and use. It can help users complete work tasks faster. It is an electronic engineer, electronic laboratory, production line, and ideal testing and measuring equipment for teaching and scientific research.

The FY201 series waveform generator has a humanized keyboard layout and instructions, providing users with an intuitive operation interface. The display interface adopts a 1.44-inch 128*128 resolution TFT color LCD screen to display various parameters intuitively. The shortcut keys greatly simplify the complex operation process and greatly enhance the operability of the instrument. Users do not need to spend a lot of time to learn and familiarize themselves with the operation of the instrument to be proficient in use.

Technical Index & Functional Characteristics:
- Adopt DDS technology to produce accurate, stable and low-distortion output signal;
- Desktop design with ABS plastic shell, 6-20V (DC) wide voltage power supply;
- Use 1.44 inches (128*128) color display;
- PWM waveform output frequency, voltage and duty cycle are adjustable;
- Pulse waveform output pulse width, number and cycle output are adjustable;
- Waveform generator has: sine wave, triangle wave, sawtooth wave;
- Can output 2-10V, 4-20mA DC waveform;
- PWM waveform output frequency range: 0-150KHz (resolution: 1Hz), voltage output range: 1-24V (resolution: 0.01V), duty cycle;
- The maximum output frequency of pulse waveform is 150KHz;
- Powerful communication function for Modbus, PC can be used to control the instrument. The communication protocol is open, making the secondary development very simple;
- High reliability: large-scale integrated circuit, surface mount technology, high reliability and long service life.

Frequency Characteristics:
PWM mode:
- Frequency: 0~150KHz; resolution 1Hz
- Duty cycle: 0~100%; resolution 0.1%
- Voltage: 1-24V; resolution 0.01V
Pulse mode:
- T0 time: 0~10MHz; resolution 0~10MHz
- T1 time: 0~10MHz; resolution 0~10MHz
- T2 time: 0~20MHz; resolution 0~20MHz
- Number of pulses: 0-60000; resolution 1
- Voltage: 1-24V; resolution 0.01V
Wave mode:
- Waveform: 3 kinds of waveforms (sine wave, triangle wave, sawtooth wave)
- Frequency: 0-5KHz; resolution 1Hz
2-10V/4-20mA mode:
- Voltage: 2-10V; resolution 0.01V
- Current: 4-20mA; resolution 0.01mA

General Technical Parameters:
Interface:
- Interface mode: RS-485 serial interface (optional)
- Communication rate: 2400-115200 bps (adjustable)
- Communication protocol: adopt protocol for Modbus, the protocol is open
- Power supply: Voltage DC 6V~20V
- Manufacturing process: surface mount process, large scale integrated circuit, high reliability, long service life
- Operating characteristics: All key operations, continuous knob adjustment
- Environmental conditions: Temperature: 0~40℃ Humidity: <80%
- Display: 1.44-inch TFT color LCD display

Package Included:

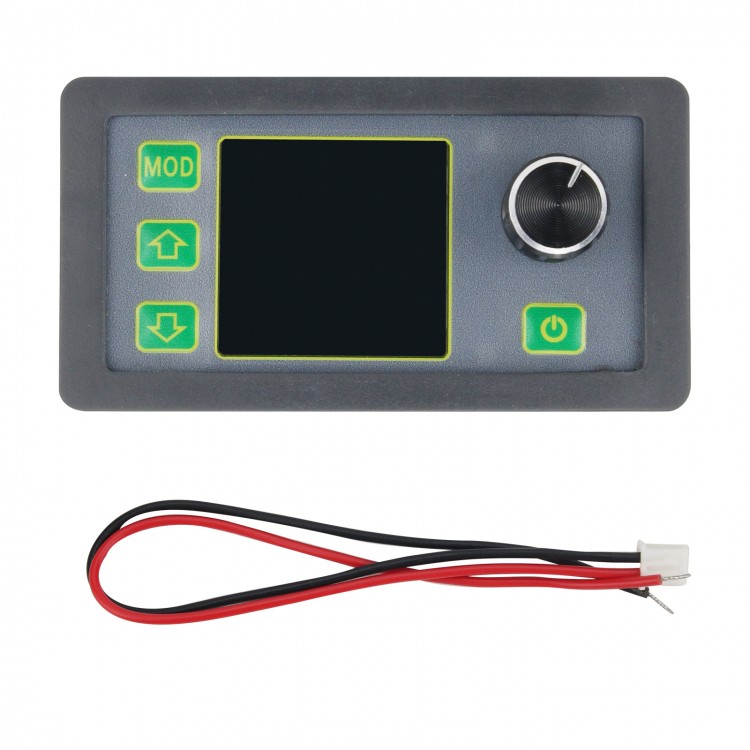

- 1 x Set of Signal Source
