GCAN-PLC-400 PLC Programmable Logic Controller Supporting up to 32pcs I/O Expansion Modules

GCAN-PLC-400 PLC Programmable Logic Controller Supporting up to 32pcs I/O Expansion Modules



Description:
GCAN-PLC-400 programmable logic controller is a bus module controller integrated with PLC function. As a compact and cost-effective module, it can be used to connect the CAN-Bus system, Modbus system and distributed bus terminal module, and these terminal modules can be expanded in a modular way.

A complete control system consists of a bus module controller (GCAN-PLC-400), 1-32 arbitrary number of GC series terminal modules (GC-1008, GC-3804, etc.) and a terminal module. The GCAN-PLC-400 programmable controller supports automatic configuration. You do not need to set parameters on the computer. The controller will automatically assign the I/O interface according to the positional relationship of the inserted terminal module.

The GCAN-PLC-400 programmable controller is programmed according to the IEC 61131-3 standard using the OpenPCS programming system. OpenPCS programming system provides a variety of debugging features (such as breakpoints, single-step, monitoring, etc.) to make debugging easier. The GCAN-PLC-400 configuration/programming interface is a Micro-USB interface that can be used to load PLC programs.

The GCAN-PLC-400 programmable controller complies with the ISO 11898 CAN bus protocol. Support CANopen/ Modbus RTU/ Modbus TCP communication protocol and can be used as CANopen/ Modbus RTU/ Modbue TCP master or slave. GC series programmable controller expansion module currently includes: digital input expansion module, digital output expansion module, analog input expansion module, analog output expansion module, etc.

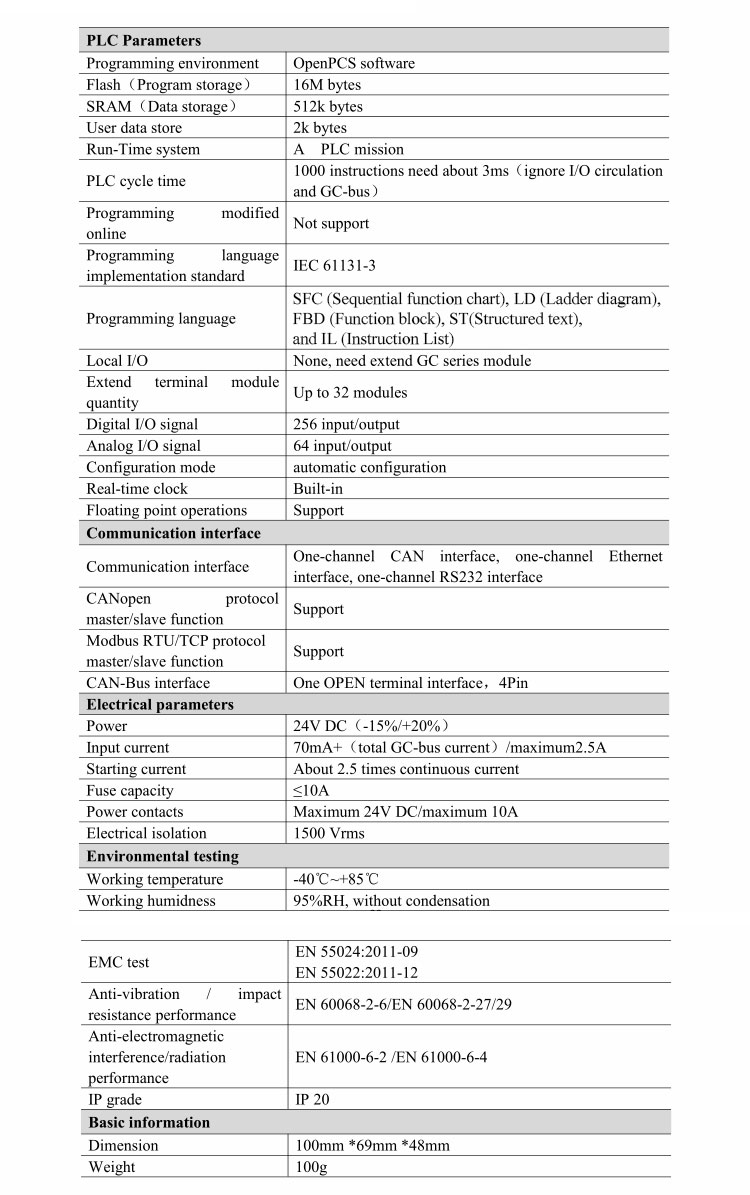

Performance:
- One-channel CAN-Bus interface, one-channel Ethernet interface, one-channel RS232 serial interface
- Programming Software: OpenPCS ( according to IEC 61131-3 standard)
- Support CANopen protocol master/slave function
- Support Modbus RTU/TCP master/slave function
- CANopen PDO mode supports synchronization, looping, event-driven, polling
- Up to 32 bus terminal modules ( up to 32x8 I/O points)
- Transmit 4 PDOs ( CANopen) and receive 4 PDOs ( CANopen)
- Configuration mode is automatic configuration
- Supply power: 24V DC (18~36V)
- Input current, 70mA+ ( total GC-bus current), maximum 2.5A
- Starting current: about 2.5 times continuous current
- Power contacts: maximum 24V DC/maximum 10A
- Electrical isolation: 1500 Vrms
- Working temperature: -40.00℃ to 85.00℃
- Dimensions: 100 x 69 x 48mm/3.9 x 2.7 x 1.9" (LxWxH)
- IP grade: IP20

Package Included:
- 1 x Module

Note:
- 32 kinds of I/O expansion modules can be used with the PLC module. If they are needed, please consult us for the prices. Thank you!
