GD16x27 Spring Coupling 6mm-10mm Flexible Coupler for Encoder Servo Step Motor CNC
Features:
- The main body is made of Zinc alloy
- Elastic effect compensating radial,angle, axial deviation
- The elastic part is made of spring steel
- For encoder and micro motor

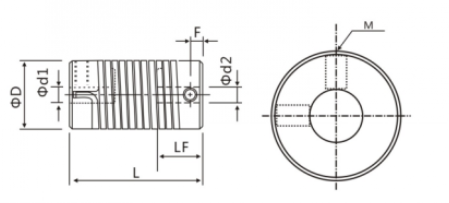

Specification:
- Model: GIC-16x27
- For d1,d2 shaft diameter (mm): 5,6,6.35,7,8,9,10
- D: 16mm
- L: 27 MM
- LF: 8.5mm
- F: 3mm
- M: M3
- Torque: 0.7N.M
Tech parameter:
- Rated torque: 0.5N.M
- Max. torque: 1N.M
- Radial deviation torlerance: 1.0mm
- Deflection torlerance: 8degree
- Axial deviation torlerance: -+1.0mm
- Maximum speed:7600rpm
- Static torque: 170N.M/rad
- Inertia torque: 1.02x10-6
- Weight: 30g
Packing Content:
- 1 x Coupling
