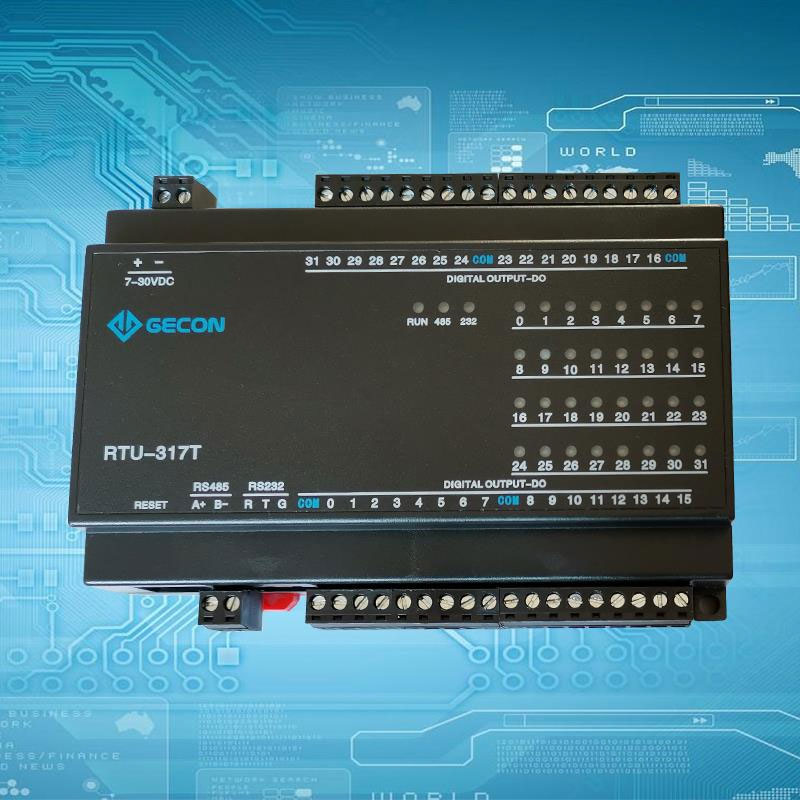

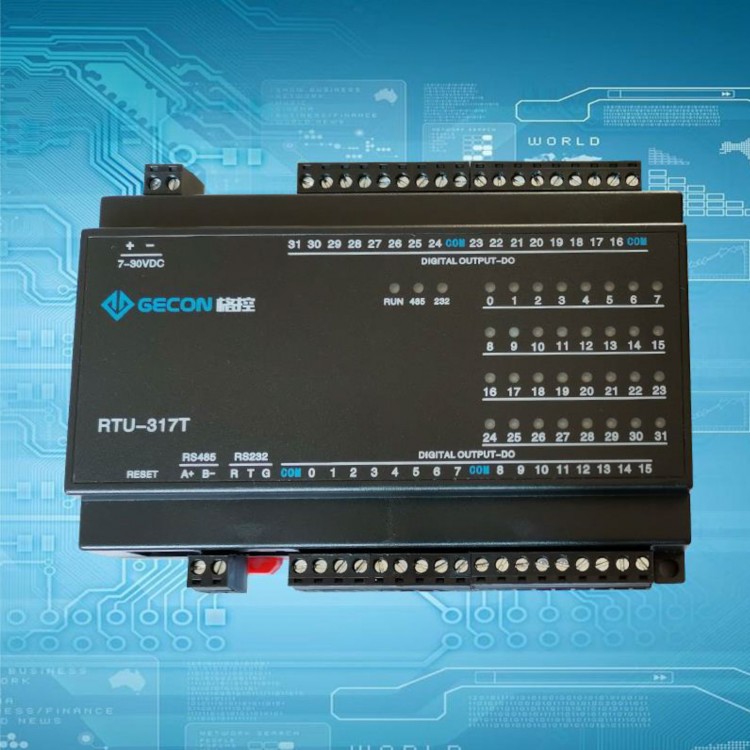

GECON RTU-317T Industrial DAQ Data Acquisition Digital Output Module Modbus RTU 32NPN (RS485+RS232)
Description:
This universal data acquisition module can be used in the fields of building, HVAC, fire fighting, water supply, petrochemical, and environmental protection. It is adopted by most system integrators, automation companies and research institutes because it is a stable, reliable and cost-effective DAQ module.
Advantages:
- Support for Siemens and other PLCs
- For configuration software such as Kingview, FORCECON, MCGS, etc.
- Support RS232 (optional), RS485 interface, touch screen with Modbus protocol, and text screen
- Supports all standard Modbus device online communication
Stability and Reliability:
- Device selection: CPU and other key components are imported from the United States
- Production link: reflow soldering process, integrated machine production soldering
- Industrial design: RS485 port with photoelectric isolation, anti-interference and lightning protection
- Product quality: industrial grade quality ensures long service life
System Parameters:
- CPU: American imported chip, 32-bit high-speed processor for ATMEL ARM, 72MHZ
- Operating system: for GCOS, 10ms scheduling mechanism
- Supply voltage: 7-30VDC at 3W; reverse polarity protection for power supply, isolated design
- Communication interface: DCDC isolation design, 2500V lightning protection, ESD, over-voltage, and over-current protection

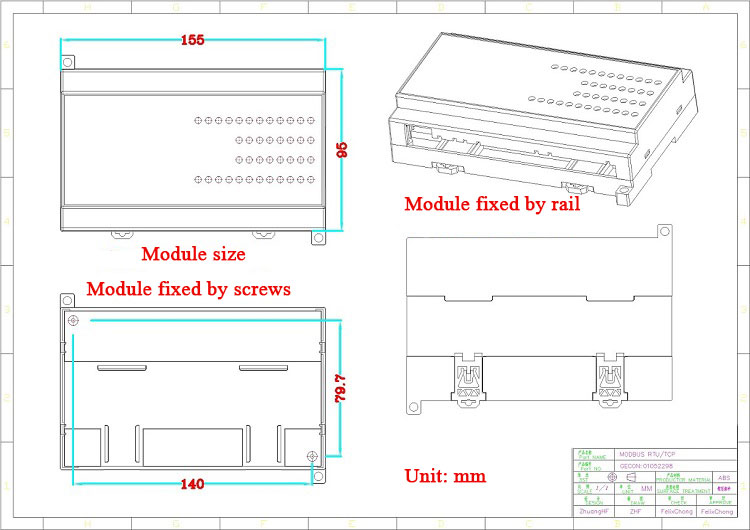

- Dimensions: 155 x 95 x 39mm/6.1 x 3.7 x 1.5" (LxWxH)
- Two installation ways: screw fixing and rail mounting
- Environmental index: -40 to 85℃, 5%～95%RH non-condensing, IP20 protection
- Hardware watchdog: 1 second hardware watchdog protection system
-
Channel isolation: 2500VDC isolation and anti-interference protection;
due to its stable performance, it can be used in industrial fields
RS485/RS232 Parameters:
- Channel: 1-way RS485; 1-way RS232 (optional)
- Baud rate: 1200~115200
- Communication protocol: MODBUS RTU
- Default setting: 9600.N.8.1; station number: 1

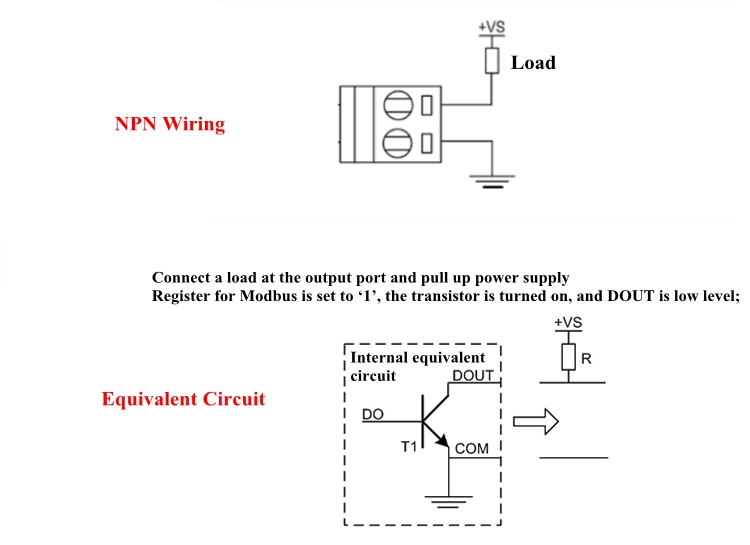

Transistor Output:
- Output mode: Collector NPN output
- Load voltage: 5-30VDC, 100mA
- Isolation protection: optocoupler isolation
- Response speed: 0.01 seconds (10ms)
- Application design: with industrial-grade anti-jamming design, it is stable and reliable to use
Package Included:
- 1 x Data Acquisition Module
