Gemini New USB3.0 Mini Portable Power Supply Management Box Astronomical Power Hub Box with Height Increasing Dovetail Plate
Description:
- The astronomical box specially designed for astronomical photography has a complete circuit protection function to prevent equipment accidents.
- The input current of the box design is 12V8A. If it exceeds 10A, the protection function will be triggered.
- Please note that the total current required by all devices should NOT exceed the input current, otherwise it may result in insufficient current supply.
DC 12V Interface:
- One 5521 input, five 5521 outputs, with complete protection design, including short-circuit protection, overcurrent protection, overvoltage protection, etc.
USB Data Interface:
- One USB 3.1 (for the main camera), three USB 2.0, each interface is equipped with an imported ESD protection chip. The USB interface is powered by a dedicated power module and can provide a maximum current of 5.13V ~ 4A, which can stably supply power for communication such as electric focusing, flat field board, filter wheel, and guiding camera.
Material and Processing:
- Space aluminum shell, CNC machining, anodizing, laser marking, with two M4 screw holes and one M6 screw hole at the bottom for easy fixation on the dovetail plate.
Specification:
- Product size: 78 x 60 x 23mm
- Net weight: about 110g

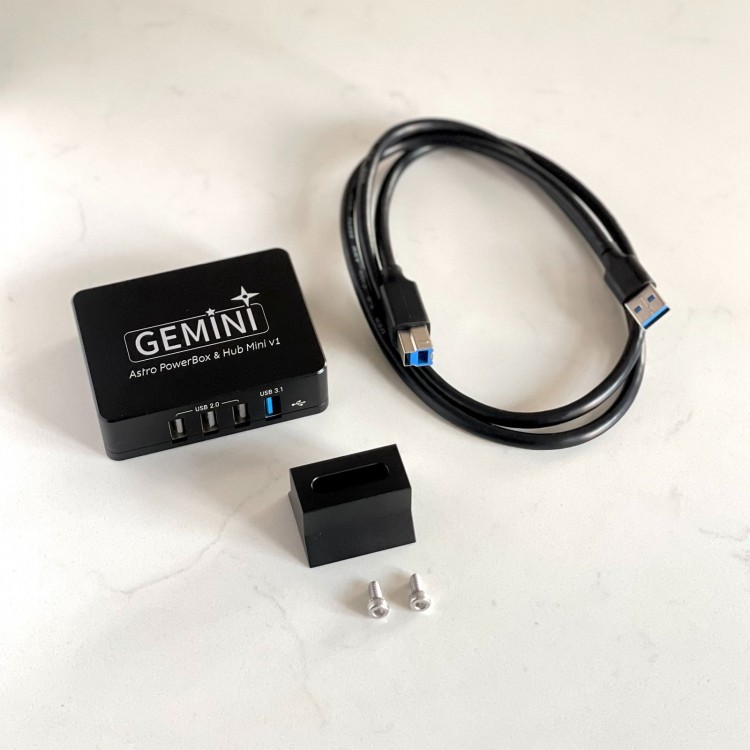

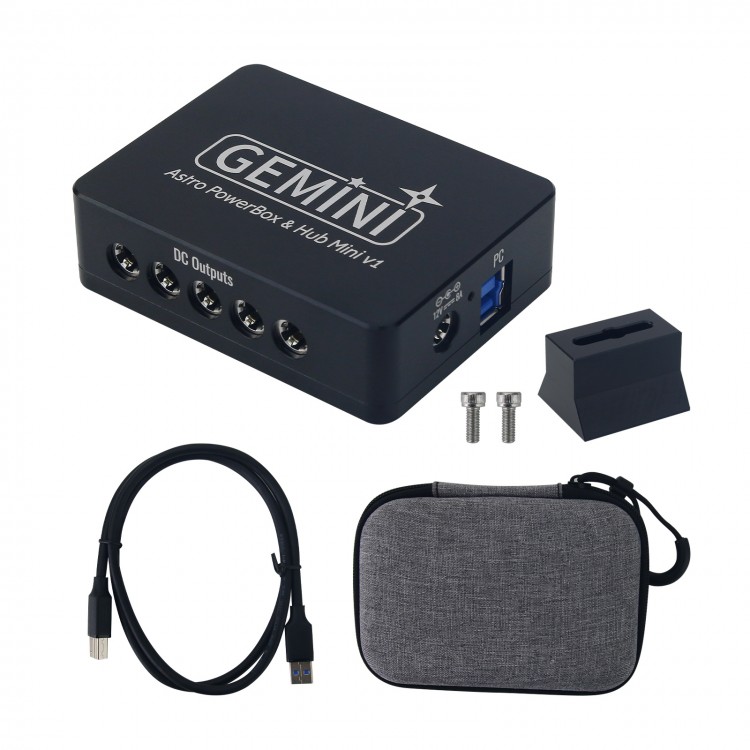

Package Included:
- 1 x Power Hub Box
- 1 x USB3.0 Data Cable
- 1 x Height Increasing Dovetail Plate
