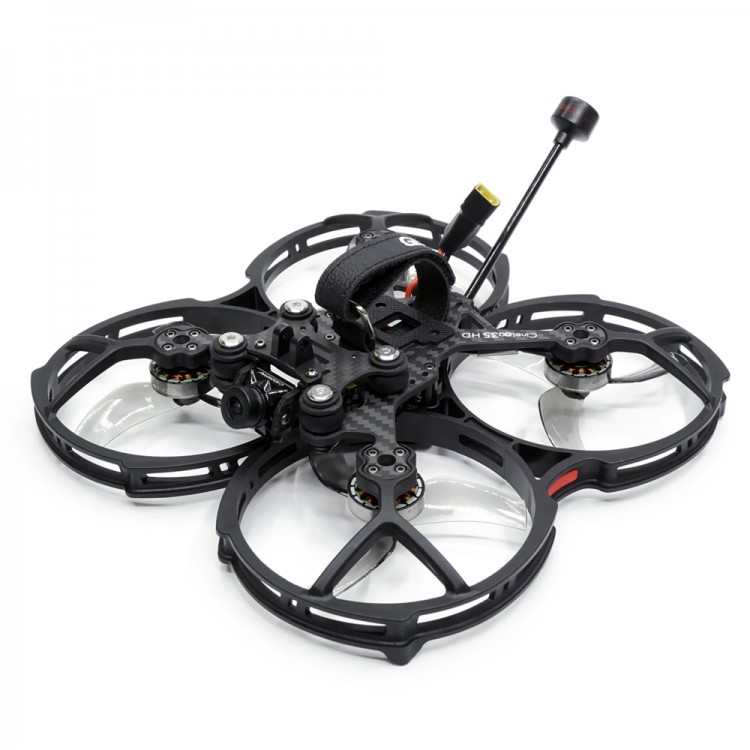

GEPRC CineLog35 Analog VTX FPV Quadcopter FPV Racing Drone for TBS Nano RX 6S Version (XT60)

GEPRC CineLog35 Analog VTX FPV Quadcopter FPV Racing Drone for TBS Nano RX 6S Version (XT60)

Features:
- 3.5" integrated protection guards ensure flight safety.The new design has significant roles at many aspects such as low noise, vibration and noise reduction, and durable high-strength structural design
- Comes with a 3D printed mount to install camera for GoPro10. And its specific base can be used to install cameras for Naked GoPro Hero 8, Insta 360 GO2, and Caddx Peanut
- Gimbal design with better shock absorption performance and its shooting effect is more stable and clear
- GR2004 motors with D90-3 propellers provide strong power output.
- Independent receiver cabin for convenient and fast binding
- It has been debugged, and the overall flight feel is delicate and flexible
- Flip-chip design: Compared with the traditional full-mounted motor, it has better flight efficiency and improved flight time
- High-performance flight control: extremely high computing speed and 5 sets of UART ports
- Excellent compatibility: For GoPro10, 9 and 8 as well as for Naked GoPro Hero 8, Caddx Peanut camera, and Insta360 Go2

Main Parameters:
- Frame: GEP-CL35
- Wheelbase: 142mm
- Top plate: 2.5mm
- Bottom plate: 2.0mm
- Arm plate: 3.5mm
- FC system: GEP-F722-45A AIO
- MCU: STM32F722
- Gyro: 6-Axis
- OSD: For BetaFlight OSD w/ AT7456E chip
- ESC: BLheli_S 45A
- Propeller: D90-3
- Optional receiver: PNP (without receiver), for Frsky R-XSR, and for TBS Nano RX

Technical Parameters (CineLog35 Analog):
- Model: CineLog35 Analog
- Propeller: GemFan D90-3
- Wheelbase: 142mm
- Antenna: Momoda MMCX RHCP
- Image transmission: 5.8G 600mW VTX + for CADDX Ratel2
- Motor: GR2004-1750KV (6S version); GR2004-2550KV (4S version)
- Flight control: F722-35A-AIO
- Size: 203 x 203 x 42mm

Package Included:
- 1 x CineLog35 analog quadcopter
- 2 x Pairs of D90-3 propellers
- 1 x Battery strap 15x200mm
- 2 x Battery silicone pads
- 2 x Landing pads
- 4 x 15 degrees damping rings
- 1 x 3D printed mount combination
- 1 x Screw combination
- 1 x Screwdriver combinations
- 1 x OSD menu board
- 1 x Antenna fixed tube

Note:
- Battery is not included. LiPo 4S 850mAh-1500mAh with XT60 is recommended for 4S version, and LiPo 6S 850mAh-1100mAh is recommended for 6S version.
