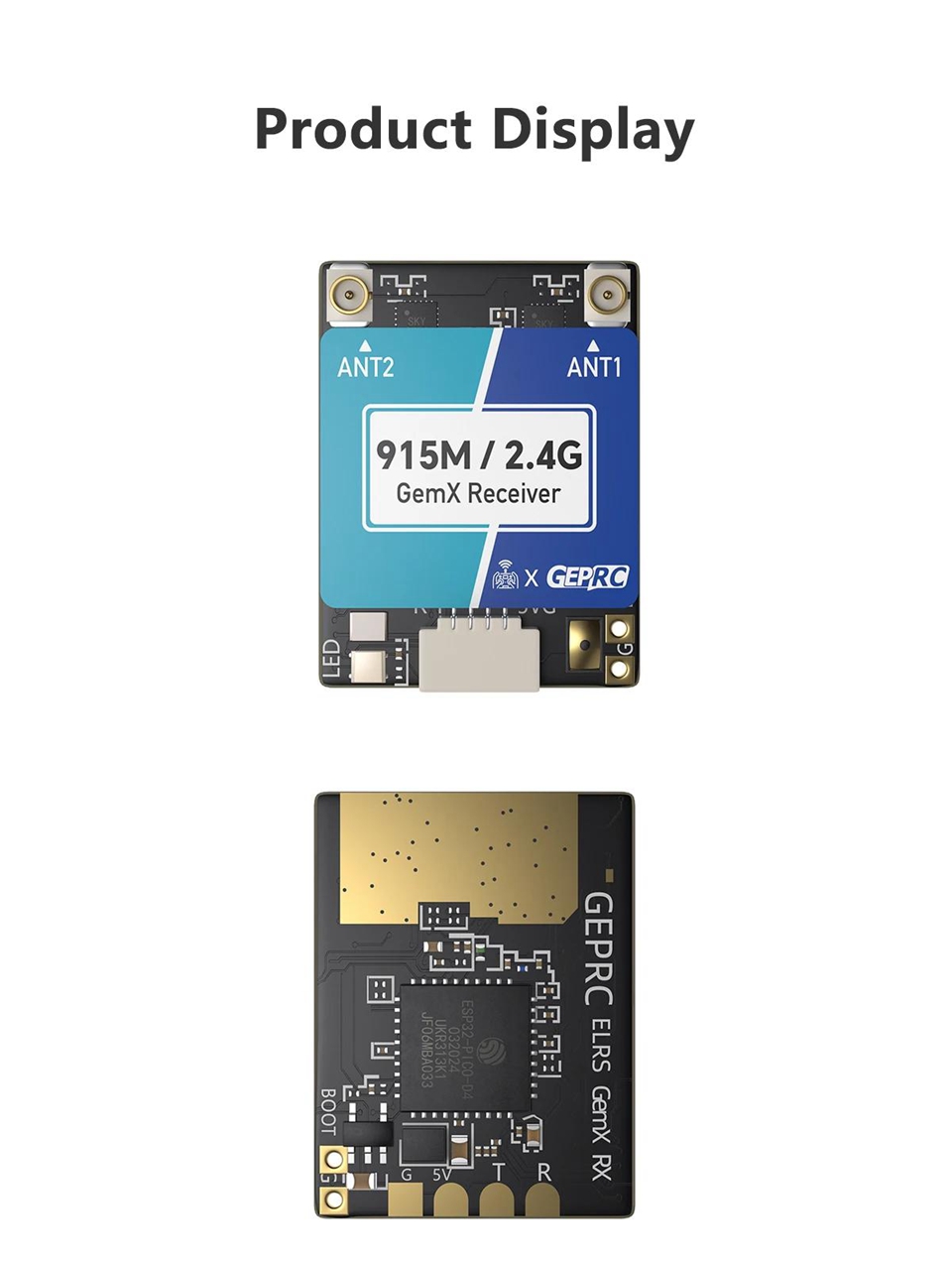

GEPRC ELRS 915M/2.4G Dual Band Gemini Xrossband Receiver LR1121 RF Chip FPV Drone RX Module Built-in TCXO
Description:

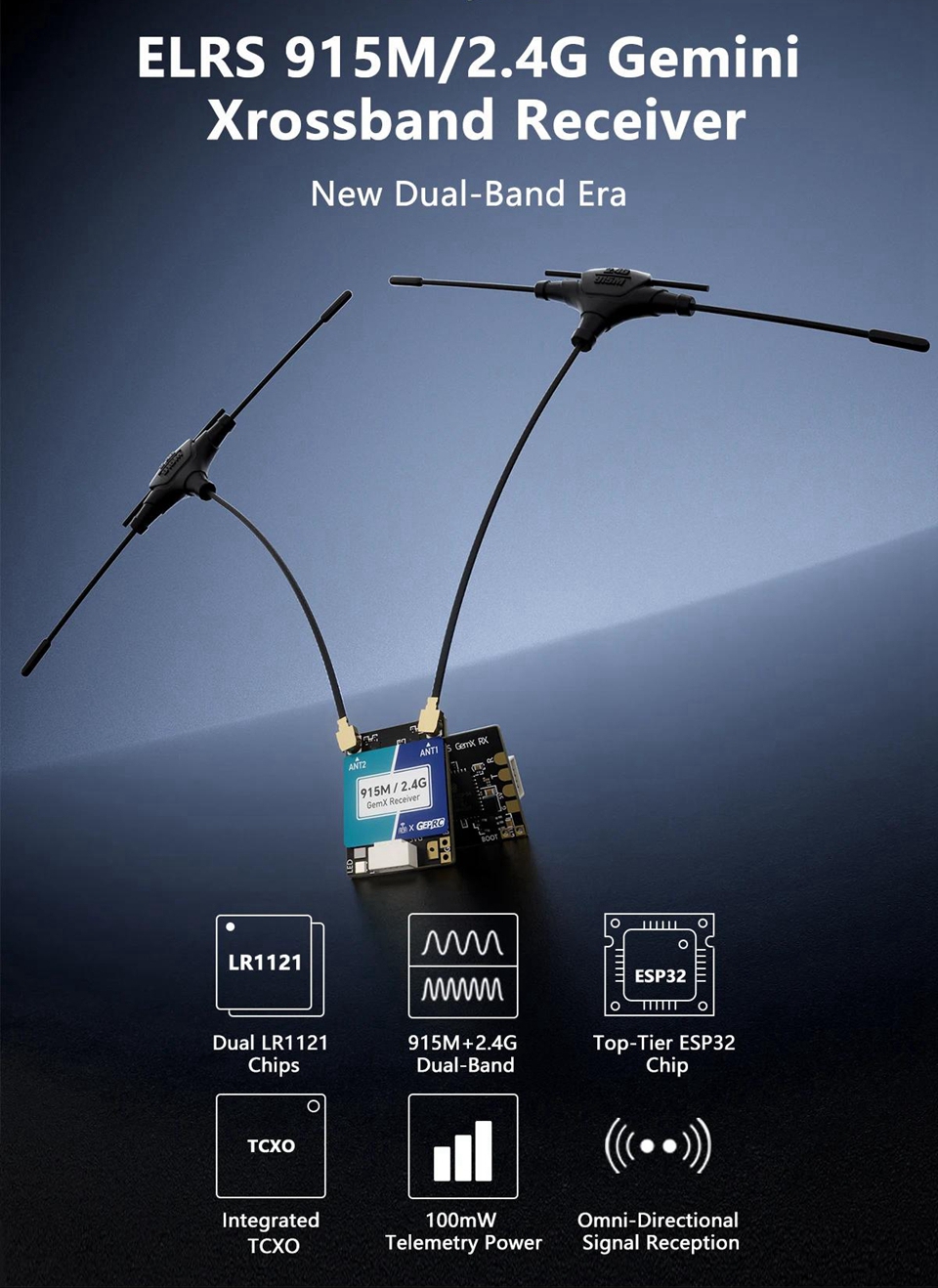

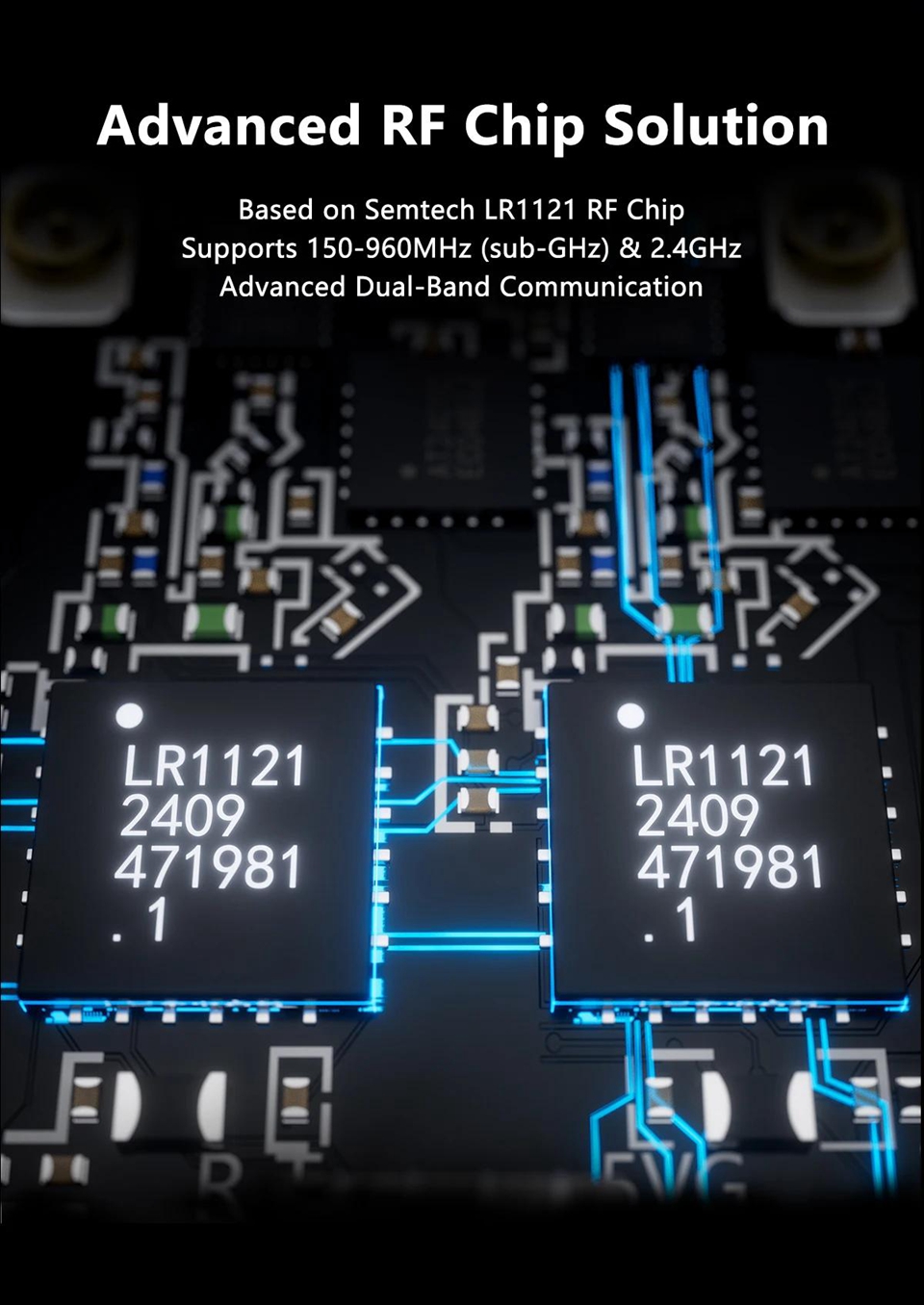

- The GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver is a new dual-band system developed from the ExpressLRS open-source project. It is designed based on Semtech’s third-generation LR1121 RF chip, supporting 150 - 960MHz (sub-GHz) and 2.4GHz bands for simultaneous dual-band transmission.

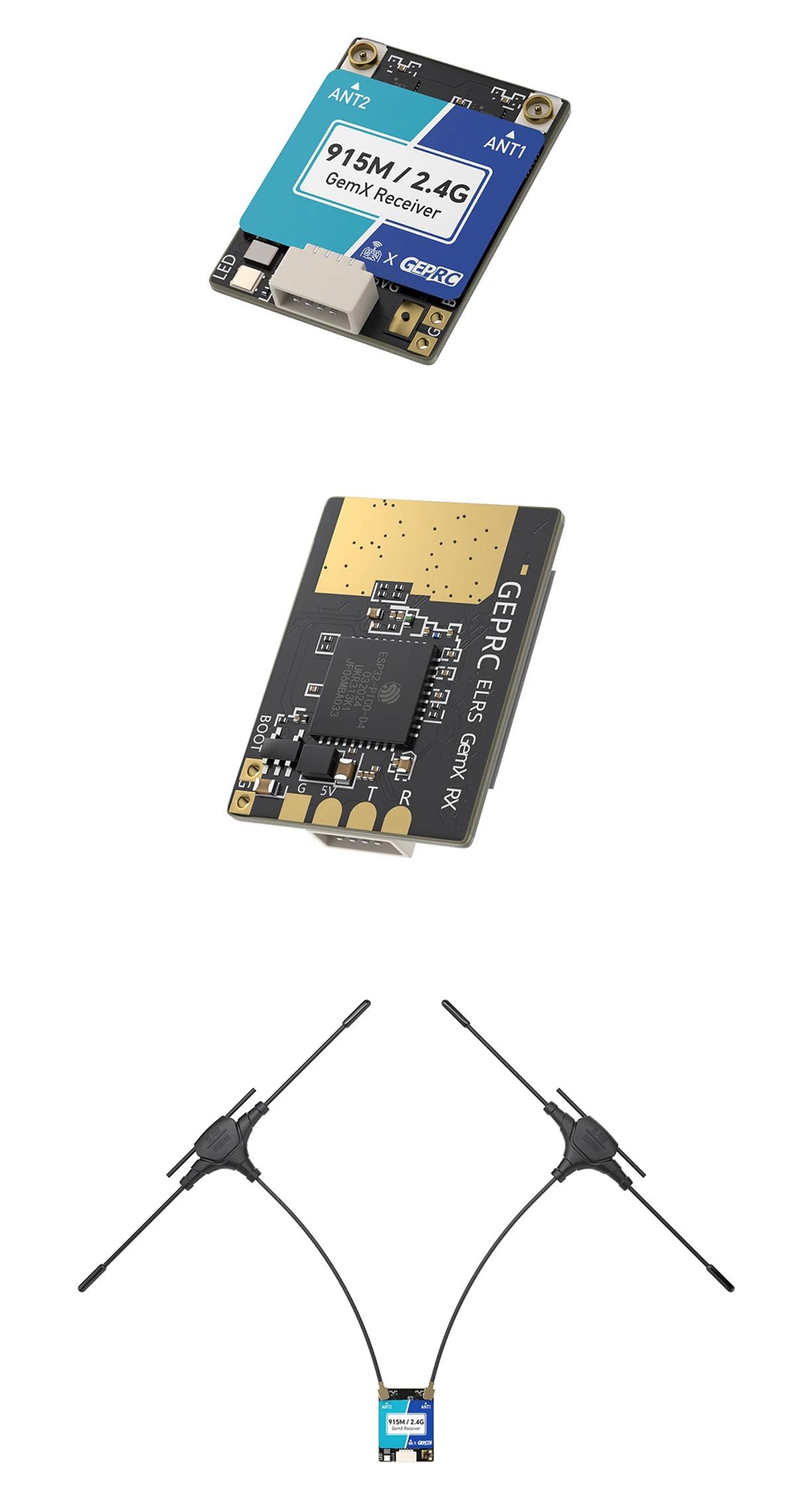

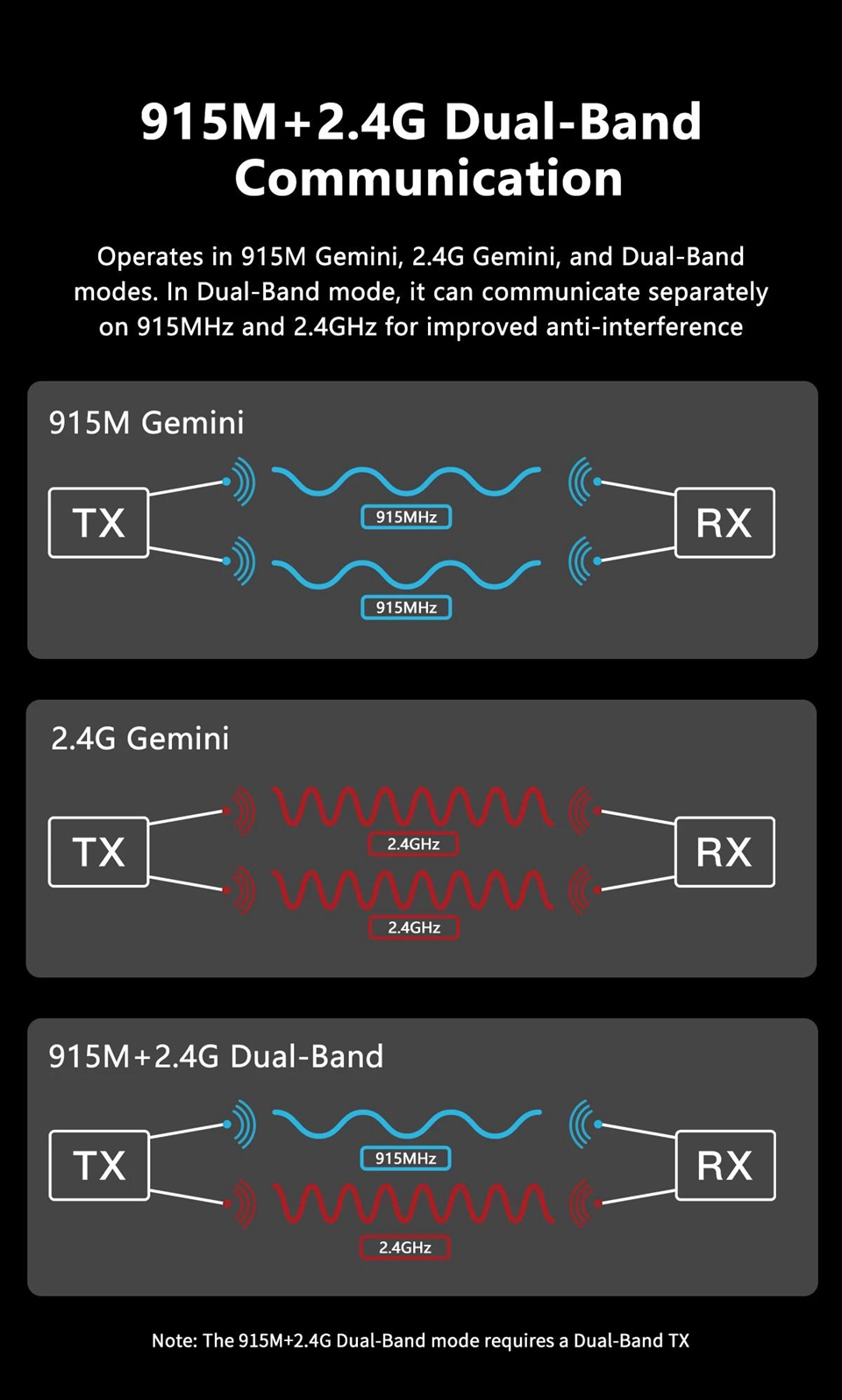

- The ELRS 915M/2.4G Gemini Xrossband Receiver features dual LR1121 chips, allowing easy switching between 915M Gemini, 2.4G Gemini, and dual-band 915M+2.4G modes (requires dual-band TX module support) when paired with 915M/2.4G antennas. It is fully compatible with existing 915M and 2.4G ELRS TX modules.
- In dual-frequency mode, it provides enhanced anti-interference and stability. The TCXO temperature-compensated crystal oscillator ensures reliable performance across temperature variations, with telemetry power up to 100mW. The built-in WiFi antenna facilitates effortless firmware updates, and the SH1.0 connector simplifies installation.
Features:
- Advanced ExpressLRS 915M/2.4G dual-frequency system.
- Based on third-generation LR1121 RF chip for Semtech.
- Compact at 18x23.6x5.7mm and weighing just 1.7g.
- Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF.
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures.
- Telemetry power up to 100mW.
- Refresh rate up to 1000Hz.

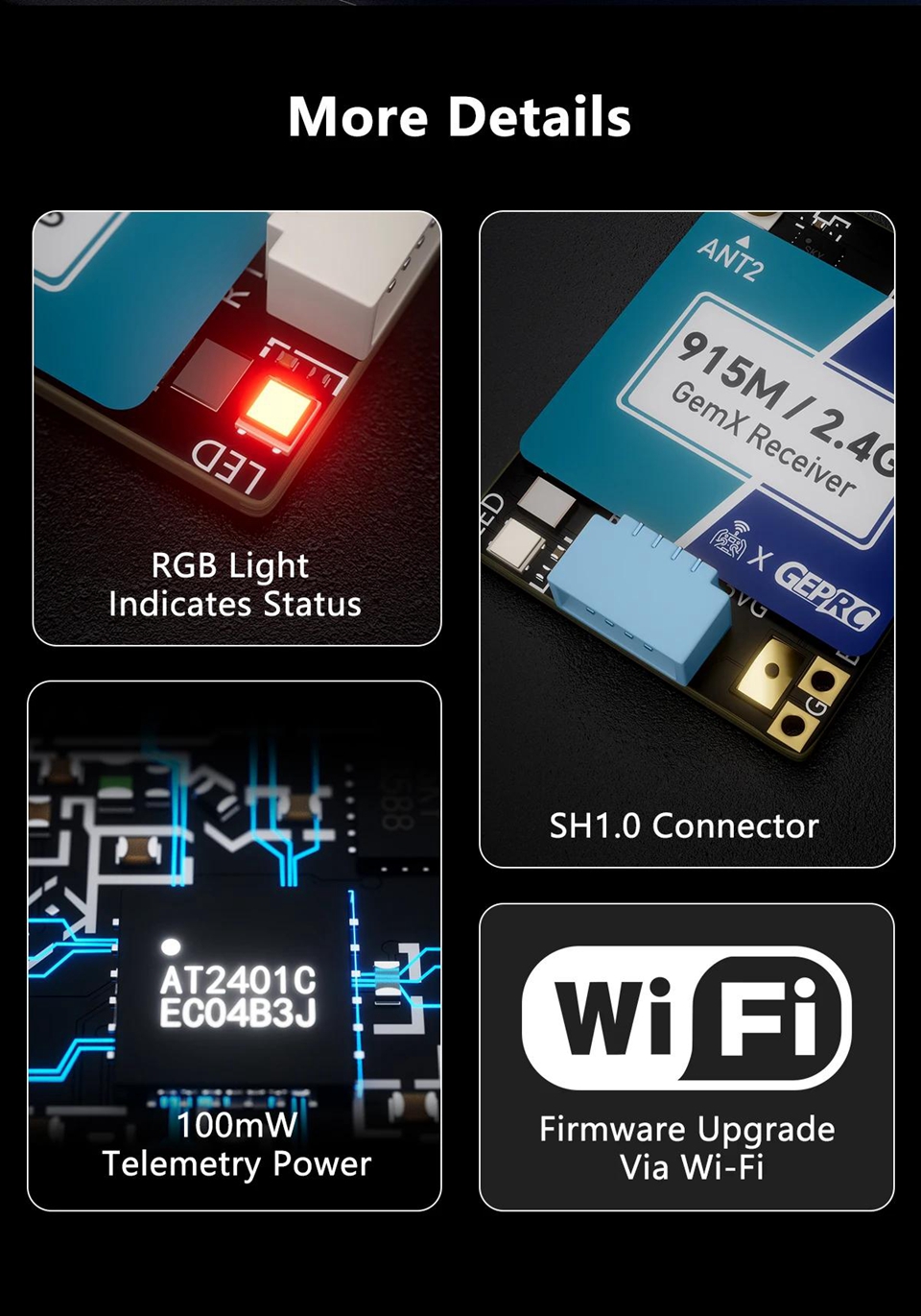

- Supports WiFi firmware updates.
- Includes an SH1.0 connector for easy installation.

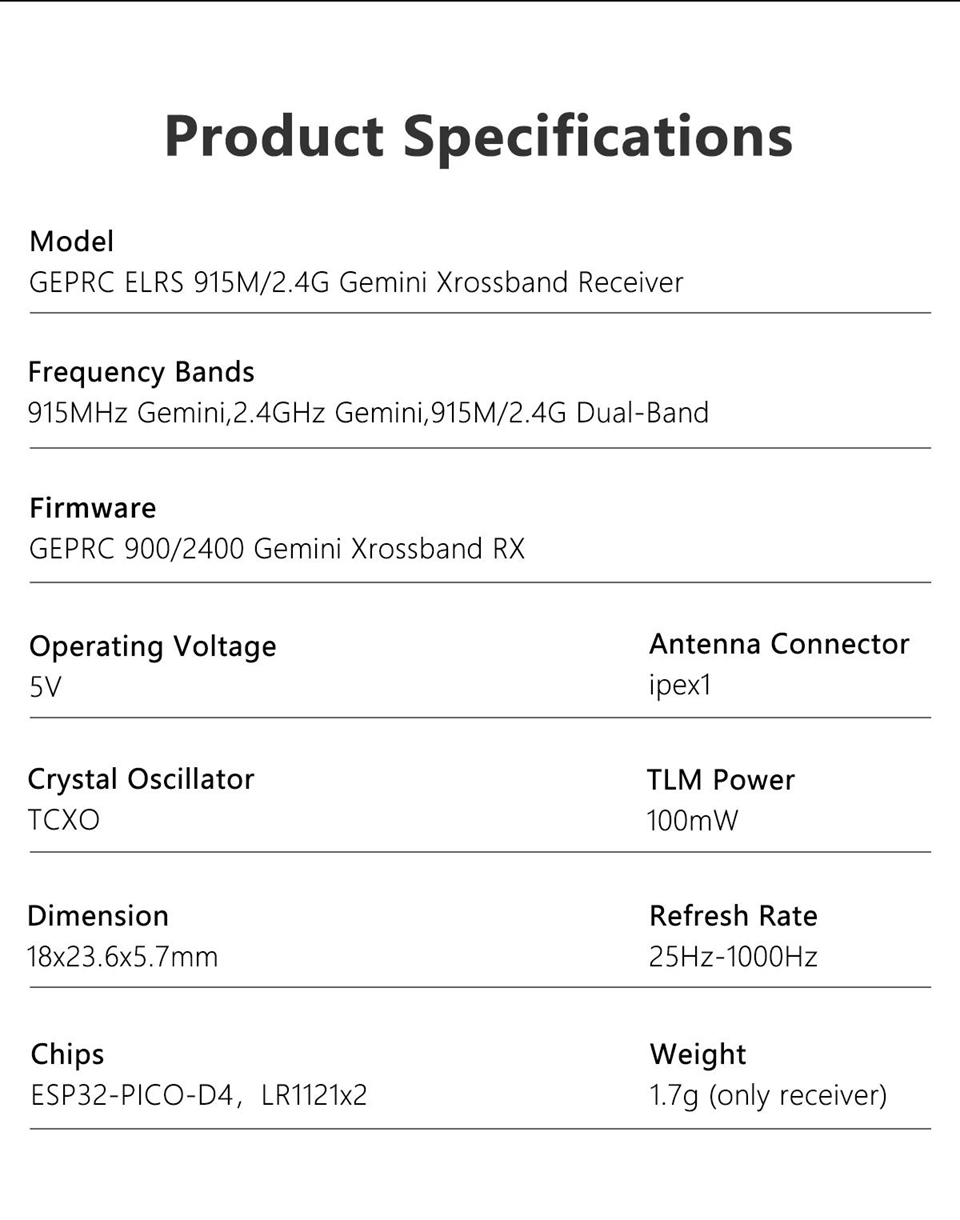

Specification:
- Chip: ESP32-PICO-D4, LR1121x2
- Crystal oscillator: TCXO
- Working voltage: 5V
- Firmware: GEPRC 900/2400 Gemini Xcrossband RX
- Working frequency band: 915MHz Gemini, 2.4GHz Gemini, 915M+2.4G dualband mode
- Refresh rate: 25Hz - 1000Hz
- Antenna interface: IPEX1
- TLM power: 100mW
- Product size: 18 x 23.6 x 5.7mm
- Net weight: 1.7g (only for receiver)

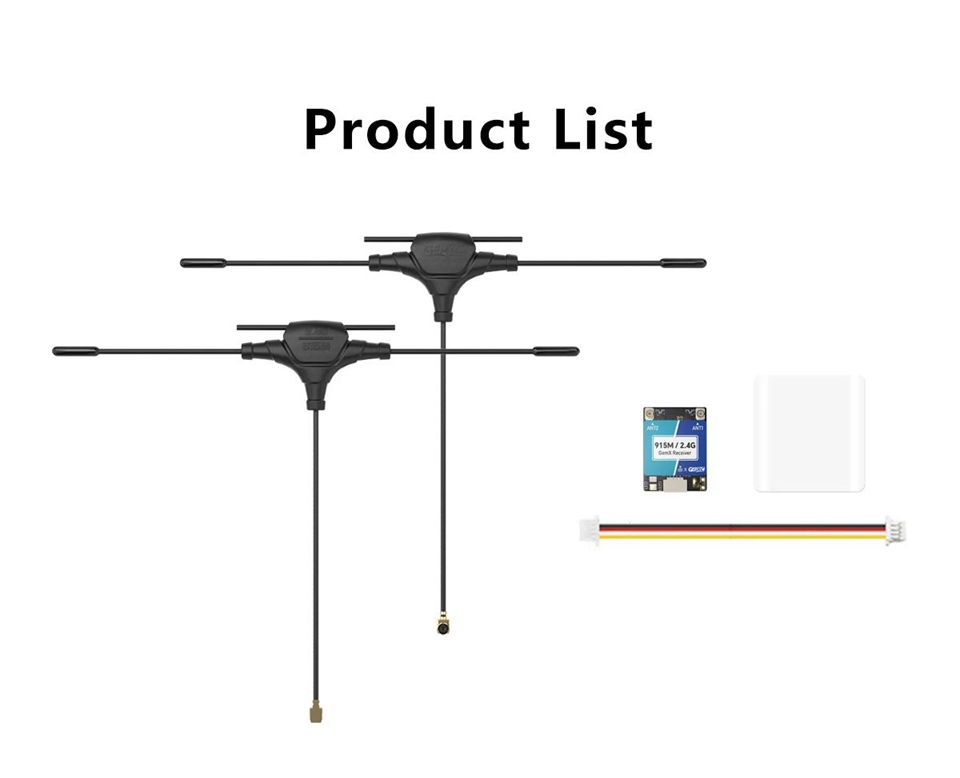

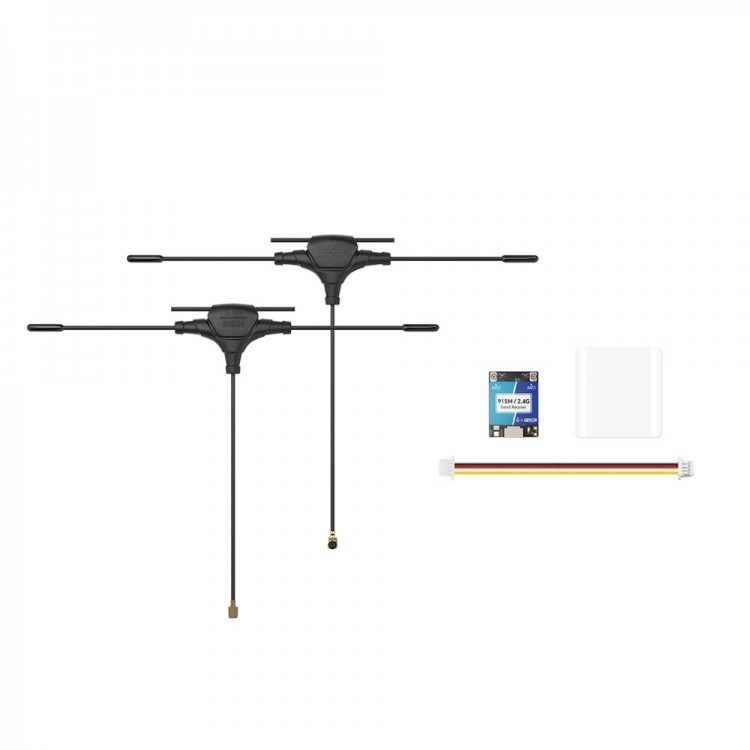

Package Included:
- 1 x ELRS 915M/2.4G Gemini Xrossband Receiver

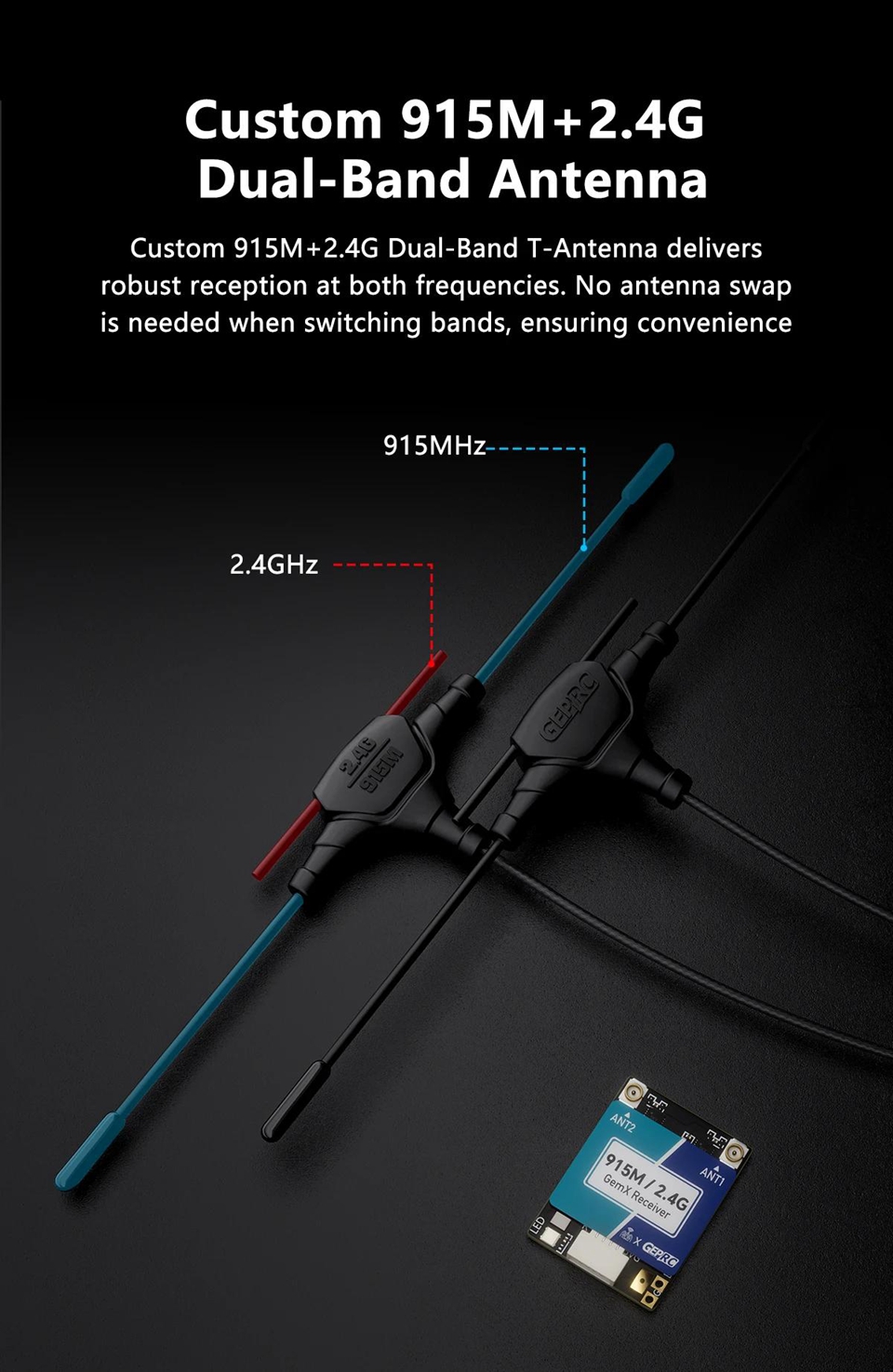

- 2 x 915M/2.4G Dual-band T-Antennas
- 1 x Heat Shrink Tube
- 1 x 4-pin Silicone Connect Cable
- 1 x User Manual
