GEPRC GEP AX5 FPV Airbus 4 Inch 180mm Racing Traversing Rack Four Axis UAV Type DIY Kit Racer
Features:
- GEPRC uses the "X" aluminum alloy CNC design structure to fix the 4 arms, removing the installation is very easy, CNC aluminum alloy greatly enhance the "X" frame strength.
- This section presents a 5V (3A output) and 12V (500mA output) board (PDB), comes with XT60 plug, save the player's installation time. It is worth mentioning that the tail of the integration of 6 highlights LED lamp taillights, and with a buzzer.
- Tail lamp can support (Betaflight / CleanFlight) control lamp color and status. This section is the biggest feature of the head camera comes with a 35 degree tilt angle, 3D TPU material printing, greatly reducing drag.
Descripition:
- 3K high strength carbon plate to ensure that the frame is strong
- Thanks to the integration of CNC aluminum parts, so that the arm is more solid, and can easily replace the arm

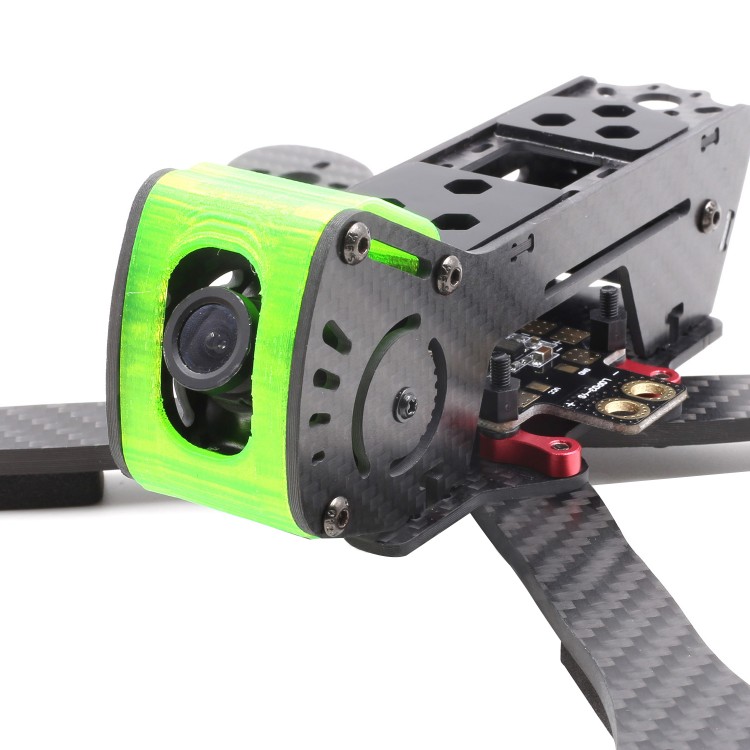

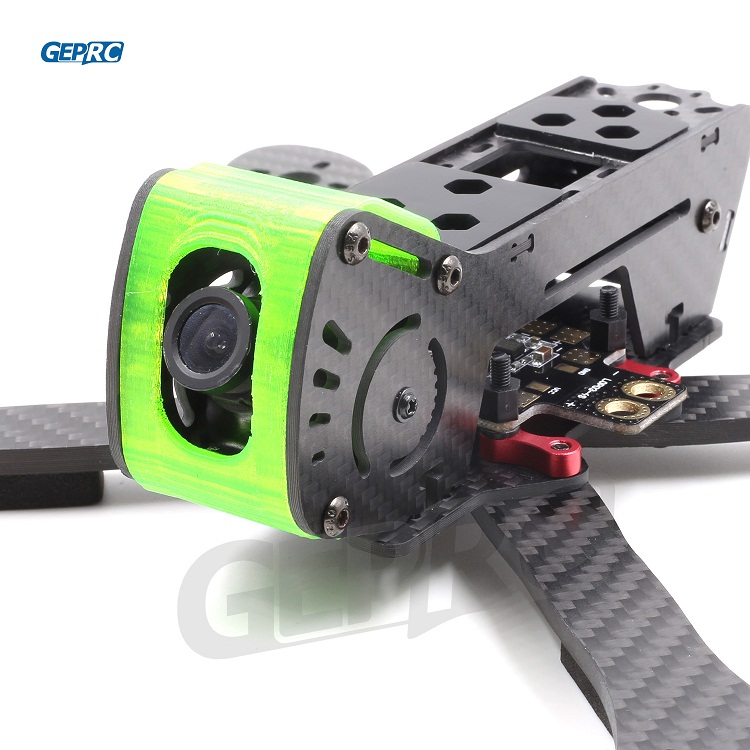

- Camera comes with a tilt angle of 35 degrees, can be very convenient to install Gorpo, Session.
- Head with 3D print, greatly reduce the drag.
- 4 inch wheelbase 180mm
- Motor seat design protection structure, in most cases to reduce the degree of motor injury
-"X" structure design, good mobility
- Strong structure, beautiful appearance, light weight (116g, empty frame and screw)
- Lens adjustable, adjustable maximum of 50 degrees
- Comes with a board, with BEC (5/12v output, 5V maximum 3A, 12V maximum 500mA)
Product Specification:
- Item Name : GEP-AX5 Airbus
- Weight :116g(AX5)
- Wheelbase :180mm(4inch props),200mm,215mm(5inch props)
- Arm Thickness :4mm
- Side Panel Thickness:2mm
- Thickness of Other Board :1.5mm
- Flight Controller : F3 /Naze32/ CC3D
- Motor : 2204
- ESC : 20A-30A
- Propeller:215mm 4inch
- Battery : 3S 1300mAh ~ 4S 1300mAh
- VTX : 5.8G Transmitter
- Mini Camera : 700TVL
- Color:red / yellow / green,please let us know which color do you want.
Package List :
- 1 x GEP-AX4 Airbus FPV X Frame Kit
