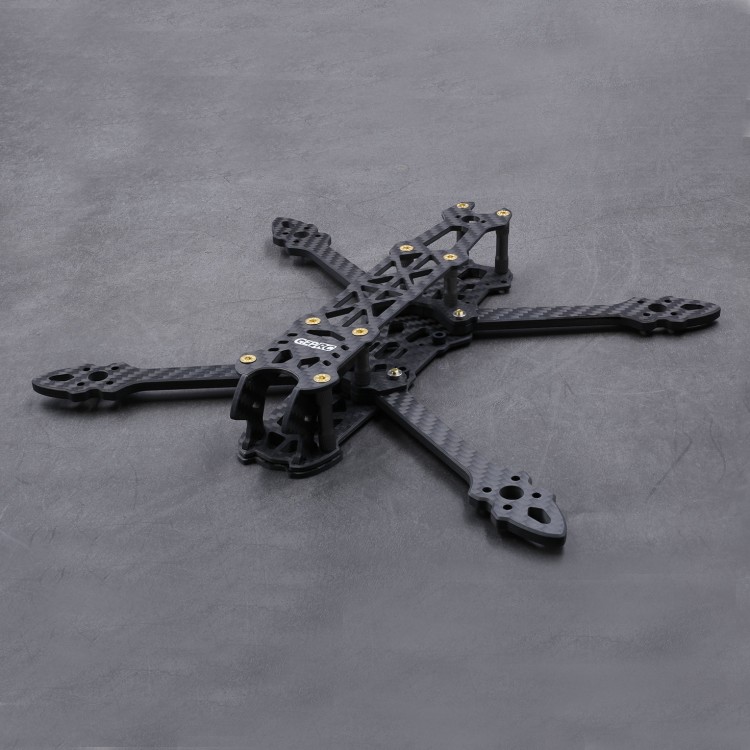

GEPRC Mark4 HD5 Freestyle Quadcopter Frame Kit 5inch 224mm Rack for DJI Digital

Availability: In stock, usually dispatched in 1 business day

  • Price:$50.99
  • Price in reward points: 510 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $49.97 $48.95 $47.42 $45.38 Contact US
Quantity:

GEPRC Mark4 Rack HD5 Freestyle Quadcopter Frame Kit 5inch 224mm Rack for DJI Digital


Description:

This " GEPRC Mark4 HD5 " 224mm frame was specially designed for the DJI Digital FPV system.

Full carbon fiber airframe, suited for a 5-inch propeller power system and flight controllers.

With 3D printed base holder,  helps to protect the DJI FPV Air Unit and antenna in the event of a crash, also with separate parts for maintenance and replacement.

With 30.5*30.5mm and 20*20mm flight control holes , stack can fit in the center or the rear.

Lower center gravity design, the wind resistance is smaller, reduce air resistance, easy to maintain.

YFS screws, 12.9 hardness, hard and non-slip.

No propeller and motor in the lens view or video recording! which will be the perfect FPV experience!

Specification:

Type: Quadcopter freestyle frame

Brand name:GEPRC

Item name:MARK4 HD5

Frame type: H type

Frame wheelbase: 224mm

Weight: about 121g (including 3D printed parts)

Size:138x176mm

Mounting Holes: 30.5x30.5mm/20x20mm

Arms thickness : 5mm

Side plate thickness: 2.5mm

Top plate thickness: 2.5mm

Bottom plate thickness: 2.5mm

Protect plate thickness: 2mm

Fixed part:

8 x M3*25mm  Aluminum column silver gray

4 x M3*18mm  Aluminum column silver gray

8 x M3*8 YFS  Flat Screw

4 x M3*10 YFS  Flat Screw

2 x M3*10 YFS  Button Screw

2 x M3*12 YFS  Button Screw

4 x M3*14 YFS  Button Screw

4 x M3*20 YFS  Button Screw

4 x M3 Nylon nut

4 x Red silicone shock absorber

2 x 20*220 LiPo fixed strap

2 x 15*250 LiPo fixed strap

5 x Nylon cable tie

4 x Shock-absorbing EVA pad

Recommend parts (not include):

Flight Controller: RF/Kiss/F3/F4/F7

Motor: 2205/2206/2207/2207.5/2305/2306/2306.5

ESC: 30A-50A

Propeller: 5inch

LiPo: 4S 1500mAh ~ 6S 1300mAh

FPV: DJI FPV Air Unit

Tips:

DO NOT touch the air unit before it cools down.

DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.

Package included:(unassemble)

4 x 5mm 5inch arms plate

2 x 2.5mm side plate

1 x 2.5mm top plate

1 x 2.5mm bottom plate

2 x 2mm bumpers plate

2 x 2mm reinforce plate

1 x LiPo silicone pad

1 x DJI FPV Air Unit mount adapter

1 x Antenna mount adapter

1 x RX antenna mount adapter

Description:

- This " GEPRC Mark4 HD5 " 224mm frame was specially designed for the DJI Digital FPV system.

- Full carbon fiber airframe, suited for a 5-inch propeller power system and flight controllers.

- With 3D printed base holder,  helps to protect the DJI FPV Air Unit and antenna in the event of a crash, also with separate parts for maintenance and replacement.

- With 30.5*30.5mm and 20*20mm flight control holes , stack can fit in the center or the rear.

- Lower center gravity design, the wind resistance is smaller, reduce air resistance, easy to maintain.

- YFS screws, 12.9 hardness, hard and non-slip.

- No propeller and motor in the lens view or video recording! which will be the perfect FPV experience!


Specification:

- Type: Quadcopter freestyle frame

- Brand name:GEPRC

- Item name:MARK4 HD5

- Frame type: H type

- Frame wheelbase: 224mm

- Weight: about 121g (including 3D printed parts)

- Size:138x176mm

- Mounting Holes: 30.5x30.5mm/20x20mm

- Arms thickness : 5mm

- Side plate thickness: 2.5mm

- Top plate thickness: 2.5mm

- Bottom plate thickness: 2.5mm

- Protect plate thickness: 2mm

Fixed part:

8 x M3*25mm  Aluminum column silver gray

4 x M3*18mm  Aluminum column silver gray

8 x M3*8 YFS  Flat Screw

4 x M3*10 YFS  Flat Screw

2 x M3*10 YFS  Button Screw

2 x M3*12 YFS  Button Screw

4 x M3*14 YFS  Button Screw

4 x M3*20 YFS  Button Screw

4 x M3 Nylon nut

4 x Red silicone shock absorber

2 x 20*220 LiPo fixed strap

2 x 15*250 LiPo fixed strap

5 x Nylon cable tie

4 x Shock-absorbing EVA pad

Recommend parts (not include):

Flight Controller: RF/Kiss/F3/F4/F7

Motor: 2205/2206/2207/2207.5/2305/2306/2306.5

ESC: 30A-50A

Propeller: 5inch

LiPo: 4S 1500mAh ~ 6S 1300mAh

FPV: DJI FPV Air Unit

Tips:

DO NOT touch the air unit before it cools down.

DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.

Package included:(unassemble)

4 x 5mm 5inch arms plate

2 x 2.5mm side plate

1 x 2.5mm top plate

1 x 2.5mm bottom plate

2 x 2mm bumpers plate

2 x 2mm reinforce plate

1 x LiPo silicone pad

1 x DJI FPV Air Unit mount adapter

1 x Antenna mount adapter

1 x RX antenna mount adapter
