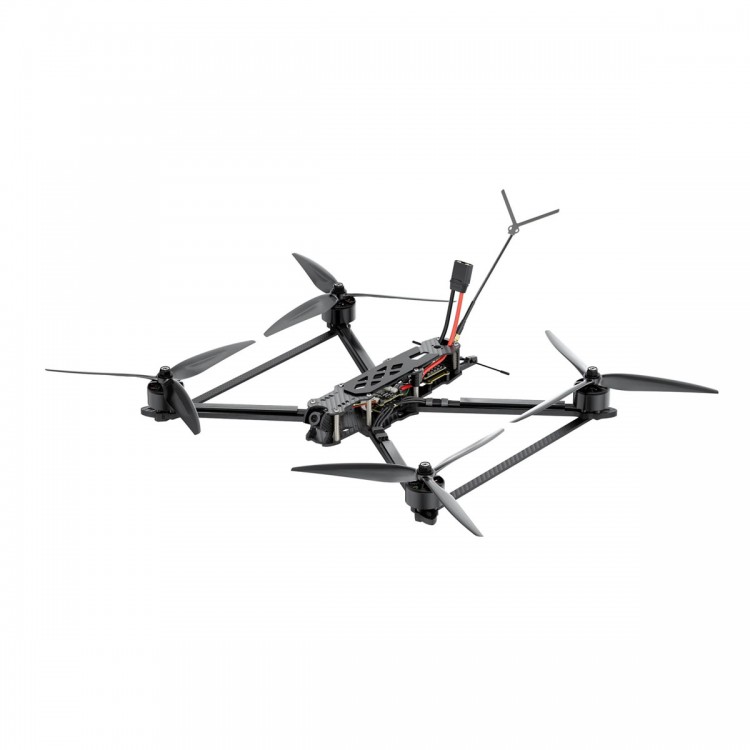

GEPRC MARK4 LR10 Long Range High Power FPV Racing Drone 1.2G 2W with TBS Nano RX Receiver 3KG Load Capacity
Description:
- The 10-inch model of the MARK4 series is officially released. The Model adopts stiffener bars on two sides to improve stability during flight, while inheriting the design conception of the traditional model shape. The engine is upgraded to GEPRC EM3115-900KV with GEP-BL60A-4IN1 ESC, which has stronger power and better load capacity.
Features:
- A sufficient VTX accomplishes long-range flight.
- Equipped with EM3115 motor which ensures payload capability and flexibility in one go.
- Adopting BLS 60A ESC and F405 FC ensures stability and reliability.
- The horizontal stiffener bar reduces the instability.
- Supporting the maximum battery capacity of 8000mAh.
- The maximum payload is up to 3kg.
Specification:
- Model: MARK4 LR10 FPV
- Frame: GEP-MARK4-10
- Wheelbase: 429mm
- Top plate thickness: 2mm
- Bottom plate thickness: 3mm
- Side plate thickness: 2.5mm
- Arm thickness: 7mm
- Mid plate thickness: 3mm
- Stiffener bar thickness: 3mm
- FC: GEPRC F405 V2
- ESC: GEP-BL60A-4IN1
- MCU: STM32F405RGT6
- Gyroscope: ICM-42688-P
- VTX: RAD VTX 5.8G 2.5W / RAD VTX 5.8G 1.6W/ GEPRC VTX 1.2G 2W (optional)
- Camera: for Caddx H1
- Antenna: 5.8G RHCP SMA Antenna / 1.2G RHCP SMA Antenna
- Motor: EM3115 900KV
- Propellers: for Gemfam 1050-3
- Maximum payload: 3KG
- Weight: 968±10g
Package Included:
- 1 x MARK4 LR10 FPV Drone
- 2 x GEMFAN 1050-3 (1R/1L)
- 1 x Camera anti-slip pad
- 1 x Reserved screw pack
- 1 x L-shaped screwdriver (1.5mm)
- 1 x L-shaped screwdriver (2.0mm)
- 1 x M8 wrench
- 2 x Anti-slip rubber strips zinc alloy buckle-20*250mm
- 2 x Anti-slip rubber strips zinc alloy buckle-20*300mm
- 1 x GEPRC frame kits-shock absorber pad ( 4 in one set) V2 version
- 1 x VTX Antenna
Precautions:
- When players purchase model aircraft products, they need to understand the relevant basic operation knowledge.
- Model aircraft have certain dangers, children need to touch the model under the supervision of adults. Make sure the flying environment is safe and away from crowds.
- When flying in the outer field, you should pay attention to the relevant regulations of the local government or relevant management agencies to avoid unnecessary losses.
- Before flying the model, please ensure that the model is securely connected, all equipment is working properly, and all control actions are responding normally to avoid accidents.
- If there is any abnormal situation can not be solved by yourself, please contact customer service technical support for help; We are not responsible for the loss if customers do not consult technical support and solve on their own or do not operate according to the technical support guidance.
- The aircraft model has a certain degree of danger. Please operate it safely when playing. Your purchasing behavior represents that you have recognized the above situation and assume corresponding responsibilities. We do not assume compensation responsibility for losses and injuries caused by improper use of the product or failure to pay attention to safety.
