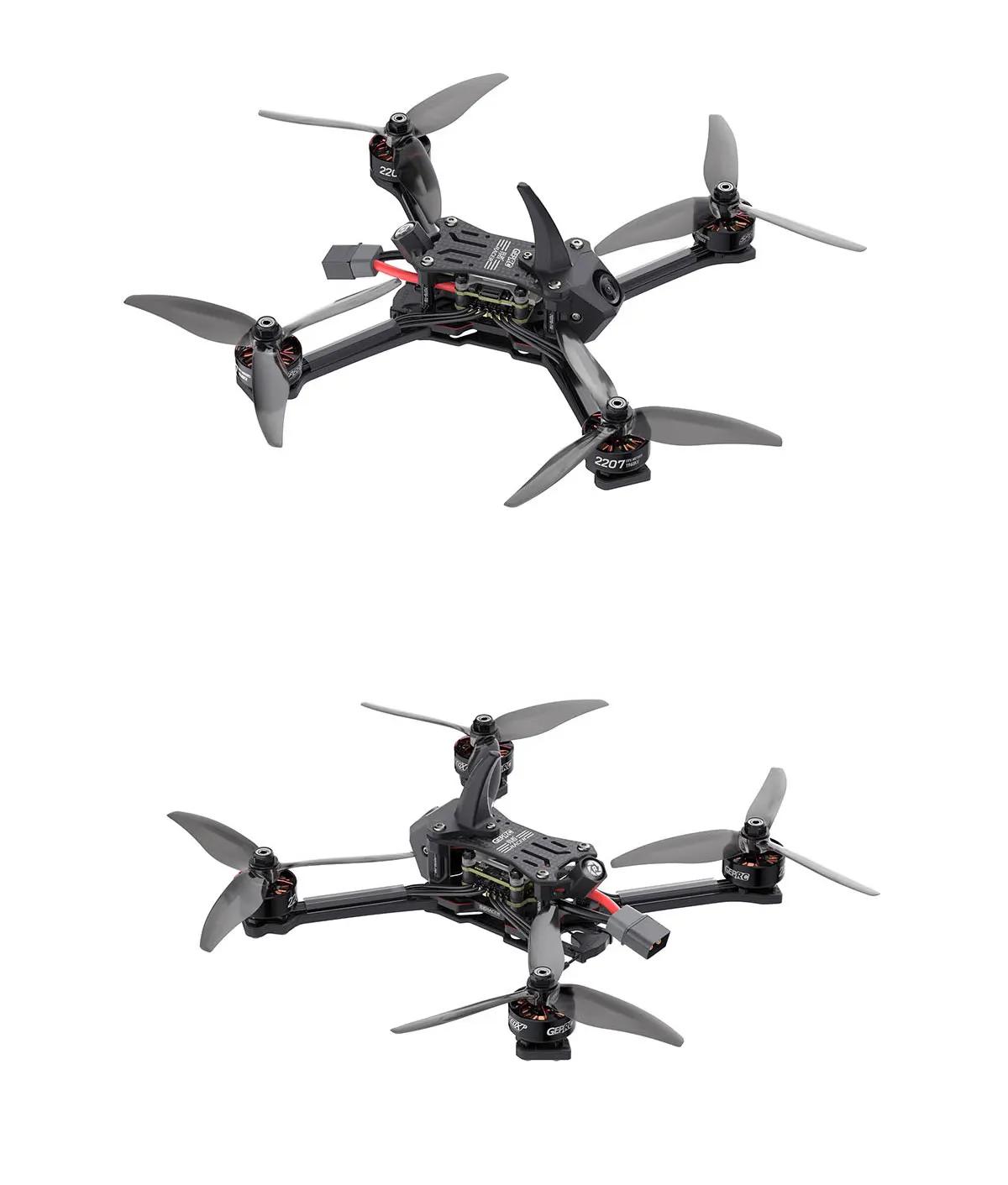

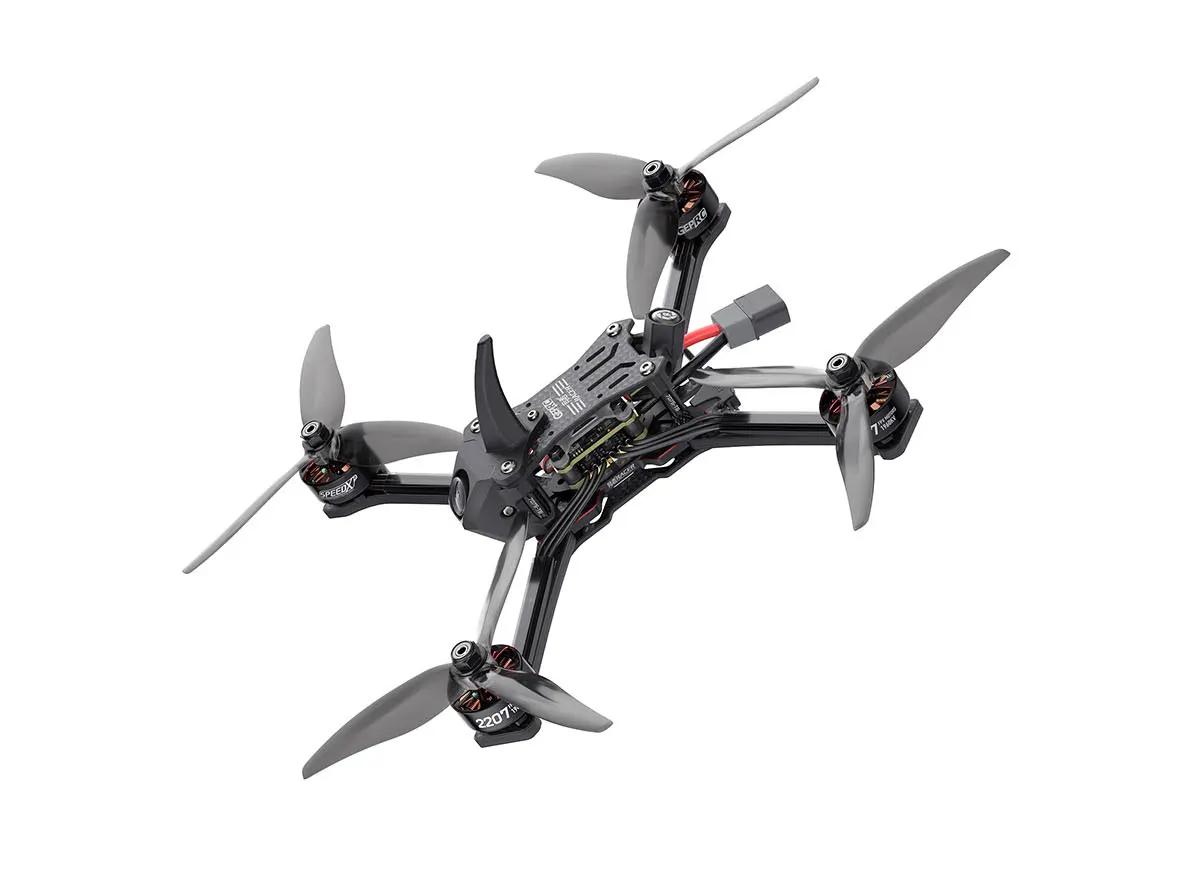

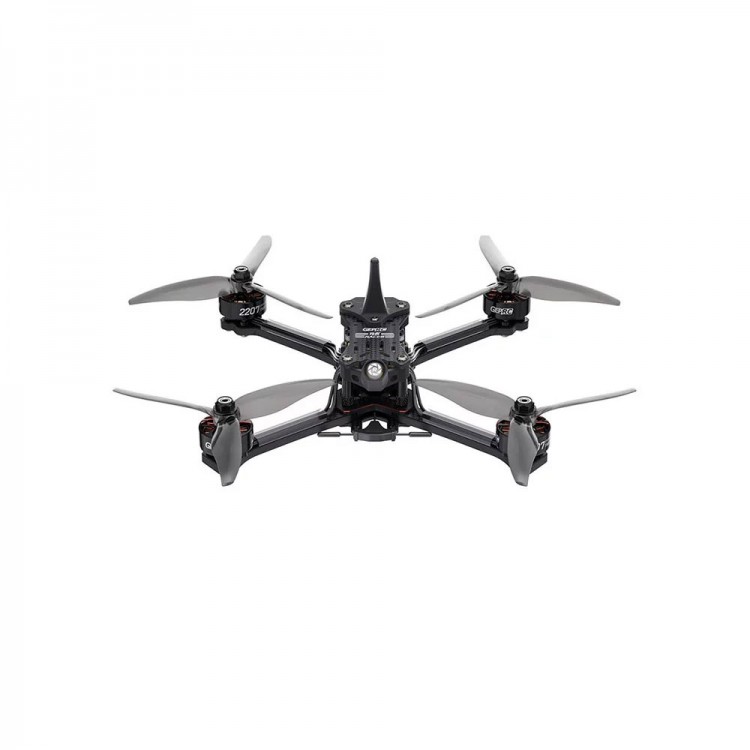

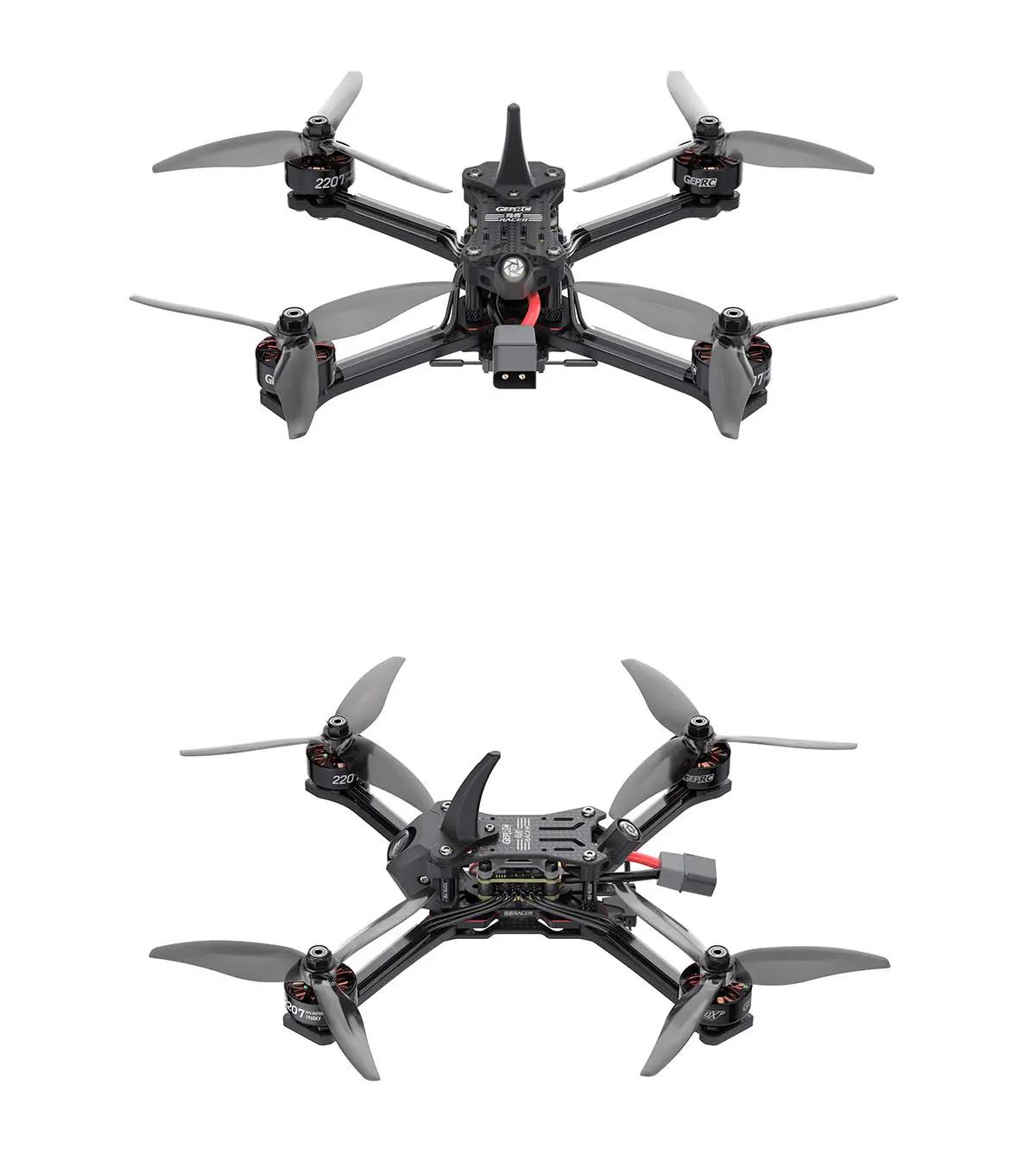

GEPRC Racer 5-inch FPV Racing Drone TMOTOR F60PROV 2020KV ELRS2.4G Receiver High Performance Light FPV Quadcopter

GEPRC Racer 5-inch FPV Racing Drone TMOTOR F60PROV 2020KV ELRS2.4G Receiver High Performance Light FPV Quadcopter

Description:
- When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing FPV specially designed for the competition. The GEPRC Racer was thus born.

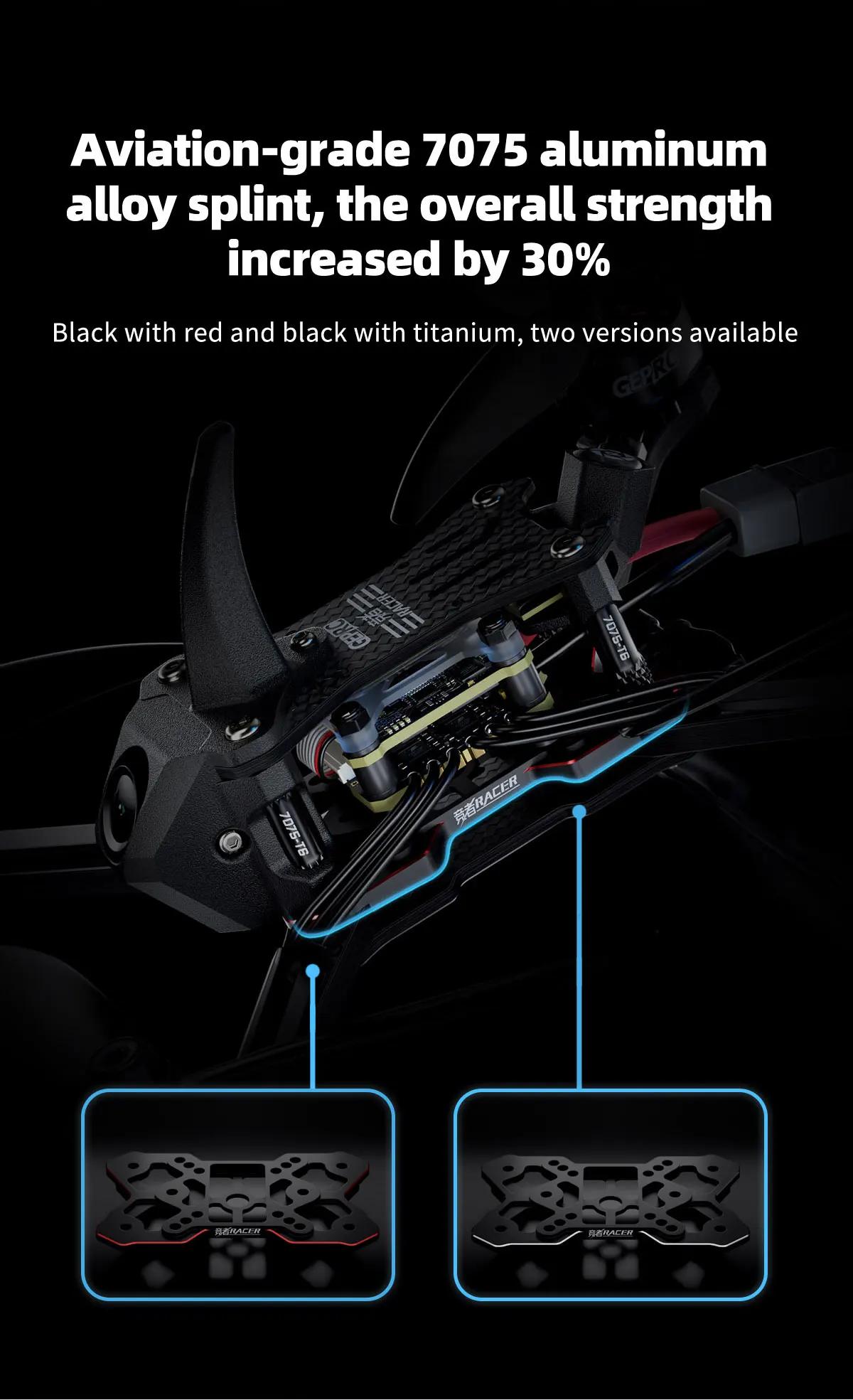

- The main structure of Racer is constructed with 7075-T6 aviation aluminum alloy splint combined with high-grade T700 carbon plate, the overall structure is light and stable. The flight system uses GEPRC's new TAKER F722 E55A stack with two motor versions: GEPRC SPEEDX2 2207 2050KV and TMOTOR F60PROV 2020KV professional racing motor. The overall performance has strong explosive power.

- The Racer has been carefully designed by the GEPRC team, and the flying feel and response speed have reached the best state.

Features:

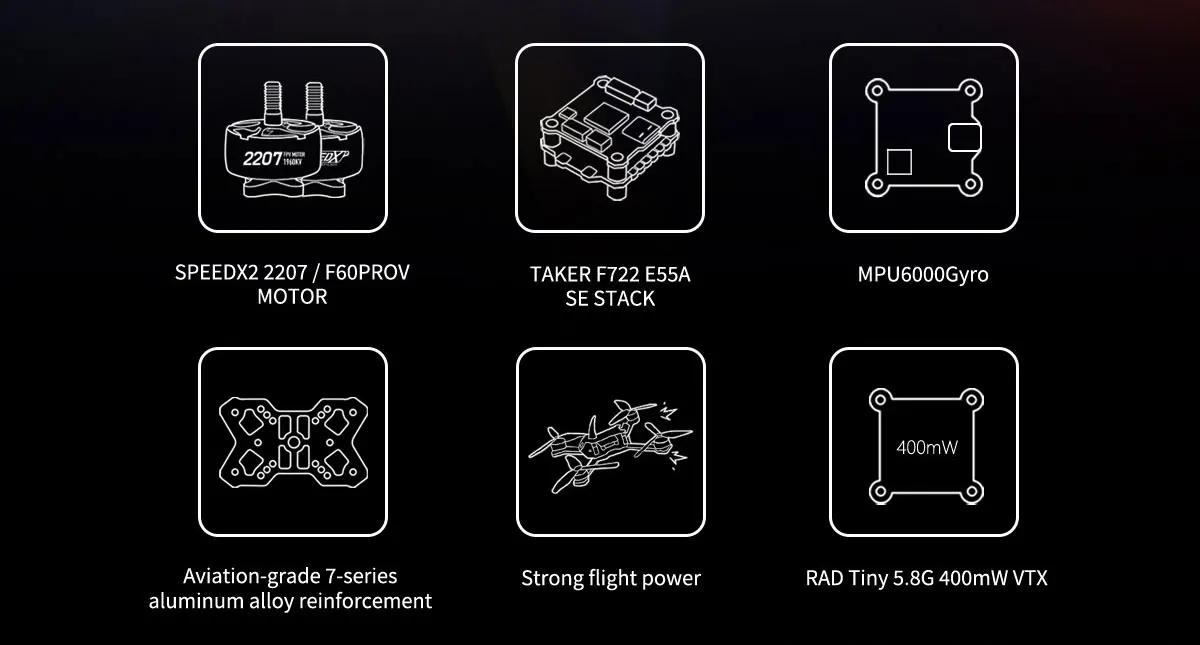

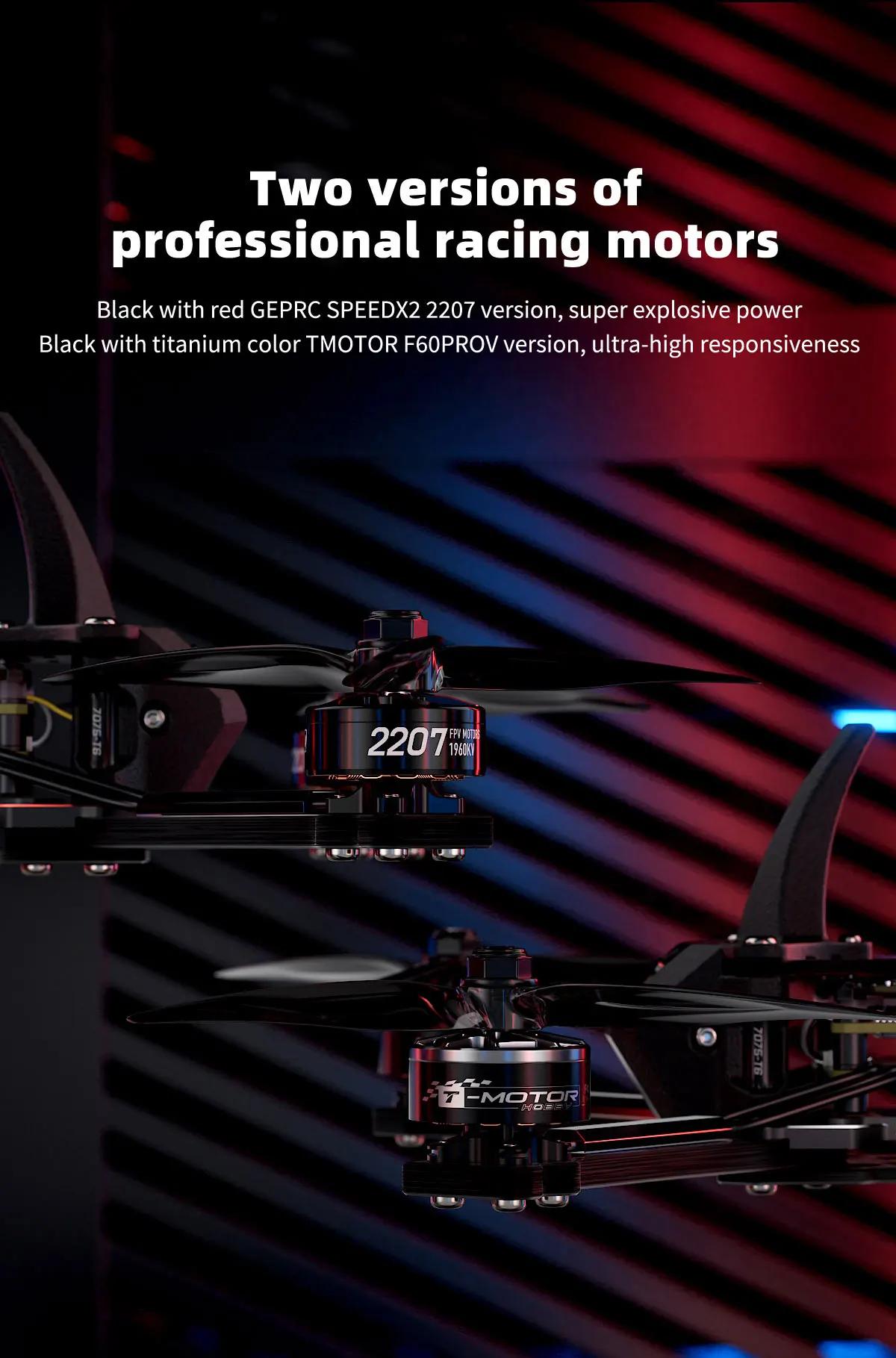

- GEPRC SPEEDX2 2207 2050KV/TMOTOR F60PROV 2020KV two professional racing motor versions are optional.
- The flight performance responds quickly, and the hand feels light and fast.
- Made of high hardness T700 carbon fiber board material.
- Design the anti-turtle shark fin support.

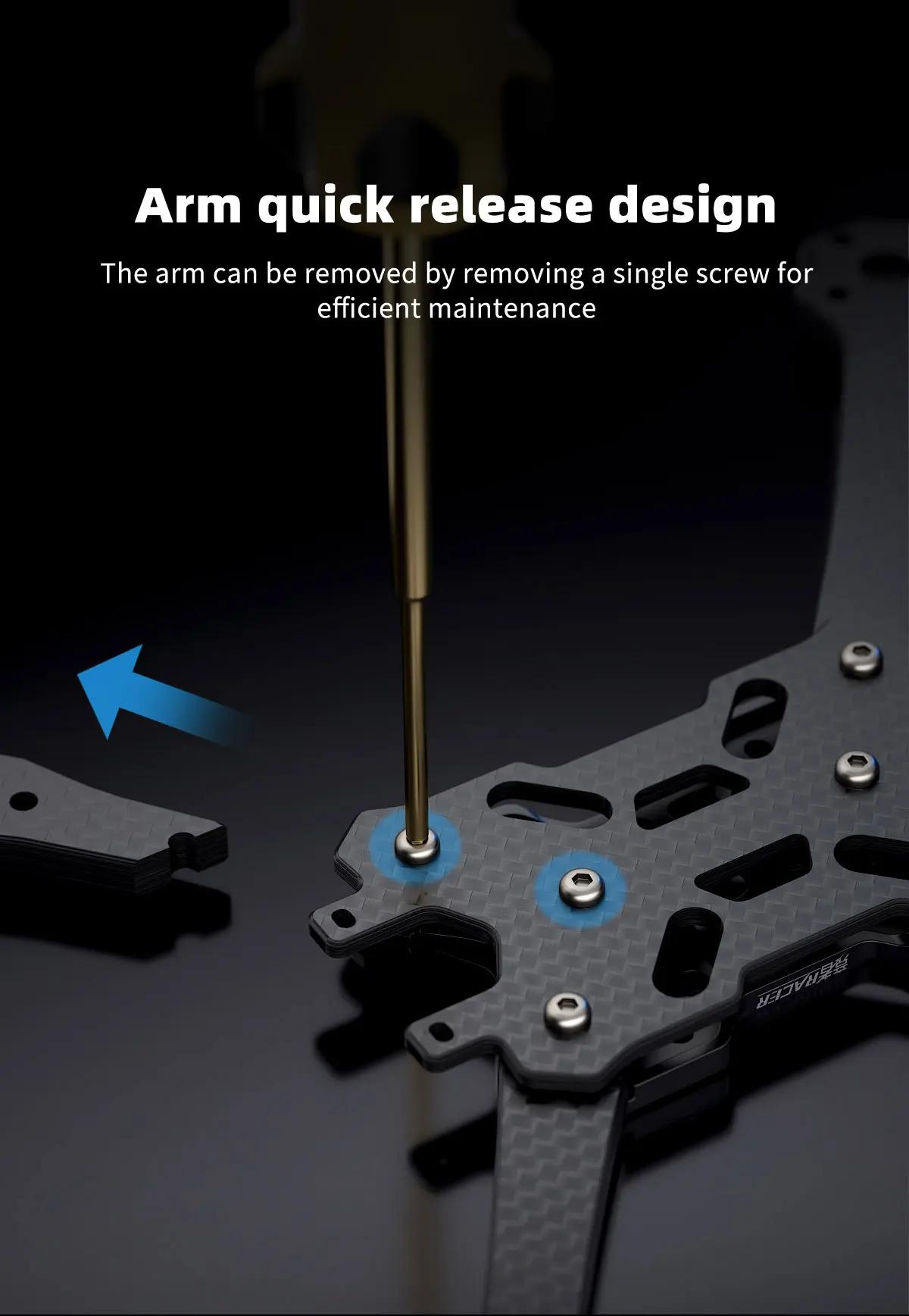

- The quick-release design of the machine arm is convenient for the maintenance of the fryer.

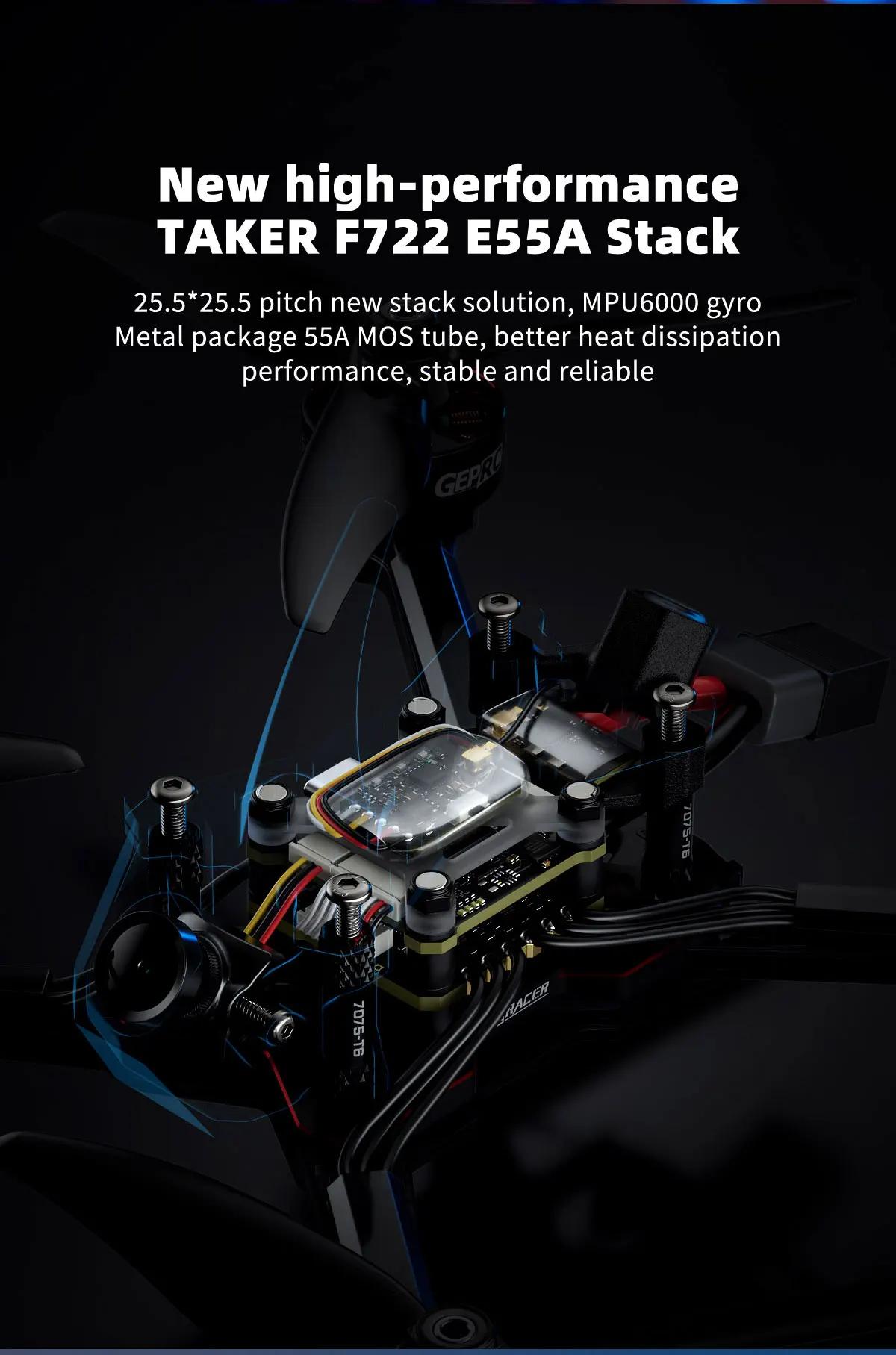

- Use GEPRC's new TAKER F722 E55A high-performance stack.
- Choose MPU6000 gyro.

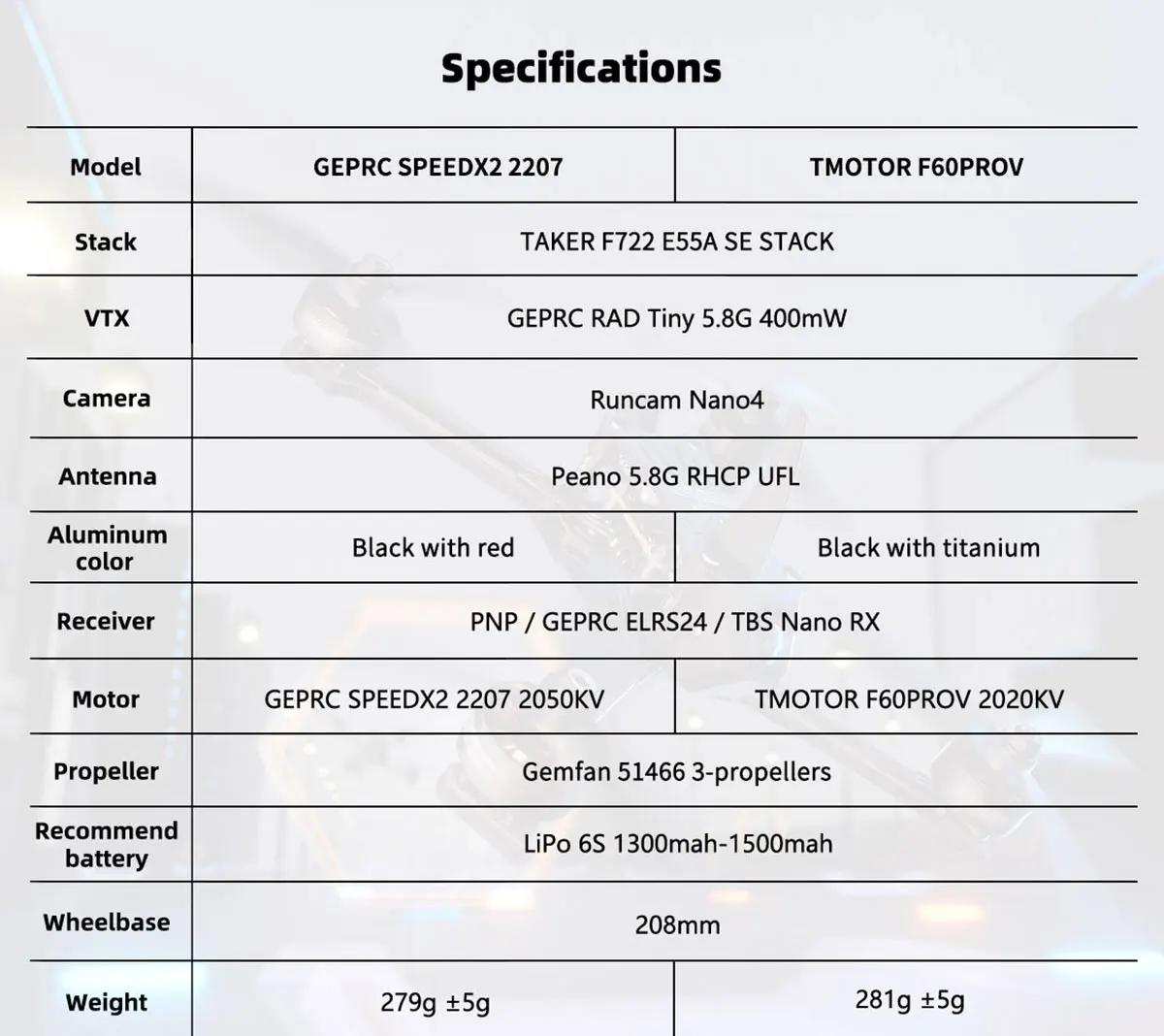

GEPRC SPEEDX2 2207 Motor Version Specification:
- Model: Racer FPV

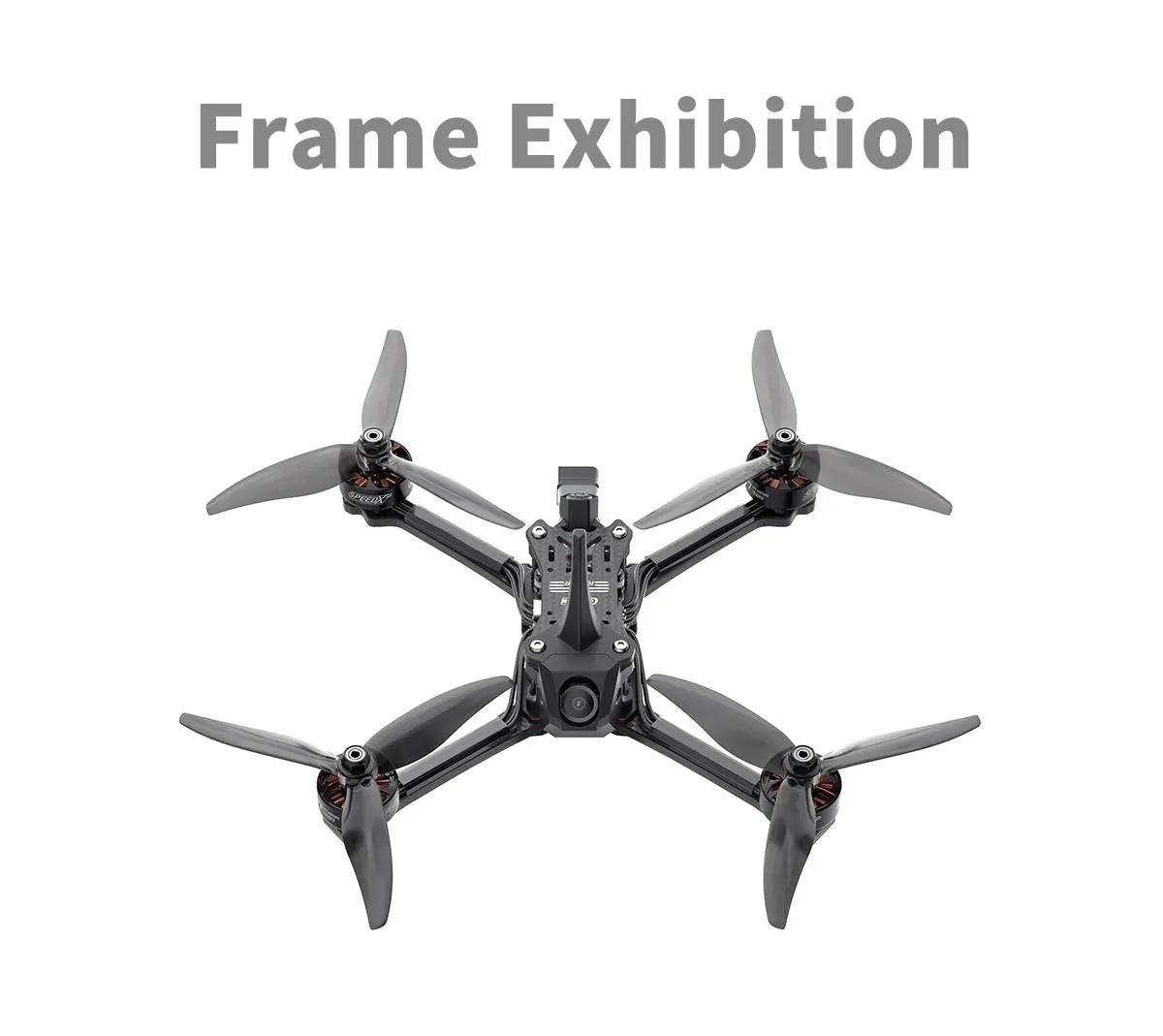

- Frame: GEP-Racer Frame
- Wheelbase: 208mm
- Top plate: 2mm
- Bottom plate: 2mm
- Arm plate: 5mm
- Aluminum splint plate color: black with red
- FC: TAKER F722 SE
- ESC: TAKER E55A 32Bit 4IN1
- MCU: STM32F722RET6
- Gyro: MPU6000
- OSD: AT7456E
- VTX: GEPRC RAD Tiny 5.8G 400mW
- Camera: Runcam Nano4
- Antenna: Peano 5.8G RHCP UFL
- Motor: SPEEDX2 2207 2050KV
- Propeller: Gemfan 51466 x 3
- Weight: 279g ± 5g
- Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
- Recommended battery: Lipo 6S 1300 - 1500mah

TMOTOR F60PROV Motor Version Specification:
- Model: Racer FPV
- Frame: GEP-Racer Frame
- Wheelbase: 208mm
- Top plate: 2mm
- Bottom plate: 2mm
- Arm plate: 5mm
- Aluminum splint plate color: Black with Titanium
- FC: TAKER F722 SE
- ESC: TAKER E55A 32Bit 4IN1
- MCU: STM32F722RET6
- Gyro: MPU6000
- OSD: AT7456E
- VTX: GEPRC RAD Tiny 5.8G 400mW
- Camera: Runcam Nano4
- Antenna: Peano 5.8G RHCP UFL
- Motor: F60PROV 2020KV
- Propeller: Gemfan 51466 x 3
- Weight: 281g ± 5g
- Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
- Recommended battery: Lipo 6S 1300 - 1500mah

Package Included:
- 1 x RACER FPV
- 2 x Gemfan 51466 propellers (pair)
- 2 x M20 x 250mm battery tie
- 2 x Battery anti-skid pads
- 1 x Spare screw bag
- 1 x L-shaped screwdriver 1.5mm
- 1 x L-shaped screwdriver 2mm
- 1 x M8 wrench

Note:
- Battery is not included.
