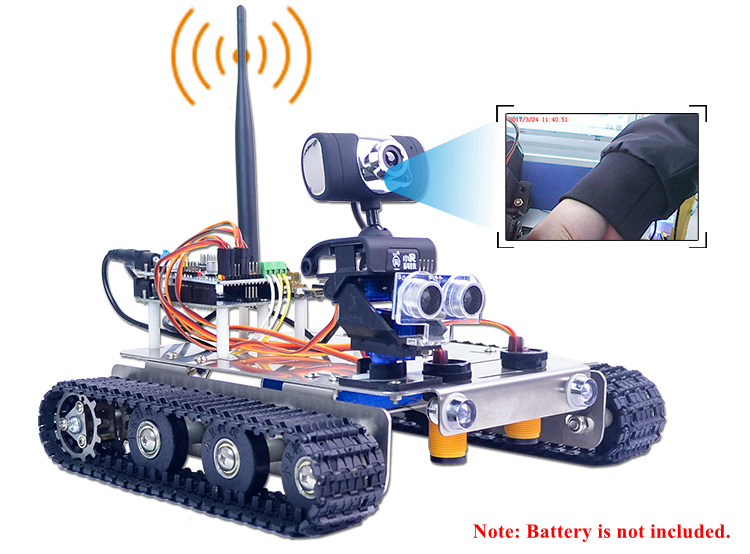

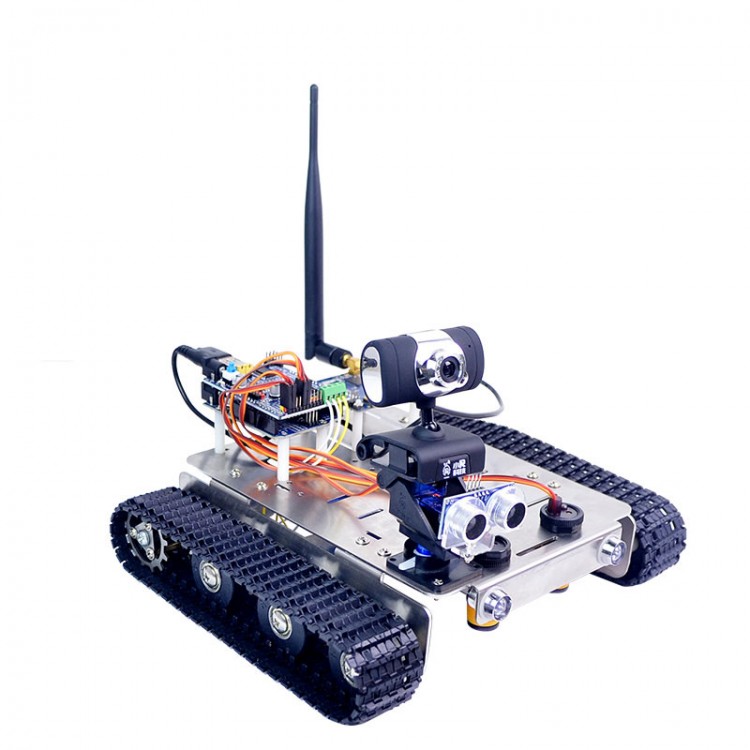

GFS Robotic Car Robot Tank Kit Wifi Video Smart Car Unassembled With Main Board For Arduino UNO

GFS Robotic Car Robot Tank Kit Wifi Video Smart Car Unassembled With Main Board For Arduino UNO

Features:
- Wireless wifi control
- PWR motor power supply board: Senior engineers carefully arrange the board, and the wiring is reasonable. The layout is precise and the performance is stable. TB6612 motor chip is small in size, cleverly combined with UNO power board

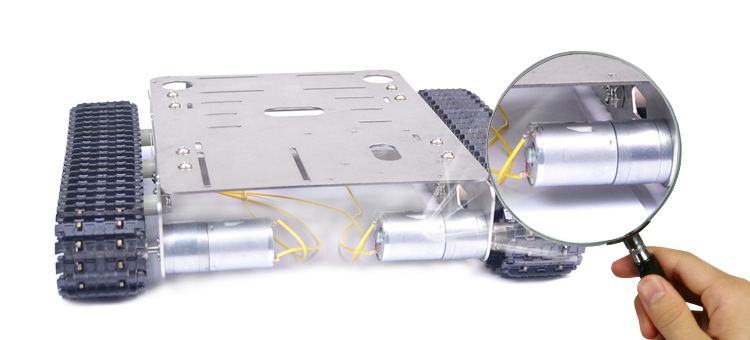

- All-metal chassis: stainless steel multi-function chassis, four pairs of road wheels, sturdy and solid, equipped with multi-function interface, can install a variety of robot electronic equipment (support for Arduino/51duino/STMduino/FPGA/Raspberry Pi)

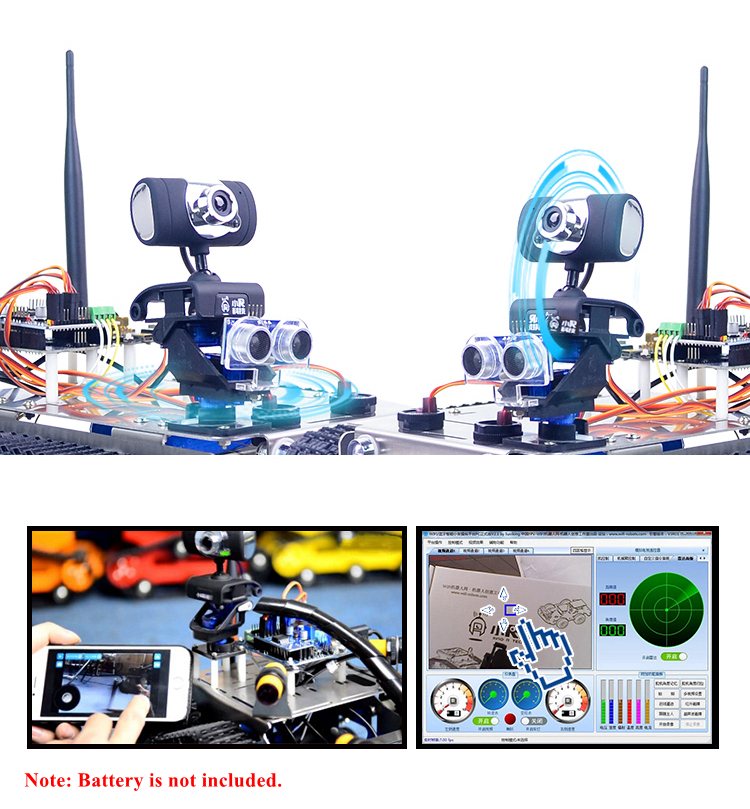

- 2DOF PTZ: You can flexibly control the movement of the pan/tilt head up, down, left, and right by dragging through the touch screen of your mobile phone or a computer mouse. Freely control the camera angle, smooth and refreshing visual experience
- New photosensitive camera: A new type of photosensitive chip is used, the resolution can be as high as 640*480P in the case of dynamic video, and the focus can be manually adjusted
- 5DBi external gain antenna: The external 5DBi high gain antenna has high signal strength and long transmission distance. It can achieve complete data transmission and reception even when there are many obstacles or the distance is too long. It has good penetration and coverage. Make the network connection more stable and fast, allowing you to have the robot's perspective in real time
- High-power motor: using high-quality 12V, 350 rpm high-power motor, maximum load 8KG, to provide a steady stream of power for the robot
- Real-time video WiFi control: support computer, mobile phone, PAD (for Apple and Android system), remote controller (optional). You can watch the picture and operate the car in real time on the screen to realize the first-person perspective and control
- Graphical programming platform: WIFI robotic arm tank supports XR BLOCK drag-and-drop graphical programming platform, plug and play, easy to learn robot code. 1. For KEIL code interface mode. 2. Drag-and-drop graphical programming method
- Powerful control software: Robot software is available in Chinese and English, multi-channel video transmission, and 360-degree monitoring. Sensor data collection and display, real-time transmission of sensor data, control PTZ on the screen
- Abundant application development: Have a wealth of source code cases and innovation and technology learning resources
- Multiple ways to play

Specifications:
- Item Name: WIFI Video Smart Car Robot (GFS Robot)
- Motor drive: TB6612 motor chip
- Microprocessor: compatible with main board for Arduino UNO
- Frequency range: 2.400-2.4835GHz
- Camera: WIFI smart car dedicated camera (adjustable distance)
- Compilation environment: For Arduino IDE, Linux, XR Block
- Wireless communication: Support 802.11b/g/n protocol, up to 150Mbps
- Signal range: ≤80m open distance
- Remote control method: 1. APP for IOS; 2. APP for Android; 3. PC client; 4. Web page control

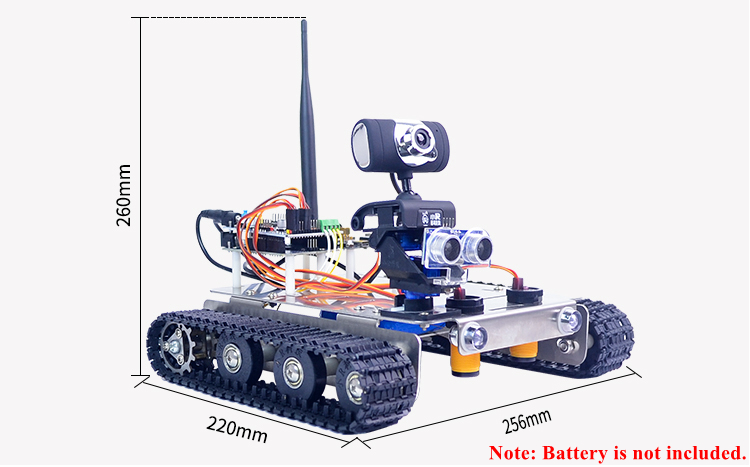

- Size: 220x256x260mm
- N.W.: 3400g

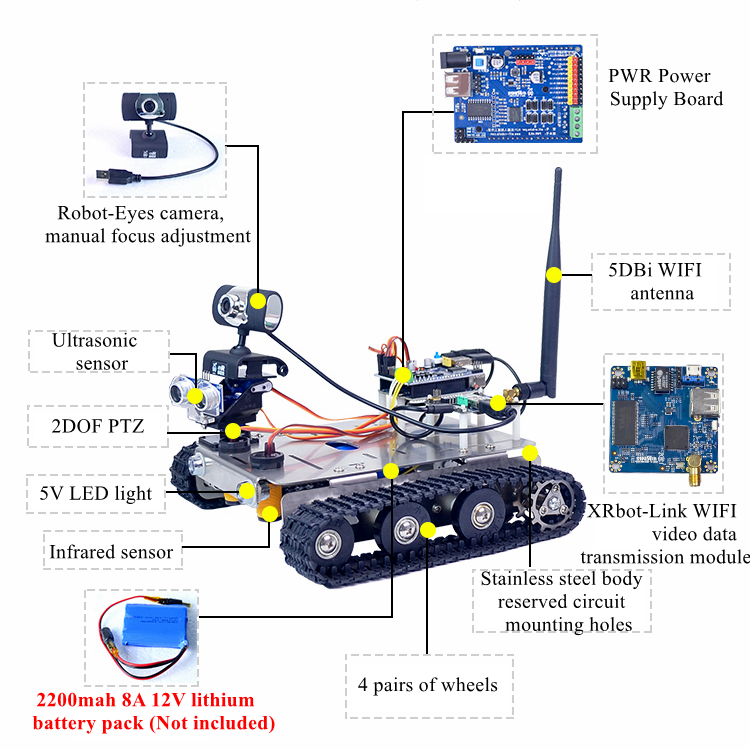

Package Included:
- 1 x Stainless Steel Tracked Chassis
- 1 x Main Board For Arduino UNO
- 1x PWR Power Supply Board
- 1 x Camera
- 1 x PTZ Bracket Kit
- 2 x Servos With Accessories
- 1 x Ultrasonic Module & Deck
- 1 x Charger
- 1 x For Dupont Cable
- 1 x 5DBi Antenna
- 1 x Wifi Module
- 1 x IR Sensor
- 1 x Bag of Hardware Wires
- 1 x CD

Note:
- Assembling is needed.
- Please use a 2200mah 8A 12V lithium battery pack which is not included in the package.
