GM3125 5000V High Voltage Insulation Tester Megohmmeter Backlit LCD for Voltage & Insulation Tests

GM3125 5000V High Voltage Insulation Tester Megohmmeter Backlit LCD for Voltage & Insulation Tests

Features:
- Voltage can be measured, and timing and continuous measurement are supported
- Automatic-discharge function makes it safe to operate
- LCD screen with backlight
- Digital readout display
- Live circuit warning symbols with audio sounds
- Automatic-power off function (in 10 minutes without operation)
- Timer measurement function
- PI measurement (Polarization index measurement)
- Suitable for 12V DC adapter (12V/1A)
- Application: power transmission, electro-mechanical installation and cable inspection

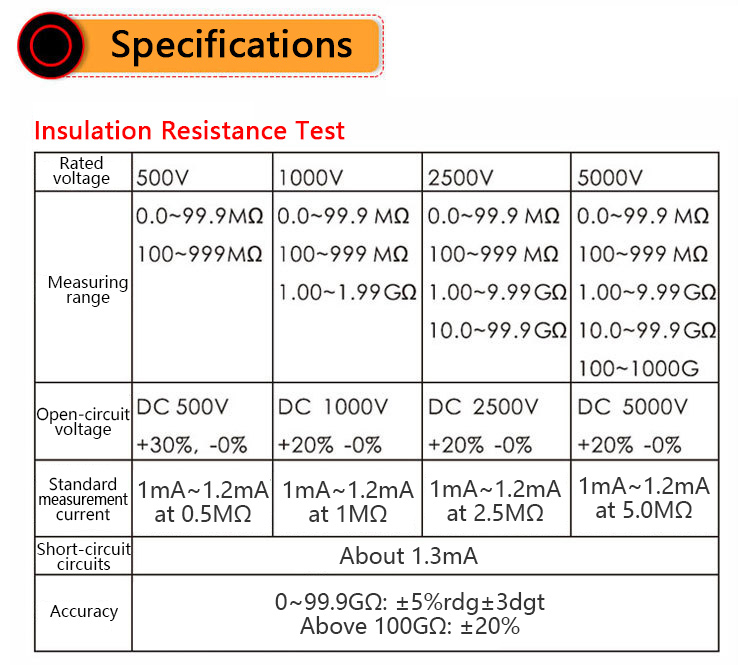

Technical Parameters:
- Display: Max. 999 count (1000 count are displayed at 1TΩ)
- Out-of-limit indication: OL mark appears on the insulation resistance range. Lo mark appears on the voltage range
- Automatic ranging: Higher Range: 1000 Count. Lower Range: 95 Count (on Insulation Impedance Range Only)
- Sampling rate: 0.5~10 times/second
- Altitude: ≤ 2000m (indoor use)
- Operating environment: temperature 0C-40°C; Humidity: ≤85%
- Storage environment: Temperature: -20C to 60°C; Humidity: ≤90%
- Overload protection: Insulation resistance range: AC1200V/10 seconds. Voltage range: AC720V/10 seconds
- Withstand voltage: AC 8320V (50/60Hz)/5 sec (between circuit and periphery)
- Insulation resistance: ≥ 1000MΩ/DC1000V (between the circuit and the periphery)
- Current consumption: Approx. 1000mA (max) (Normally maintained at approx. 25mA)

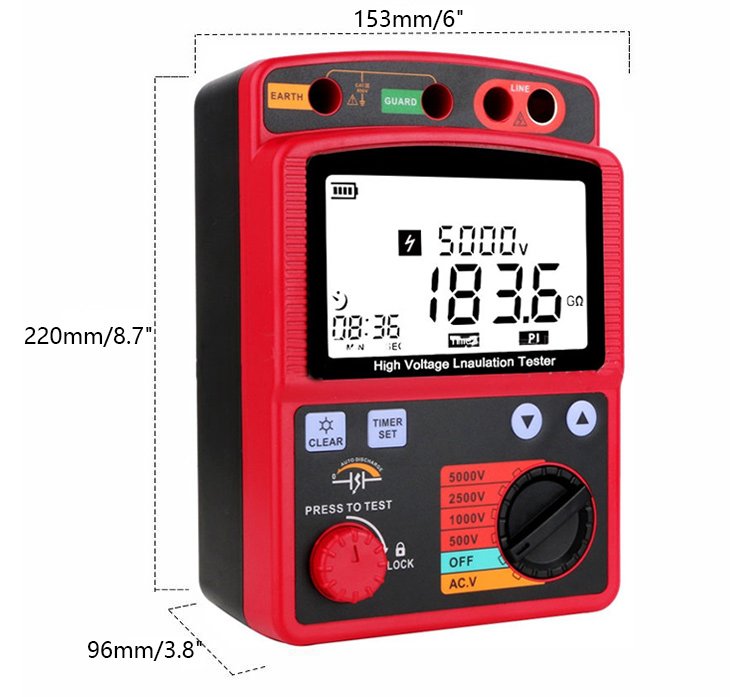

- Dimensions: 153 x 96 x 220mm/6 x 3.8 x 8.7"
- Weight: 1032g/2.3lb (without battery and test lead)

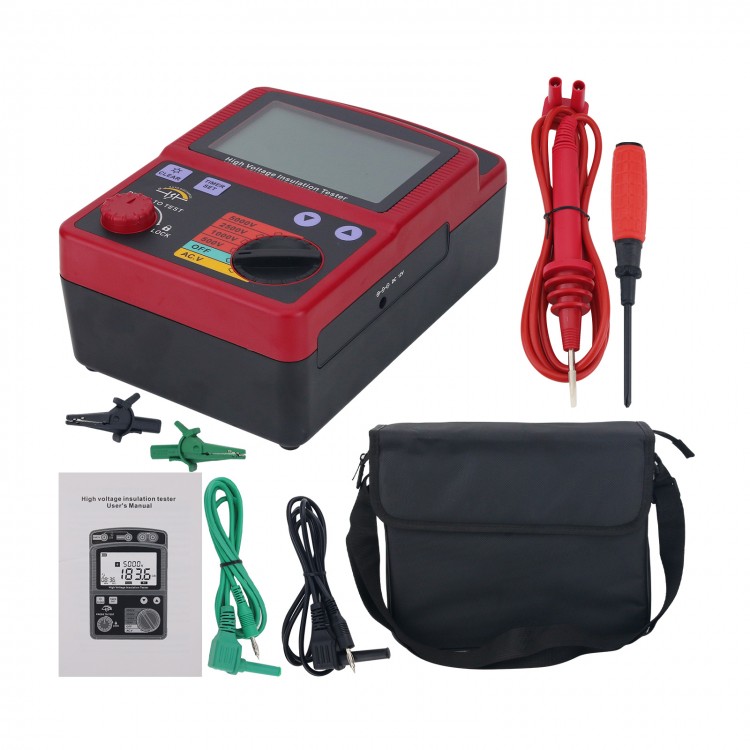

Package Included:
- 1 x High voltage insulation tester
- 1 x Tool bag
- 1 x Green test cable
- 2 x Alligator clips
- 1 x Screwdriver
- 1 x User manual
- 1 x Black test cable
- 1 x Red high voltage test wire

Note:
- 8 x 1.5V LR14 batteries are not included.
