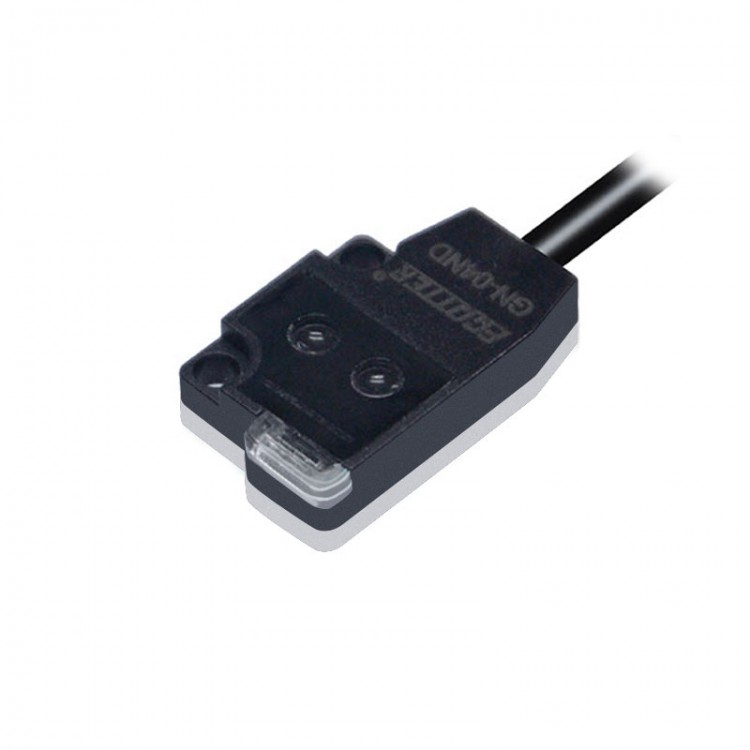

• GN-04PAD Original Ultra Thin Square Photoelectric Switch for the Object Position Detection

GN-04PAD Original Ultra Thin Square Photoelectric Switch for the Object Position Detection

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.20
  • Price in reward points: 212 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.78 $20.35 $19.72 $18.87 Contact US
Quantity:

GN-04PAD Original Ultra Thin Square Photoelectric Switch for the Object Position Detection

Parameter:

- Model: GN-04PAD
- Detection distance: 1-12mm
- Detector: below 15% of the operating distance
- Connection mode: 3-core cable (diameter: 2.5mm; length: 2m)
- Power voltage: 12-24VDC±10% Pulse P-P10% below
- Light source: 650nm red modulated light
- Controlled output: NPN.NO/PNP.NO
- Maximum output current: 50mA
- Power consumption: <25mA
- Power polarity reverse connection protection: Equipped
- Short circuit protection: Equipped
- Hysteresis loop: 15
- Environment temperature and humidity: -25℃~55℃/35%~85% relative humidity
- Ambient Light: sunlight: 1000lx; lamplight: 3000lx
- IP protection grade: IP66
- Dimension: 20.5 x 13 x 3.6mm

Package Included:
- 1 x GN-04PAD Photoelectric Switch
