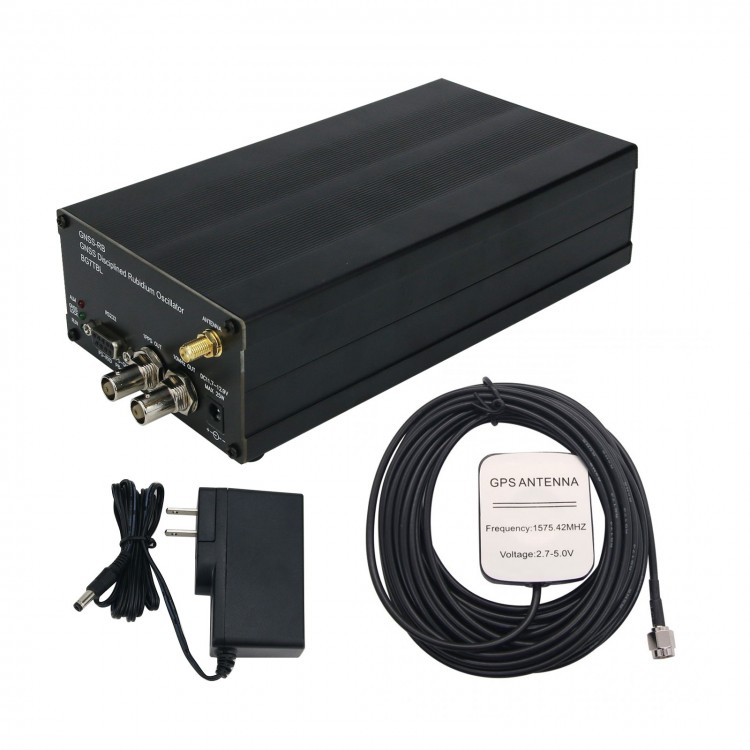

GNSS-RB GPS GNSS Disciplined Rubidium Oscillator BG7TBL Rubidium Atomic Clock Rubidium Standard
Specifications:
- GNSS disciplined rubidium atomic clock, 10M output, built-in X72 rubidium clock
- Item name: GNSS Disciplined Rubidium Atomic Clock
- Model: GNSS-RB
- Power supply: DC11.7-12.9V, <=25W
- Antenna power supply: DC5V/0.1A
- Support satellite: GPS (optional BDS, GLONASS, GALILEO. Up to 2 supported satellites. GPS by default. Please leave a message about your desired satellites when purchasing)
- 1PPS output waveform, amplitude: square wave, 3.3Vpp
- 10M output waveform amplitude: sine wave, 1Vrms, (13dBm+-3dB)
- RS232 output: NMEA protocol, 9600BPS
- Final accuracy will reach 2E-11 (0.0002Hz at 10MHz), within 24 hours
- Dimensions: W*H*D=107*55*225mm (including BNC connectors)
- Weight: 1.5kg
- Accessories: power adapter, 5m GPS antenna
LED Status:
ALM:
- Green light flashes and it is working normally.
- The indicator light is always on or off, and the system alarms
GNSS LOCK:
- Green light is off and GPS is not locked
- Green light is on and GPS is locked
RUN:
- Red light is flashing, and the RB frequency is not stable
- The indicator light is always on, and the accuracy is less than 0.001Hz
- The indicator light is off, and the accuracy reaches 0.001Hz
Package Included:
- 1 x Set of GNSS Disciplined Rubidium Oscillator
