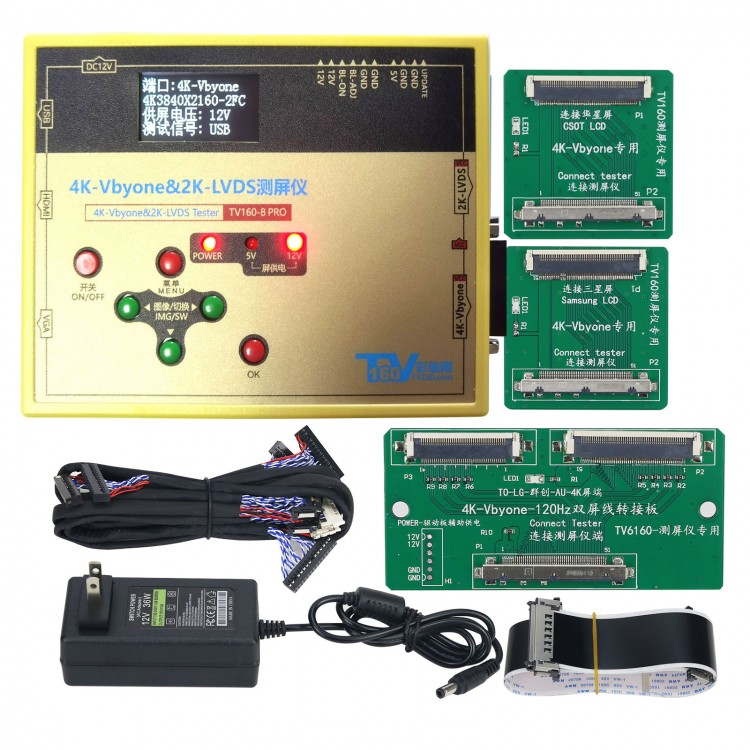

Golden TV160 8th PRO Version LCD Screen Tester 4K-Vbyone & 2K-LVDS Tester with Three-level Output Protection

Golden TV160 8th PRO Version LCD Screen Tester 4K-Vbyone & 2K-LVDS Tester with Three-level Output Protection

Difference (compared to TV160 8th generation):
- 8th Pro has the latest software
- 8th Pro added a power switch based on the old 8th generation
- Change the 2K screen cable to the side for easier insertion and removal of 2K screen cables;

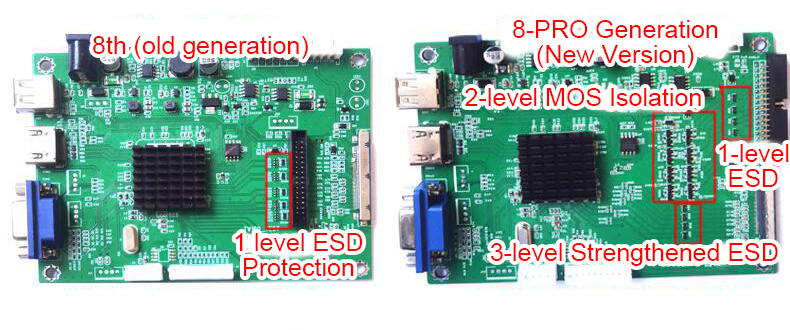

- The 8th PRO version has added protection circuit on the circuit board to better protect the main chip; The protection circuit is shown in the following figure:
- In terms of appearance, the 8th PRO version adopts a luxurious gold color scheme, with a more textured and upscale appearance.
- The 8-PRO version has increased the protection of the chip to level 3, especially the addition of high-voltage MOSFET isolation amplification in the second level, which provides good protection against high-voltage electricity returning from the screen body in abnormal extreme situations, and better protects the main chip of the screen tester from damage, improving reliability.

Features:
- Support 2K And 4K TV screen And Monitor Screen Test, the output signal is: 4K-Vbyone signal And 2k-LVDS signal
- Support Picture Testing with USB Player, you can customize the Video and Picture to test the screen According to your requests or aging screen
- With HDMI/VGA interface, you can easily input such signals
- Built-in test images: five images of red, green, blue, black and white field, which meet the needs of conventional screen test
- Perfect protection circuit, when the screen wire is wrongly connected or the screen body is not connected, there will be a prompt when the screen is turned on
- Support USB flash disk upgrade, upgrade is more convenient, screen parameters can be added by contacting customer service, and the upgrade program will be sent later, and the USB flash disk can be upgraded directly
- There is a backlight control interface and an external screen power supply interface to meet the needs of screen measurement in special scenes
- Add a dual screen cable small board to test the 120Hz 4K-vbyone screen (note: USB playback of videos and images is not supported for 120Hz screens)

Compatible resolutions are as follows:
- 2K-LVDS: 1024 x 768; 1366 x 768; 1280 x 800; 1280 x 1024; 1440 x 900; 1600 x 1200; 1920 x 1080; 1920 x 1200
- 4K-Vbyone: 3840 x 2160-1FC (1 partition); 3840 x 2160-2FC (2 partitions); 3840 x 2160-LGD (for LG screens, with better picture quality when LG screens); 3840 x 2160-120Hz ( 4k-120Hz dual-screen cable test-dual-screen cable conversion board required); 1920 x 1080-JEIDA (for high-definition screen); 1920 x 1080-VESA (for high-definition screen-2 sets of Vbyone signals
- 1920 x 120HZ-JEIDA (for 4 groups of Vbyone signal screen)
- 1920 x 120HZ-VESA (for 4 groups of Vbyone signal screen)

Package Included:
- 1 x Set of LCD Screen Tester
