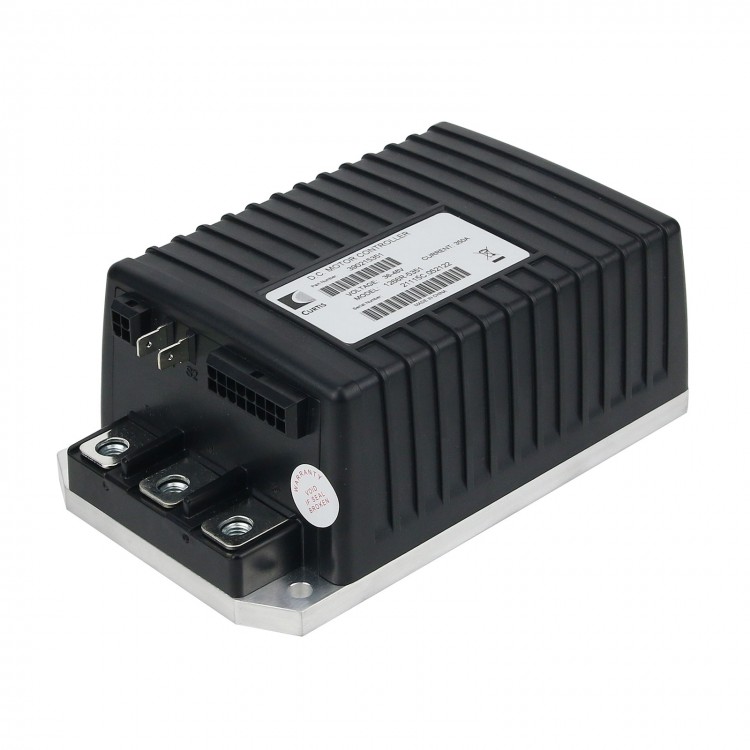

Golf Cart Controller Club Car Motor Controller 1266R-5351 Electric Pallet Truck Electric Golf Carts
Description:
This separately excited motor speed controller is designed for use in a variety of small industrial vehicles and in material handling equipment. These programmable controllers are simple to install, efficient, and cost effective, while offering more features than the original 1266.
The controller provides smooth precise control of motor speed and torque. A full-bridge field control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and full regenerative braking without additional relays or contactors. The controller's rugged IP53 housing and packaging are built to withstand shock and vibration. State-of-the-art surface mount logic board fabrication makes it even more reliable than the original 1266. The 1266R-5351 controller is fully programmable for the use with CURTIS Model 1313-4401 Handheld Programmer or 1314 PC Programming Station. In addition to configuration flexibility, the programmer provides diagnostic and test capability.
Appropriate Throttles for Use with the 1266R-5351 Controller:
•Type 1: 2-wire 5kΩ-0 throttles
•Type 2: 0-5V throttles, current source throttles, three-wire potentiometer throttles, and electronic throttles wired for singleended operation
•Type 3: 2-wire 0-5kΩ throttles
•Type 4: 0-5V and three-wire potentiometer throttles wired for wigwag operation
Key Features:
•Model Number: 1266R-5351
•Voltage: 36-48V
•Drive Current Limit (amps): 350A
•PWM operating frequency: 16 kHz
•Electrical isolation to heatsink (min.): 500 VAC
•KSI input voltage (minimum): 16.8 V
•KSI input current (typical):
78 mA without programmer
120 mA with programmer
•Logic input voltage: 7.5 V High; <1 V Low
•Logic input current 15 mA
•Overvoltage protection:
24V models: cutback at approx. 30V, cutback at ≈34V
36V models: cutback at approx. 45V, cutback at ≈49V
•Undervoltage protection:
24V models: cutback at approx. 17V, cutback at ≈13V
36V models: cutback at approx. 25V, cutback at ≈21V
Package Included:
1 x Golf Cart Motor Controller
