Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $1,246.14 | $1,220.71 | $1,182.56 | $1,131.70 | Contact US |

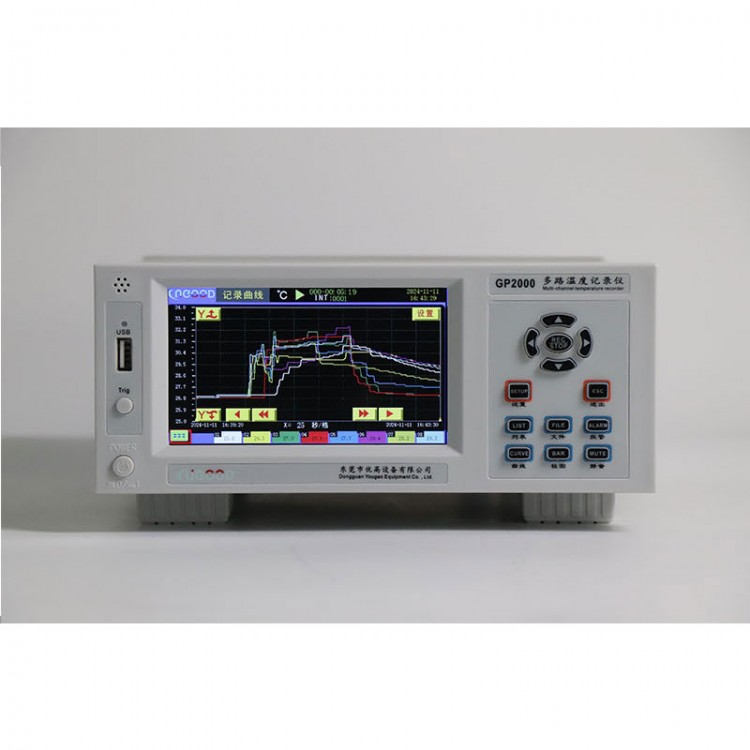

GP2048 48-Channel Temperature Logger USB & RS485 Multi-Channel Temperature Recorder GP2000 Series
Features:
* High-definition 5-inch IPS industrial-grade LCD touchscreen, resolution 854×480
* It uses 32-bit high-speed MCU data processing and 24-bit high-speed AD measurement chip, ensuring fast response speed and high accuracy. Stable and reliable.
* Multi-interface display: file list, real-time list display, bar chart (temperature rise) display, real-time/record/analysis curve display, alarm list, system settings, etc.
* Operation prompts and user-friendly design make it easy and simple to operate
* Supports multiple sensor inputs: K, J, E, T, N, S, R and B
* Basic measurement accuracy: 0.2℃ + 2 digits (excluding sensor), cold junction compensation accuracy: 0.5℃
* Independent error correction for each channel: Y = KX + B
* Each channel can be set to use different thermocouple types
* Each channel's name can be customized and exported to EXCEL
* Voltage difference between channels can reach AC/DC 350V (higher voltage customizable), with strong anti-interference capability.
* File list display supports up to 64 files, each file contains 130,000 data points, 1-second interval can continuously record up to 97 days.
* Record files can be selected singly or in multiples for deletion and export; USB drive and PC can directly export EXCEL files.
* Standard USB and RS485 communication interfaces, optional RS232 interface
* Modular design: each module has 8 channels and supports up to 64 channels. Users can expand by themselves, with automatic recognition.
* Multi-level alarm indicators: HH, H, L, and LL; alarm settings and indicators with historical alarm record function
* Chinese and English voice can be switched freely.
* The instrument instantly becomes a USB drive.
* Remote firmware upgrade and automatic recognition.
* One-key quick recording
* Bar chart temperature rise comparison function
* Channel custom names exportable to EXCEL
Applications:
* Temperature monitoring and maintenance of equipment
* Environmental temperature monitoring
* Evaluation of components in electronic circuits
* Monitoring of cold storage warehouses
* Measurement of motor temperatures
* Temperature measurement for LED lighting
* Temperature measurement of fuel cells
* Furnace temperature management
* Vehicle development and evaluation of automotive components
Specifications:
* Display Method: 5-inch TFT true-color LCD industrial touch screen
* Display Forms: Real-time list values, real-time bar chart, and real-time curve chart
* Record Query: Historical curves and alarm records can be queried on the device
* Number of Channels: 8 channels per module; supports up to 64 channels
* Thermocouple: K, J, E, T, N, S, R and B types
* Basic Accuracy: 0.2°C + 2 digits (excluding thermocouple error)
* Measurement Range: -200°C to 1820°C (according to thermocouple calibration range)
* Cold Junction Compensation Accuracy: 0.5°C
* Resolution: 0.1°C
* Calibration: Independent error correction per channel Y = KX + B (X = measured value)
* Number of Files: 64 files (cyclic recording)
* File Capacity: Each file can record 130,000 data points (regardless of channels)
* USB Port: Export recorded files, instant USB drive function (device acts as USB drive), direct file viewing
* Recording Duration: At 1-second intervals, continuous recording up to 97 days (recording interval × 97 days)
* Sampling Speed Per Channel: fast: 0.1s, slow: 1s
* Channel Isolation: AC/DC voltage up to 350V, high-voltage live measurement, strong anti-interference capability
* Control Output: 2 independent relay outputs: (H/L) and (HH/LL) relays
* Alarm Sound: One buzzer (sounds on any alarm, can be muted)
* Recording Interval: Settable from 1 to 9999 seconds
* Communication Interface: Standard USB and RS485; optional RS232
* Power Supply: AC 85-265V ±10%, 50Hz/60Hz, <10W
* Thermocouple Included: Each channel equipped with a standard 2-meter K-type thermocouple
* Dimensions: 220mm (W) × 293mm (D) × 106mm (H, including feet)
* Weight: About 3kg (varies by configuration)
* Environmental Conditions: 5–40°C, 20%–80% RH (non-condensing)
Packing List:
* 1 x Set of Multi-Channel Temperature Data Logger
Packaging Details:
* Weight: 3.5kg
