GPS Disciplined Clock 10M Frequency Standard GPSDO GPS Disciplined Oscillator E-GPSDO

GPS Disciplined Clock 10M Frequency Standard GPSDO GPS Disciplined Oscillator E-GPSDO

Specifications:
- Model: E-GPSDO
- Power Supply: DC 11.7-12.9V/≤5W
- GPS Antenna Power Supply: DC 5V
- 1PPS Output Characteristics: square wave, 3.3Vpp, synchronous UTC time
- 10M Output Waveform Amplitude: sine wave, 6dBm+-2dB
- RS232 Output: For GPS NMEA signal, 9600bps
- Accuracy: peak-to-peak value: 0.005Hz@10MHz; average frequency statistics: 0.00005Hz@10M
- Dimensions: 138 x 65 x 25 mm (W*H*D) (include BNC connectors)
- Weight: 600g

Front Panel:
- 10MHz: 10M sine wave output.
- 1PPS: 1PPS pulse output when the rising edge synchronizes UTC.
- ACT: Power supply/operation indicator. Flashing: the system is normal. Lighting or off: system failure.
- ALM: Alarm light. Blinking: GPS is not locked. On: GPS locked. Off: accuracy is less than or equal to 0.1Hz.

Rear Panel Functions:
- ANT: GPS antenna input, output 5V, internal current limiting.
- RS232: For GPS NMEA signal output, compatible with RS232 signal, 9600bps.
- DC IN: 12V power supply output, 5.5-2.1 plug, positive inside and negative outside.

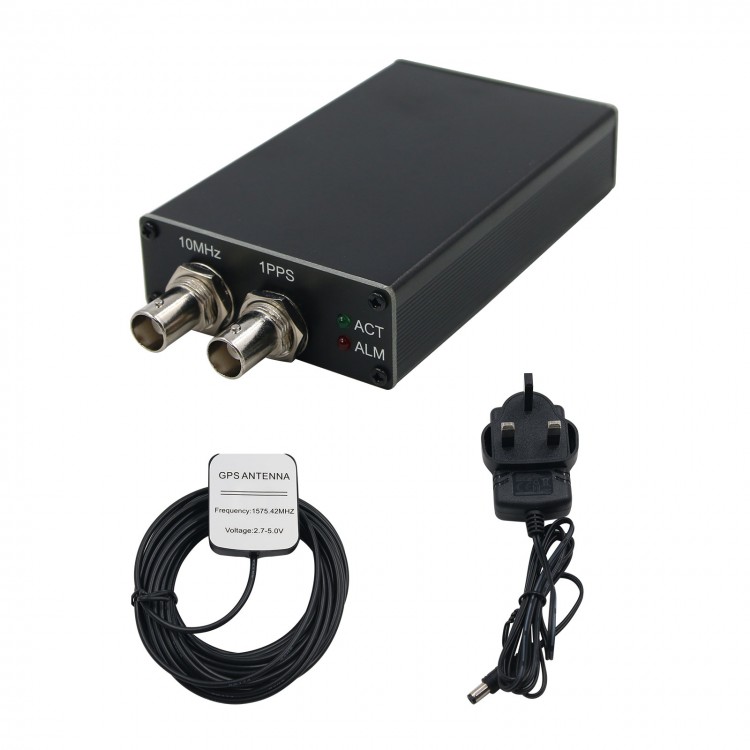

Package Included:
- 1 x GPS Disciplined Clock
- 1 x AC110-220-DC12V Adapter
- 1 x 5m GPS Antenna
