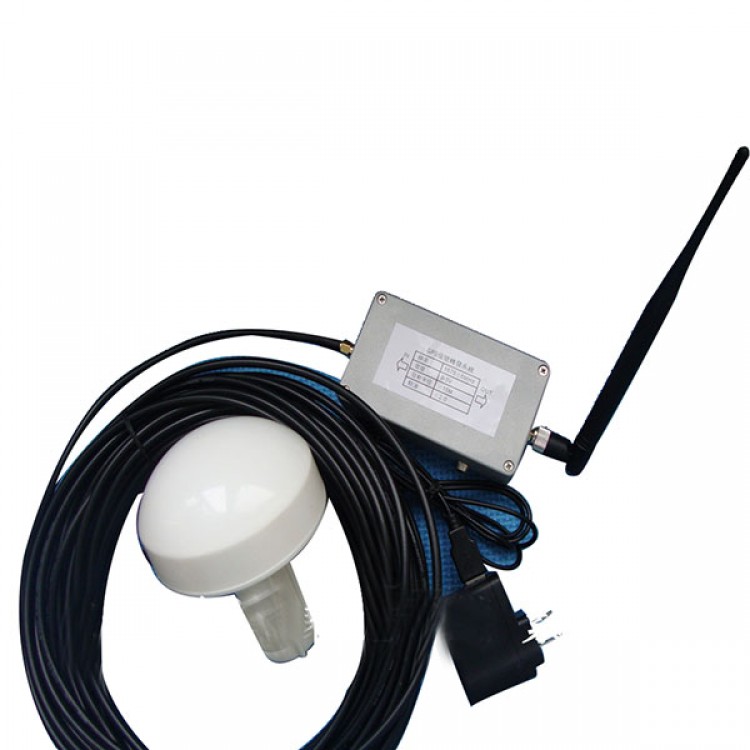

  • GPS Signal Repeater Transfer Full Kit 15 Meter Range w/ 30M Cable

GPS Signal Repeater Transfer Full Kit 15 Meter Range w/ 30M Cable

Availability: In stock, usually dispatched in 1 business day

  • Price:$142.59
  • Price in reward points: 1426 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $139.74 $136.89 $132.61 $126.91 Contact US
Quantity:
Buy it now Add cart

You might like

HAMGEEK SDR Dreamkit V2D 100KHz-2800MHz All Band Radio Portable Radio Receiver with 5.3MHz Bandwidth 4" Screen for PC

HAMGEEK SDR Dreamkit V2D 100KHz-2800MHz All Band Radio Portable Radio Receiver with 5.3MHz Bandwidth 4" Screen for PC

$400.00

(0)
GSM 1800 LTE 1800mhz 70dB Intelligent Control Mobile Repeater Phone Cell Phone Signal Booster Amplifier Extender

GSM 1800 LTE 1800mhz 70dB Intelligent Control Mobile Repeater Phone Cell Phone Signal Booster Amplifier Extender

$102.04

(0)
Industrial-Grade RS485 Extender Isolated RS-485 Repeater Isolator Anti-Interference Anti-Surge Guide

Industrial-Grade RS485 Extender Isolated RS-485 Repeater Isolator Anti-Interference Anti-Surge Guide

$15.61

(0)
GPS Signal Repeater amplifier Transfer Full Kit Distance 15 Meter

GPS Signal Repeater amplifier Transfer Full Kit Distance 15 Meter

$64.91

(0)
Lintratek 4G LTE 2600mhz Band 7 Cell Phone Signal Booster Repeater Antenna Set

Lintratek 4G LTE 2600mhz Band 7 Cell Phone Signal Booster Repeater Antenna Set

$127.08

(0)
Arinst SSA-TG LC R2 USB RF Spectrum Analyzer With Built-in Signal Generator Frequency 36-5990MHz

Arinst SSA-TG LC R2 USB RF Spectrum Analyzer With Built-in Signal Generator Frequency 36-5990MHz

$200.00

(0)
ARINST SSA-TG R2 RF Spectrum Analyzer With Tracking Generator 3.2" Touch Screen 35-6200MHz

ARINST SSA-TG R2 RF Spectrum Analyzer With Tracking Generator 3.2" Touch Screen 35-6200MHz

$410.00

(0)
NanoVNA-F Vector Network Analyzer VNA Antenna Analyzer 50K-1.5GHz with 4.3" IPS Screen Metal Case

NanoVNA-F Vector Network Analyzer VNA Antenna Analyzer 50K-1.5GHz with 4.3" IPS Screen Metal Case

$84.54

(0)

GPS Signal Repeater Transfer Full Kit 15 Meter Range w/ 30M Cable

Specifcation:

- Receiving antenna: Frequency range 1575 ± 5MHz
- Polarization RHCP
- Antenna gain ≥3.5dB
- Amplifier gain ≥37dB
- Noise figure ≤1.5dB
- Return Loss -14dB (ie VSWR ≤1.5)
- p-1≥10dBm
- Interference Rejection ≥20dB (f0 ± 100MHz)
- Supply 3V / 5V DC
- SMA connector
- Mounting screw (M24 × 1.5) connection
- Volume φ96 × 126mm
- Operating temperature -45 ℃ ~ 85 ℃
- Storage temperature -50 ℃ ~ 90 ℃
- Humidity 100%
- Cable: Cable length 30 m
- Cable standards SYV-50-3
- Amplifiers
- Frequency range 1575 ± 5MHz
- Gain: 54db
- Voltage: 5V
- Interference Rejection ≥20dB (f0 ± 100MHz)
- Return Loss -14dB (ie VSWR ≤1.5)
- Transmitter
- Frequency range 1575 ± 5MHz
- Gain: 3.5DBI
- Return Loss -14dB (ie VSWR ≤1.5)
