GPSDO GPS Disciplined Clock Basic Version High-Precision Clock Output 10MHz for USRP Products B210

GPSDO GPS Disciplined Clock Basic Version High-Precision Clock Output 10MHz for USRP Products B210

Description:
The basic version is aimed at most users and can achieve PPS signal output and accurate 10Mhz frequency output after taming.

The locking time of the product is about 1 minute, and the working current is only about 60MA. In addition to being embedded in B210, X310 and other USRP wireless peripheral products, it can also be used independently in research and development of communication products.

Performance Parameters:
- Input voltage: 3.3V
- Current: < 50mA (power consumption less than 0.2W)
- 1PPS OUT level: 3.3VDC CMOS
- Output frequency: 10Mhz (other frequencies can be customized)
- Frequency output level: 3.3VPP DC CMOS
- Output frequency accuracy: +/- 2E-11 (after 10 minutes GPS lock)
- GPS antenna type: supports active and passive antennas (the antenna receiving head needs to be lead to the outdoor)
- GPS lock time: in most cases, the lock time is less than 2 minutes (depending on GPS antenna and signal strength)
- Frequency output lock time: 60 seconds after GPS lock
- GPS antenna: active antenna (3.3V power supply) and passive antenna
- Serial Control Protocol: NMEA & SCPI-99
- GPS Sensitivity: acquisition: -157dbm; tracking: -168dbm
- 10Mhz Phase Noise Specifications: 1Hz, -65dBc/Hz; 10Hz, -102dBc/Hz; 100Hz, -132dBc/Hz; 10kHz, <-152dBc/Hz

Package Included:

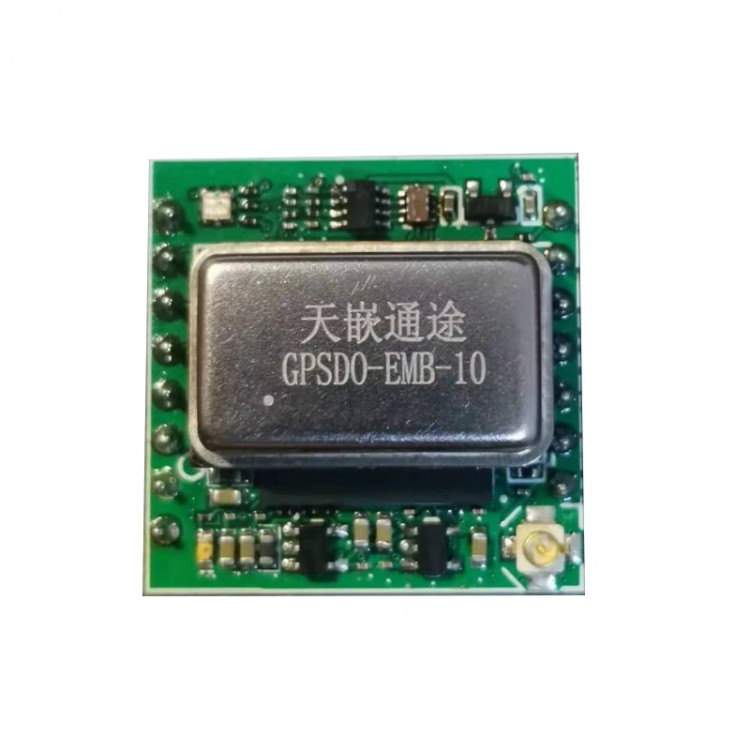

- 1 x Embedded GPSDO Module
- 1 x Active GPS Antenna with 3M/9.8FT Cable

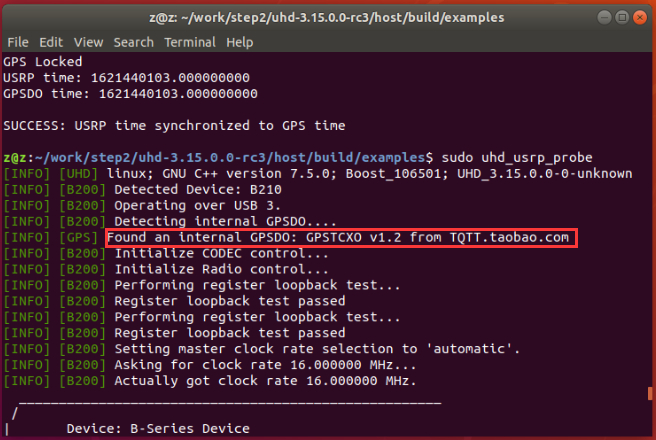

Screenshot of Using Uhd_usrp_probe Command to Find the GPS Clock:
