Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $68.13 | $66.74 | $64.65 | $61.87 | Contact US |

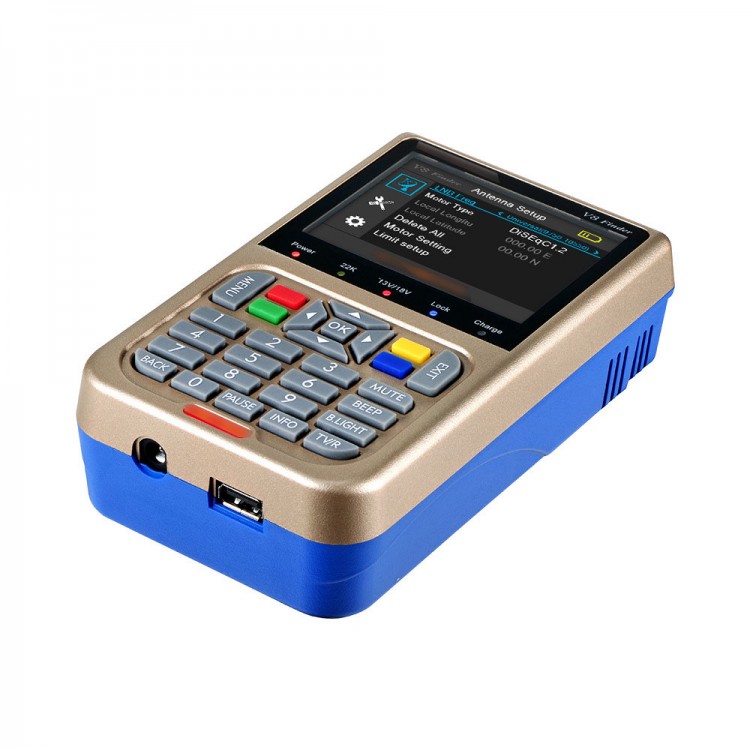

GTMEDIA V8 Digital Satellite Finder Digital Satellite Signal Meter Finder For DVB-S/S2/S2X signals
Functions:
- Measurements of DVB-S/S2/S2X signals, H.265 Hardware decoding
- Digital satellite finder meter for quick setup of satellite dishes
- 3.5 Inch High Definition LCD Screen
- Support AV in and AV/HDMI out function
- Support 13V / 18V / LOCK status panel LED display directly
- Support for DiSEqC1.0/1.1/1.2/USALSand 22 kHz Tone
- LNB short circuit protection
- Support displaying left electricity
Specifications:
Hardware Parameters:
- CPU: M3S10 MPEG-4, MPEG-2 and H.265
- DDR: 1G DDR3
- Flash: 64M SPI
- Demodulation: M1502+Tuner M3031
Hardware:
- Video Decode: Support for MPEG-2 MP@HL;MPEG4/H.265, BP MP&HP@L4.1; AVS profile@L6.1/4.0/2.0. HDMI:480i/p,576i/p,720p,1080i ,1080P
- Audio Decode: Support for MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC, Dolby
- Panel Display: 3.5 Inch LCD Screen
- LED Indicator: Status panel LED display
- Button: 28 key operation
- Rear Panel:
LNB IN (Frequency Range950MHz to 2150MHz)
HD OUT
AV OUT (4-pin 3.5 mm * 14MM jack)
AV IN (4-pin 3.5 mm * 14MM jack)
1*USB port ( Software upgrades for USB)
Power (Input 110V~240V, 50/60Hz DC12V/1.5A)
Standard:
- System Capabilities: DVB-S/S2/S2X system standard:ETS 302 307
LNB Input:
- Connector: F type,male
- Frequency Range: 950MHZ-2150MHZ
- Input Impedance: 75Ω
- Input Signal level: -65dBm to -25dBm(average power)
- Active Ant Power: 13/18V DC @ 400mA MAX,Overload Protection
- DiSEqC: DiSEqC1.0/1.1/1.2/USALS Motor fully support
- LNB Switch Control: 22K
Physical Parameters:
- Power Supply: AC IN110-240V, DC 12V/1500mAh
- Operating Temperature: 0 to 45℃
- Storage Temperature: -10 to 60℃
- Humidity: 20~90%, non-condensed
Package Included:
- 1 x Digital Satellite Meter
- 1 x User Manual
- 1 x AV Cable
- 1 x Car Charger Cable
- 1 x Power Adapter
- 1 x Carrying Bag
- 1 x Strap of Carrying Bag
