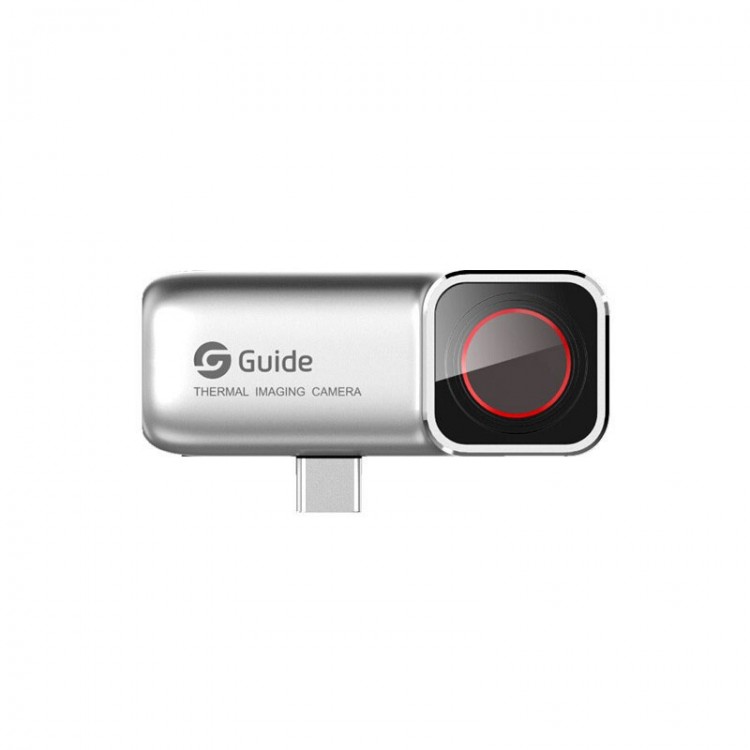

Guide MobIR 2T 256x192 Mobile Phone Thermal Imaging Camera for Android Tests Human Body Temperature

Guide MobIR 2T 256x192 Mobile Phone Thermal Imaging Camera for Android Tests Human Body Temperature

Features:
* MobIR 2T can be used to test human body temperature and for conventional temperature measurement
* It supports automatic focusing

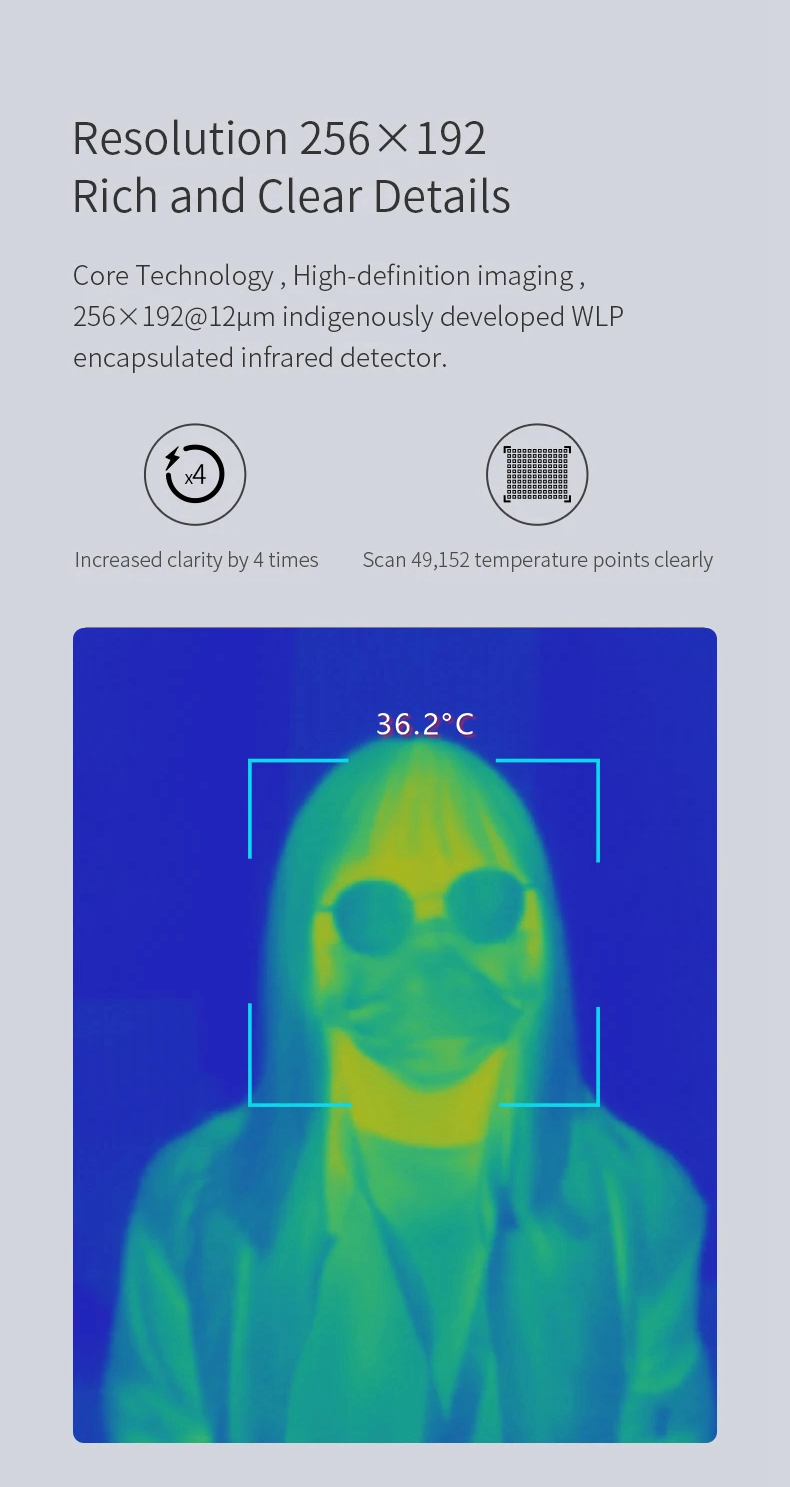

* 256x192 HD imaging
* 56° FOV and 3.2mm focal length

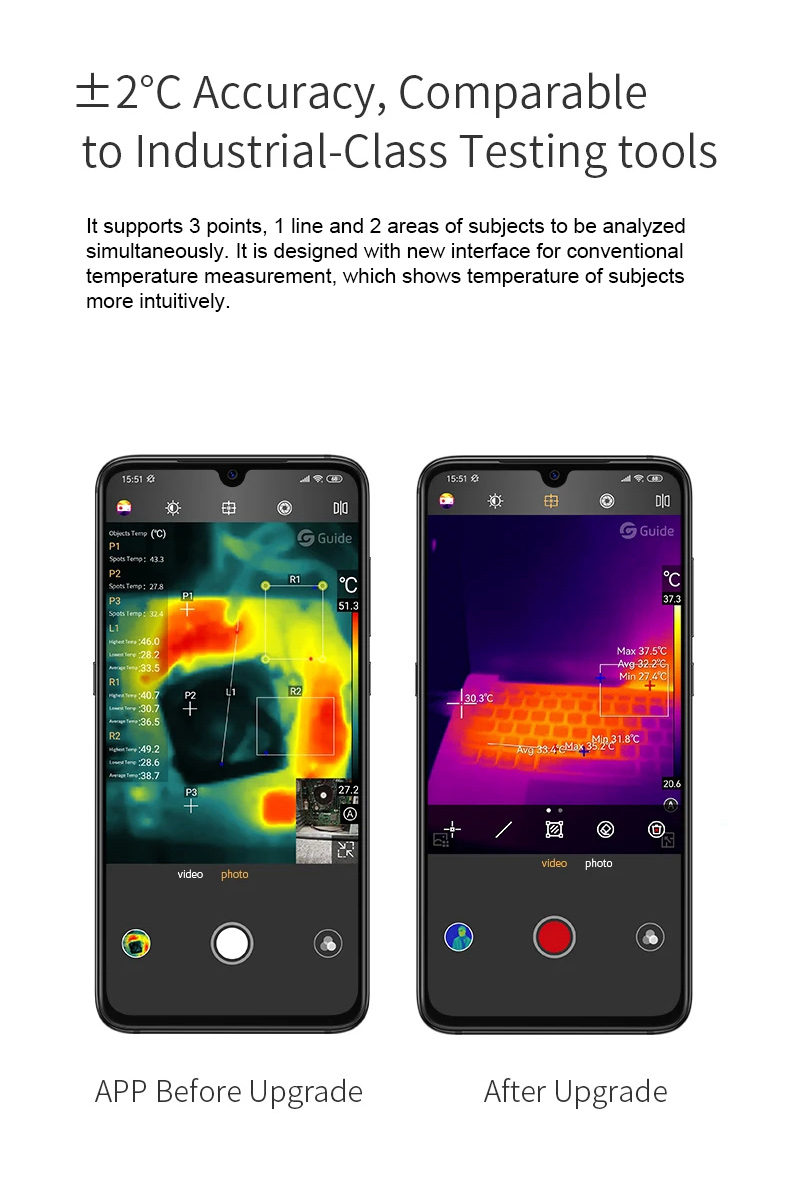

* ±2°C industrial-grade temperature measurement accuracy
* ±0.5°C human body temperature measurement accuracy

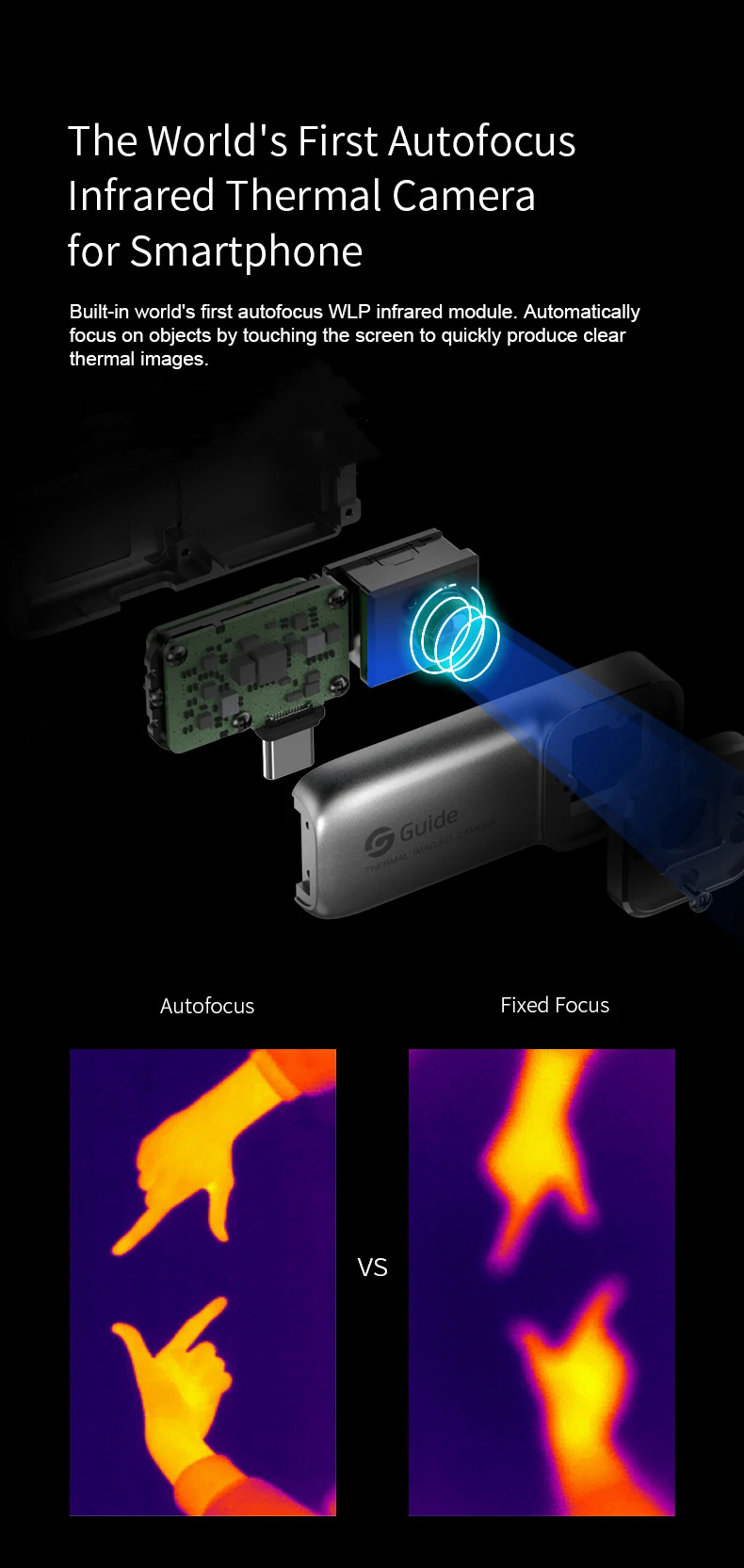

* Built-in world's first autofocus WLP infrared module. Automatically focus on objects by touching the screen to quickly produce clear thermal images

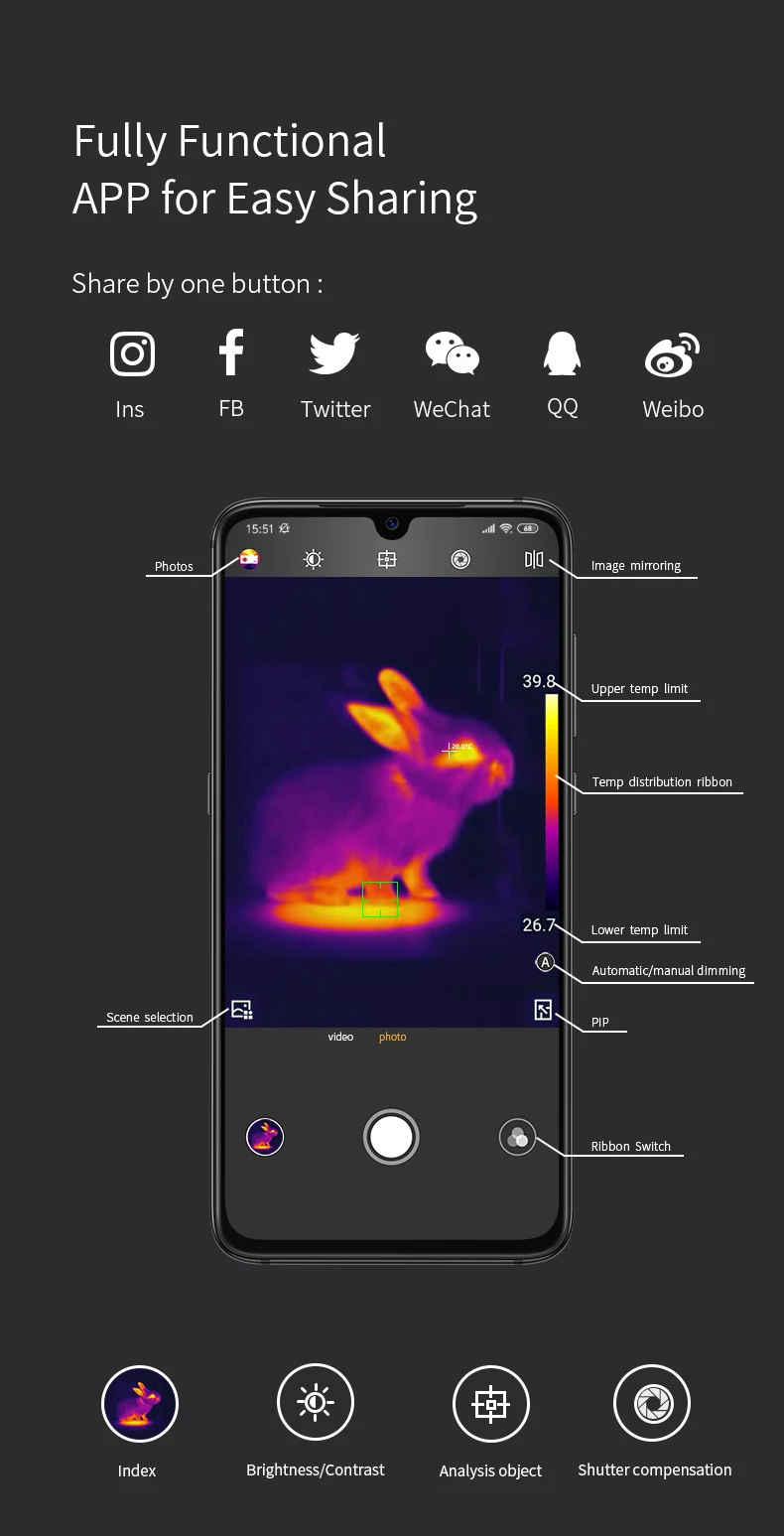

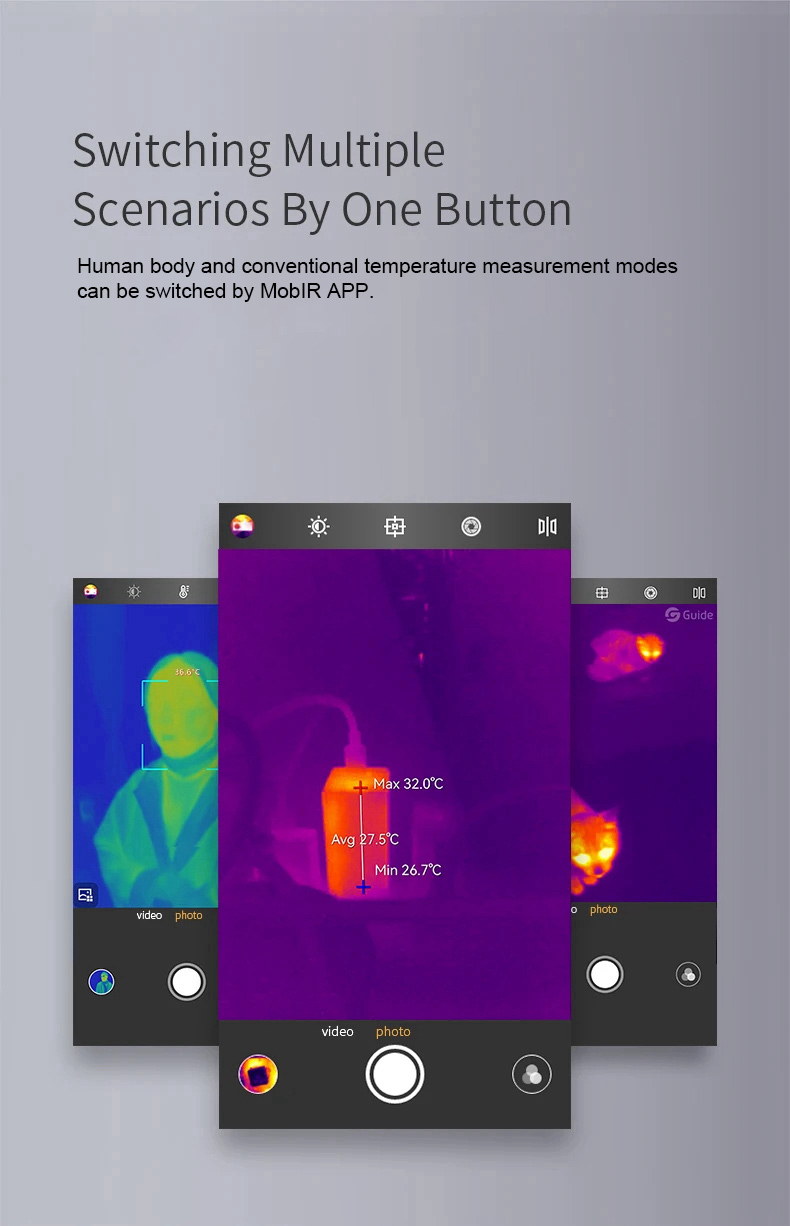

* Human body and conventional temperature measurement modes can be switched by MobIR APP
* Type-C battery-free design. Plug and play
* Portable to carry, with a carrying box

Specifications (MobIR 2T):
Image & Optics:
* Detector type: WLP
* Infrared resolution: 256*192
* Wavelength range: 7.5~14μM
* Field of view: 56° and 3.2mm focal length
* Focusing method: Autofocus

Measurement & Analysis:
* Temperature range: -20°C to 150°C
* Temperature measurement accuracy: ±2°C or 2% of reading
* Human body temperature measurement accuracy: ±0.5°C
* Human body temperature range: 20-50°C
* Human body temperature measurement distance: 0.5-2.5m/1.6-8.2ft

Storage & Transmission:
* External interface: USB type-c male connector

Environmental Parameters:
* Protection class: IP43
* Drop: 1m/3.3ft drop test (without the type-c interface)
* Certification: CE, FCC and RoHS

Physical Parameters:
* Weight: ≤ 35g/0.08lb
* Dimensions (without connector): 59 x 23.55 x 16.38mm/2.3 x 0.9 x 0.6"

Packaging Details:
* G.W.: 0.25KG/0.6LB

Package Included:
* 1 x Thermal camera
* 1 x Carrying box
* 1 x Wrist strap
* 1 x User manual
* 1 x Warranty card
* 1 x Product quality certificate

Note:
* It is battery-free. Battery is not included in the package.
