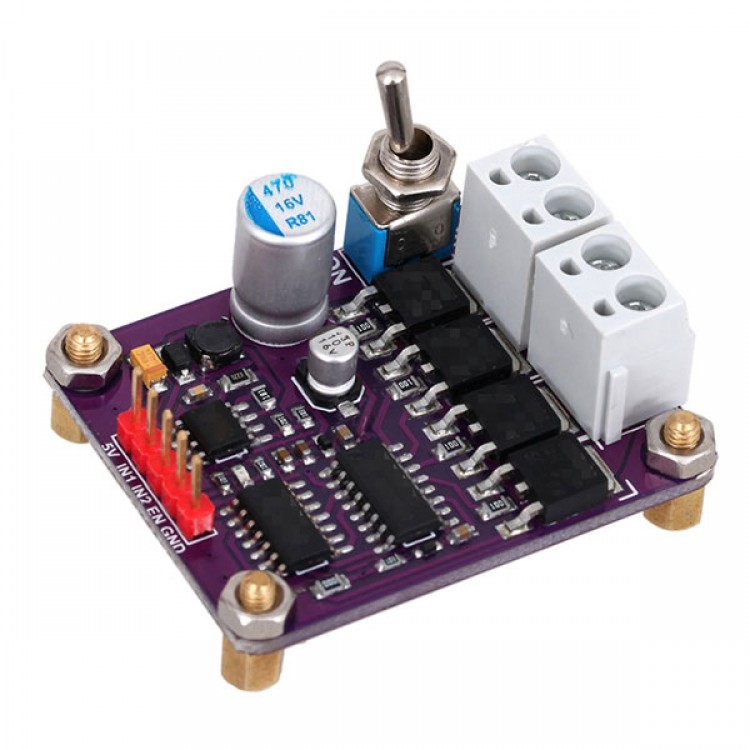

H Bridge MOS Large Power Motor Drive Module Surpass BTS7970 Smart Car Robot for Competition

H Bridge MOS Large Power Motor Drive Module Surpass BTS7970 Smart Car Robot for Competition

Description:
- This driver adopts full bridge driving chip + four low resistor MOSFET
- This bridge drive chip working band can reach 1MHZ, can perfectly solve the problems like large noise and fever caused by MC33886 and VNH3SP30
- This driver surpass L298，IR2104，MC33887 motor driving chip
- Full bridge driving chip, reliable driving mode, reducing the consumption of MOSFET switch to the lowest, improving power utilization rate.
- MOSFET driving chip is with hardware braking function and powe feedback function
- MOSFET adopting large power, current resistance type, internal resistor is 0.003 ohm, can quickly open MOSFET, improving motor accelerator rate, can start or brake the car in a short time

Features:
- Onboard full bridge driving chip + four low resistor MOSFET
- Adopting DC-DC boost module, excellent performance (only supply power for driving chip, not directly drive the motor)
- Driving motor supports CW CCW and braking
- No need heat radiation, can  cope with all car model
- 5V power supply, control signal compatible with 3.3V signal, with signal isolation chip
- Pins description: 5V，GND，PWM1，PWM2，EN (low level is available ) default not to connect
- Motor max input voltage is 25V
- Size: 4.5*3.5cm
- Stable operation, max current 160A
- Onboard motor power input switch, can turn on or off at any time,convenient for debugging
- Easy control, only need two channel control signal and one channel enabling channel
- PCB adopting zideory mahcining, not easy to be oxidation
- Purple process, more beautiful outlook
