HAE69C EC Version Dual Harmonic Equatorial Mount Support Equatorial/Horizontal Dual Mode with High Precision RA Axis Encoder
Key Features:
- Support equatorial mode, with a self weight of 8.8KG and a load capacity of 31KG (excluding counterweight).
- Support horizontal mode, top mounted AZ high-precision horizontal bubble.
- Computer direct control, no need for manual control box, TYPE-C cable direct connection.
- Intuitive and detailed software interface, based on system for Linux, fully open source, supporting feature addition.
- The latitude adjustment range is 0° -90°, with three levels of adjustment: 0-34°, 28-62°, and 56-90°.
- Top mounted high-precision horizontal bubble, external electronic polar mirror bracket for easy reading.
- The EC version features a high-precision RA axis encoder, providing incredible tracking accuracy for long-term blind tracking, making it possible to choose "no" star guidance imaging.
Specification:
- Tracking mode: the equator/horizon
- Reduction ratio: 160:5
- Reducer:
Right ascension: 25 harmonic reducer
Declination: 20 harmonic reducer
- Net weight: 8.8kg
- Maximum load capacity: 31kg at 20cm (without counterweight)
- Dovetail base: Vixen & Losmandy
- Period error: < 30 arc-sec (±15 arc-sec)
- Period: 270 seconds
- Maximum GOTO speed: 4.5°/s
- Latitude range: 0°-90°
- Direction adjustment range: ±8°
- Power supply voltage: DC12V
- Power consumption: 0.6A (tracking)/1.6A (GOTO)
- Control system: for Skyhunter

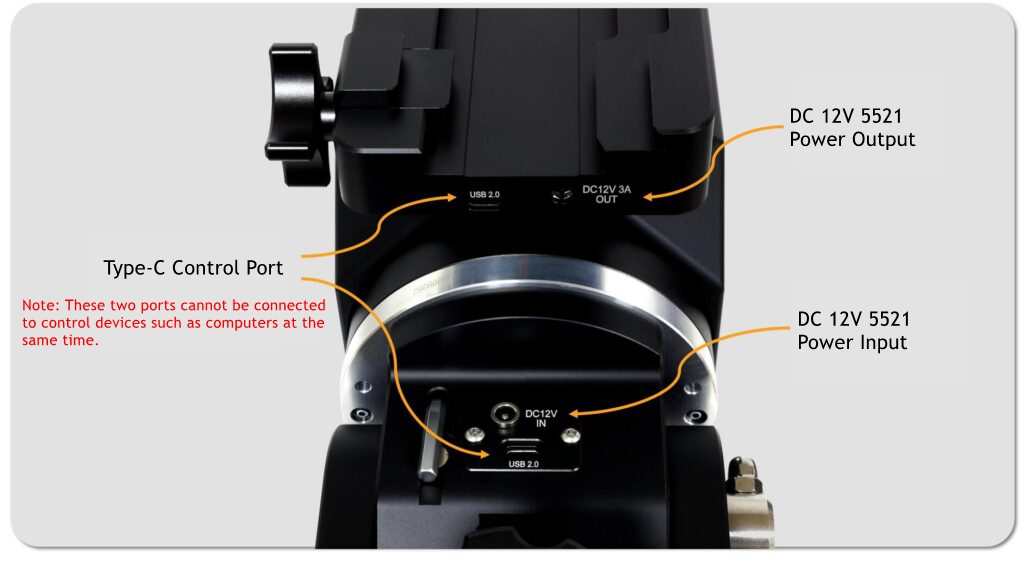

- Communication interface: USB-C/WiFi/ST4
- Cable management: reserved cable channel
- Power outage braking: right ascension and declination electronic damping brake
- Automatic zeroing: mechanical automatic zeroing
- Base diameter: 152mm
- Working temperature: -20℃ ~ 45℃
- Balancing bar thread: 3/8 - 16
Package Included:
- 1 x Equatorial Mount
- 1 x 12V 5A Power Adapter
- 1 x USB-A to USB Type-C Data Cable
- 1 x WiFi Antenna
- 1 x Aluminum Storage Case
