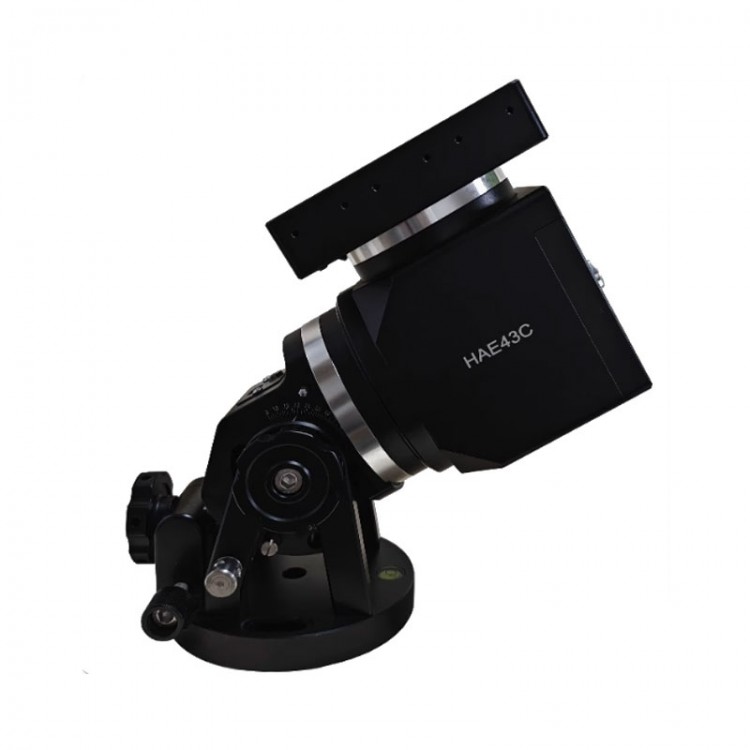

HAE43C Dual Harmonic Equatorial Mount Support Equatorial/Horizontal Dual Mode with 20KG Load Capacity
Key Features:
- Dual axis high precision harmonic reducer.
- Equatorial/horizontal dual modes.
- Computer/astronomical box direct control.
- Mini and portable.
- Compatible with ASCOM/INDI and other platforms.
- Dovetail power supply output, dovetail control interface.
Specification:
- Tracking mode: the equator/horizon
- Reducer:
Right ascension: 20 harmonic reducer
Declination: 17 harmonic reducer
- Reduction ratio: 640:1
- Net weight: 5.7kg
- Maximum load capacity: 20kg at 20cm (without counterweight)
- Dovetail base: Vixen & Losmandy
- Period error: < 36 arc-sec (±18 arc-sec)
- Period: 270 seconds
- Maximum GOTO speed: 6°/s
- Latitude range: 0°-90°
- Direction adjustment range: ±7°
- Power supply voltage: DC12V
- Power consumption: 0.7A (tracking)/1.2A (GOTO)
- Control system: for Skyhunter
- Communication interface: USB-C/WiFi/ST4
- Power outage braking: right ascension and declination electronic damping brake
- Automatic zeroing: mechanical automatic zeroing
- Working temperature: -20℃ ~ 45℃
- Balancing bar thread: 3/8 - 16
Package Included:
- 1 x Set of Equatorial Mount
