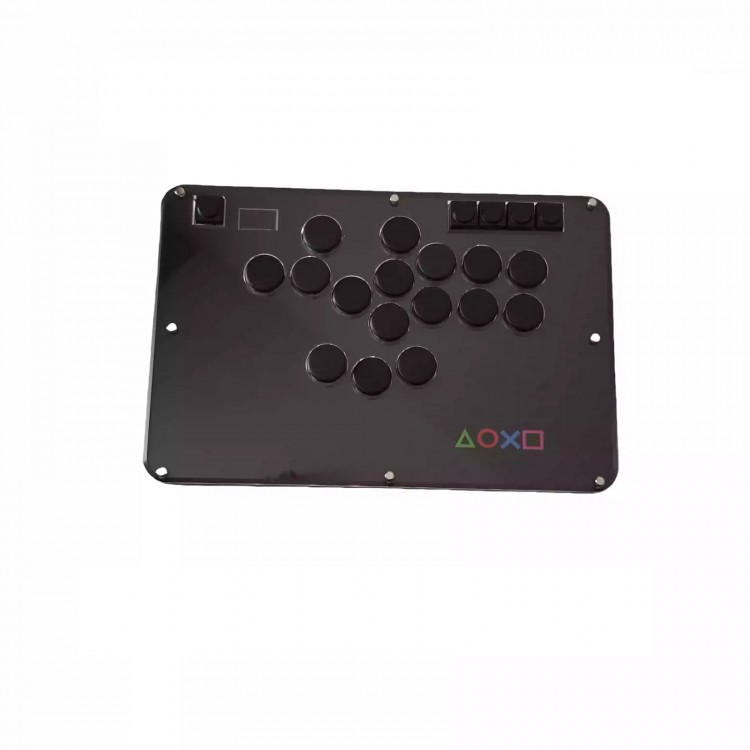

HAMGEEK A16 Pro Hitbox Black 16-Button Arcade Stick Arcade Controller w/ Low Profile Silver Switches

HAMGEEK A16 Pro Hitbox Black 16-Button Arcade Stick Arcade Controller w/ Low Profile Silver Switches

Features:
* Black version uses PBT keycaps for superior tactile feel
* Dimensions: 300mm × 200mm × 14mm
* A4 large size, 16-key layout and dual-light dual-axis mount
* Mechanical switches for function keys, with finely milled edges and chamfers for a smooth, non-cutting feel
* Dual type-c ports
* 0.96-inch OLED display
* USB encryption port
* Dual-light design for improved lighting effects
* Compatible with both GATERON and Kailh low-profile switches
* Independent PC material positioning plate to fix the switches
* Switches support hot-swapping
* Edges processed with CNC machining for smooth chamfers
* Latest firmware on the GP2040 platform (with ongoing firmware updates)
* Supports multiple platforms: For PC, Android, NS, PS3, PS4, PS5 (supports for PS4 game downloads), Steam, NS, and Arcade

Input Modes:
To change input modes, hold the corresponding button while connecting the controller:
B: Xinput (For Windows/Steam)
A: For NS
X: For PS3/Dinput (For Android/Raspberry Pi)
Y: For PS4
RT: Keyboard
The default mode is Xinput.

Buttons:

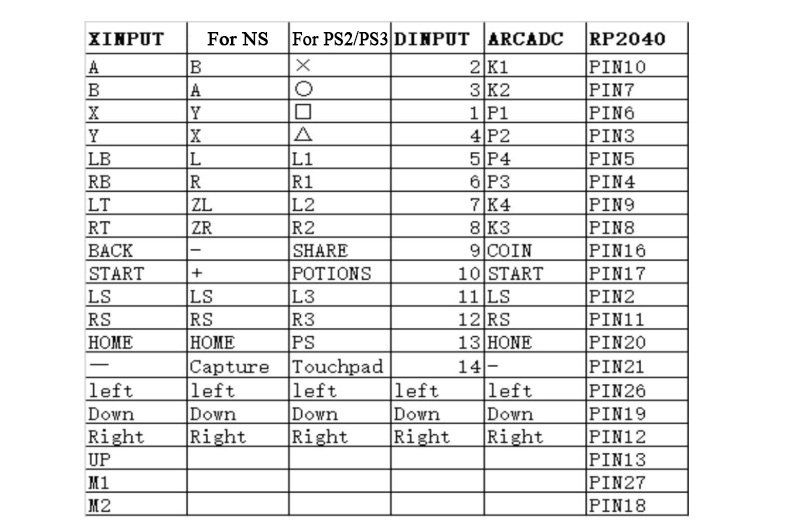

The HAMGEEK A16 Pro Hitbox leverages a standardized button mapping system, converting generic gamepad inputs to specific input types as needed. Below is a mapping of its buttons to their corresponding input types and layouts:


Hotkeys:
1. SOCD Mode:
* HOME + START + UP: Up Priority
* HOME + START + DOWN: Neutral
* HOME + START + LEFT: Last Input Priority

2. Direction Mode:
* BACK + START + DOWN: DPad Digital
* BACK + START + LEFT: DPad Left Analog
* BACK + START + RIGHT: DPad Right Analog (The default mode is DPad Digital)

RGB LED Hotkeys:
* BACK + START + X: Cycle to the next animation.
* BACK + START + A: Cycle to the previous animation.
* BACK + START + Y: Increase brightness.
* BACK + START + B: Decrease brightness.
* BACK + START + RB: Increase LED parameter value.
* BACK + START + RT: Decrease LED parameter value.
* BACK + START + LB: Increase pressed key parameter value.
* BACK + START + LT: Decrease pressed key parameter value.

TURBO:
* Purpose: The Turbo function allows you to modify the behavior of a button so that holding it down triggers a rapid series of button presses in quick succession.
* How It Works: Turbo Mode can be enabled or disabled for individual buttons. To activate Turbo Mode, hold the desired input button and then press the Turbo Button. Once enabled, the input will be sent repeatedly in rapid succession as long as the button is held down.

For PS4:
The Input Mode for PS4 allows the arcade stick to be compatible with the console for PS4. You can either use uploaded key files or a host USB port with a pass-through authentication device to bypass the 8-minute timeout.

WebConfig Mode:
The HAMGEEK A16 Pro Hitbox features a built-in web-based configuration application. To access it:
* Option 1: Hold the Start button while plugging the controller into a PC.
* Option 2: Hold Start + X + Y for five seconds while the controller is plugged in.
Once the configuration mode is activated, open a web browser and navigate to http://192.168.7.1 to begin customizing your controller settings.

Package Included:
* 1 x HamGeek Arcade Fight Stick

Packaging Details:
* Weight: 1.35kg
