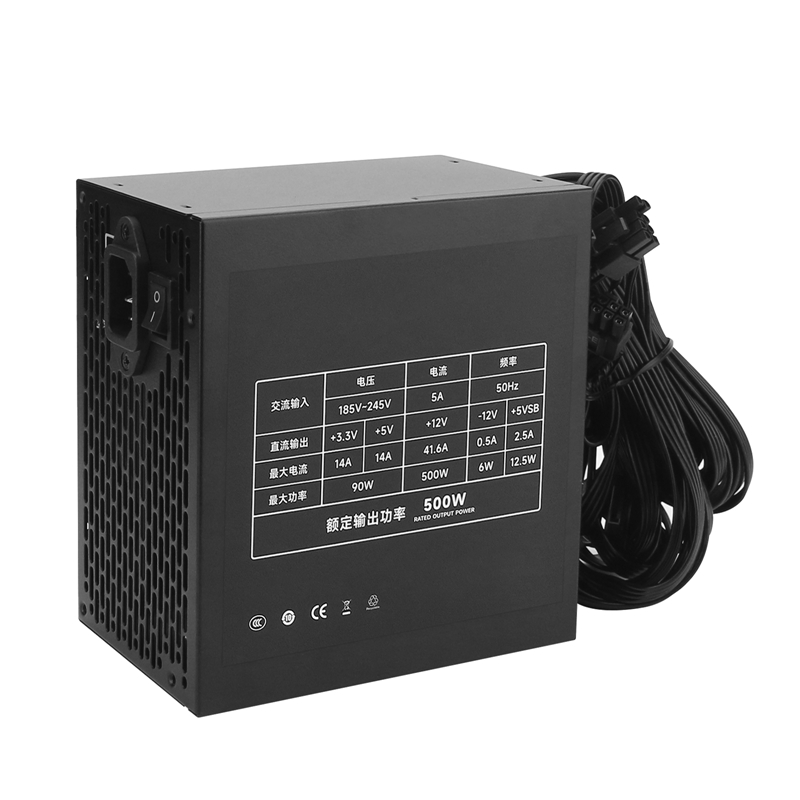

HamGeek ATX Power Supply Unit 500W Black Docking Station Power Supply for GPU & Graphics Card Docks

HamGeek ATX Power Supply Unit 500W Black Docking Station Power Supply for GPU &  Graphics Card Docks

Features:
- HamGeek 500W ATX power supply
- Suitable for GPU dock and graphics card dock
- With ventilation holes for heat dissipation
- Softened flat wire: Pure black/pure white flat wire is used, and the rubber material is softened and adjusted accordingly
- Shell is made of 0.6mm cold-rolled steel, ensuring the strength and heat dissipation effect of the body
- With over-power protection

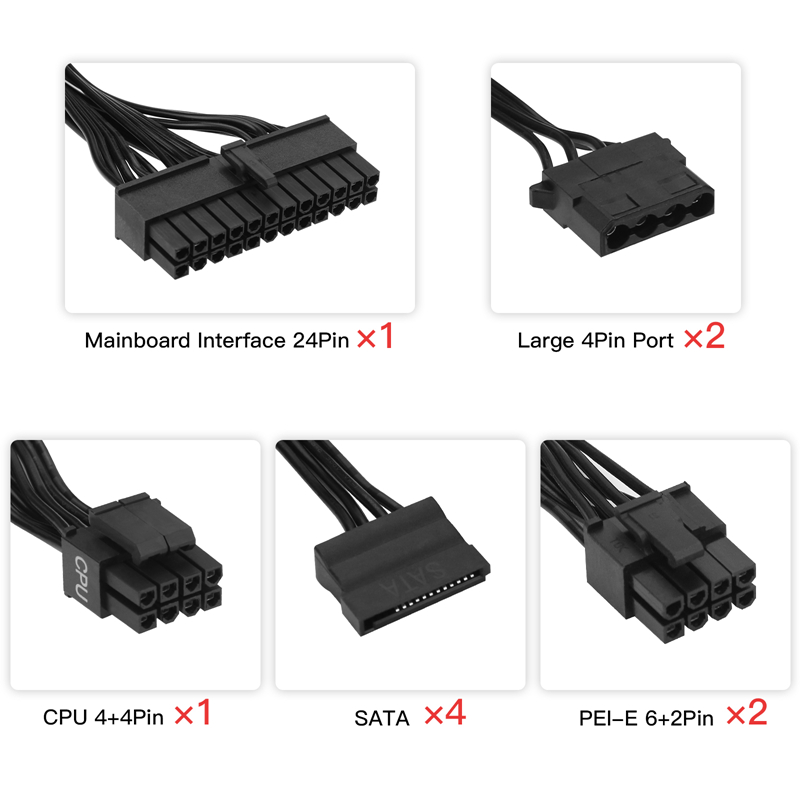

Connectors:
- Graphics card 6+2 connectors: 2
- CPU 4+4 connectors: 1
- SATA connectors: 4
- IDE connectors: 2

Specifications:
- Dimensions: 15 x 14 x 8 .6cm/5.9 x 5.5 x 3.4" (WxLxThickness)
- Solution: Two MOSFETs are used to control the direction of the current + Schottky rectification + DC-DC, double-sided tin spraying, single-sided SMD+DIP, bottom plate mount
- Safety: Full safety circuit. 3C number: 2020010907338684
- Cables: Straight, non-modular, pure color flat wire, 26pcs (no more than 300W per wire)

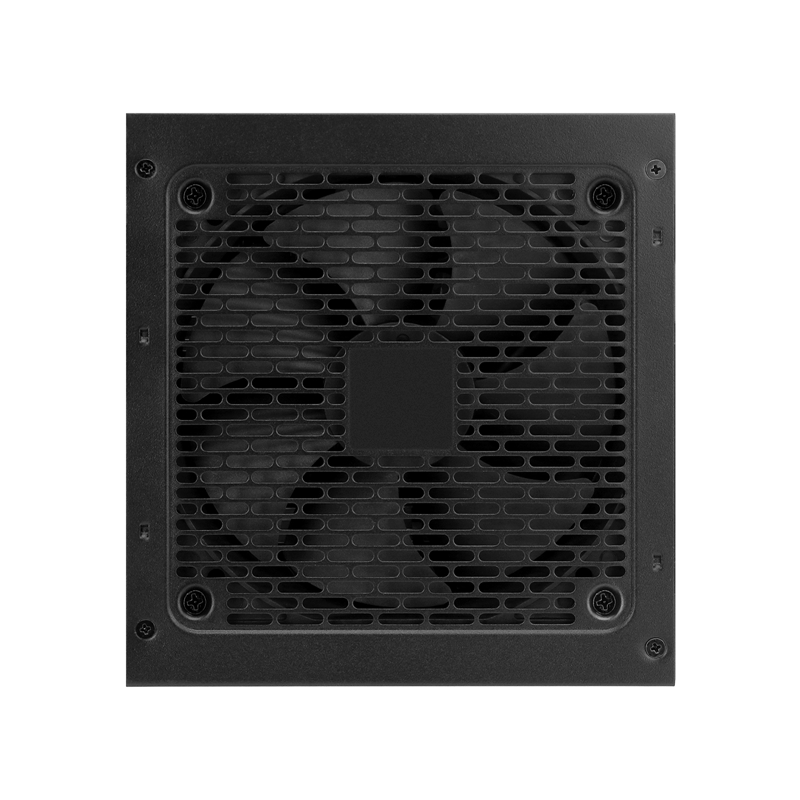

- Fan: BDK 12025, HDB bearing, 600-1800rpm silent fan
- Main capacitor: Taiwan TEAPO 105°C 420V 330uF
- Small capacitors: 5 x 680UF solid capacitors, 3 x 330UF solid capacitors, 1 x 330UF electrolytic capacitors, 2 x 2200UF electrolytic capacitors
- Control IC1: PFC Control IC: SC3805; 3.3/5V IC: NDP23802QB
- Control IC2: Protection IC: GR8313KG; standby IC: DP2221
- Rectifier bridge: One 6A 800V (GBU608) [Rectifier bridge can withstand power: 220V mains electricity x 6A x 0.8 conversion rate (according to 80%) x 0.7 temperature rise = theoretically up to 739.2W]
- Transformer: Main transformer: ERL-35; auxiliary transformer: EE-19; drive transformer: EE-10 (E35 transformer with theoretical continuous power of up to 750W)
- 12V rectification: Rectifier Schottky: 2pcs 30A/100V; Freewheeling Schottky: 2pcs 30A/100V (12V rectified withstand power: (30A + 30A) x 12V = theoretically up to 720W)
- MOSFET: PFC MOSFET: One 13A/500V; PWM MOSFET: 13A/500V , one for ON and one for OFF (MOSFET withstanding power: 13A x PFC voltage halved (385/2=192.5V) x 0.33 (safe temperature) = theoretically pp to 825W)
- OPP: Over-power protection 700W (plus 82% slew loss 840W)

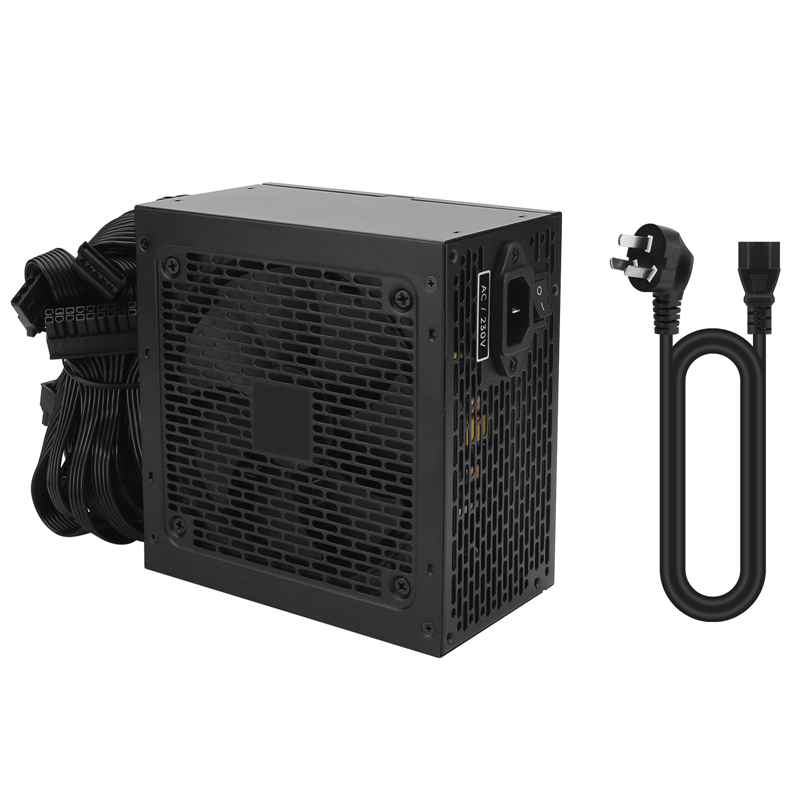

Package Included:
- 1 x HamGeek power supply
- 1 x Power cable

Packaging Details:
- G.W.: 1.85kg
