HAMGEEK BX V2.0 Graphics Card Dock External GPU Dock for 100W Reverse Charging Thunderbolt 3 4

HAMGEEK BX V2.0 Graphics Card Dock External GPU Dock for 100W Reverse Charging Thunderbolt 3 4

Attention:
- There is one motherboard and an acrylic shell. Other accessories are not included in the package.

Description:
HAMGEEK BX V2.0 is a graphics card dock with fast transfer speed. It supports 100W reverse charging and it is Thunderbolt-compatible, with strong compatibility.

Advantages:
- 100W reverse charging
- Ultra-high stability and compatibility
- HAMGEEK BX V2.0 GPU dock supports cold start, that is, it is turned on in advance and connected to your computer (at this time, the docking station is in standby/sleep mode and consumes very little power). When the computer is turned on, the entire docking station will start with the computer, and Windows will automatically recognize it after entering the system, so there is no need to re-plug and unplug the cable for Thunderbolt
- The DP on the HAMGEEK docking station supports the output of core graphics card, which is aimed at graphics cards like P40/P106/T1000/A2000 without video output interface

Application:
- AI training, deep learning and artificial intelligence
- AAA games
- Video clips

Specifications:
- Main control chip: JHL6540
- Dimensions: 13.5 x 10 x 2cm/5.3 x 3.9 x 0.8"
- Weight: 260g/0.6lb
- Supported OS: for Window10/11, Linux (Ubuntu/Centos/redhat) and MacOS (original chips for Intel can be connected to graphics cards; M-series chips can be connected to non-graphics card devices)
- Supports cold start: Yes (When a computer is turned on, the docking station will automatically turn on and recognize the graphics card)
- Hot swap for Thunderbolt: Yes

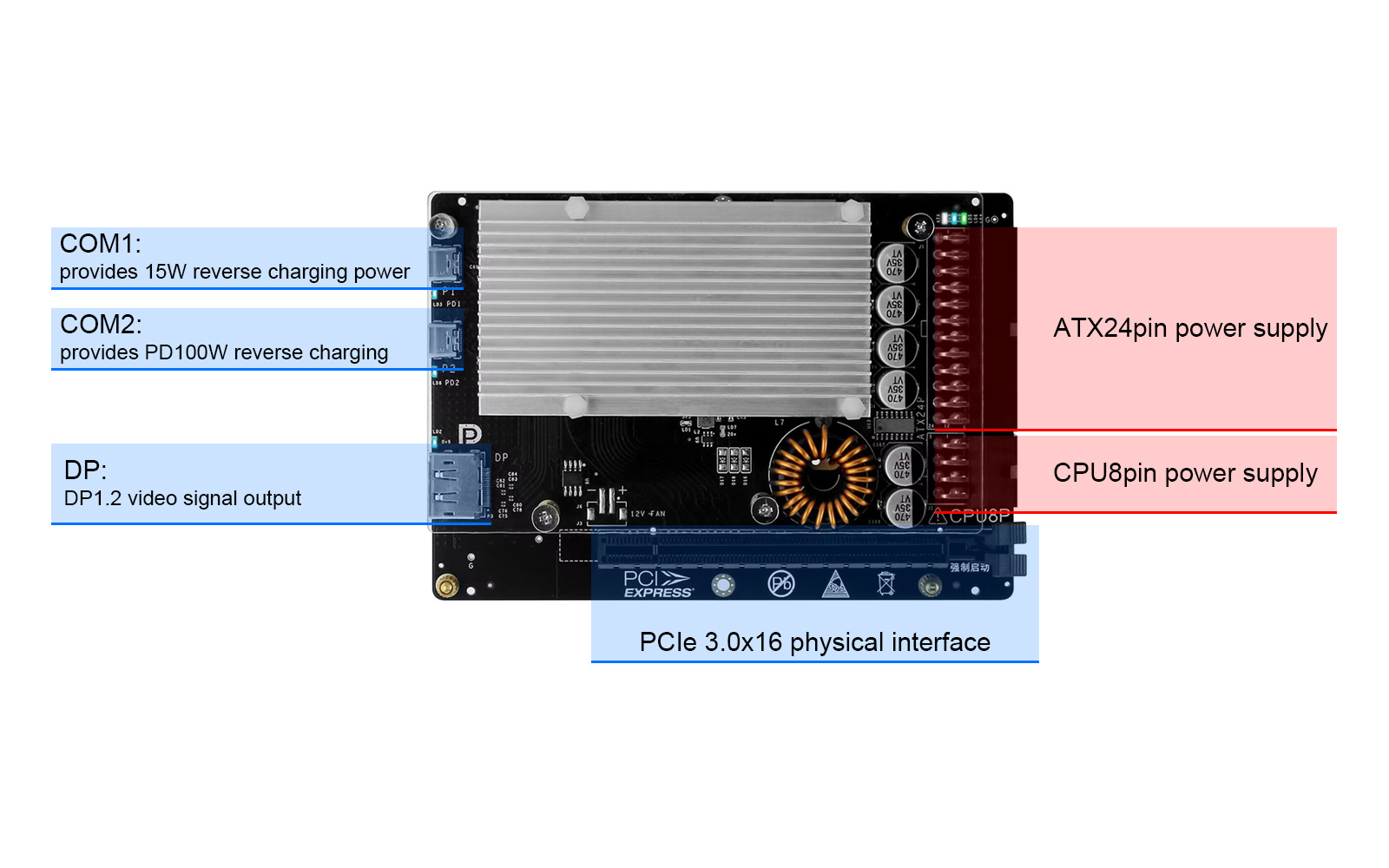

- Reverse charging: Dual 100W (P1) for Thunderbolt + 15W (P2)
- Supported discrete graphics cards: for NVIDIA: GT210-RTX4090, Tesla series; for AMD: HD7870-RX7900XTX
- Supports daisy chain: Yes
- Power supply: Powered by standard desktop power supplies such as ATX/SFX/FLEX

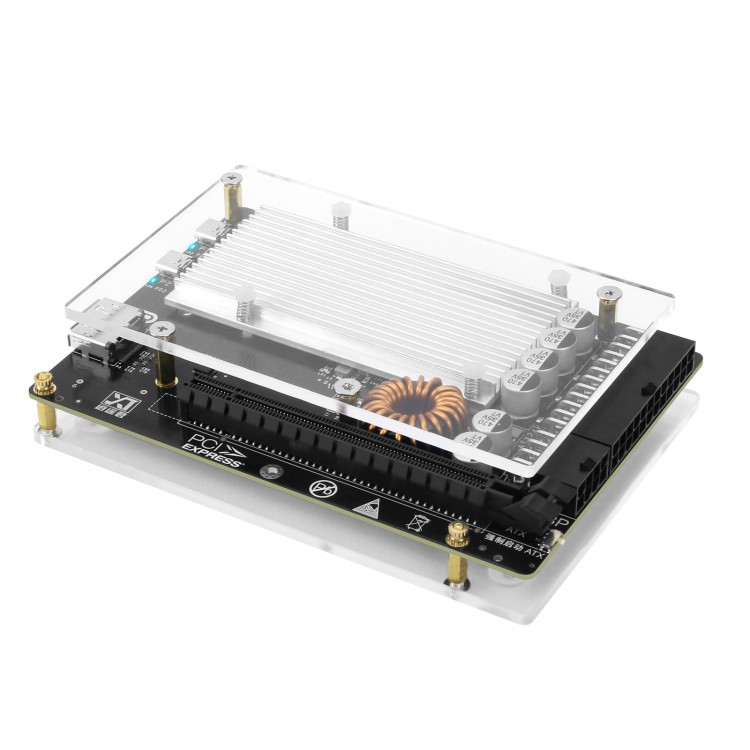

- Shell (GPU dock body): Acrylic
- Applicable bracket (accessory, purchased separately): ATX/SFX power supply brackets
- Compatible enclosure/case (accessory): XY Dock
- Other interfaces: One 18G-DP1.4 interface (does not occupy 22G PCIE bandwidth). Perfect use of 40G bandwidth

Package Included:
- 1 x HAMGEEK BX V2.0 GPU Dock

Packaging Details:
- G.W.: 0.5kg
