HamGeek CUK-AMP 2.4G 2.8G RF Power Amplifier Module 30dB RF Power Amp for AD9363 AD9361 Wifi
Operating Power Supply:
The power input interface of the HamGeek CUK-AMP module uses a feed-through capacitor. The lead wire of the feed-through capacitor serves as the positive terminal of the power input, while the grounding tab serves as the negative terminal. A 5V power input is supported, with a maximum of 6V. Do not exceed this voltage threshold, or the module will be damaged.
Specifications:
* 2.4G Frequency Range: 2400MHz–2483.5MHz
* 5.8G Frequency Range: 5725MHz–5850MHz
* Gain: 30dB (typical)
* Impedance: 50 ohms
* Maximum Output Power: 16dBm
* Operating Voltage: 5V (maximum 6V)
* Operating Current: 260mA at 5V (typical)
* Maximum Input Level: 20dBm (exceeding this power will cause device damage)
* Enclosure Dimensions: 60.5 × 40.5 × 12mm
* Connector Type: Feed-through Capacitor
* Enclosure Material: Sandblasting conductive process preserving natural color

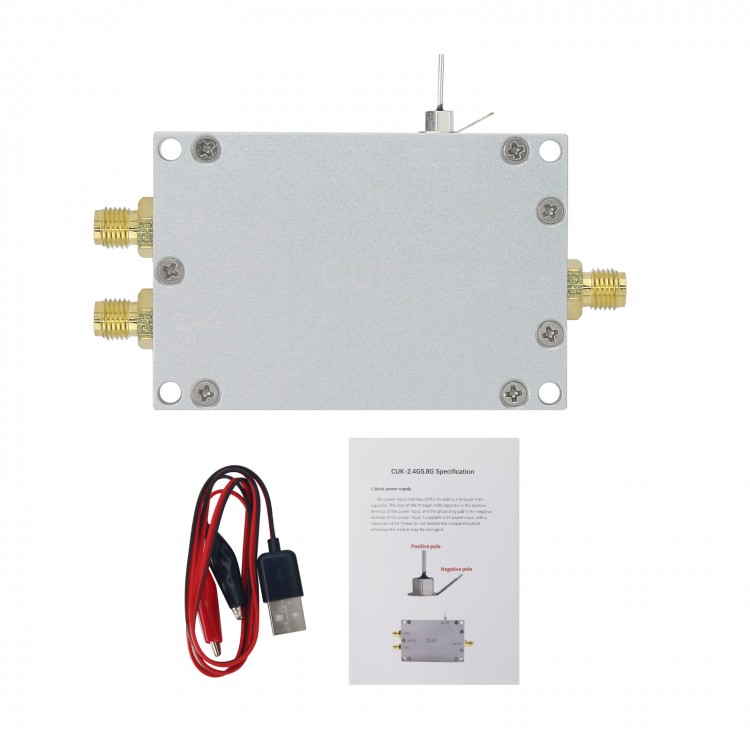

Packing List:
* 1 x HamGeek CUK-AMP Module
* 1 x USB to Alligator Clip Adapter Cable
* 1 x User Manual
Packaging Details:
* Weight: 0.5kg
