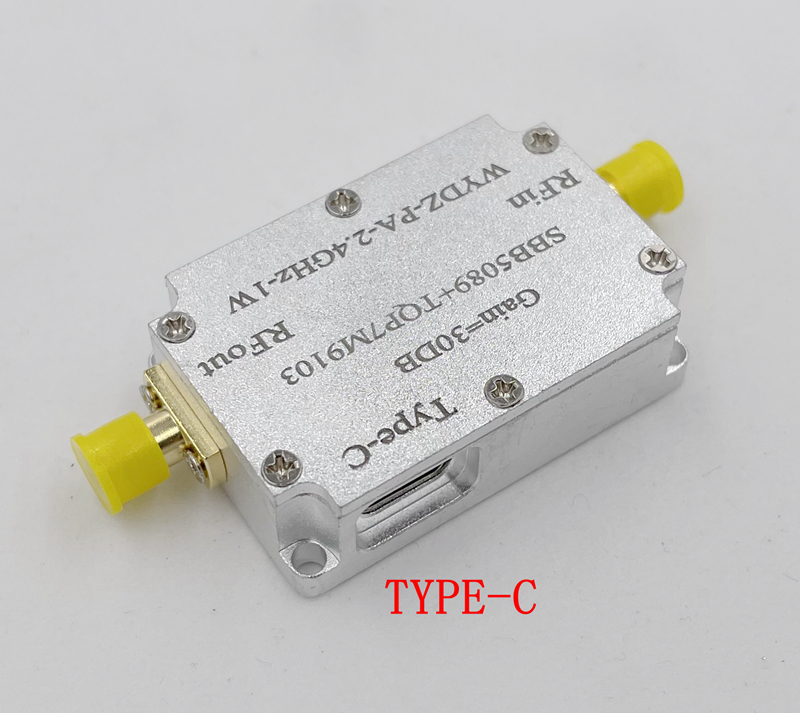

SBB5089+TQP7M9103 Microwave Power Amplifier RF Power Amplifier Module 30DB WYDZ-PA-2.4GHz-1W
Application Scenarios:
1. 2.4G video transmission, interference unit
2. WIFI transmitting, Bluetooth transmitting, data transmission module transmitting
3. Electromagnetic compatibility transmitting system
4. Software radio transmitter
Index Parameters:
1. Power supply: TYPE-C cable
2. Module frequency range: 2.4GHz (narrowband power amplifier)
3. Gain: 30DB (Refer to the measured curve for different frequencies)

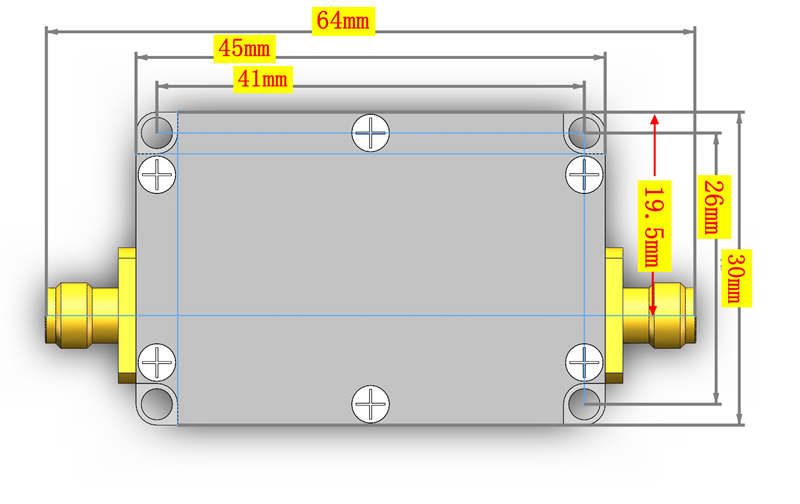

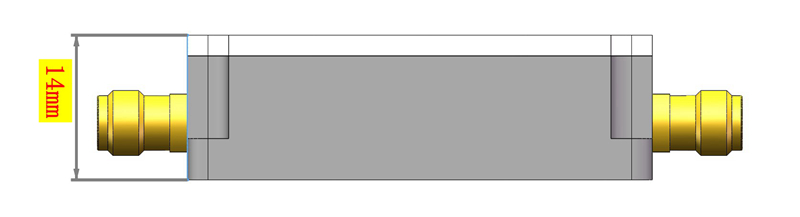

4. Volume: 4.5*3*1.4cm (without sizes of protruding SMA). Weight: 66g (including host + TYPE-C cable)
5. Current: 1A (5V/1A power adapter is recommended)
6. P1dB=30dBm at 2.4GHz (1W)

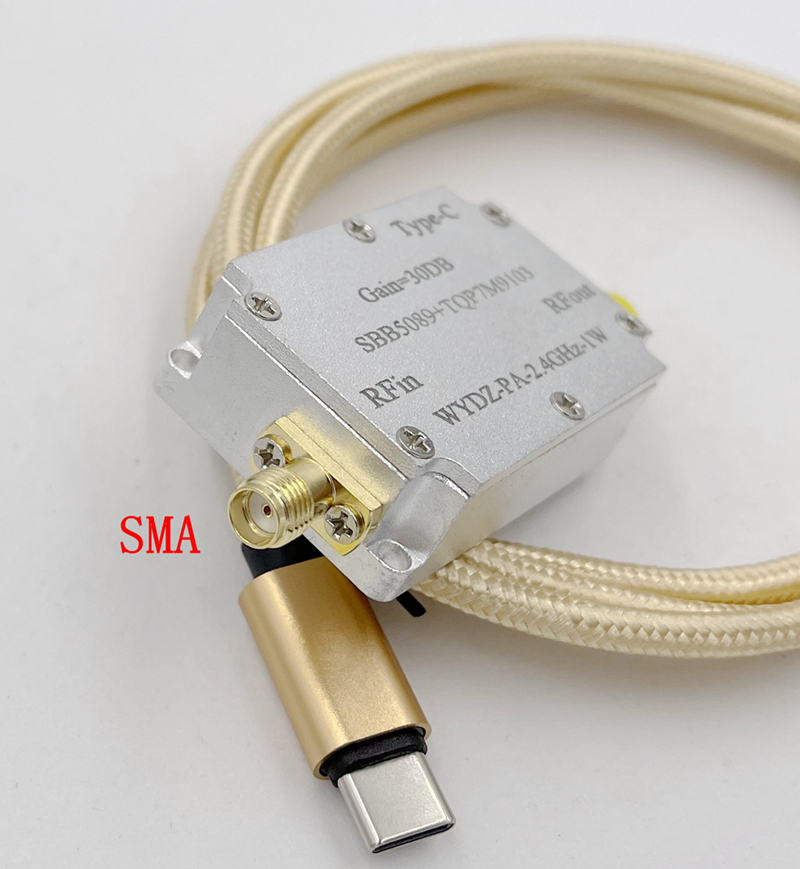

7. Output interface: SMA female, input and output impedance: 50 ohms

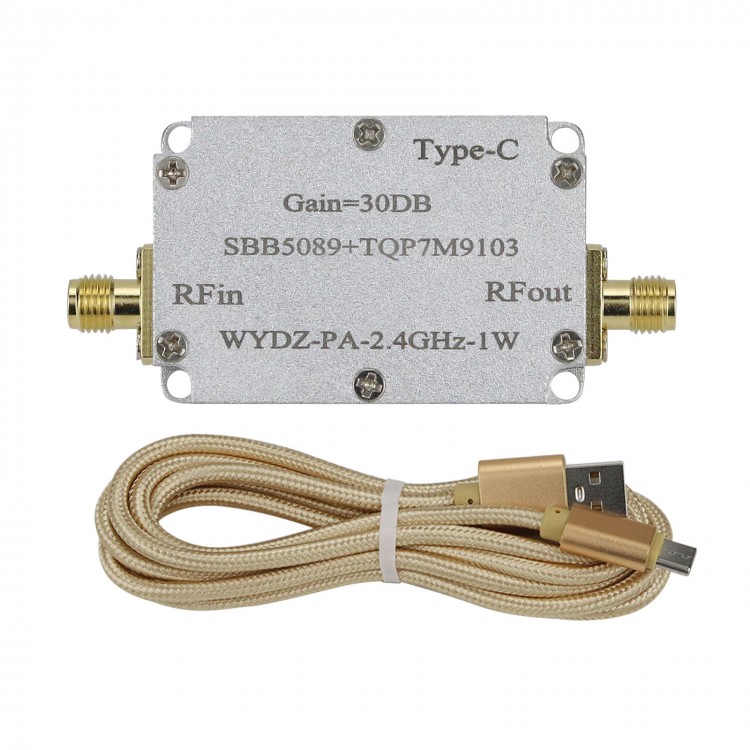

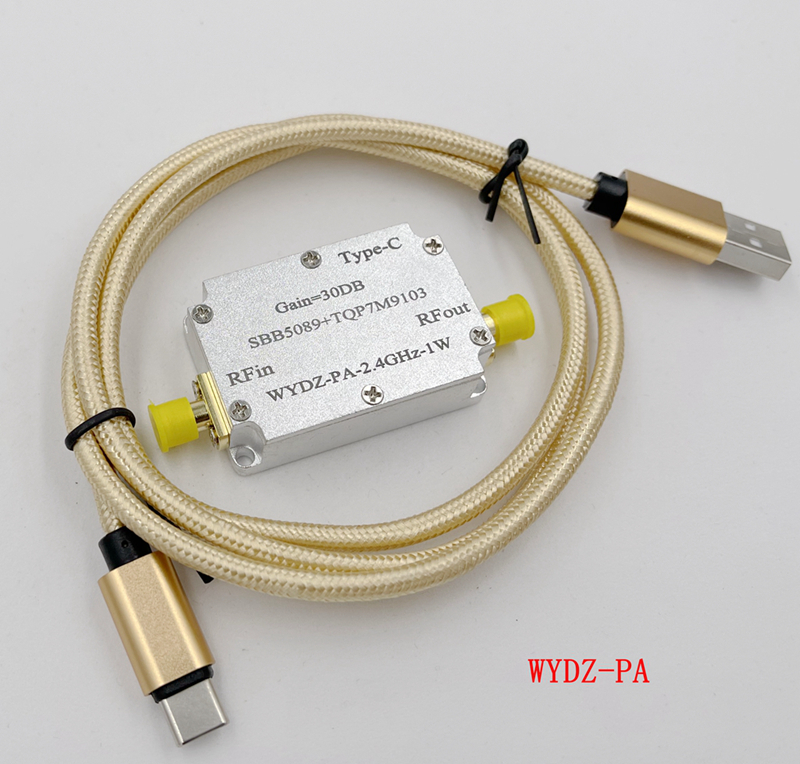

Package Included:
- 1 x Aluminum Alloy RF Power Amplifier
- 1 x Type-C Cable

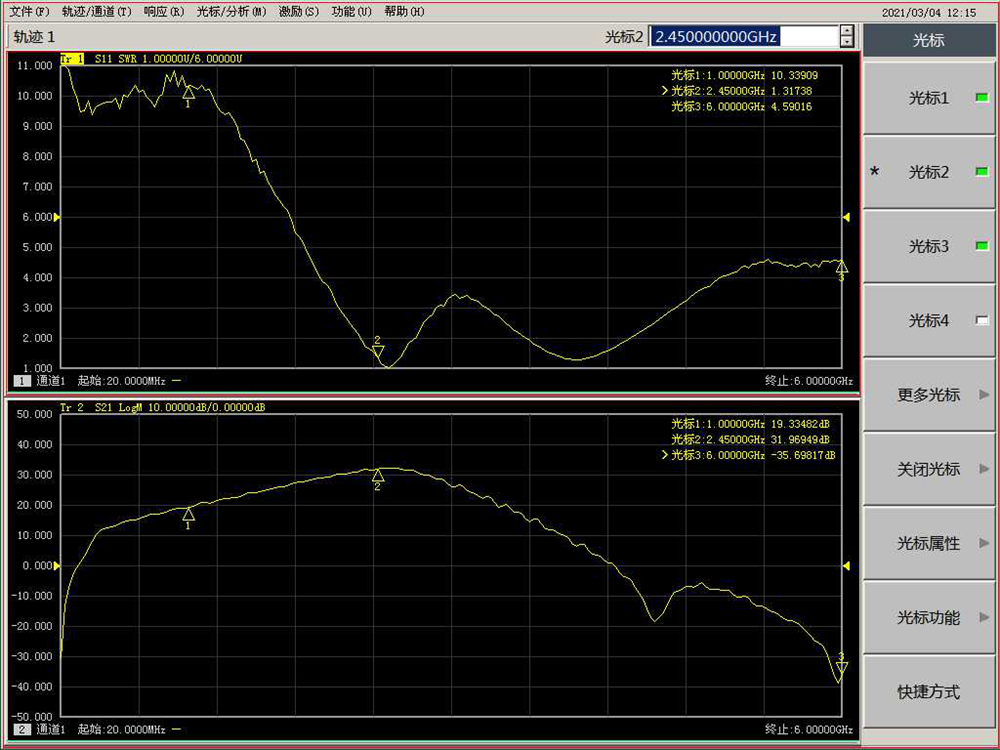

Measured S Parameter Curve:
