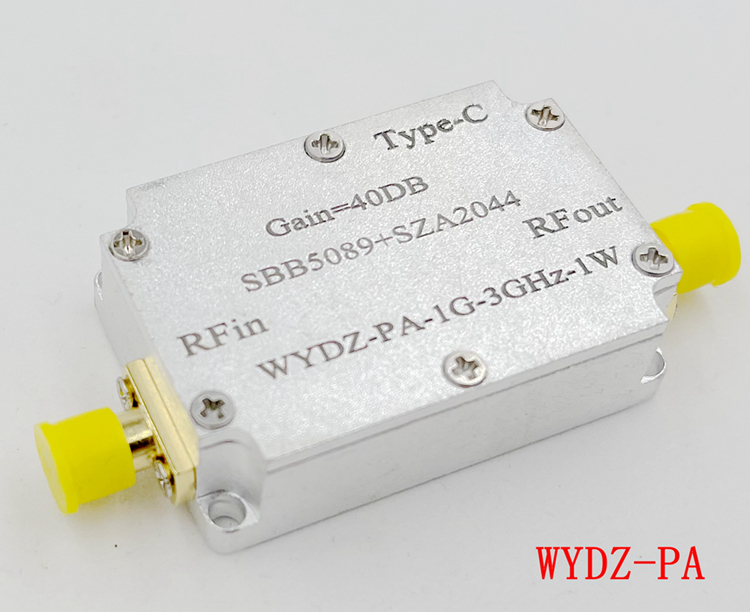

SBB5089+SZA2044 Microwave Power Amplifier RF Power Amplifier 1G-3GHz Gain 40DB WYDZ-PA-1G-3GHz-1W
Application Scenarios:
1. 2.4G video transmission, disturber power amplifier, disturber power amplifier
2. WIFI transmit, Bluetooth transmit, data transmission module transmit
3. Electromagnetic compatibility transmitting system
4. Software radio transmitter
Index Parameters:

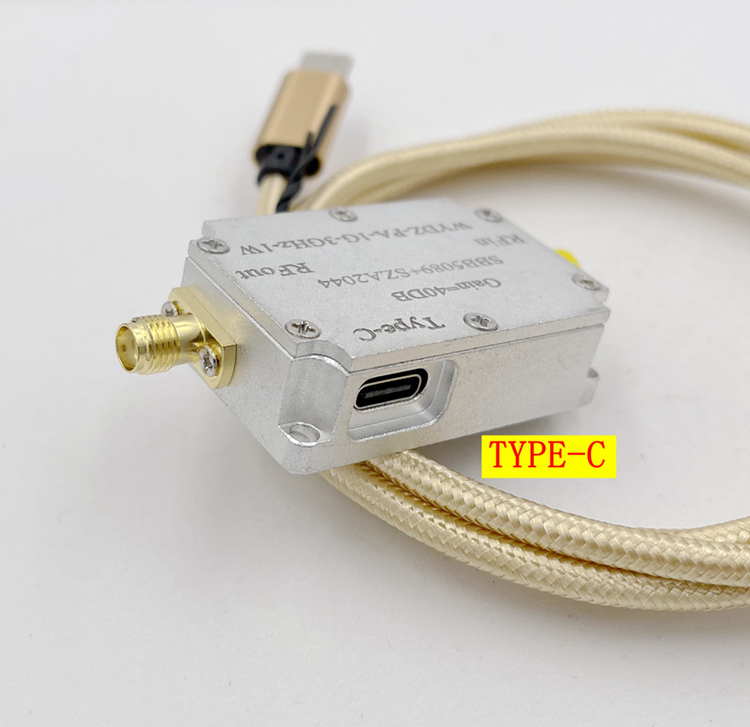

1. Power supply: TYPE-C cable (If you need to transfer to a line, contact us)
2. Module frequency range: 1G-3GHz (wideband power amplifier)
3. Gain: 40DB (refer to the measured curve for different frequencies)

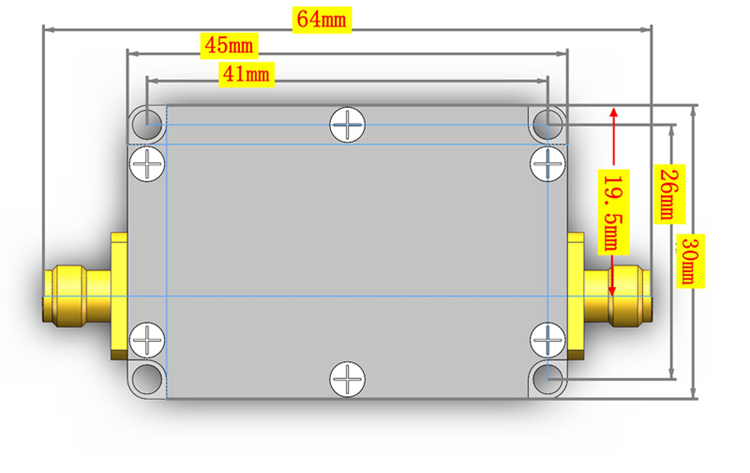

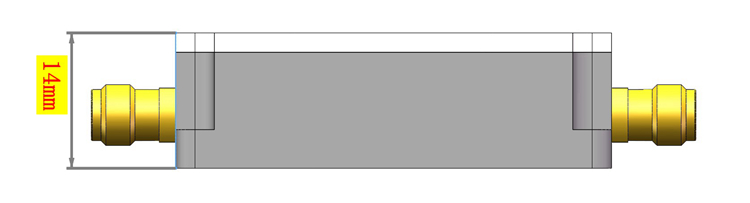

4. Volume: 4.5*3*1.4cm (excluding sizes of SMA connectors); net weight: 66g (including host + TYPE-C cable)
5. Current: 2A (5V/2A power adapter is recommended)
6. P1dB=30dBm at 2GHz (1W)
7. Output interface: SMA female, input and output impedance: 50 ohms

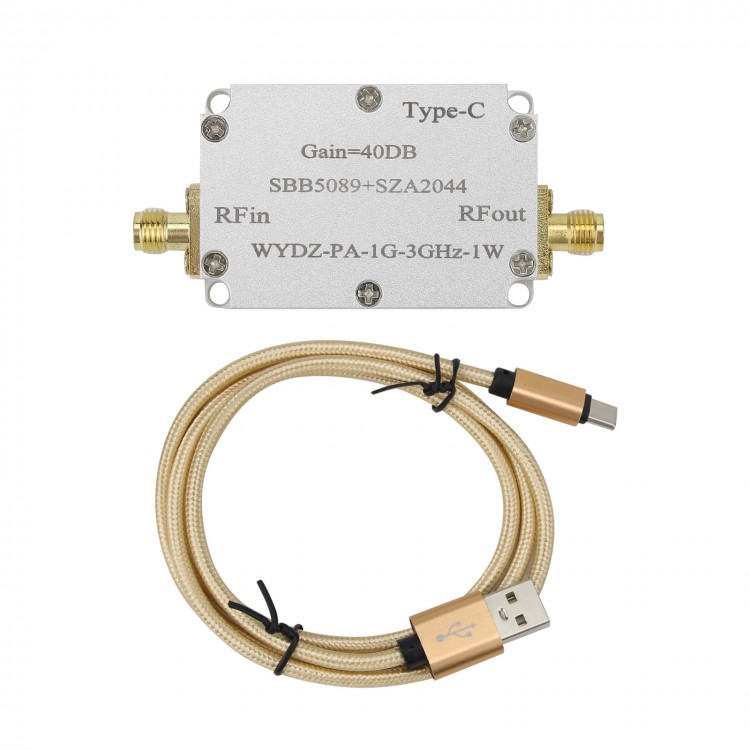

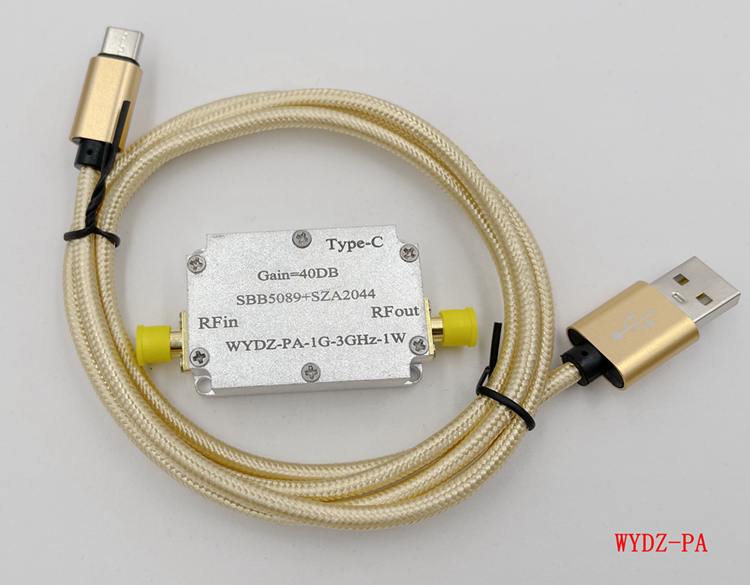

Package Included:
- 1 x RF Power Amp Aluminum Alloy Shell
- 1 x Type-C Cable

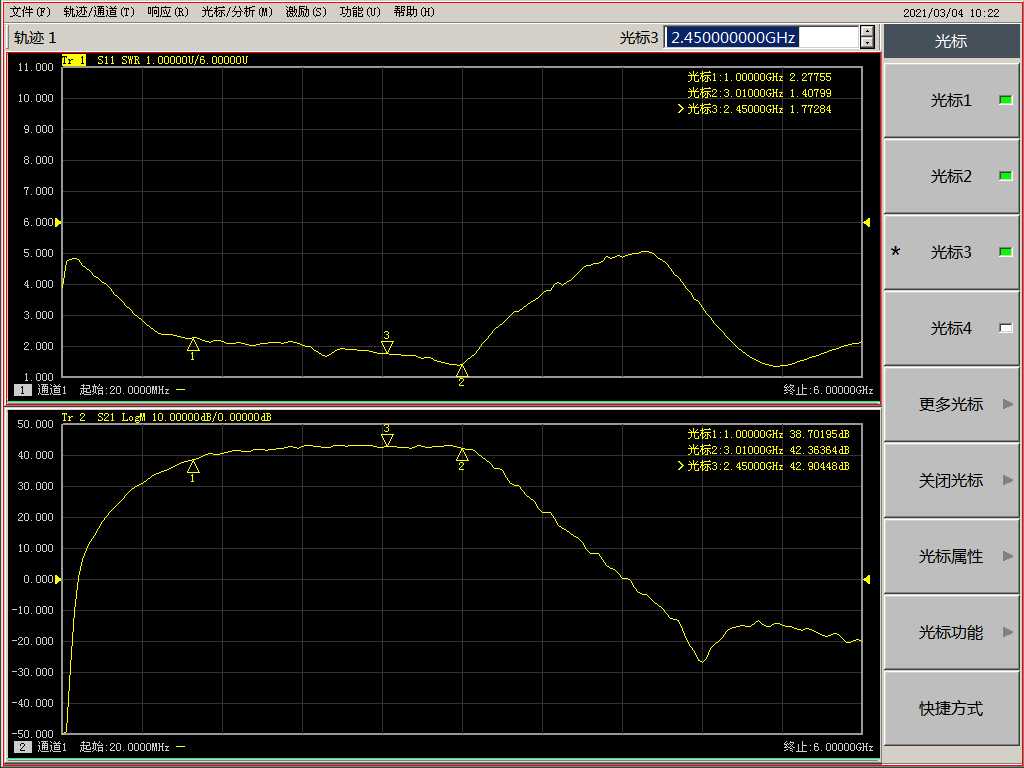

Measured S Parameter Curve:
