SBB5089+SE5004 Microwave Power Amplifier RF Power Amplifier 5G-6GHz Gain 40DB WYDZ-PA-5G-6GHz-2W

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.37
  • Price in reward points: 154 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.06 $14.76 $14.29 $13.68 Contact US
Quantity:

SBB5089+SE5004 Microwave Power Amplifier RF Power Amplifier 5G-6GHz Gain 40DB WYDZ-PA-5G-6GHz-2W

Application Scenarios:

1. 5.8G video transmission, disturber power amplifier
2. WIFI transmission, data transmission module transmission
3. Electromagnetic compatibility transmitting system
4. Software radio transmitter

Index Parameters:

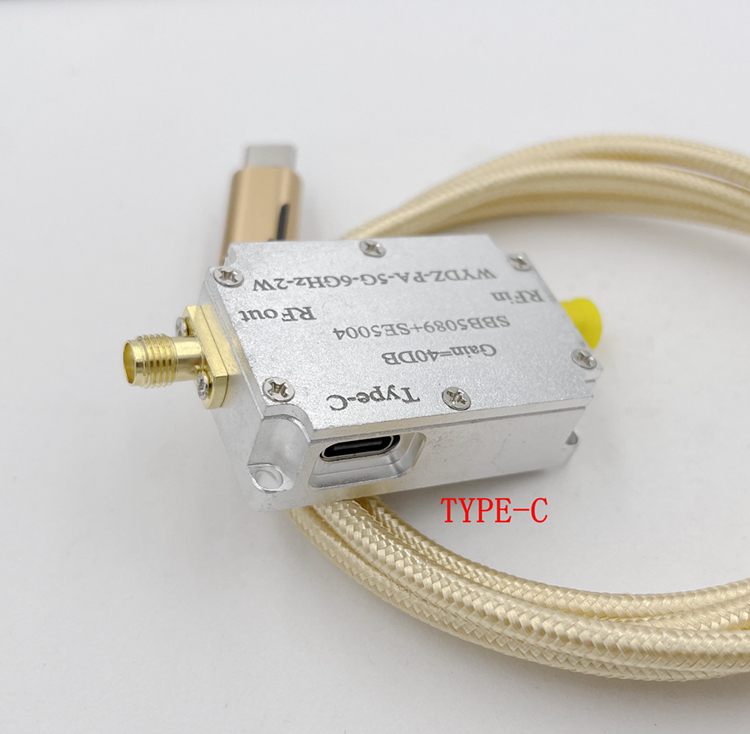

1. Power supply: TYPE-C line (If you need to transfer to a line, contact us)
2. Module frequency range: 5G-6GHz (wideband power amplifier)
3. Gain: 40DB (refer to the measured curve for different frequencies)

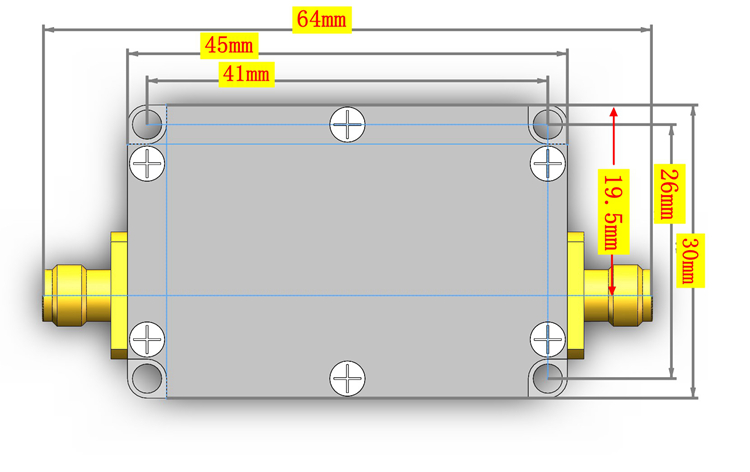

4. Volume: 4.5*3*1.4cm (excluding sizes of SMA connectors); net weight: 66g (including host + TYPE-C cable)
5. Current: 2A (5V/2A power adapter is recommended)
6. P1dB=33dBm at 5.5GHz (2W)

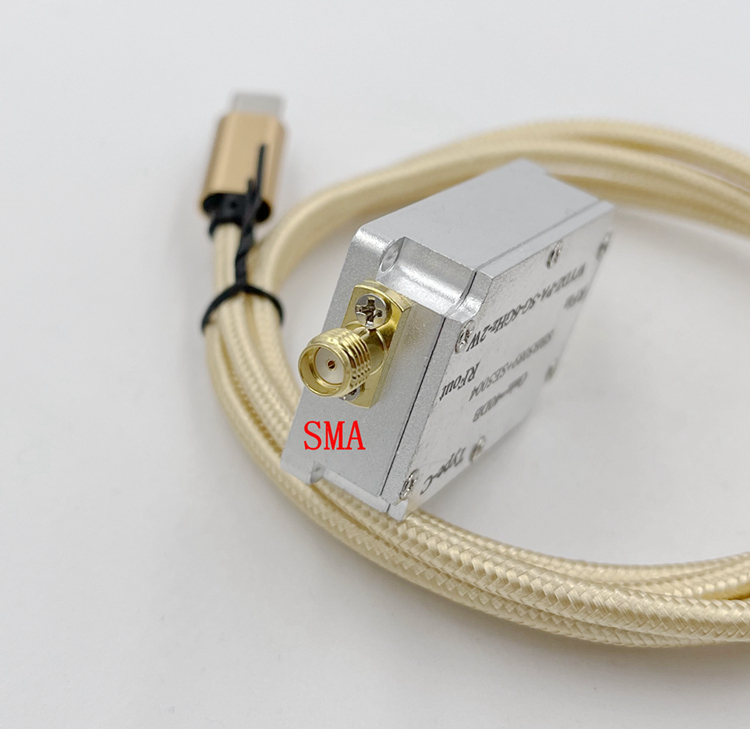

7. Output interface: SMA female; input and output impedance: 50 ohms

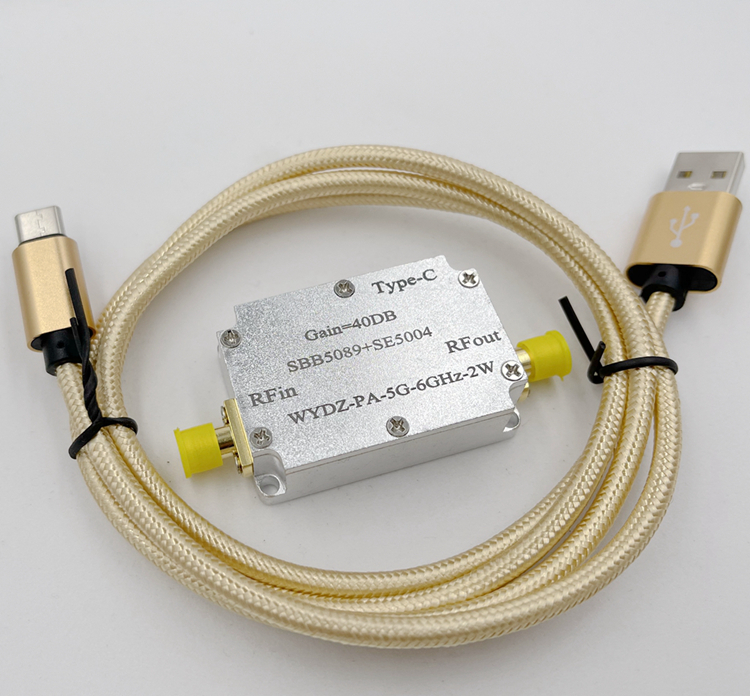

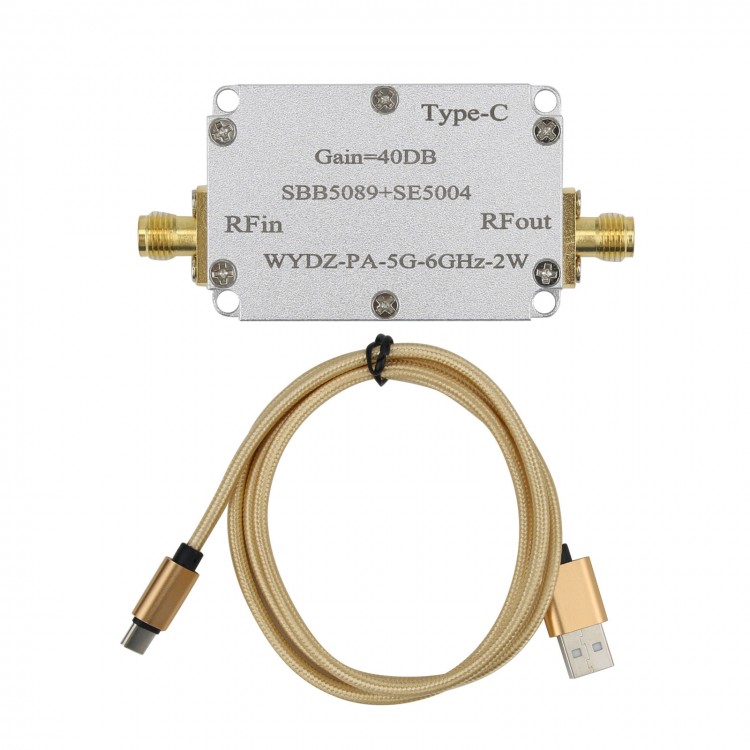

Package Included:
- 1 x RF Power Amp Aluminum Alloy Shell
- 1 x Type-C Cable

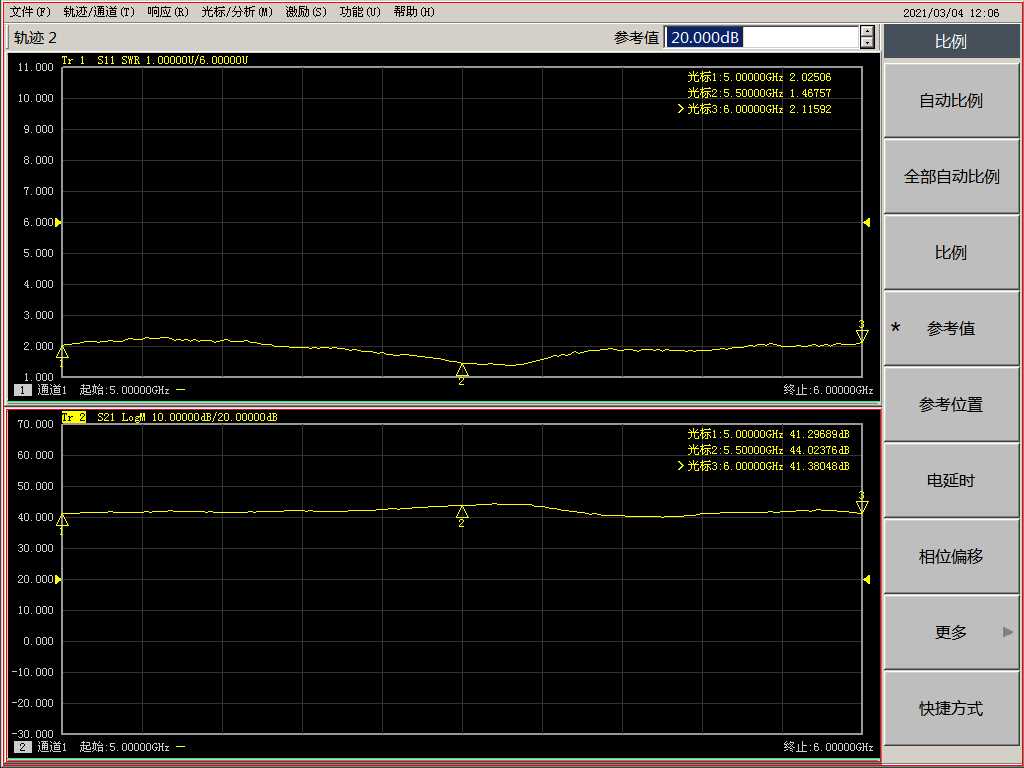

Measured S Parameter Curve:
