Type-C Digital Attenuator with SMA Female Connector 10M-6GHZ 2W 0-31.5dB for Microwave Radio and VSAT
Application:
- Receiver or amplifier, IF signal gain adjustment
- Cellular infrastructure
- Microwave Radio and Very Small Aperture Terminal (VSAT)
- Test equipment and sensors
- IF and RF design
Parameter:

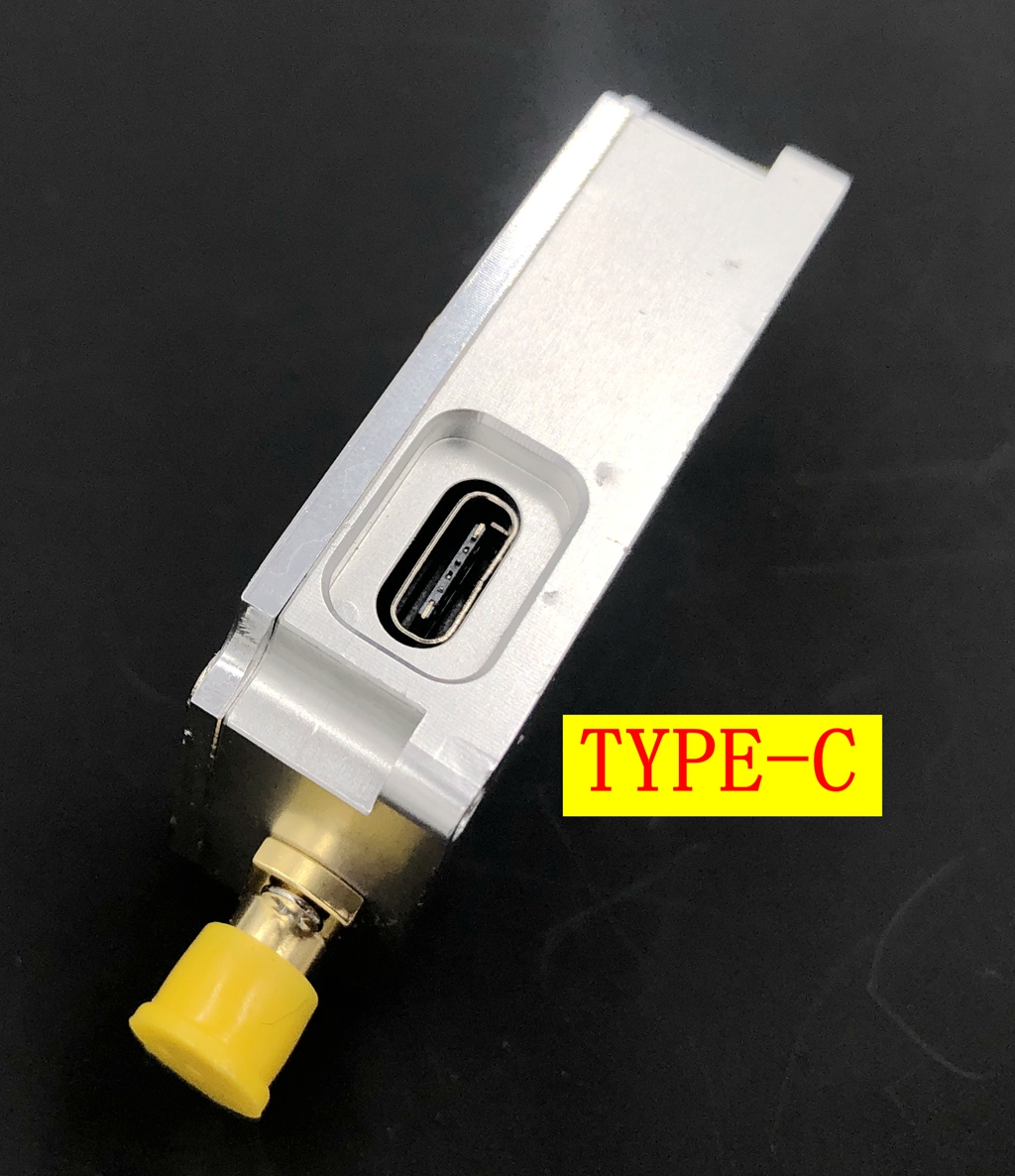

- Power supply: Type-C
- Module frequency range: 10M-6GHz
- Attenuation range: 0-31.5DB (Refer to the measured curve for different frequencies)
- Insertion loss: (Refer to the measured curve for different frequencies)

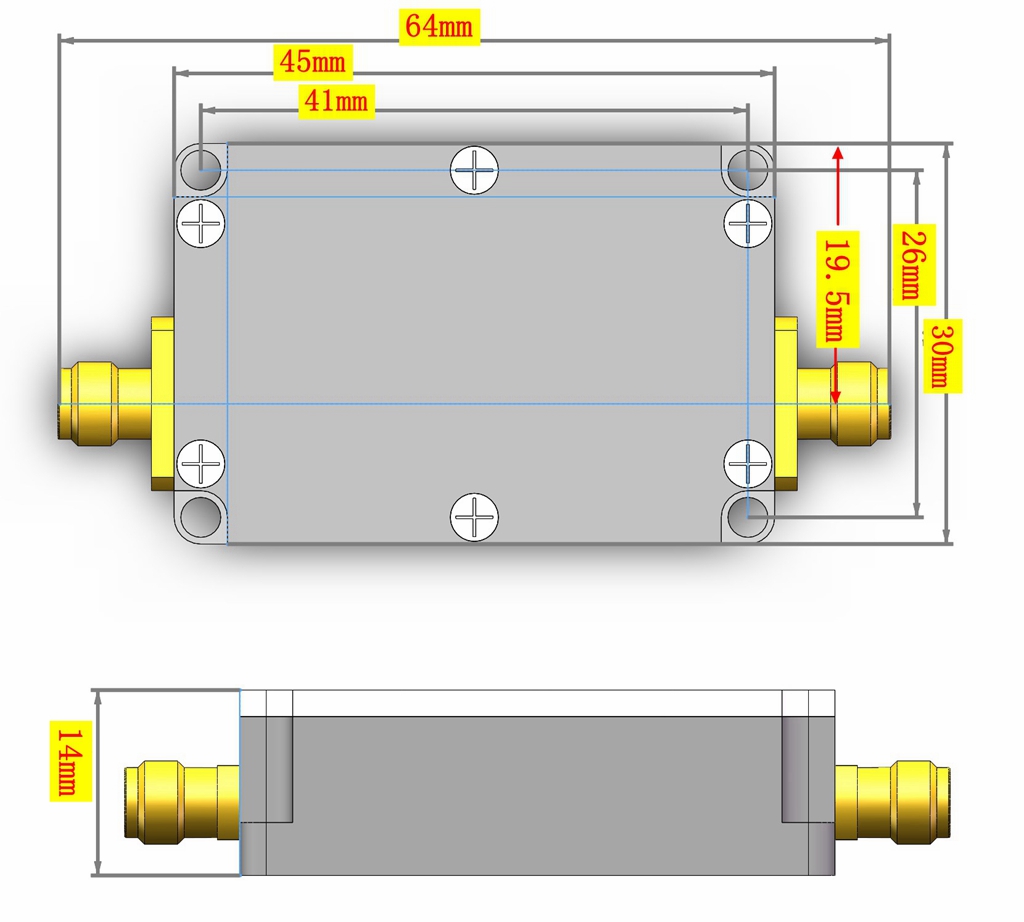

- Size: 4.5 x 3 x 1.4cm (the SMA connector length is not included)
- Weight: 66g (host + Type-C cable)
- Current: <80mA
- P1dB=33dBm at 1GHz (2W)
- Minimum step: 0.5DB

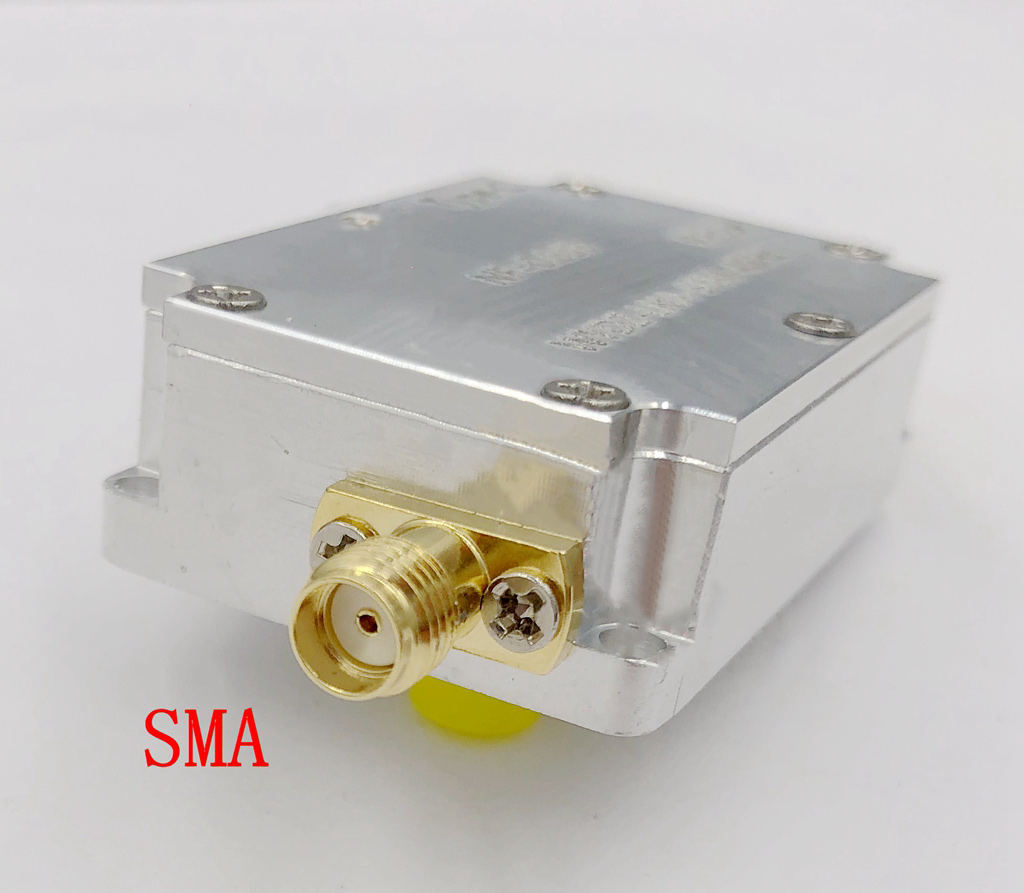

- Output connector: SMA female
- Output impedance: 50ohm
- Controlling method: USB to Serial, for CH340 chip
Communication baud rate: 9600BPS
Send attenuation coefficient command: Change attenuation coefficient, Format: att-xx. X
Response value signal: Format: ATT OK
- Operation link: https://pan.baidu.com/s/1plcTuS6lFmXpEA9Z5GqqUA password: WYDZ

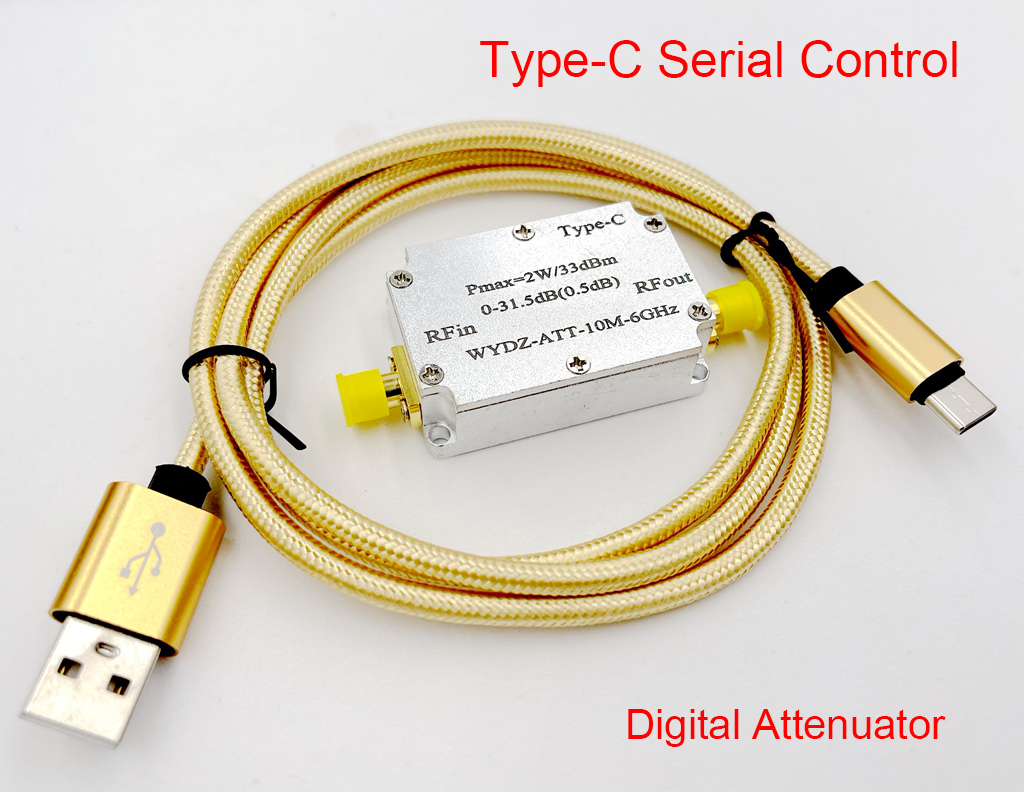

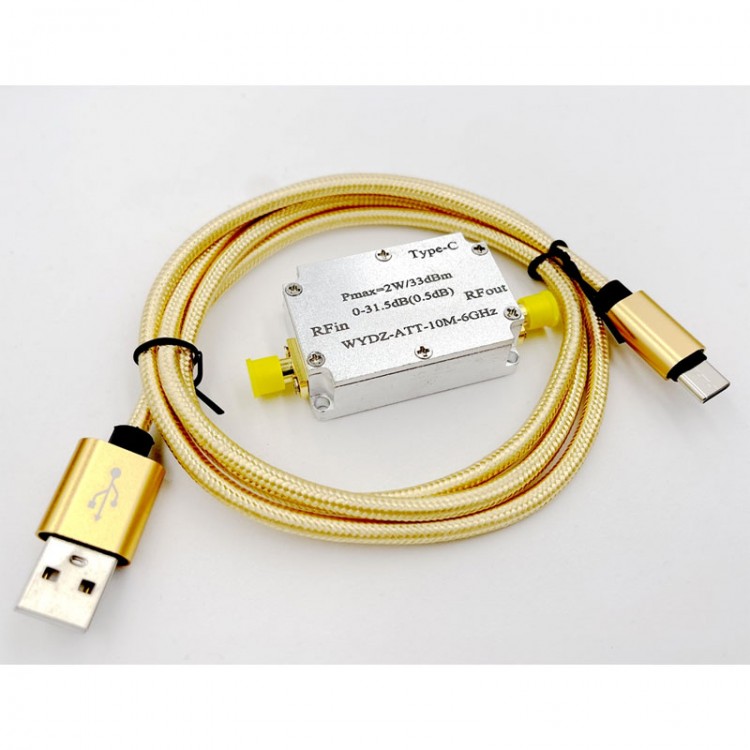

Package Included:
- 1 x Digital Attenuator
- 1 x Type-C cable

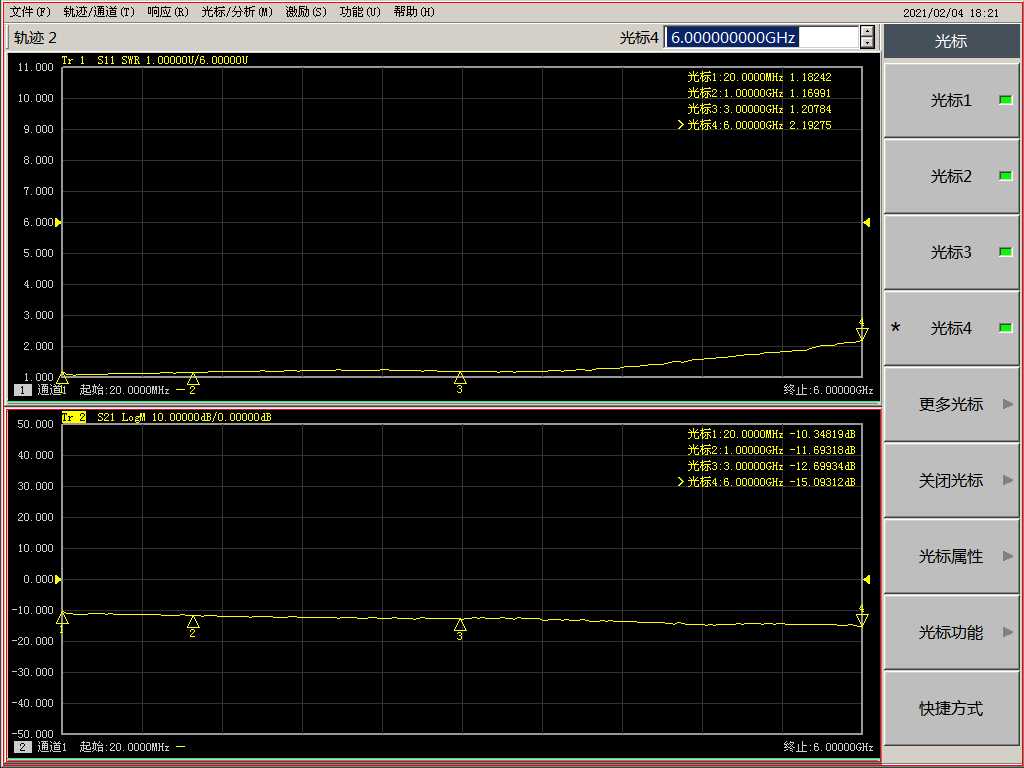

Measured S-parameter curve:
For 0DB Attenuation:
For 5DB Attenuation:
For 10DB Attenuation:
For 20DB Attenuation:
For 30DB Attenuation:
