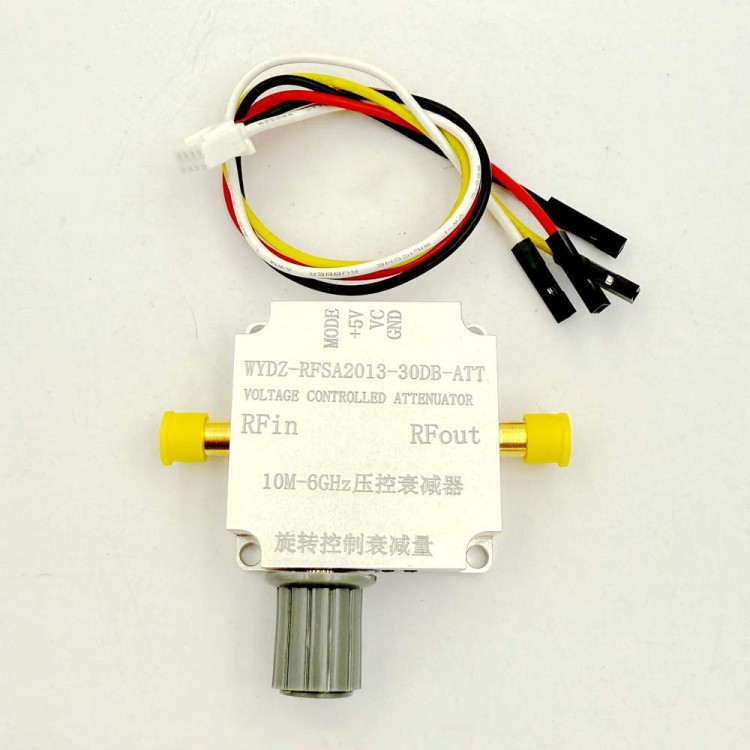

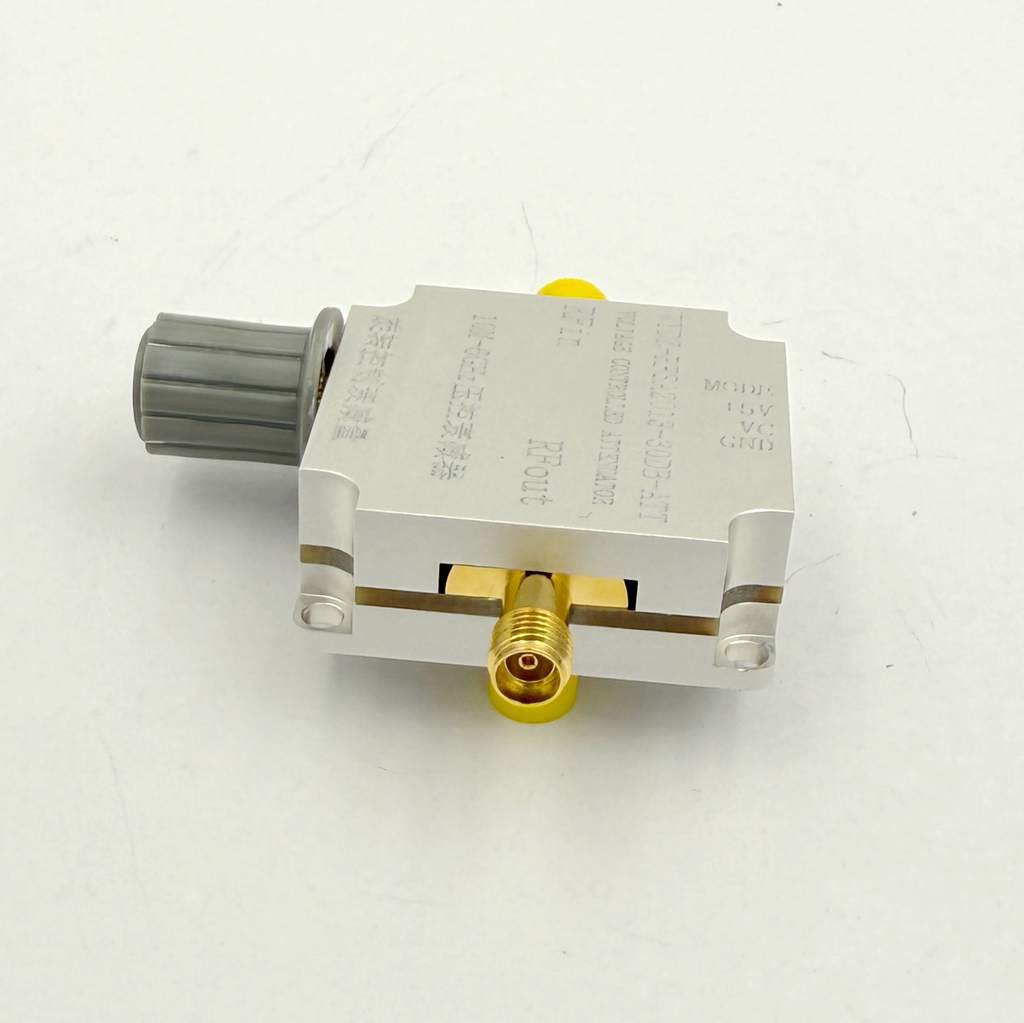

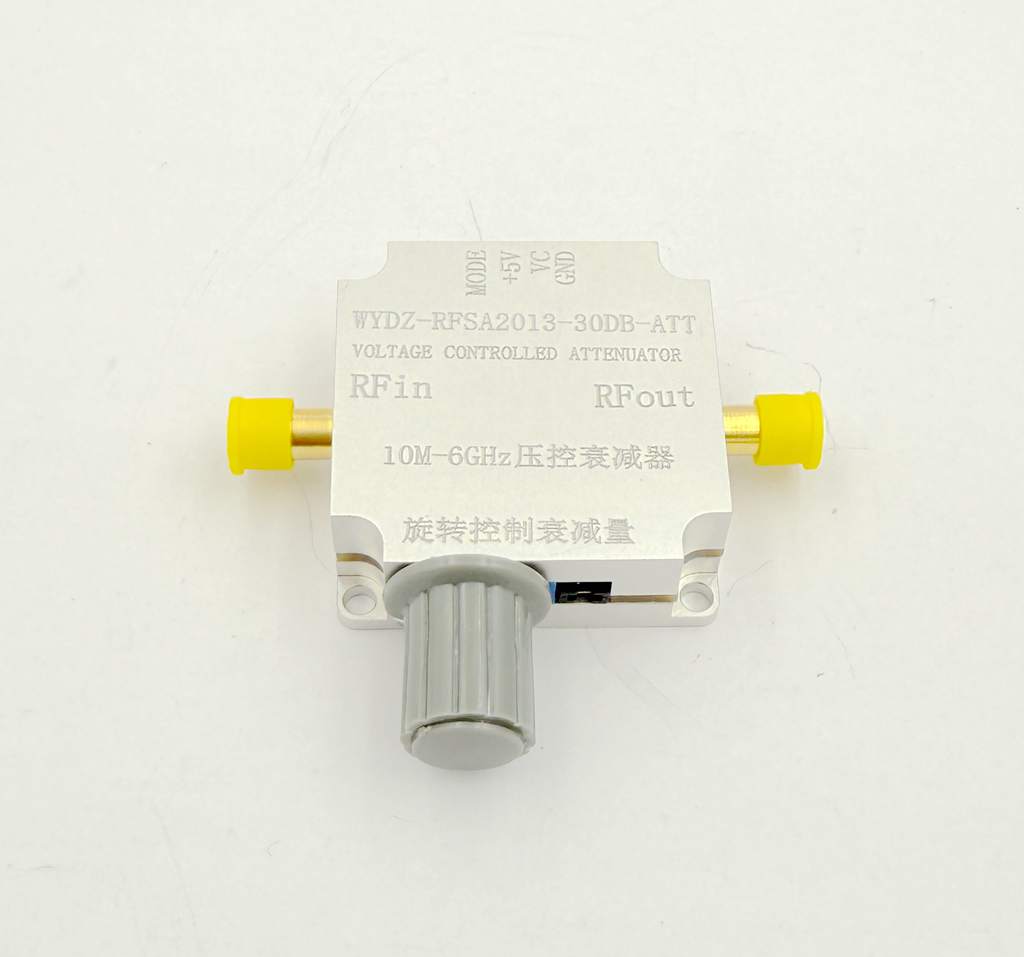

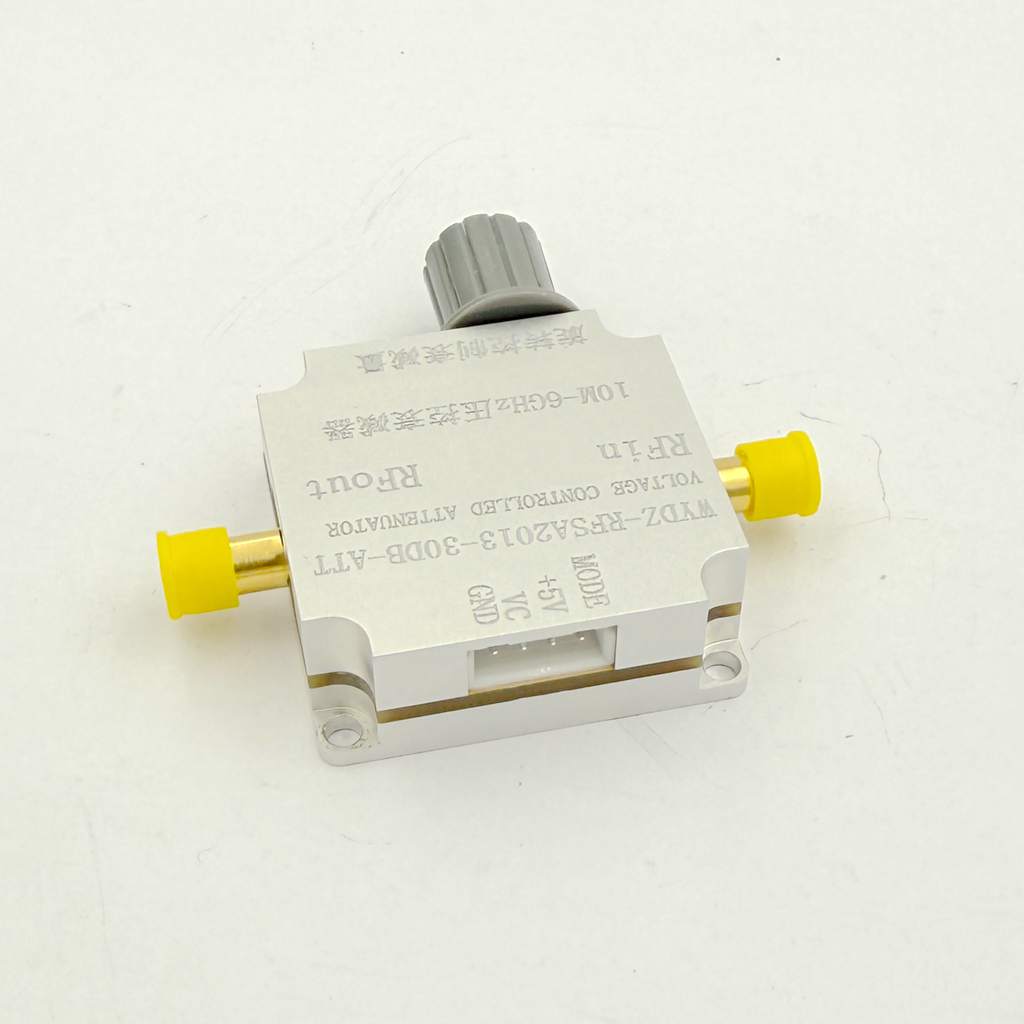

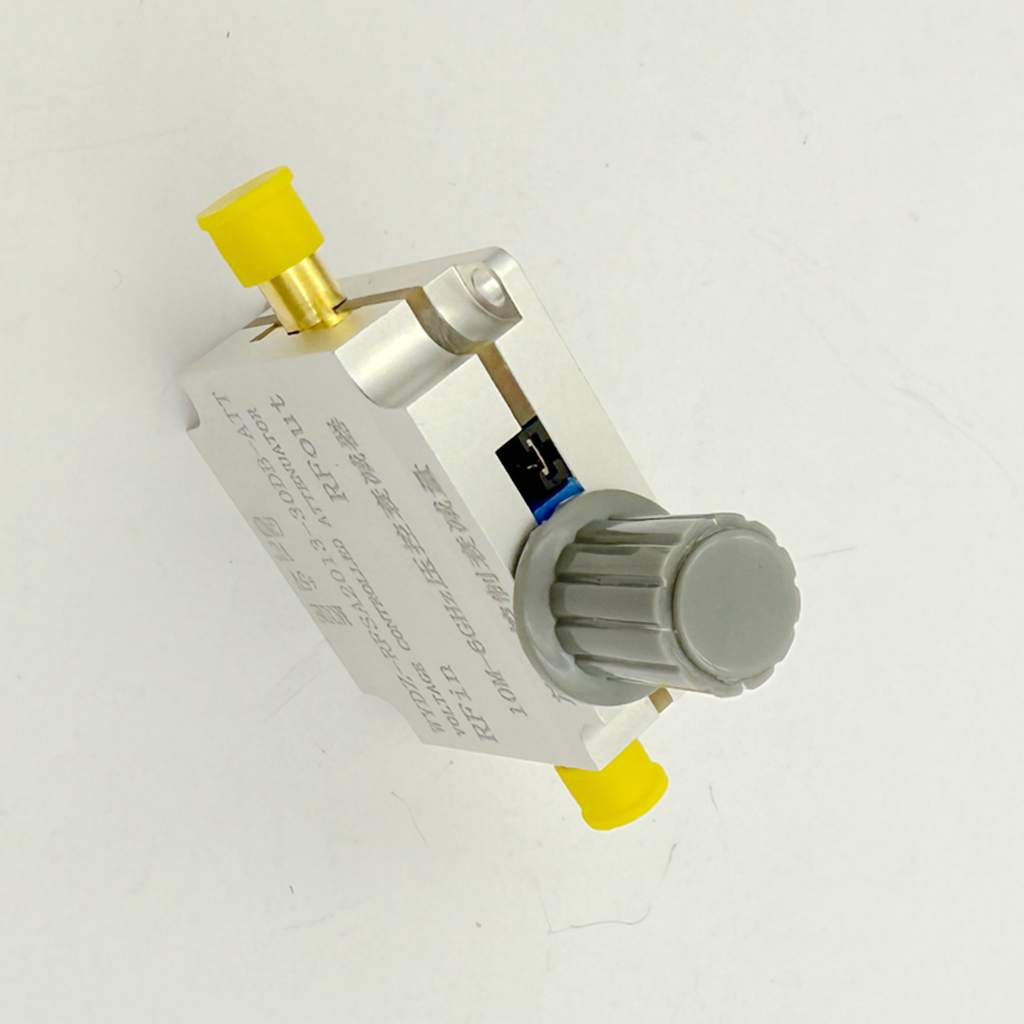

WYDZ-RFSA2013-30DB-ATT RF Attenuator 10MHz-6GHz Analog Voltage Controlled Attenuator with SMA Female Connector
Features:
- Input/output: SMA female connector, 26.5G clamp SMA, internal four layer gold-plated material.
- Fine tuning step: using a multi turn potentiometer for tight adjustment, the control voltage range is 0.8-3V with good linearity and a dynamic range of 30DB.
- Overall shell size: 3.8 x 3.8cm without protruding parts, with four M3 positioning holes.
- Maximum input power: 30dBm
Applications:
- For Cellular, 3G Infrastructure
- For WiBro, WiMax, LTE
- For Microwave Radio
- For High Linearity Power Control
Package Included:
- 1 x RF Attenuator

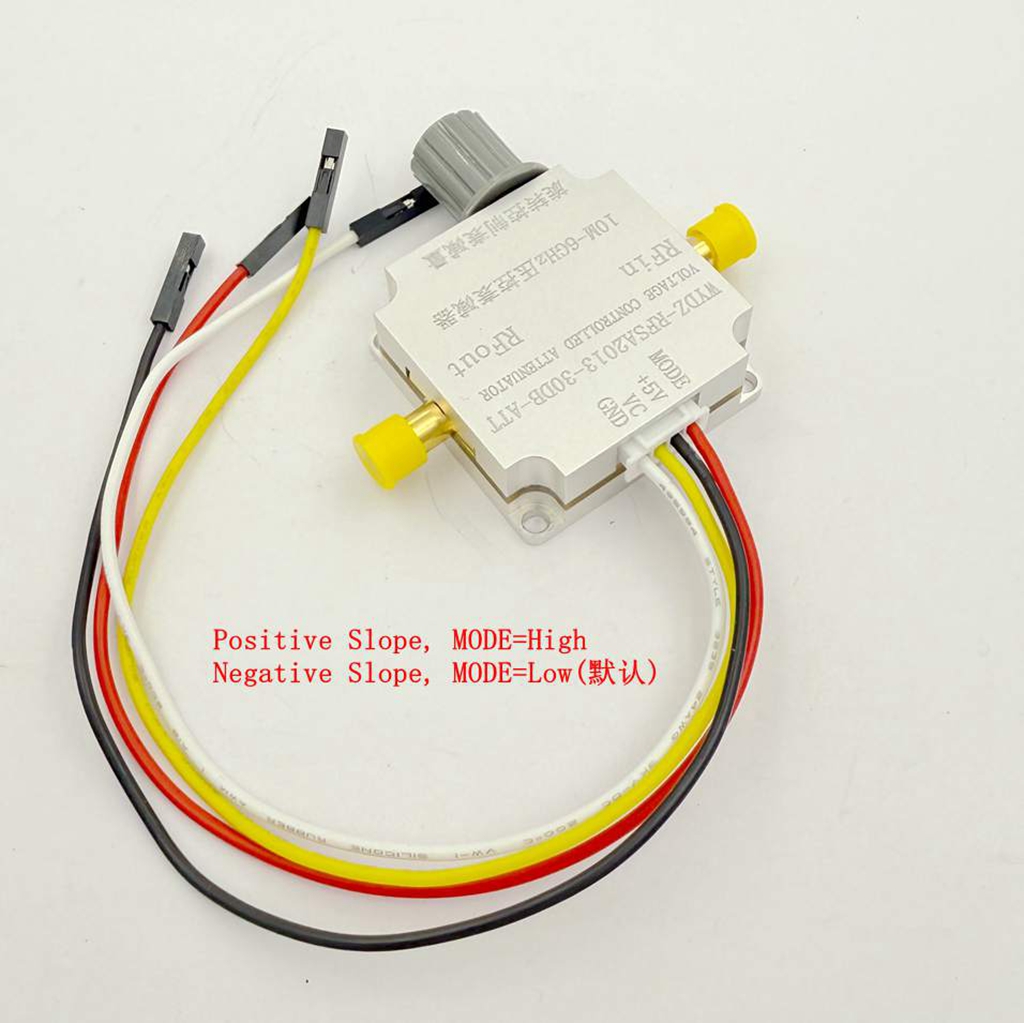

- 1 x 4Pin Control Cable

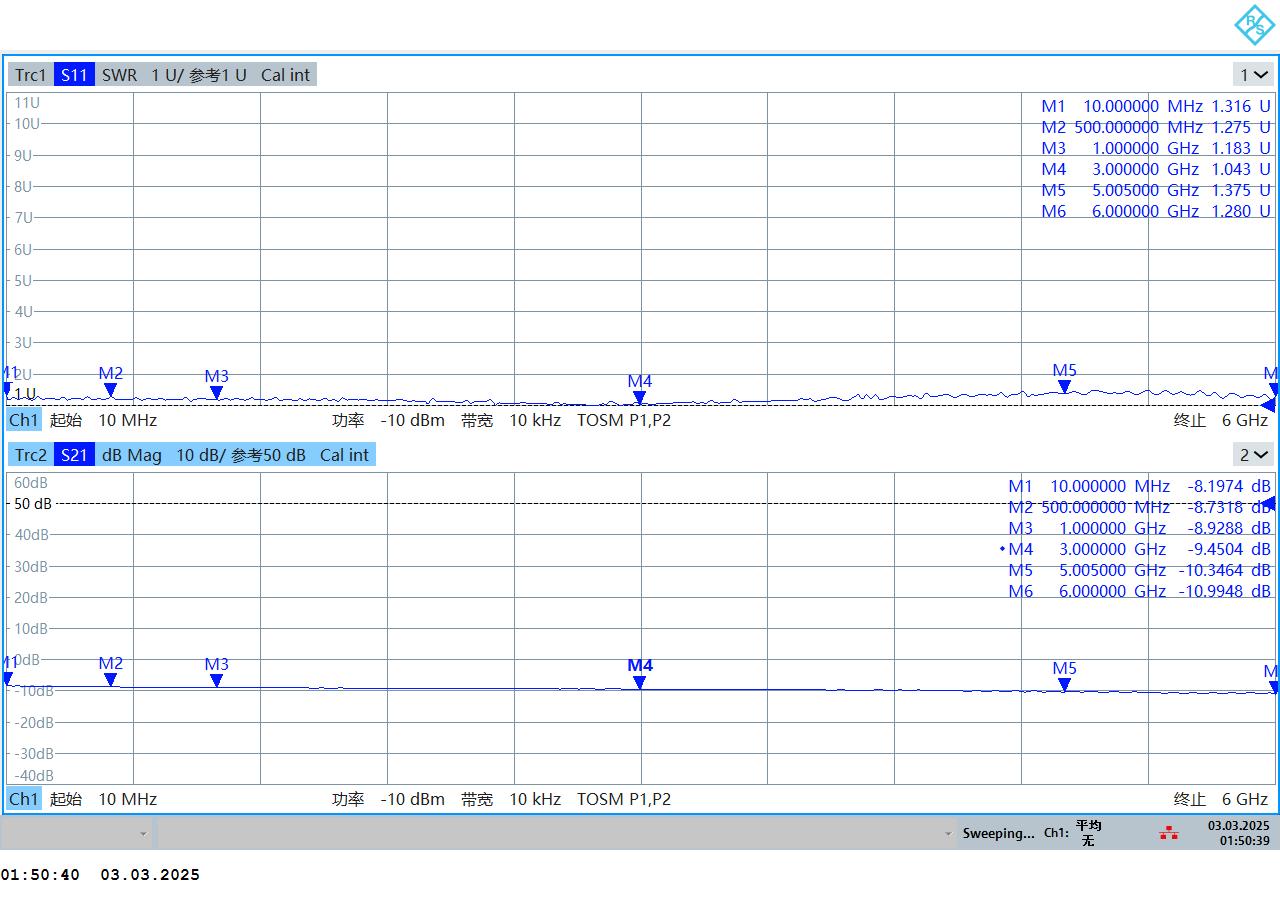

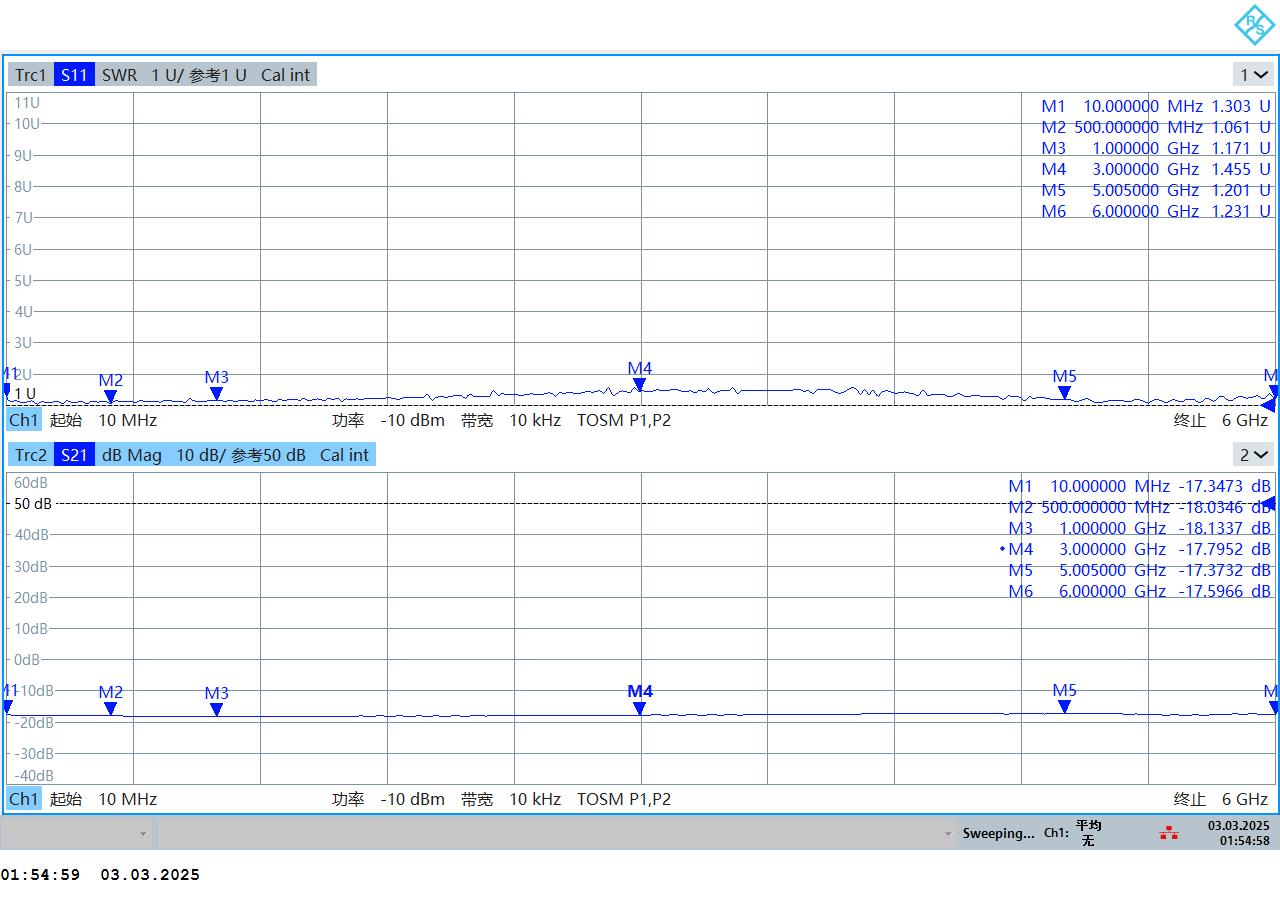

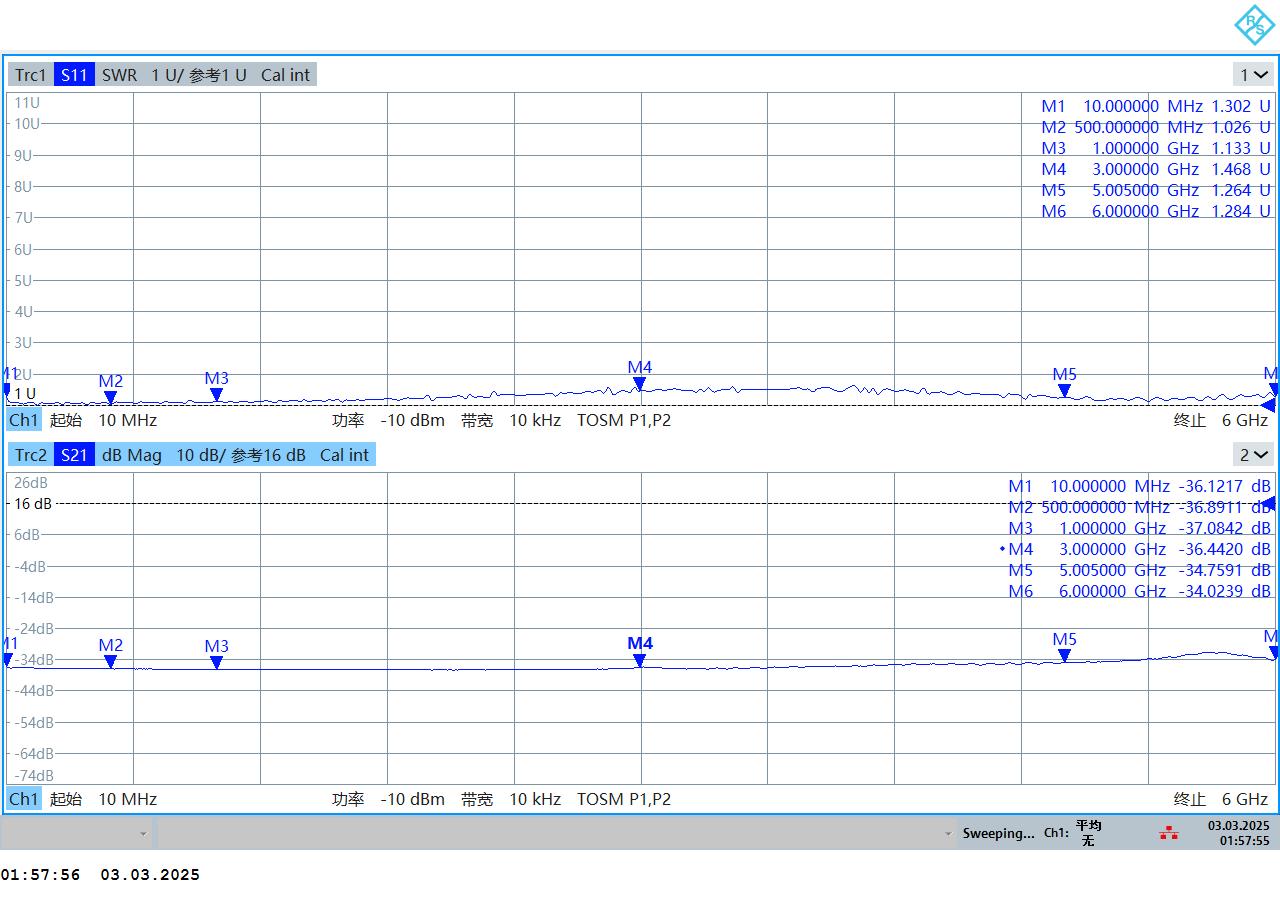

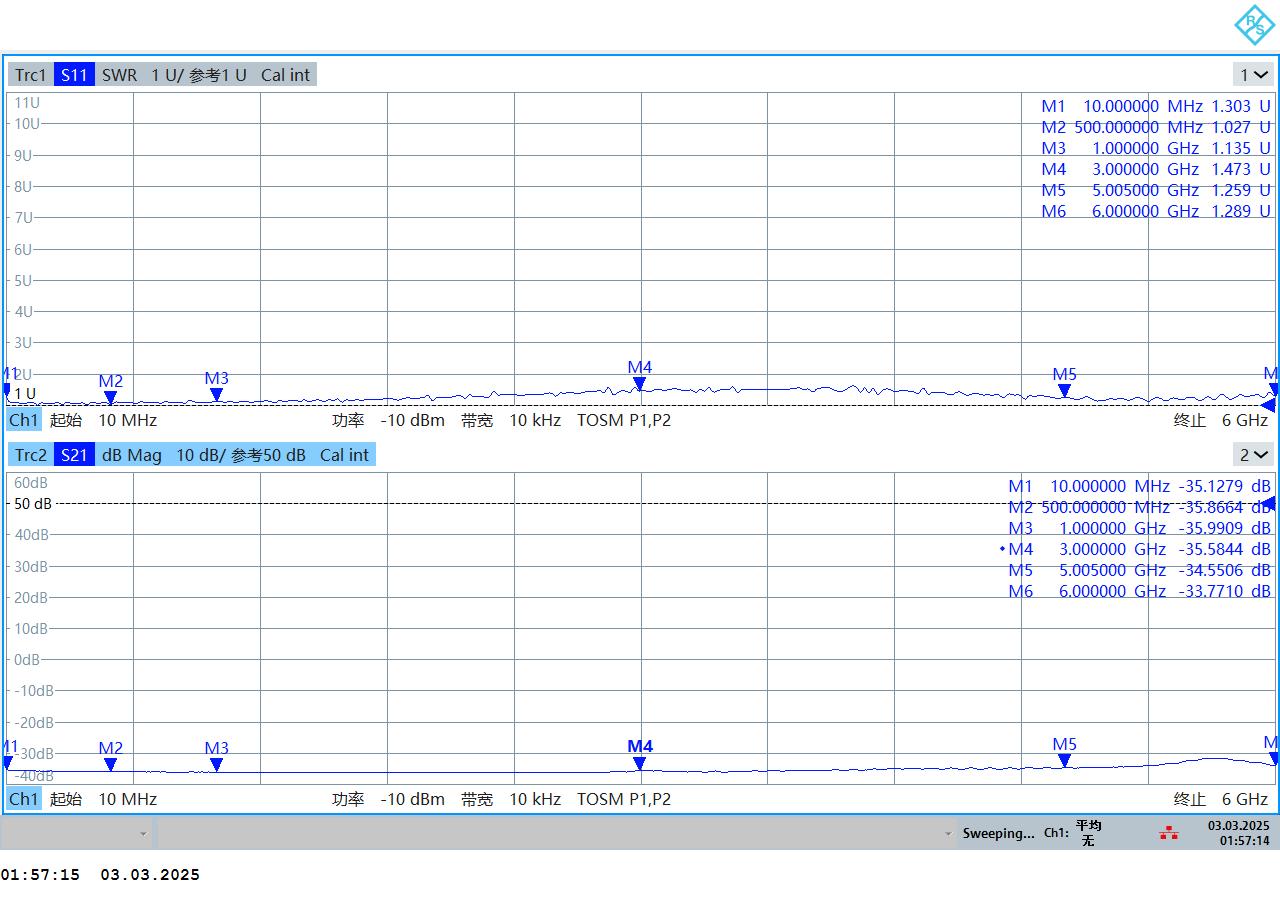

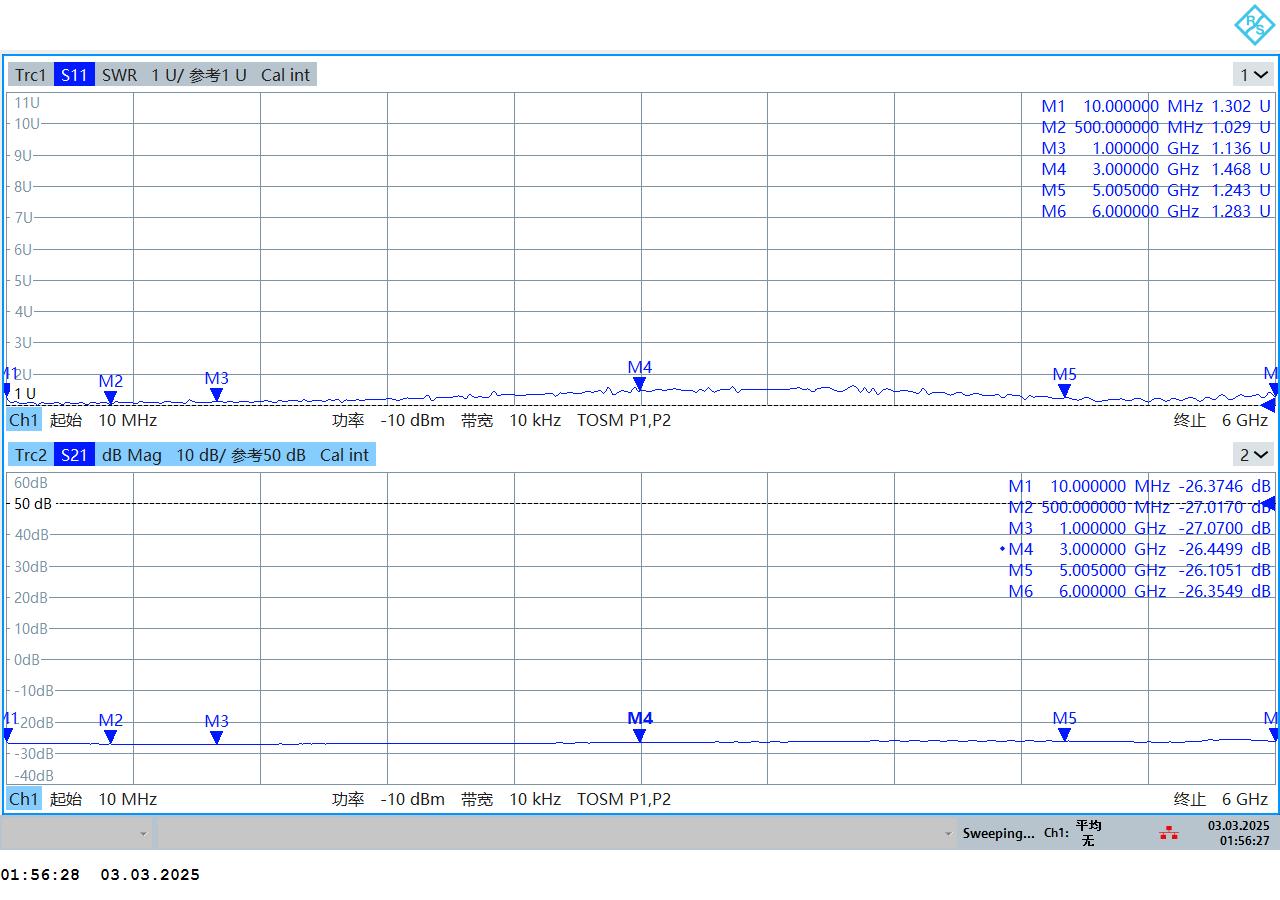

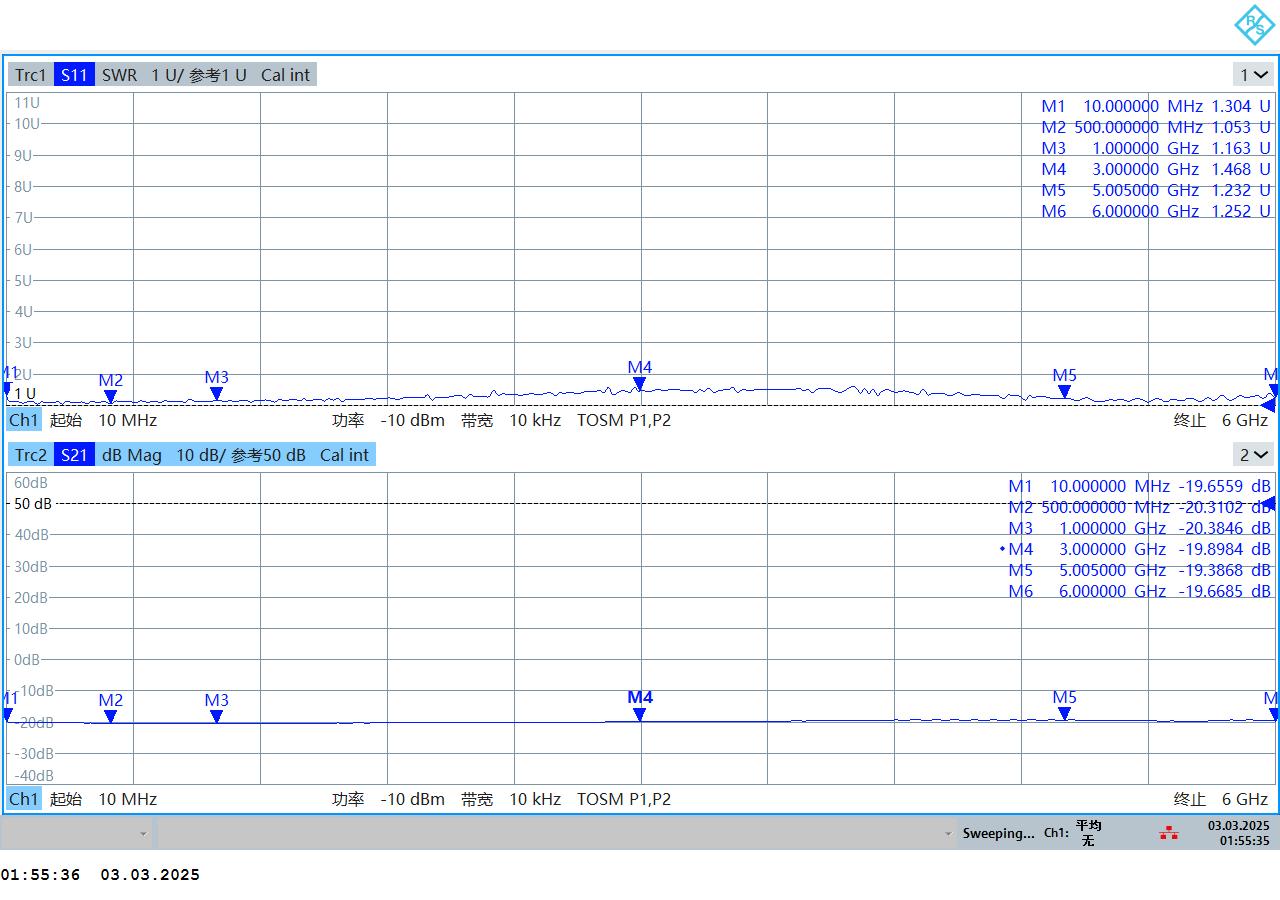

Actual Measurement S Parameter:
- VC voltage = 0V
- VC voltage = 1V
- VC voltage = 1.2V
- VC voltage = 1.5V
- VC voltage = 1.8V
- VC voltage = 2V
- VC voltage = 2.5V
- VC voltage = 2.8V
- VC voltage = 3V
- VC voltage = 3.2V
- VC voltage = 3.5V
- VC voltage = 4V
