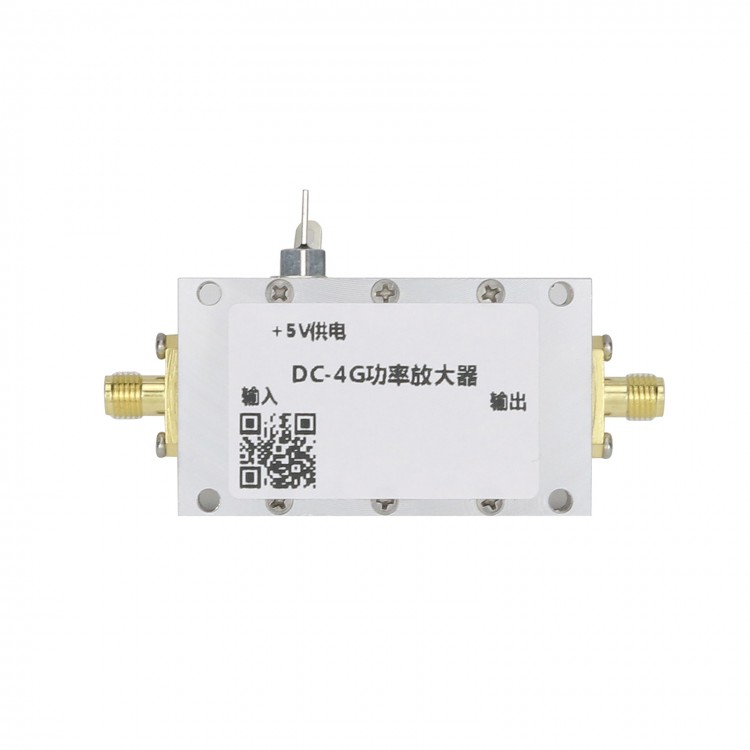

DC-4G RF Power Amplifier Microwave Broadband Amplifier RF Power Amp Gain Boost Module
Description:
The amplifier module is used as DC-4GHz transmitter RF signal gain boost, covering P, VHF, UHF, S and L-band broadband. Using imported die and CNC shell, it has excellent electromagnetic shielding performance. It can work in broadband in the range of DC-4G, and has 18dB typical gain and small gain fluctuation, using +5V single power supply. It can be widely used in intermediate frequency and RF gain boost and other transceiver systems.
Module Parameters:
- Working voltage: +5V single power supply
- Working current: 60mA (low power consumption)
- Operating frequency: DC-4GHz
- Gain: 18dB typical (see test curve below)
- P1dB output power: 20dBm
- Power supply interface: feed-through capacitor
- Input and output interface: SMA female connector

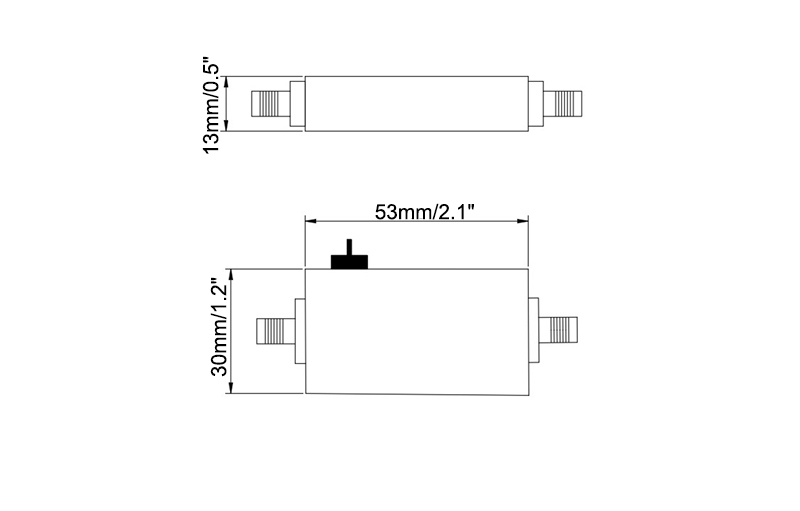

- Module size: 53 x 30 x 13mm/2.1 x 1.2 x 0.5" (excluding the size of connectors)
- With mounting holes
Package Included:
- 1 x RF Power Amplifier

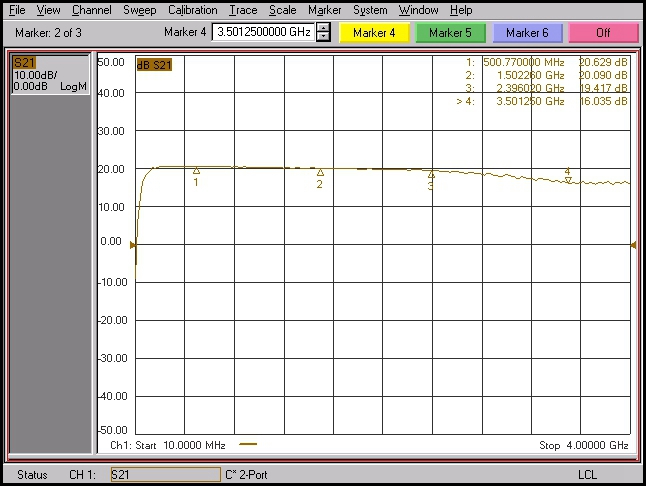

Gain Curve During Measurement:
